DVB-S2 8Fr input and DVB-T 12Fr output for up to 320M/39 HD channels


DVB-S2 8Fr input and DVB-T 12Fr output for up to 320M/39 HD channels

  • Model: 8Fr FTA S2 to 12Fr T modulator
  • Weight: 15,000.00g

In Stock

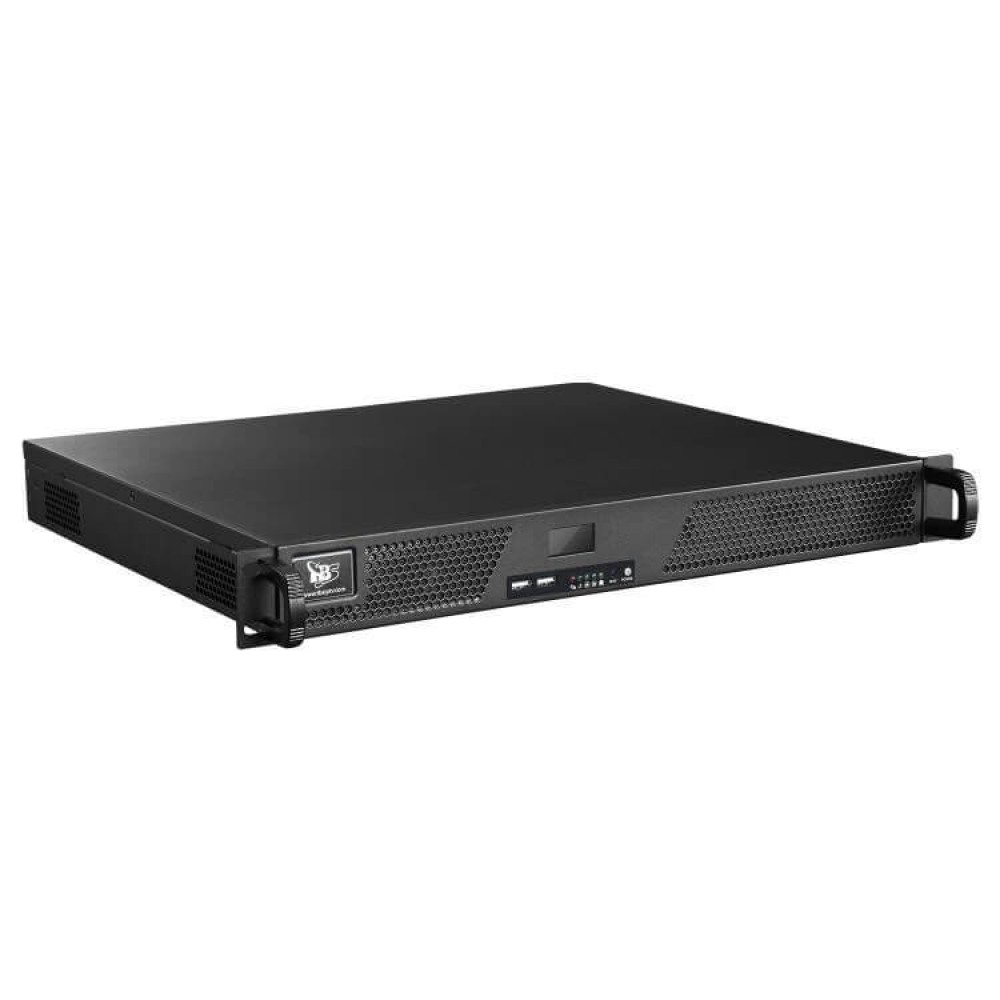

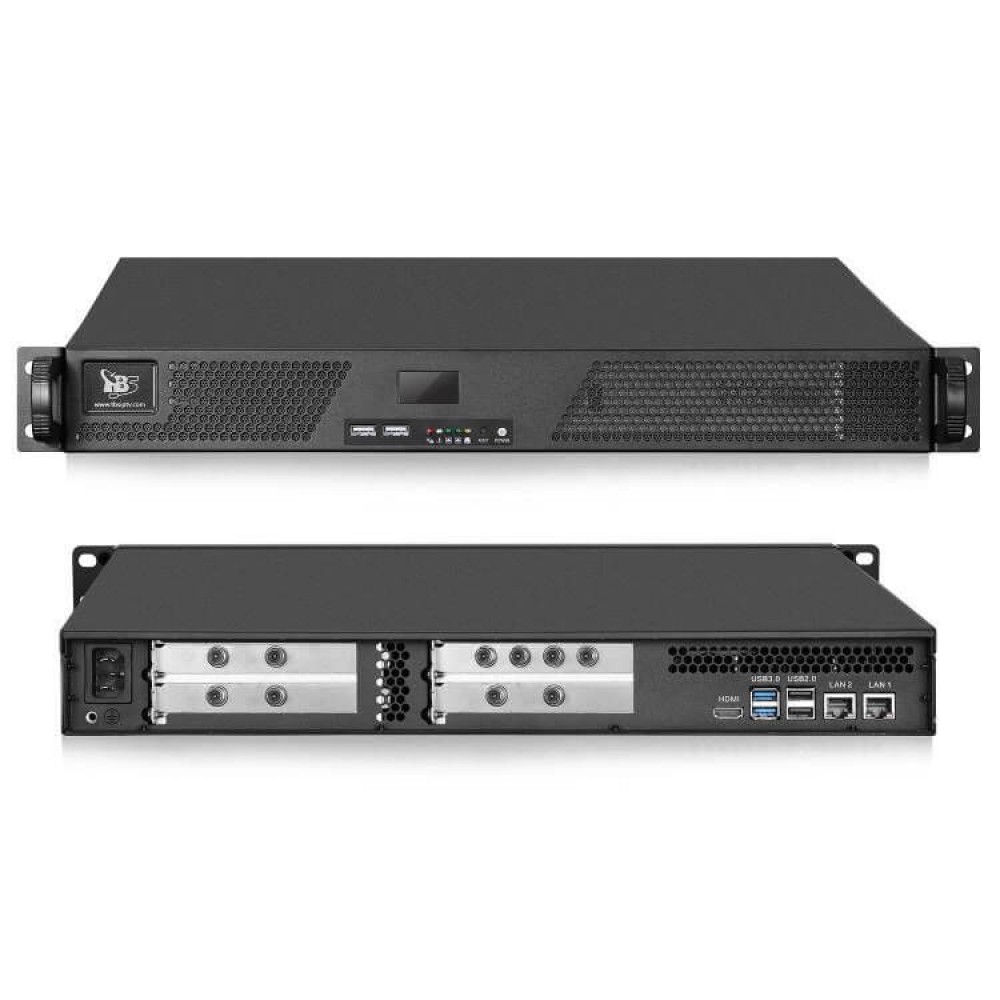

TBS DVB-S/S2 to DVB-T Modulator is a brilliant combination of TBS2955 streaming server with 1pcs TBS6909x V2 DVB-S/S2/S2X Octa Tuner PCIe card and 3pcs TBS6104 DVB-T modulator PCIe card. It supports to receive free satellite channels from 8 transponders simultaneously and convert to DVB-T signal outputting through standard DVB-T RF-port in 12 frequencies for around 39 HD channels.

Key Features

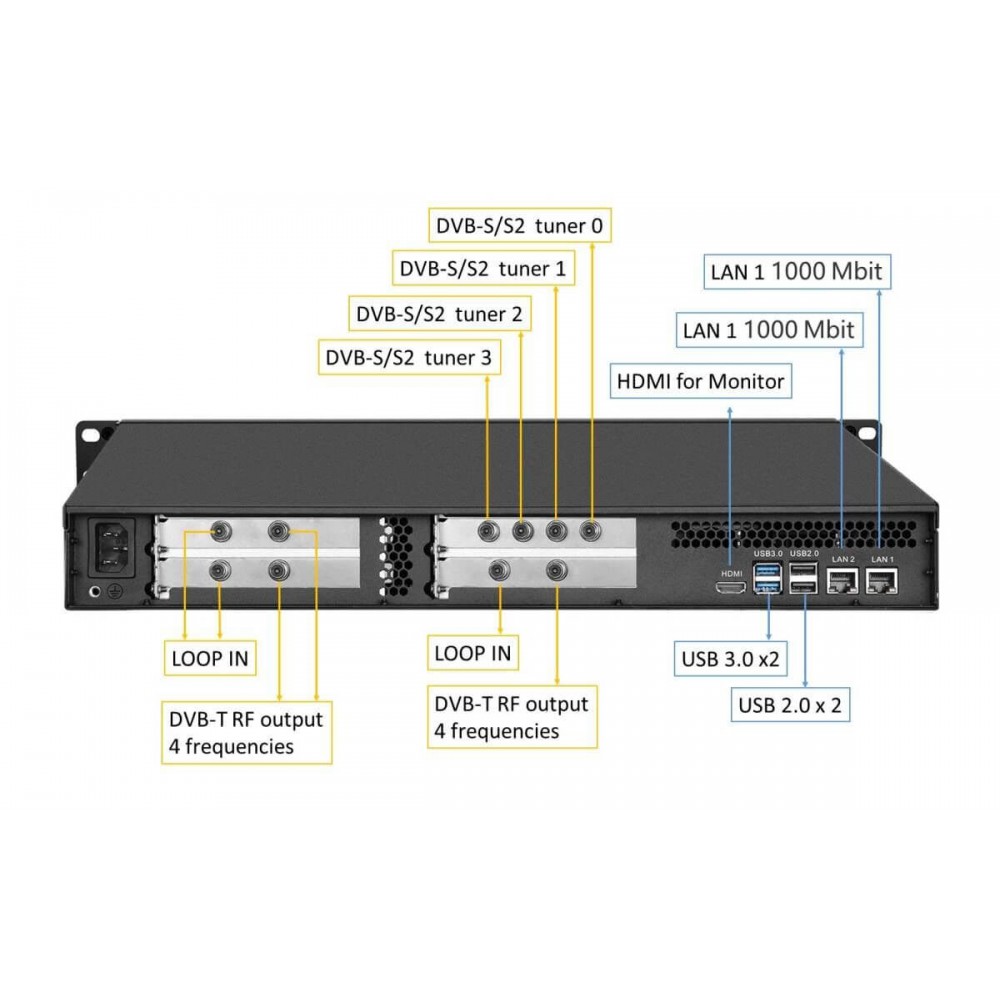

  • 8 DVB-S/S2/S2X RF input to capture free satellite channels in 8 transponders simultaneously
  • L-Band: 950 MHz to 2150 MHz
  • DVB FEC: (Auto Spectral Detection)
  • Modulation: QPSK, 8PSK, 16APSK, 32APSK
  • Outputs: DVB-T in 12 frequencies
  • DVB-T output frequencies range: 50 ~ 950 MHz
  • Output Channel bandwidth: 6,7,8 MHz
  • Software embedded supporting channels REMUX.
  • Supports to output around 320M DVB-T channels through 12 RF-port (Around 39 HD CHs)

Specifications

DVB-S/S2/S2X input
Signal system: DVB-S, DVB-S2, DVB-S2X
Transponders: 8 transponders
DVB-S/S2 Modulation:
  • QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
  • 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Modulation:
  • QPSK: 1/4, 1/3, 2/5 (S2-MODCODs), 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45
  • 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 32/45
  • 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 3/5, 32/45
  • 32APSK(32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10, (S2-MODCODs)32/45, 11/15, 7/9, (2/3)
L-Band: 950 MHz to 2150 MHz
Symbol rate 1 ~ 45Msymb/s
VCM Yes
DVB-T output
RF output DVB-T in 12 frequencies
Frequency range 50 ~ 950 MHz
Channel bandwidth 6, 7, 8 MHz
Level 5-120
FFT 2K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval: 1/4, 1/8, 1/16, 1/32
Max bit rate 27Mbps/per channel
General spec
OS Centos
Pre-installed software Kylone streaming platform
Dimension 439mm * 380mm * 52mm

Kylone streaming platform

DVB-S/S2/S2X Input setting:

DVB-T Output setting:
