Unicast/multicast Streams to DVB-T modulator For up to 320M/39 HD channels


Unicast/multicast Streams to DVB-T modulator For up to 320M/39 HD channels

  • Model: IP to DVB-T modulator
  • Weight: 15,000.00g

In Stock

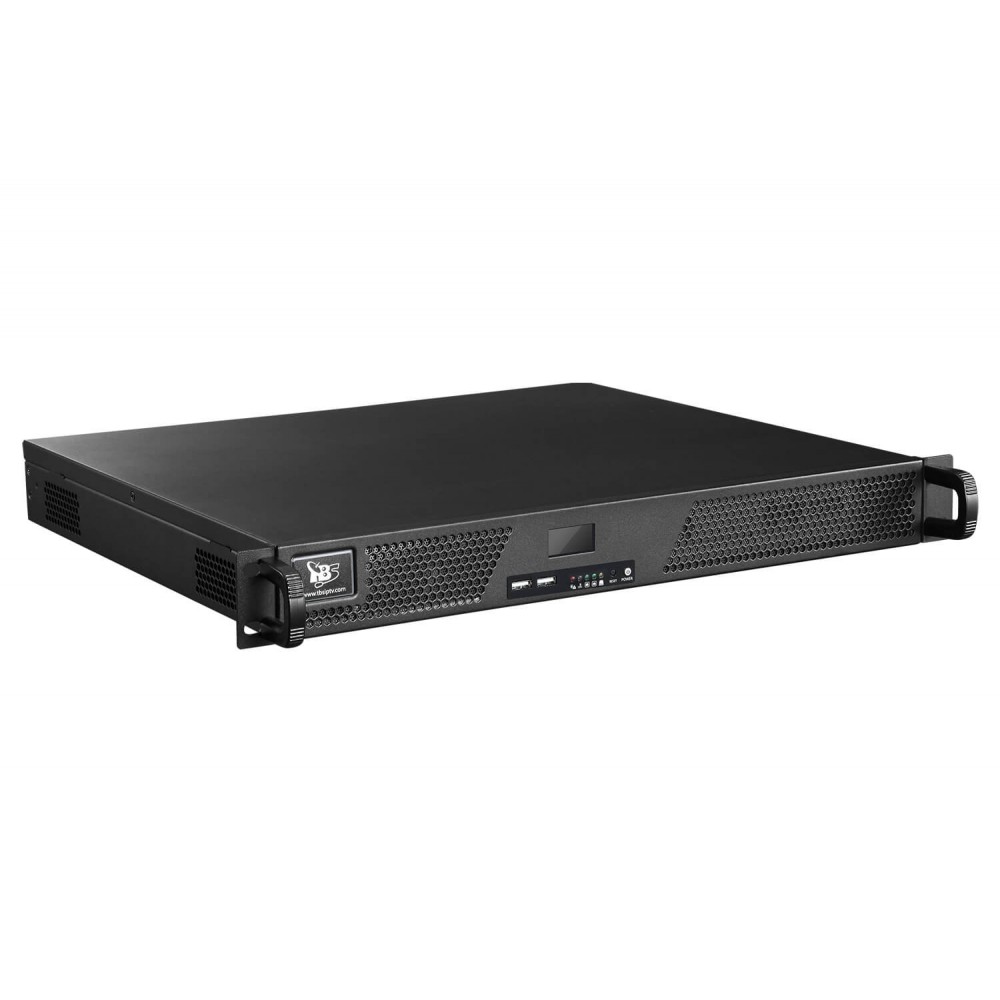

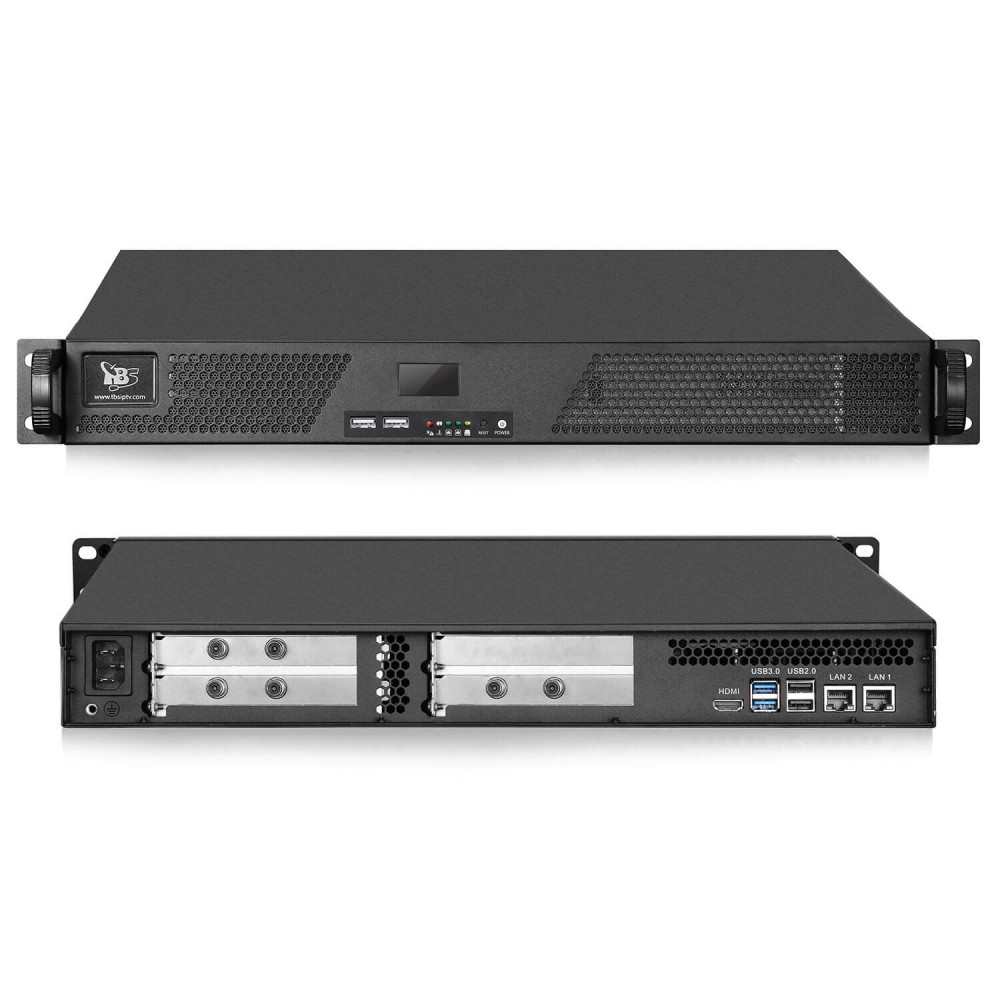

TBS IP Streams to DVB-T Modulator is a brilliant combination of TBS2955 streaming server and 3pcs TBS6104 DVB-T modulator PCIe card. It supports to receive IP streams from unicast or multicast, and convert the channels to DVB-T signal outputting through standard DVB-T RF-port in 12 frequencies for around 39 HD channels.

Key Features

  • 8 DVB-S/S2/S2X RF input to capture free satellite channels in 8 transponders simultaneously
  • L-Band: 950 MHz to 2150 MHz
  • DVB FEC: (Auto Spectral Detection)
  • Modulation: QPSK, 8PSK, 16APSK, 32APSK

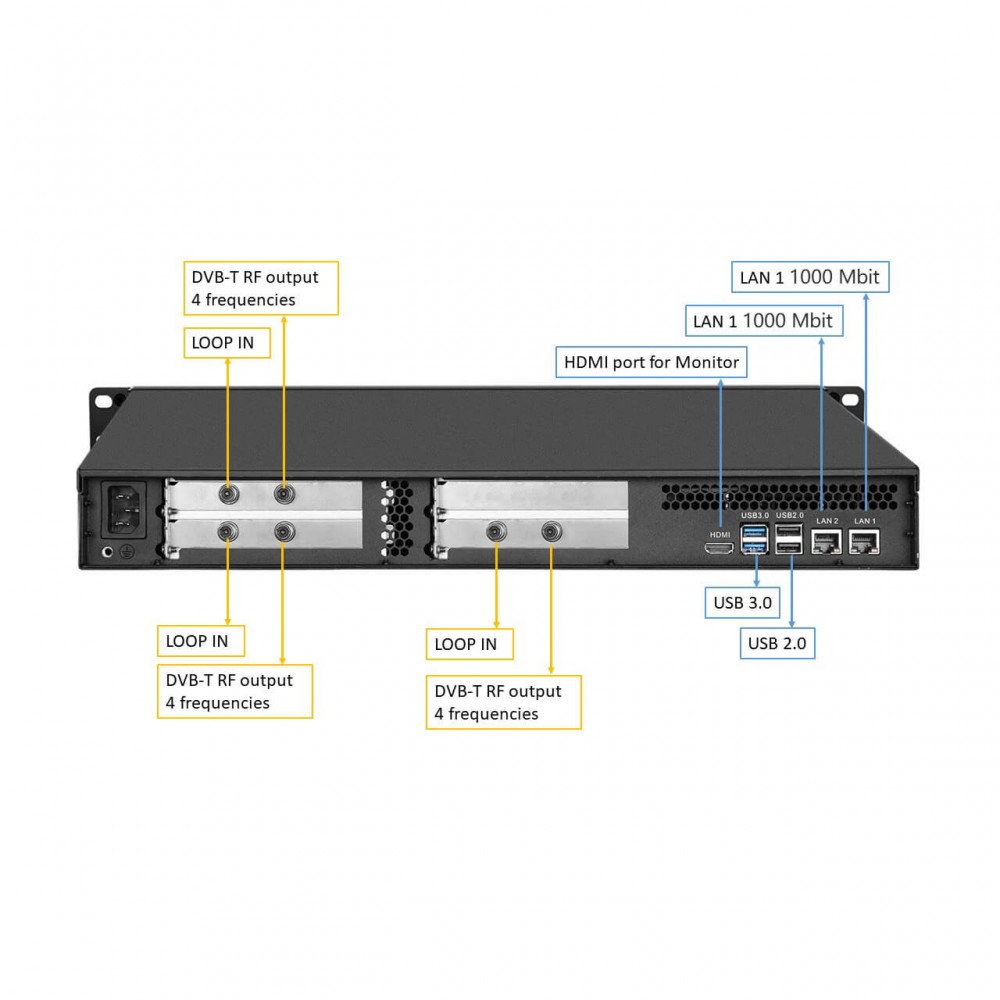

  • Outputs: DVB-T in 12 frequencies
  • DVB-T output frequencies range: 50 ~ 950 MHz
  • Output Channel bandwidth: 6,7,8 MHz
  • Software embedded supporting channels REMUX.
  • Supports to output around 320M DVB-T channels through 12 RF-port (Around 39 HD CHs)


IP streams input
Input Signal IP TS (MPTS/SPTS), 2x 100/1000M Ethernet ports
Transport Protocol UDP, RTP, HTTP, HLS, RTSP, Media Files, RTMP Unicast and Multicast, IGMP v2/v3
Transmission Rate Up to 840Mbps for each GE port
Input Channels 200 HD channels or 400 SD channels in Max.
Function PID remapping automatically
Accurate PCR adjustment
Automatic PSI/SI table generation
DVB-T output
RF output DVB-T in 12 frequencies (Around 39 HD channels)
Frequency range 50 ~ 950 MHz
Channel bandwidth 6, 7, 8 MHz
Level 5-120
FFT 2K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval: 1/4, 1/8, 1/16, 1/32
Max bit rate 27Mbps/per channel
General spec
OS Centos
Pre-installed software Kylone streaming platform
Dimension 439mm * 380mm * 52mm

Kylone streaming platform

DVB-S/S2/S2X Input setting:

DVB-T Output setting:
