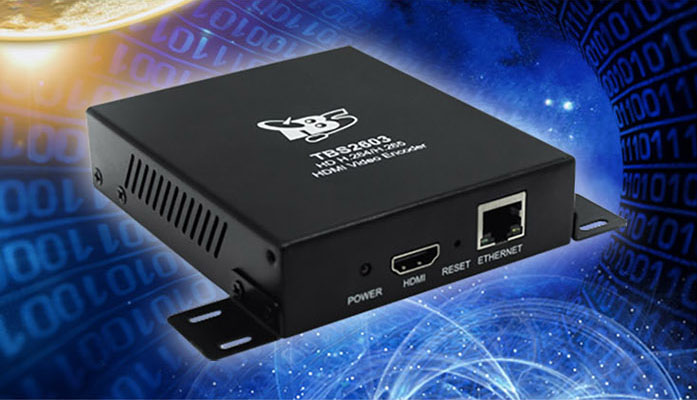

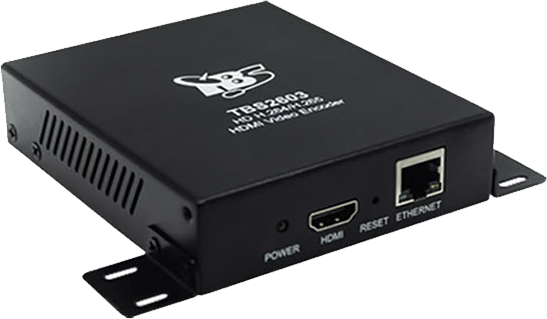

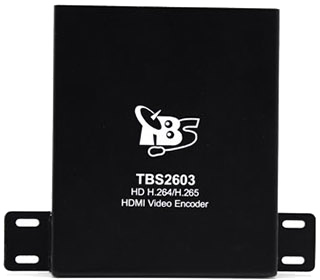

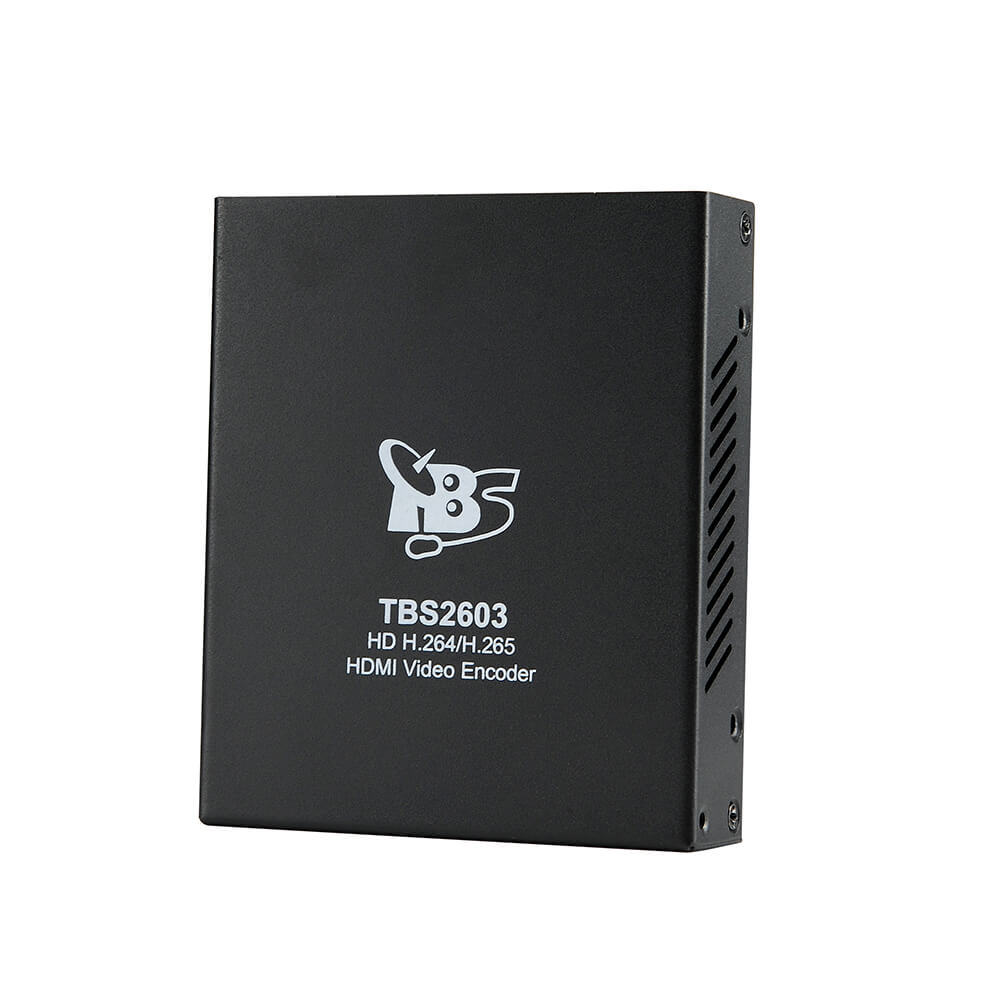

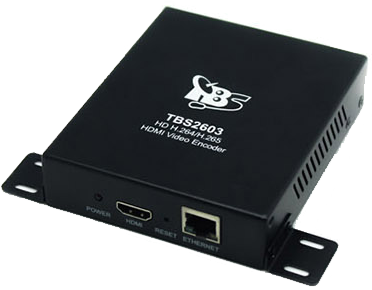

TBS2603 Professional HD H.264/H.265 HDMI Video Encoder
TBS2603 Professional HD H.264/H.265 HDMI Video Encoder
- Product Model:TBS2603
- Weight:760.00g
- Reward Points:199
In Stock
US$199.00
TBS2603
HD H.264
H.265
HDMI VIDEO ENCODER

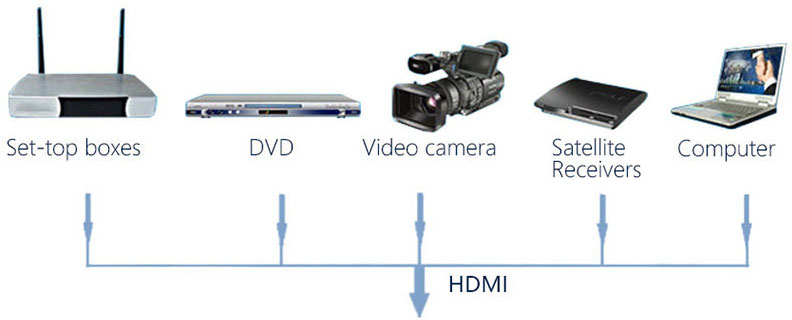

TBS2603 professional H.265 HDMI encoder is our newest HD audio & video encoding device with powerful functionality. It supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols and ONVIF. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

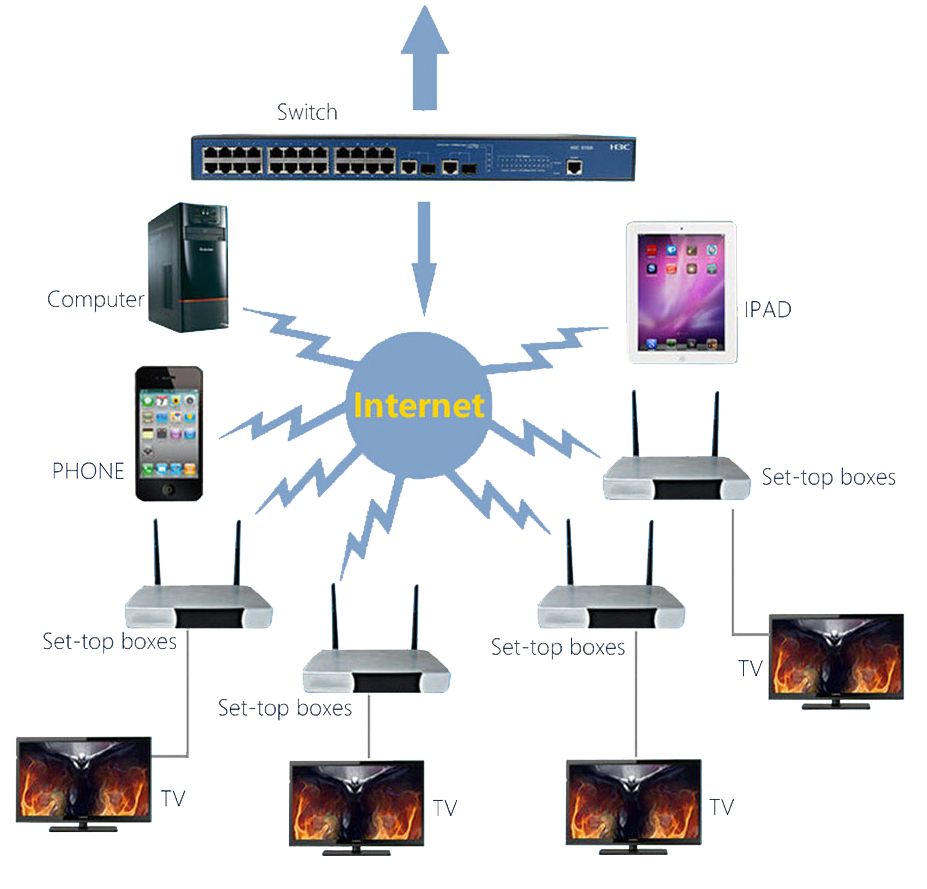

- IPTV
- Digital Signage
- Video Conference
- Replace HD Video Capture Card
- Hotel TV system
- Live Broadcast
- Teaching/Campus Broadcast
- Recording System; NVR (Net Video Recorder)
--Downsize large HD videos with nothing lost
An HD video is usually very large in size, so converting the HD video to an H.265 video is the perfect solution to save space while remain the video quality.
--Convert DVDs/Blu-rays to H.265 videos for feasible playback
If you want to view a DVD or Blu-ray movie on your video player devices, you need to convert the movie to a specific video at first. Here you can use H.265 encoder to get a video with high video quality and relatively smaller size.
--Convert regular videos to H.265 for better video quality
You can convert regular videos in other formats to H.265 videos with better video quality, and the file size is not large.
H.264 VS H.265
Table below gives a good basic idea of what sorts of benefits H.265 can offer compared to H.264.
| H.265/HEVC | H.264/AVC | |
| Names | MPEG-H, HEVC, Part 2 | MPEG 4 Part 10, AVC |
| Approved date | 2013 | 2003 |
| Progression | Successor to H.264/AVC | Successor to MPEG-2 Part |
| Key improvement | * 40-50% bit rate reduction compared with H.264 at the same visual quality * It is likely to implement Ultra HD, 2K, 4K for Broadcast and Online (OTT) |
* 40-50% bit rate reduction compared with MPEG-2 Part * Available to deliver HD sources for Broadcast and Online |
| Support up to 8K | Yes | No. Support up to 4K. |
| Support up to 300 fps | Yes | No. support up to 59.94 fps only. |
-- System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX
-- Support multiple equipments display at the same time on a computer
-- Support direct network connection without HD capture card
-- Support RTSP/RTP/RTMP, HTTP, UDP protocol and ONVIF
-- Main stream and secondary stream can use different network protocols for transmission
-- Encoding specification: BASELINE PROFILE (for H.264 and H.265) / MAIN PROFILE (for H.264 only)/ HIGH PROFILE (for H.264 only)
-- CBR/VBR rate control, 16KBIT/S~12MBIT/S
-- Web control interface
Video
| Input | 1x HDMI (1.3a) |
| HDMI Resolution | 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below |
| Encoding | H.264/AVC Main Profile/High Profile ; H.265/HEVC Baseline Profile; Audio AAC |
| Data Rate | 0.8Mbps~12Mbps |
| Rate Control | CBR/VBR |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
Audio
| Encoding | AAC, MP3 |
| Sampling rate | Auto |
| Bit-rate | 48K/64K/96K/128K/160K/192K/256k |
| Sampling precision | 16bit |
| Data Rate | 64Kb/s ~ 384Kb/s |
System
| Ethernet/RJ45 | 1000 Base-T Ethernet interface |
| Protocol | HTTP, UDP, RTP, RTSP, RTMP |
| Control Interface | WEB |
