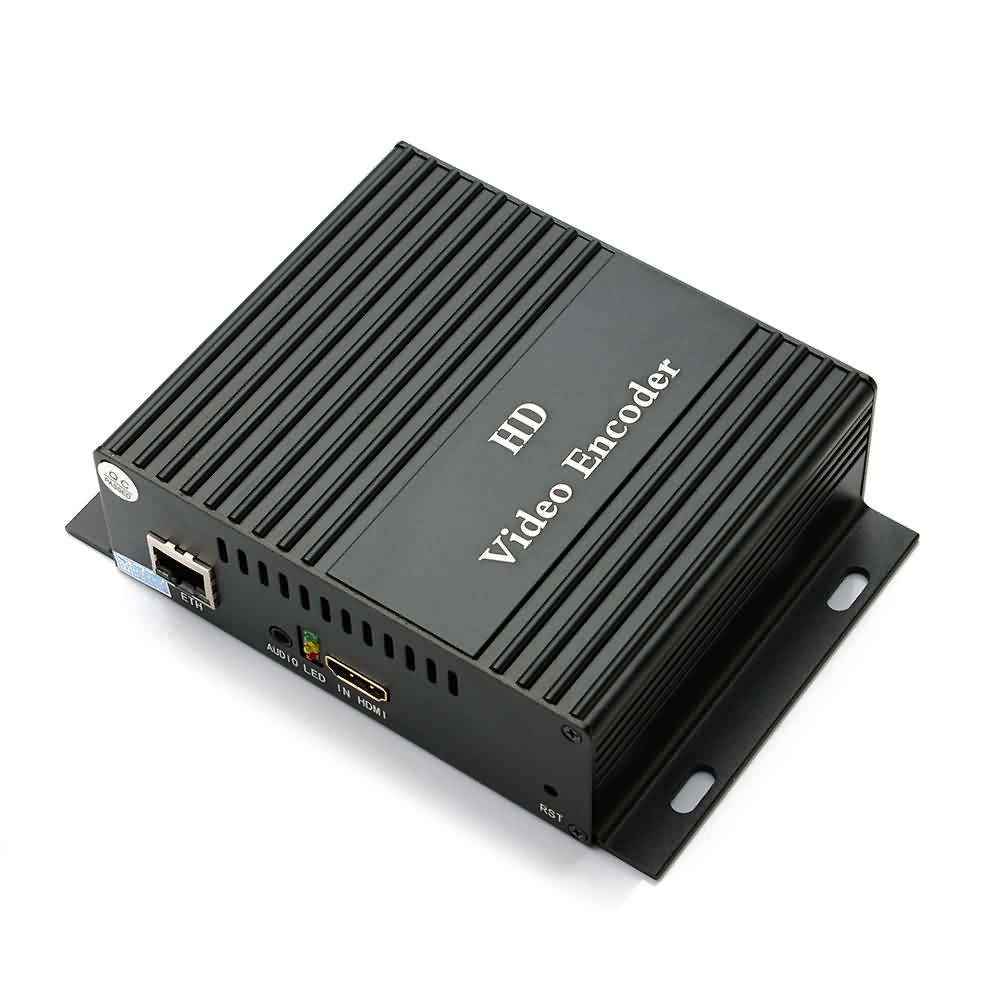

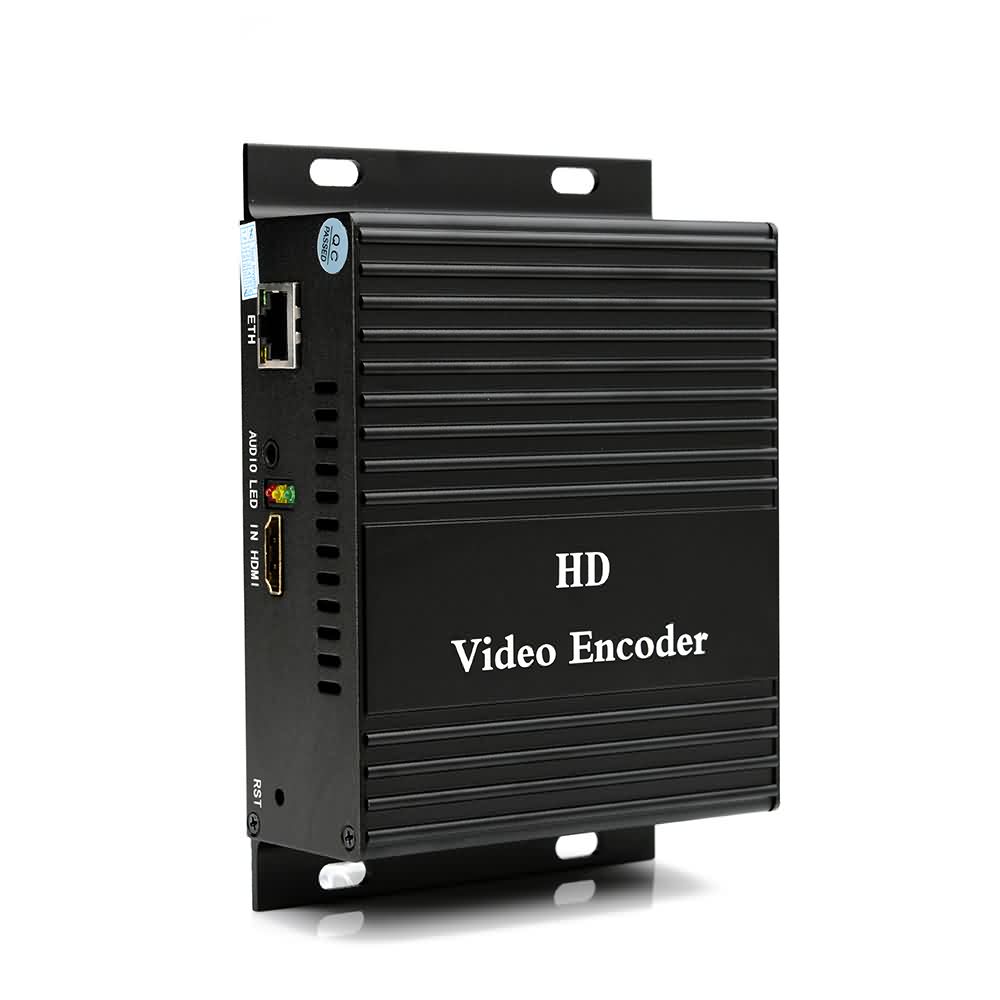

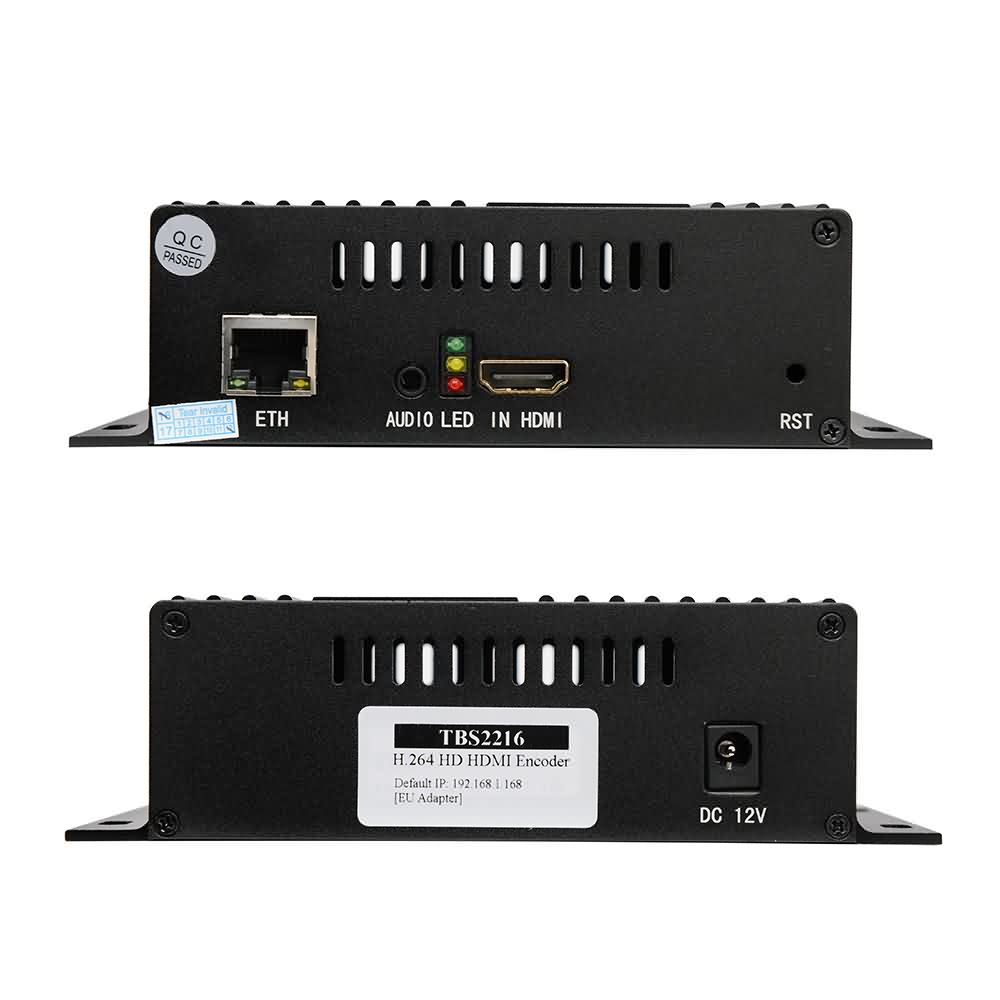

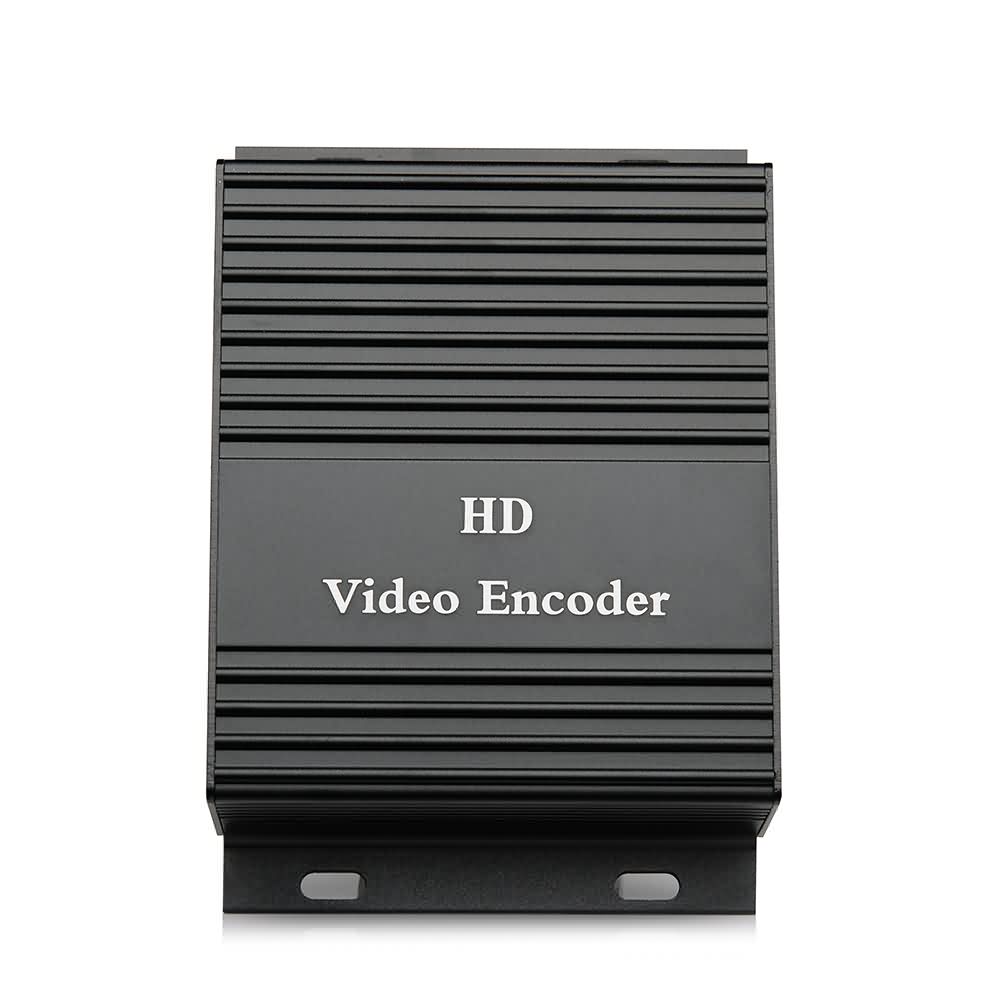

TBS2216 HD HDMI encoder is a professional high-definition video coding box, which equipped with 1 HDMI channel input and dual stream RJ45 output. TBS2216 supports MPEG-4 AVC/H.264 High Profile code format input and dual stream H.264 format, audio ACC format output.

TBS2216 HD HDMI encoder can be widely used to bellow applications:

• IPTV
• Digital Signage
• Video Conference
• Replace HD Video Capture Card
• Hotel TV system
• Live Broadcast
• Teaching/Campus Broadcast
• Recording System
• NVR (Net Video Recorder)

Specification:

Video:

• Input: 1x HDMI (1.3a);
• HDMI Resolution: 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below;
• Encoding: H.264/AVC Main Profile/High Profile ,Audio AAC;
• Data Rate: 0.8Mbps~12Mbps;
• Rate Control: CBR/VBR;
• GOP Structure: IBBP;
• Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening.

Audio:

• Encoding: AAC, MP3;
• Sampling rate: Auto;
• Bit-rate: 32K/48K/64K/96K/128K/160K/192K;
• Sampling precision: 24 bit;
• Data Rate: 64Kb/s ~ 384Kb/s;

System:

• Ethernet/RJ45: 1000 Base-T Ethernet interface;
• Protocol: HTTP，UDP，RTSP，RTMP，ONVIF;
• Control Interface: WEB;

General Spec:

• Size: 170mm*130*30mm
• Weight: 0.5kg
• Working Temperature: 0~45℃

Packing List:

• TBS2216 HDMI Video Encoder *1PCS
• Power DC12V *1PCS
• Giftbox *1PCS
