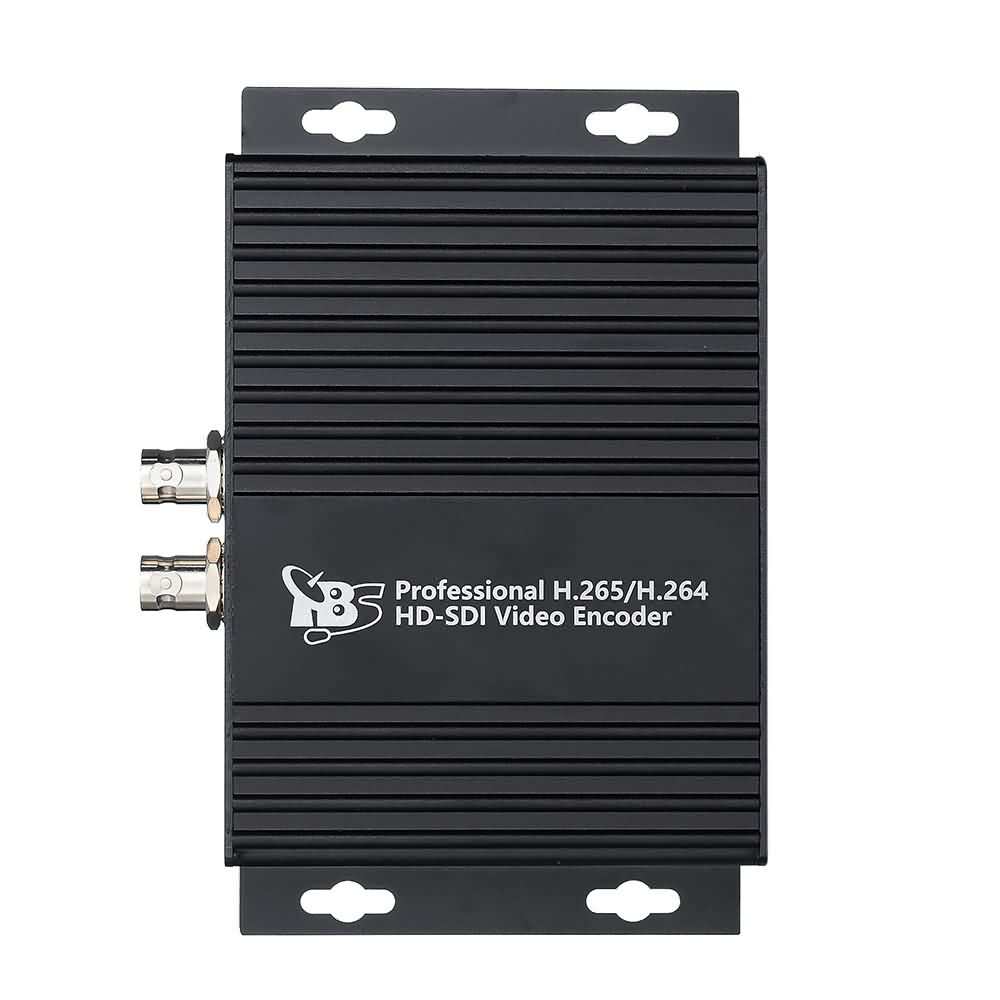

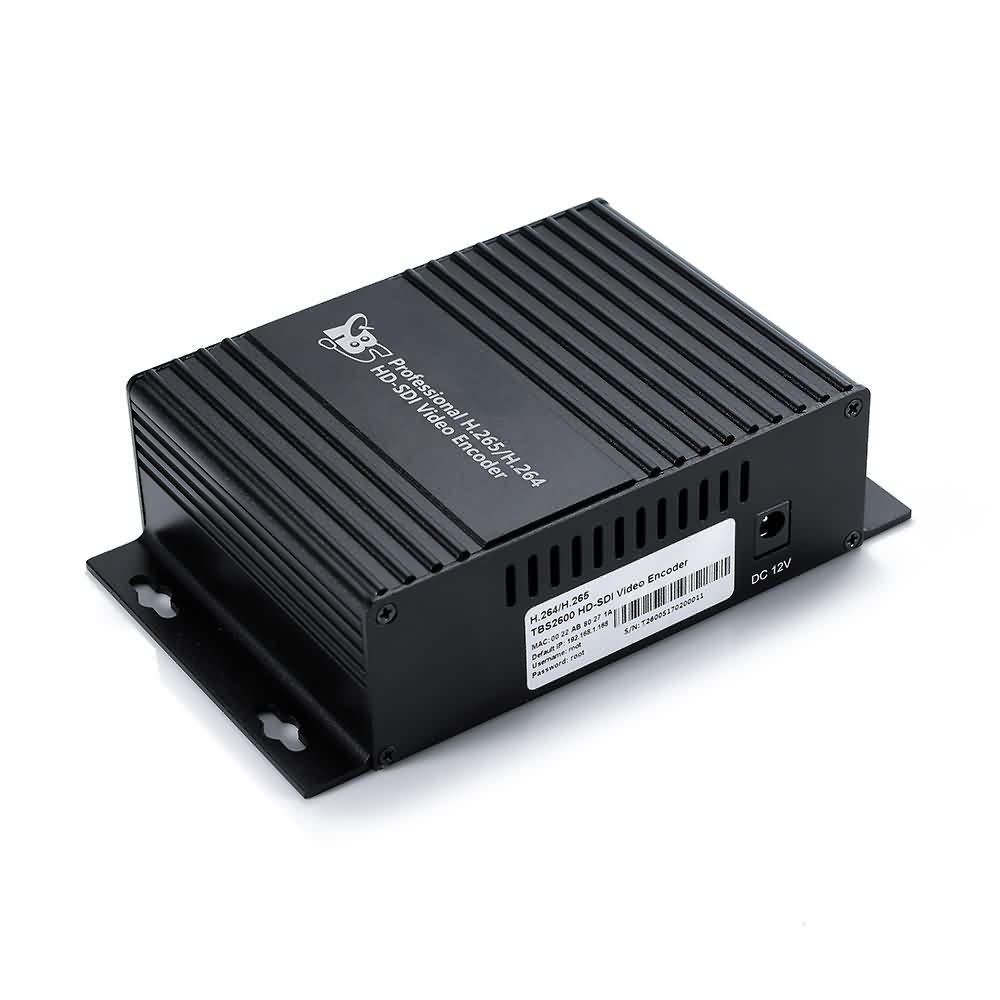

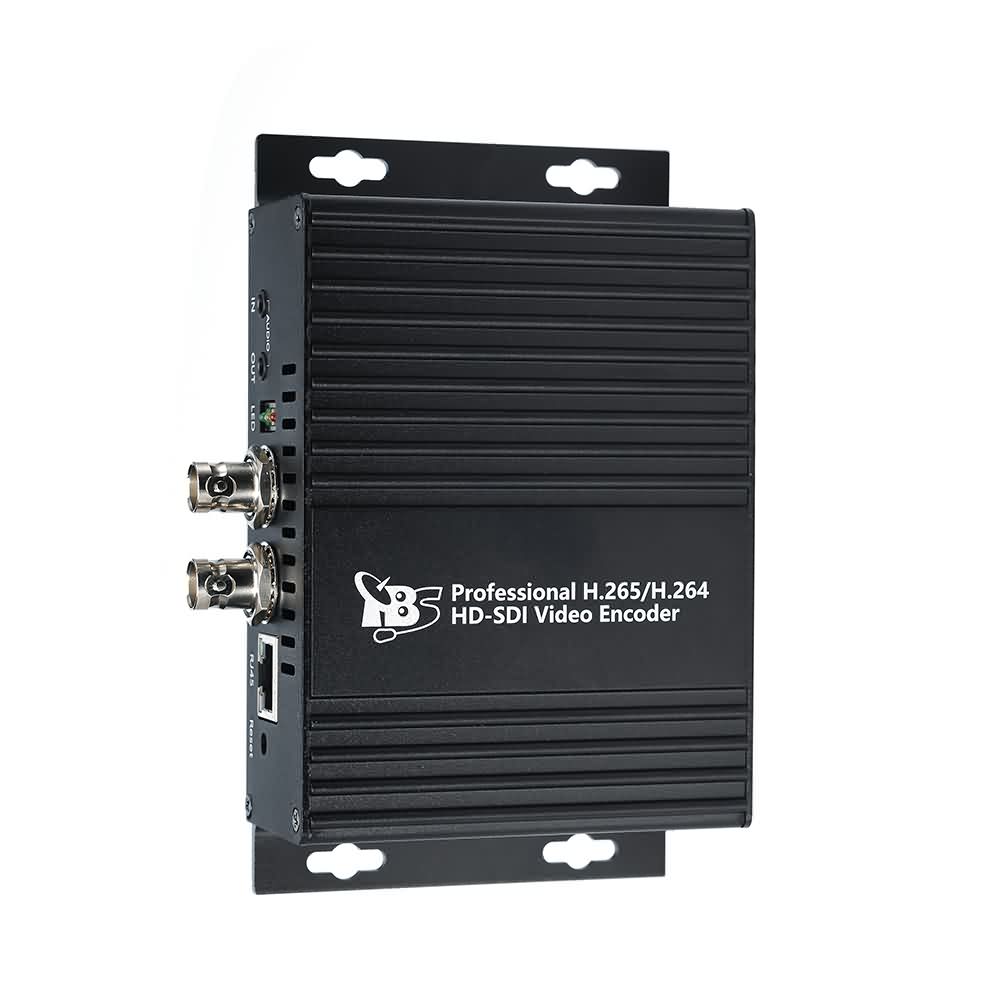

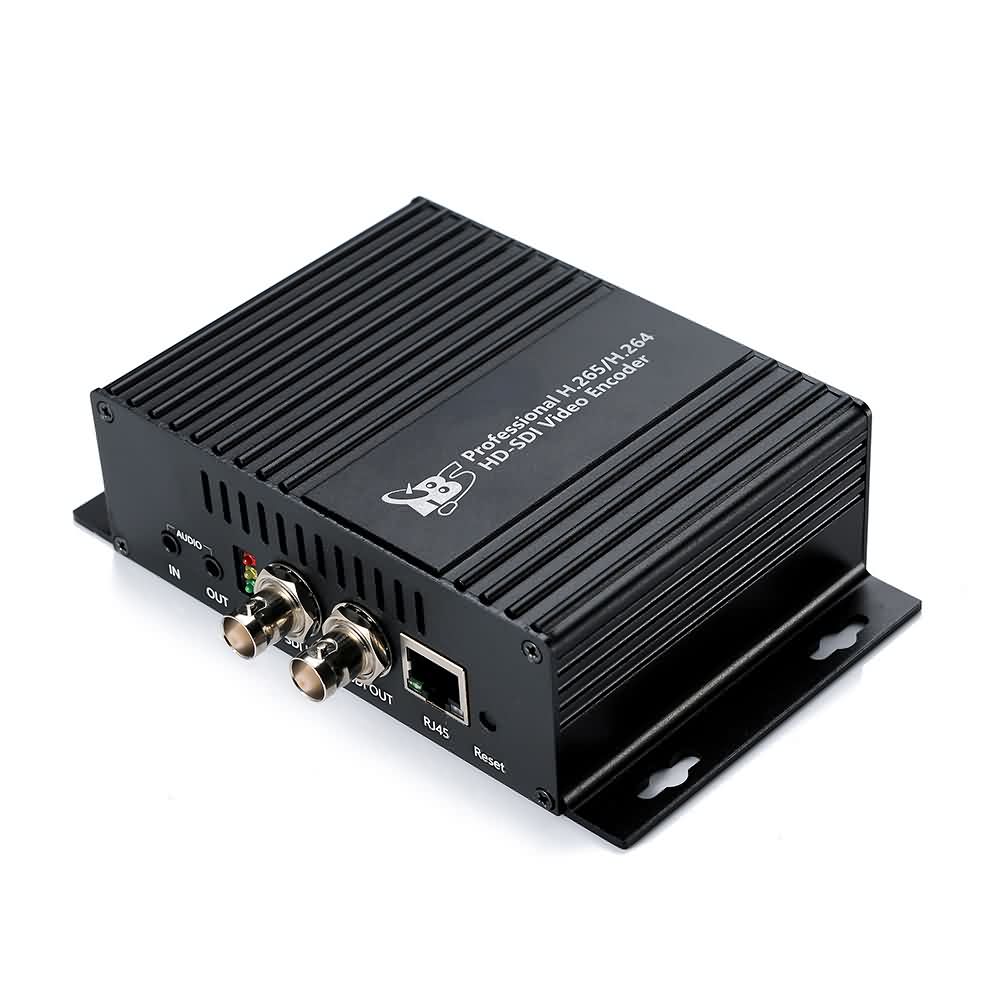

TBS2600V1 Professional H.265/H.264 HD-SDI Video Encoder

  • Product Model: TBS2600V1
  • text_weight 650.00g
  • Reward Points: 310
  • Price in reward points: 15500

In Stock

US$269.00

TBS2600 is a professional H.265/H.264 HD-SDI video encoder, which equipped with SDI input and dual stream RJ45 output, what's more, it has SDI output which can output original data directly. It supports MPEG-4 AVC/H.265/H.264 High Profile code format input and dual stream H.264 format, audio ACC format output, it also compatible with  HTTP, UDP, RTSP, RTMP, ONVIF protocols.

The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Features

  • Support direct network connection without HD capture card
  • Main stream and secondary stream can use different network protocols for transmission
  • Low Power consumption, less than 6W
  • Compliant with HTTP/RTSP/RTP/RTMP/UDP protocols
  • Supports MPEG-4 AVC/H.265/H.264 High Profile code

Application

  • IPTV
  • Digital Signage
  • Video Conference
  • Replace HD Video Capture Card
  • Hotel TV system
  • Live Broadcast
  • Teaching/Campus Broadcast
  • Recording System
  • NVR (Net Video Recorder)

Specification

Input

Video Input SDI
Audio input SDI embedded audio
AC IN 110V~240V
AC rate 60/50Hz

Output

DC output 12V/12.5A
Power Dissipation 96W

Vedio

Resolution 1920×1080_60i/60P, 1920×1080_50i, 1280×720_60p, 1280×720_50p and below
Encoding H.265/H.264/AVC Main Profile/High Profile , Audio AAC
Data Rate 16KBIT/S~12MBIT/S
Rate Control CBR/VBR
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening

Audio

Encoding AAC, MP3
Sampling rate Auto
Bit-rate 32K/48K/64K/96K/128K/160K/192K
Sampling precision 24 bit
Data Rate 64Kb/s ~ 384Kb/s

System

OS WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX
Ethernet/RJ45 1000 Base-T Ethernet interface
Control Interface Web
Protocol HTTP, UDP, RTSP, RTMP, ONVIF

Others

Dimension 482mm*320.2mm*108mm
Net weight 0.65kg
temperature -20℃+ 60℃
