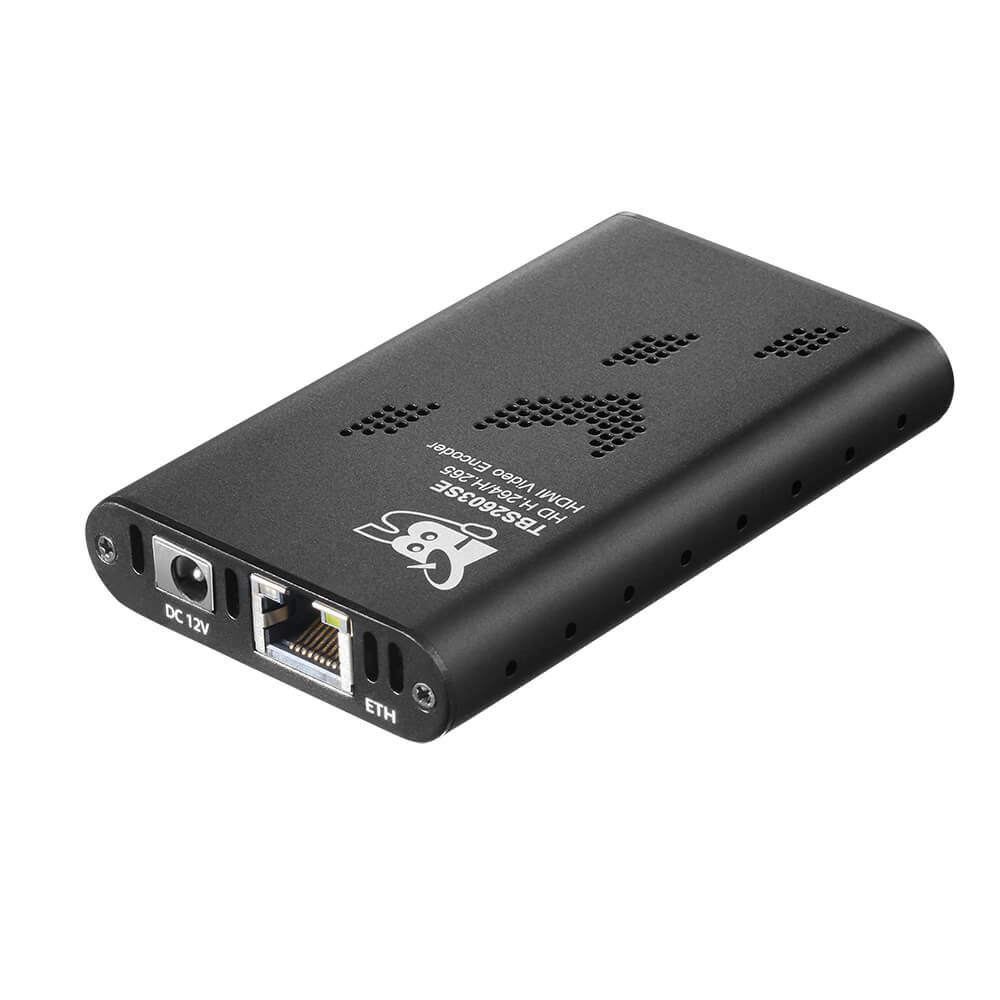

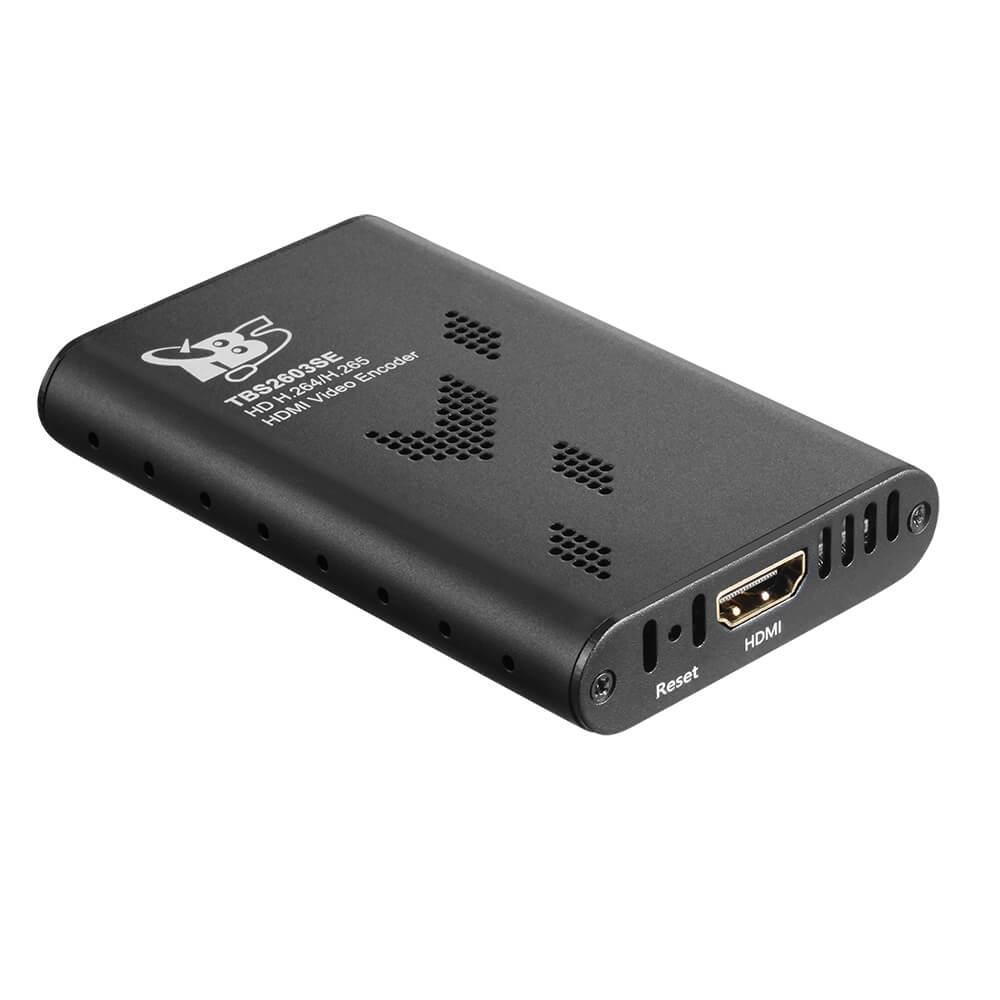

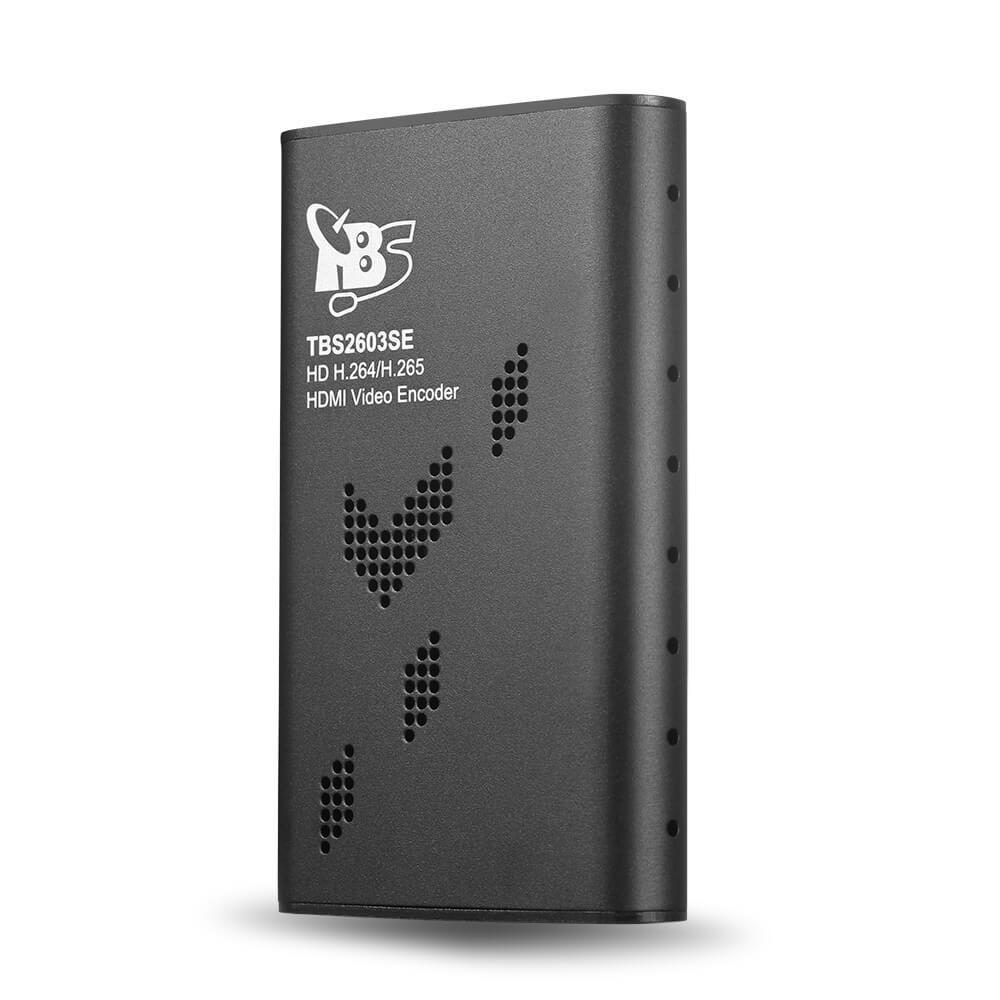

TBS2603se NDI®|HX2 supported H.265/H.264 HDMI Video Encoder
TBS2603se NDI®|HX2 supported H.265/H.264 HDMI Video Encoder
- Model: TBS2603SE NDI
- Weight: 450.00g
Discontinued
SuccessorTBS2603se

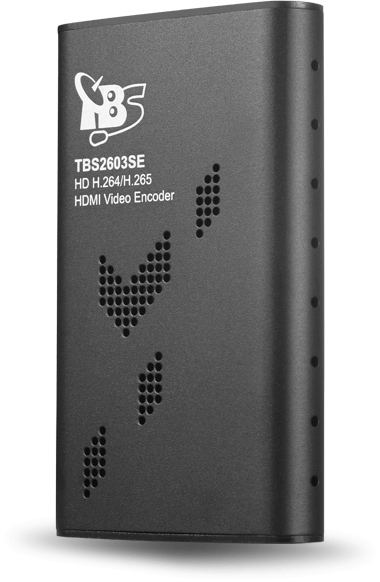

Professional HD H.265/H.264
HDMI Video Encoder
TBS2603se is a professional HDMI video encoder, which supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format.TBS2603se can encode video streams from any HDMI video source to various media streaming servers (Wowza, Read 5, Xtream Codes, Flussonic, FMS etc) or online live broadcast platforms (Youtube, Facebook, Twitch, Vimeo, etc. ) over IP in real time.
TBS2603se video encoder is widely applied education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

NDI®|HX2
TBS2603se H.265/H.264 HDMI Video Encoder has been integrated native NDI®|HX2 support, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI®|HX2 compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

Features:
- Flexible and friendly webpage control
- Visual input (Preview)
- H.264/H.265 Encode
- AAC,MP3, MP2, PCMA audio encoding
- Bitrate of output video stream is adjustable from 500kbit/s to 20Mbit/s
- Support HTTP, HLS(m3u8),RTP/UDP Unicast, Multicast, RTSP, RTMP/RTMPS, ONVIF, SRT
- Native official Newtek SDK-based development ensuring TBS2603se access to last generation NDI®|HX2 SDK and updates.

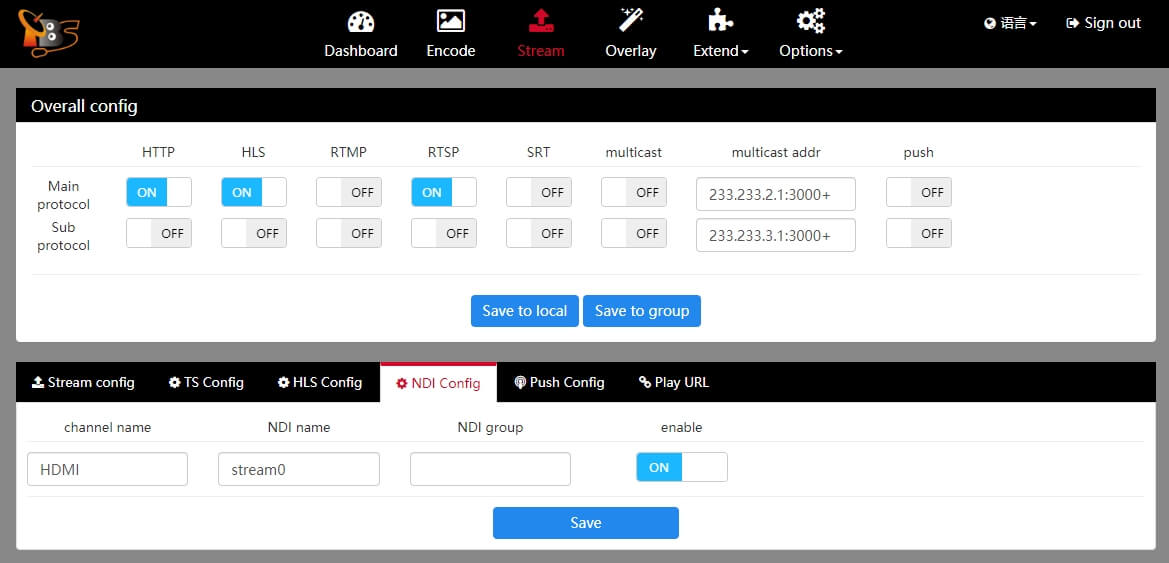

- NDI stream output thru local switch and web user interface
- The output NDI®|HX2 stream can be automatically detected by any NDI-enabled media networks, devices and applications
- Support insert Logo, Text, Mosaics Or Time to the video
- Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)
- Support HDCP and HD blue-ray
- Support Video & Audio Encoding simultaneously, and Video or Audio separate Encoding
- Support ROI (Region of Interest)
- H5 Player
- Video Rotator: 0 degree/90 degrees/180 degrees/270 degrees
- Stable and effective, support 7 x 24h working time
Application:






(Youtube, Facebook, Twitch, Vimeo, etc. )

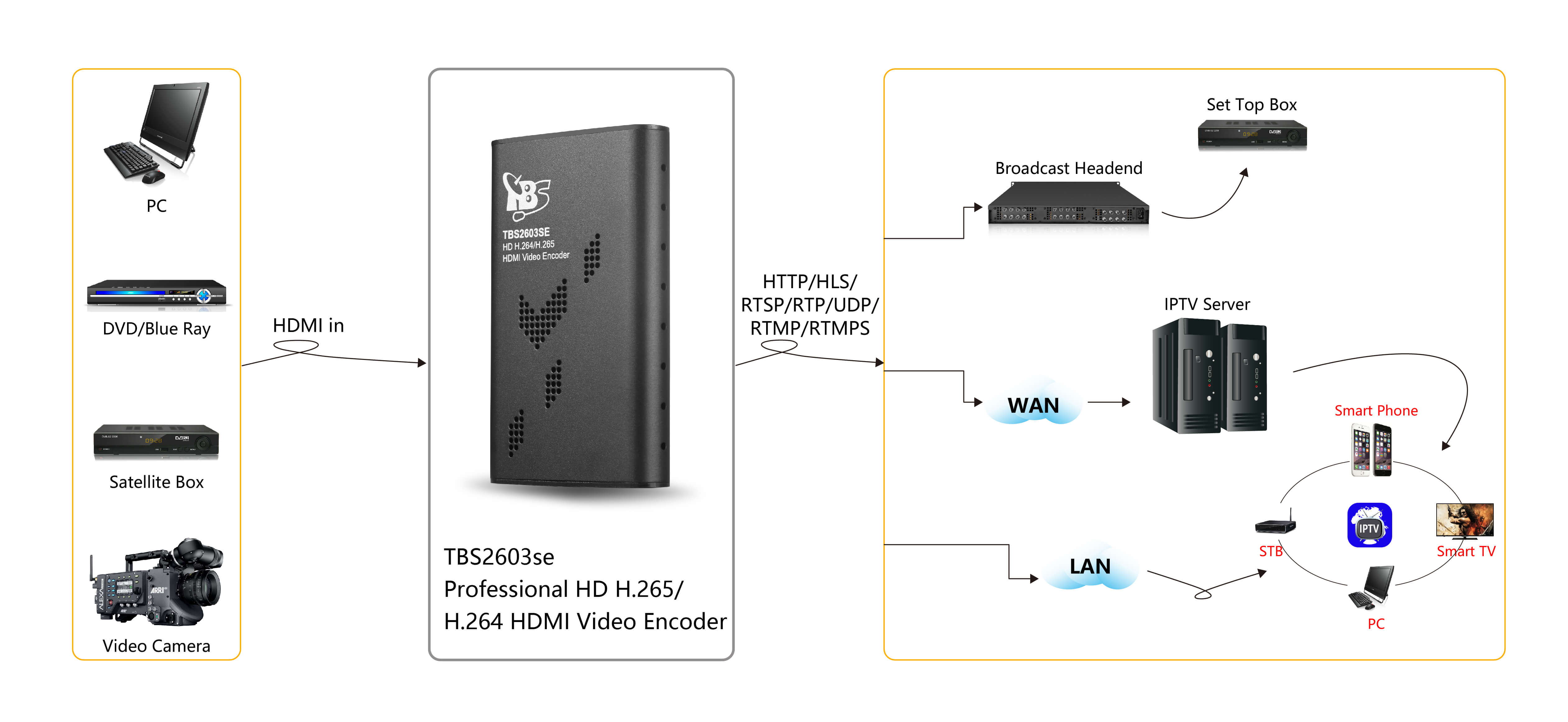

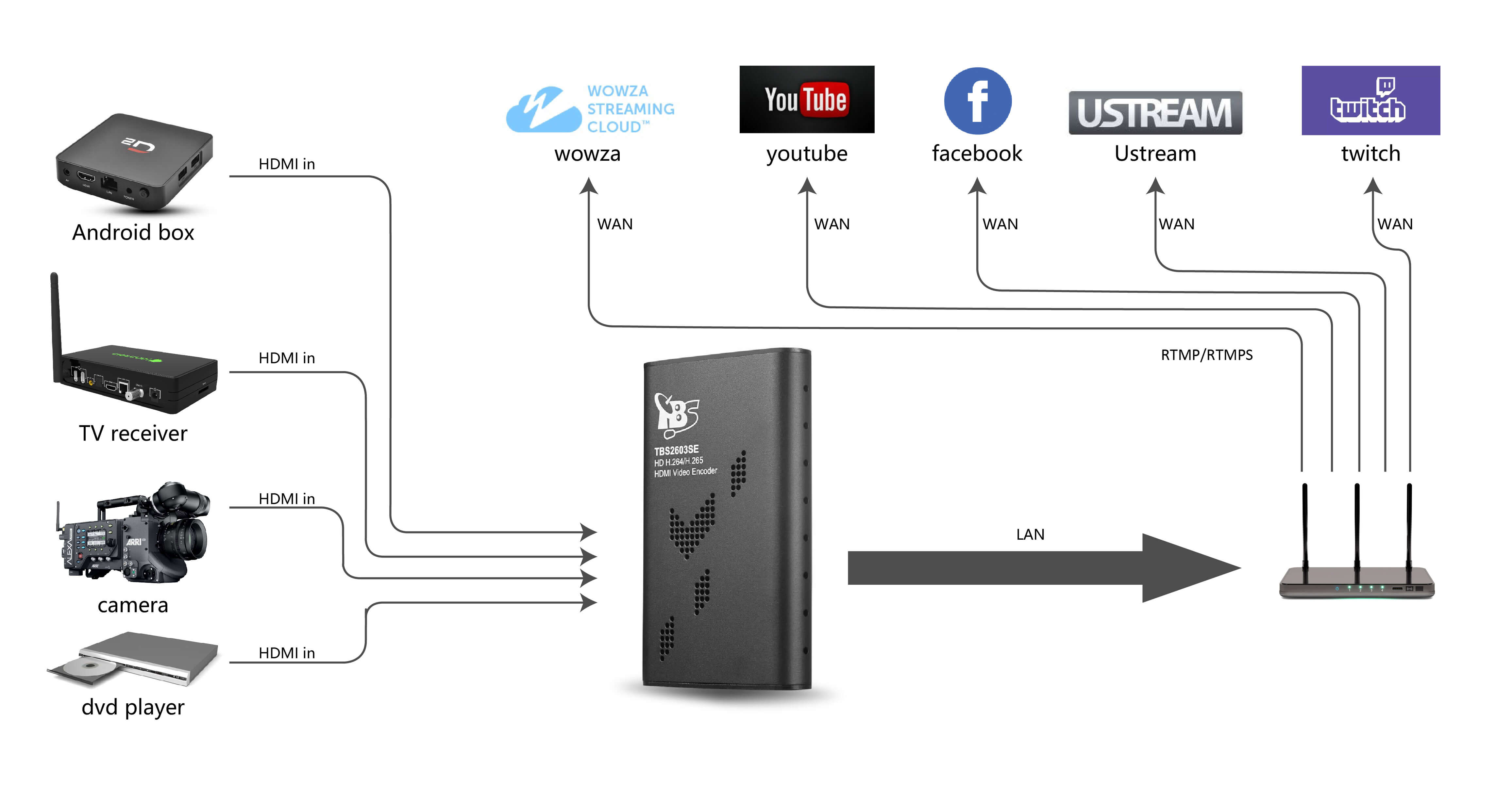

How it works:

Advantages:
-

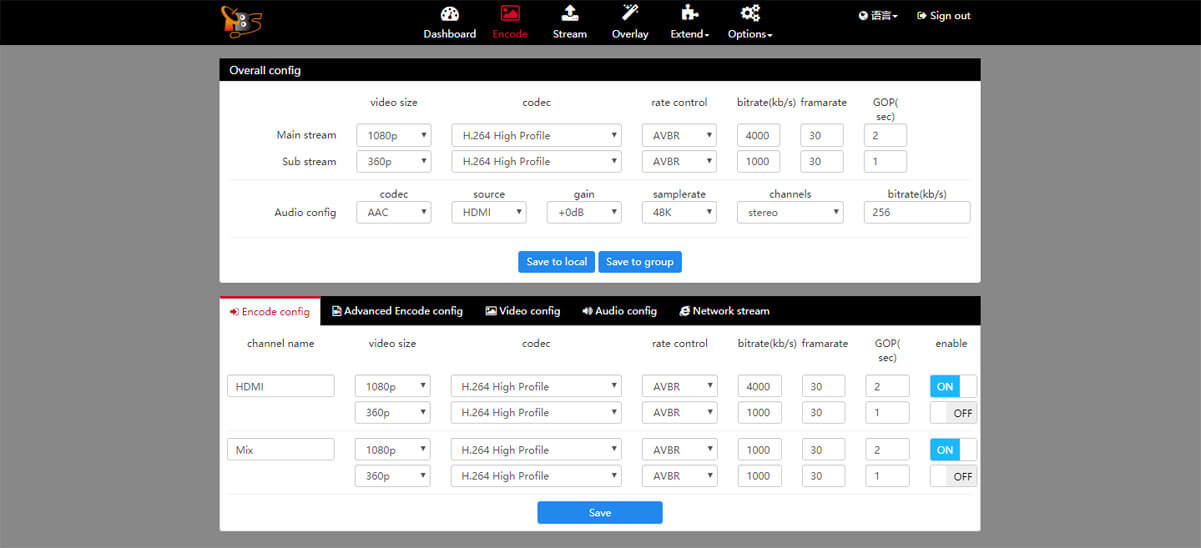

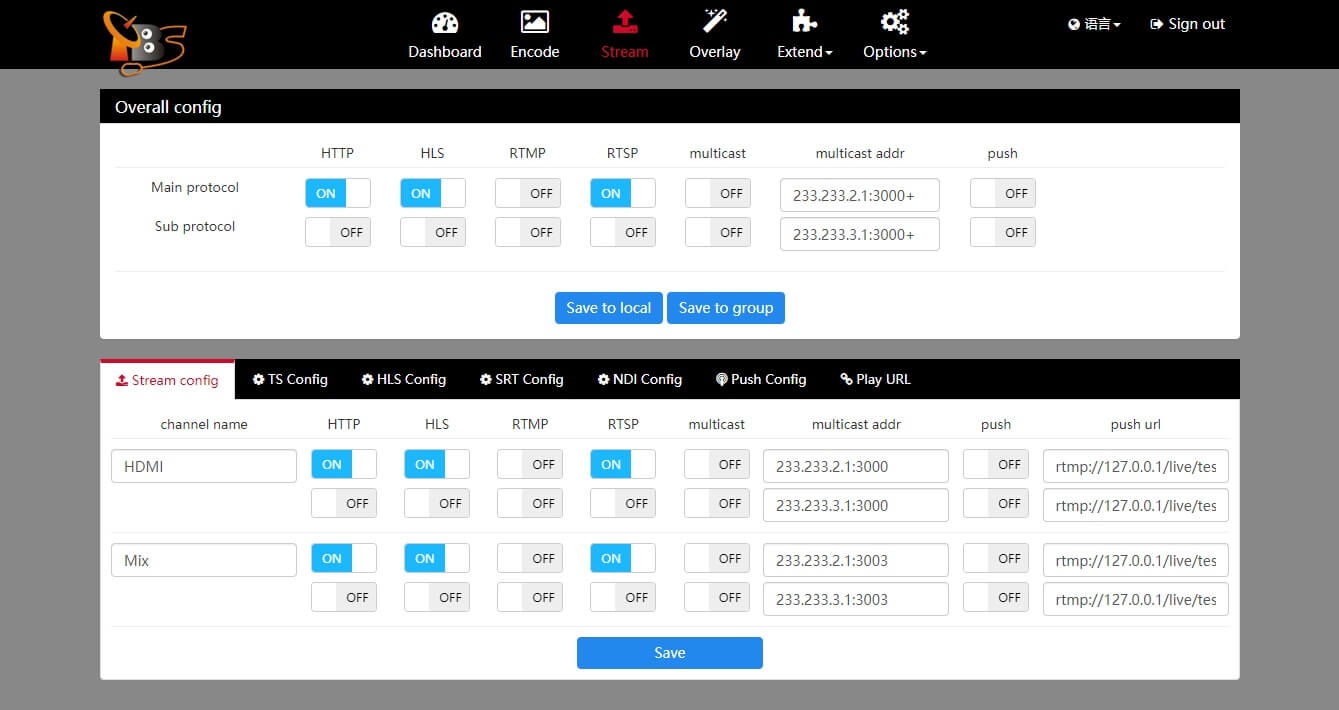

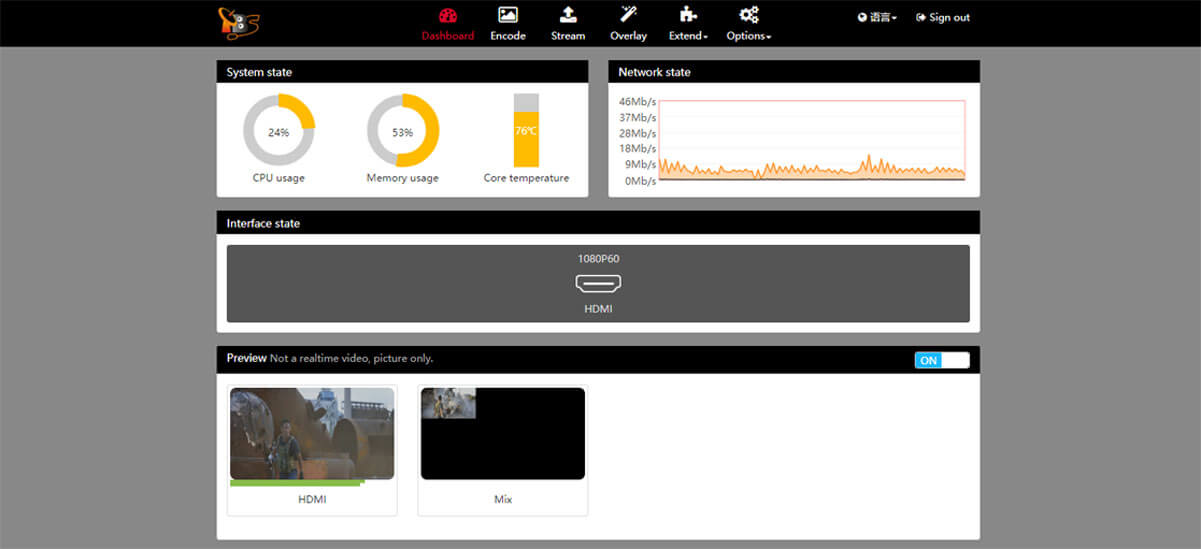

Flexible and friendly webpage control, easy to check and control the status of the device.
-
HTTP/HLS/RTSP/RTP/UDP/RTMP(RTMPS)/SRT, compatible with different terminals, for example, social media platform like
Facebook, YouTube, Ustream, Twitch etc., media server like Wowza or security platform/ NVR system, IPTV
-
Supports dual channel encode, main steam and secondary stream(max 1920x1080@60fps). For example, main stream
1920x1080@30fps, and secondary stream 1280x720@30fps for different requirements.
-

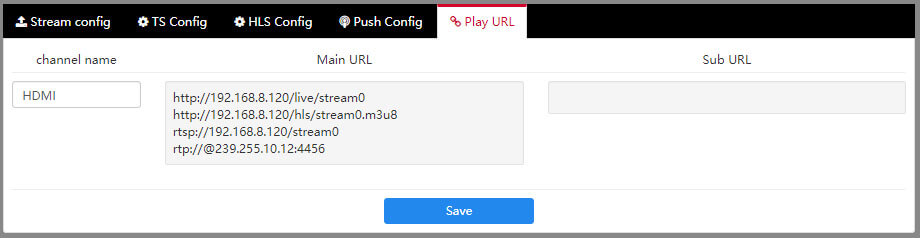

Multiprotocol output
Compliant with HTTP/HLS/RTMP(RTMPS)/RTSP/ UDP protocols
Each channel has multiple protocols for outputting
Specification:
Model Number | TBS2603SE |
Video Input | 1x HDMI 1.4 |
Audio Input | HDMI embedded |
Video | |
Input Resolution | 1920x1080P_50/60HZ; 1920x1080I_50/60HZ;1280x720P 50/60HZ; |
720x576;640x480, and etc. | |
Output Resolution | 1920x1080@60fps; 1680x1050; 1280x720; 1024x576; 850x480; |
720x576;720x480;640x480;480x360;360x240; auto; customized and etc. | |
Encode | H264 base line, H264 Main, H264 High, H265 Main |
Bitrate | 0.5Mbps-20Mbps |
Bitrate Control | CBR, VBR, AVBR,FIXQP |
Protocol | HTTP, HLS, RTSP, RTP/UDP Unicast/Multicast, RTMP(RTMPS), SRT |
Audio | |
Encode | AAC, MP3, MPEG2, PCMA |
Sampling rate | 16K, 32K, 44.1K, 48K |
Channel | Stereo (R + L) or Mono (R/L) |
Sampling precision | 16 bit |
BitRate | 32Kb/s ~ 256Kb/s |
Network Stream IN | |
Video | H264, H265 |
Audio | MPEG2, MP3, AAC |
Protocol | HTTP, RTSP, RTP/UDP |
NDI® Interface: | |
NDI® Channels enable | |
NDI®|HX2 output stream being detected automatically. | |
System | |

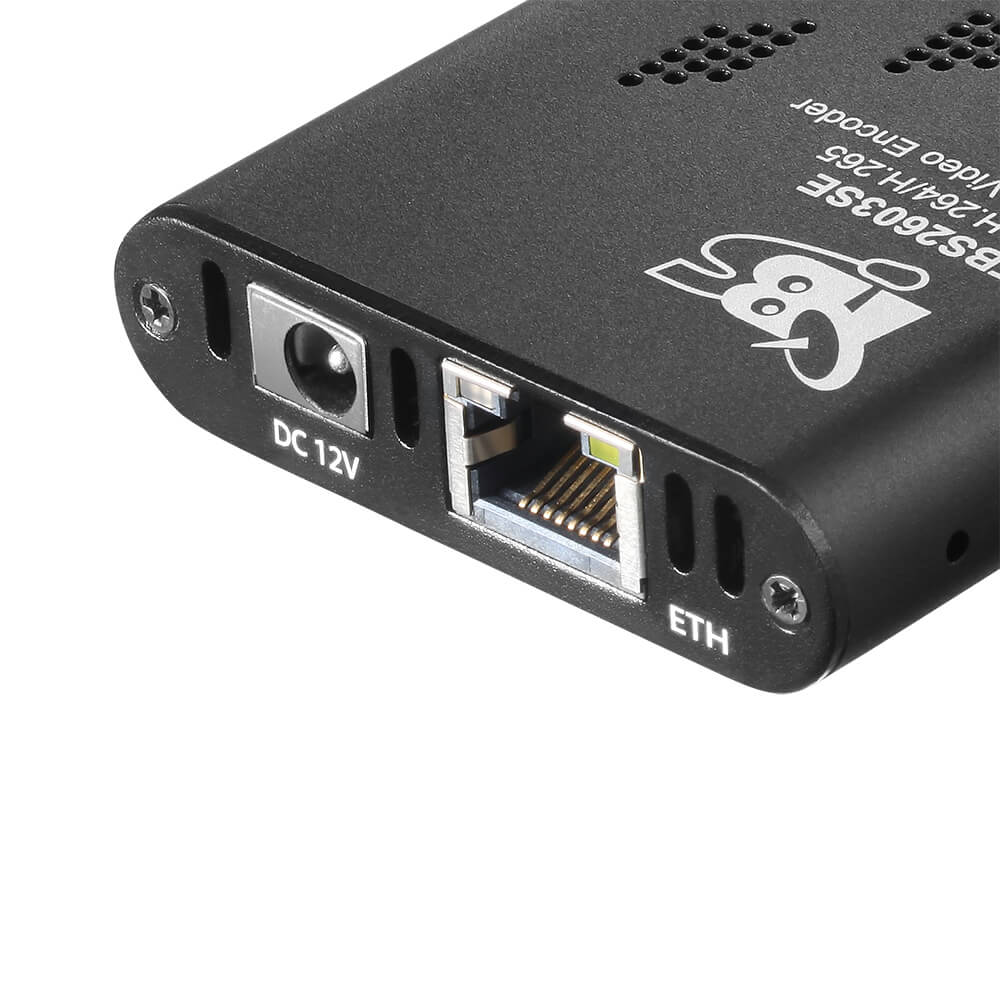

Ethernet / RJ45 | 1000 Base-T Ethernet interface |
Supported System | Windows XP/VISTA/SERVER/WIN7/WIN10 ; Linux; MAC OS |
Control | webUI |
General Spec. | |

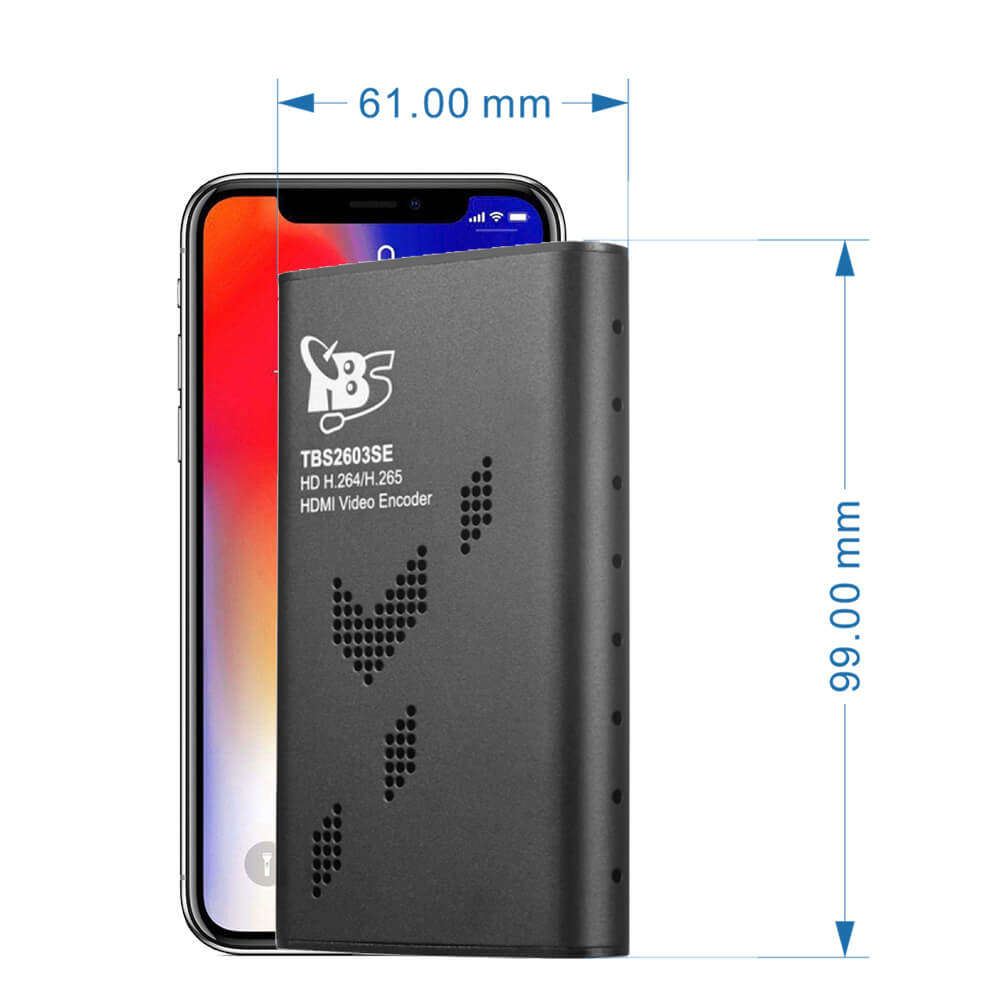

Dimension | 98*61*15mm |
Power Consumption | Less than 6W |
NDI® is a registered trademark of Newtek
