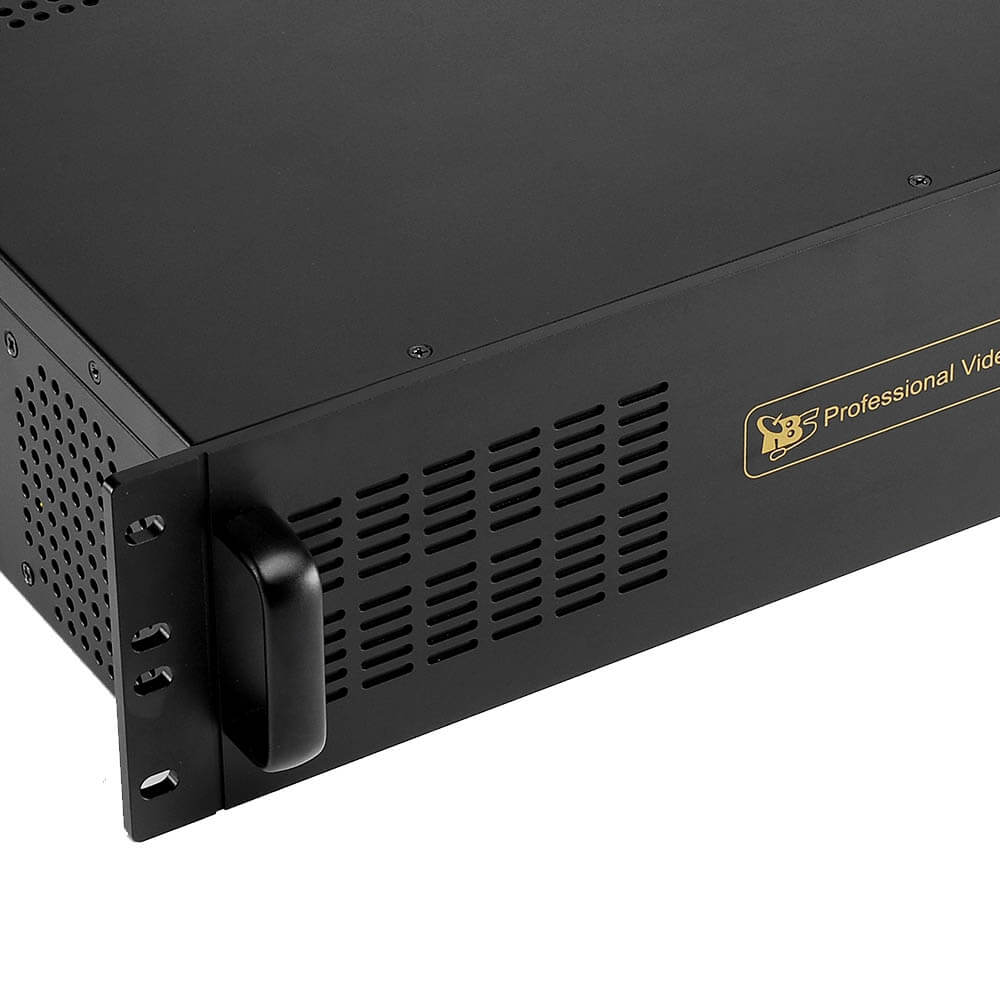

TBS2630 8/16 channel HD H.264/H.265 HDMI Encoder

  • Product Model: TBS2630-HDMI
  • Weight: 17,000.00g

In Stock

Available Options

What's professional multi channel HD H.264/H.265 HDMI Encoder TBS2630?

TBS2630 is a professional Multi channel HD H.264/H.265 HDMI encoder, which is our most powerful HD audio and video encoding device with powerful functionality, supports 8/16 channels HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format.

From any HDMI input source, it generates H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols and ONVIF.

The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Why you should choose H.265?

--Downsize large HD videos with nothing lost
An HD video is usually very large in size, so converting the HD video to an H.265 video is the perfect solution to save space while remain the video quality.

--Convert DVDs/Blu-rays to H.265 videos for feasible playback
If you want to view a DVD or Blu-ray movie on your video player devices, you need to convert the movie to a specific video at first. Here you can use H.265 encoder to get a video with high video quality and relatively smaller size.

--Convert regular videos to H.265 for better video quality
You can convert regular videos in other formats to H.265 videos with better video quality, and the file size is not large.


  • IPTV
  • Digital Signage
  • Video Conference
  • Replace HD Video Capture Card
  • Hotel TV system
  • Live Broadcast
  • Teaching/Campus Broadcast
  • Recording System

Product Features:

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
  • Support multiple equipments display at the same time on a computer
  • Support direct network connection without HD capture card
  • Main stream and secondary stream can use different network protocols for transmission
  • Low Power consumption, less than 6W
  • compliant with HTTP/RTSP/RTP/RTMP/UDP protocols and ONVIF.
  • support HDCP
How it
Video Input 16 x HDMI 1.3a
Audio input HDMI embedded audio
AC IN 110V~240V
AC rate 60/50Hz
DC output 12V/12.5A
Power Dissipation 96W
HDMI Resolution: 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc
Encoding BASELINE PROFILE (for H.264 and H.265)
MAIN PROFILE (for H.264 only)
HIGH PROFILE (for H.264 only)
Data Rate 0.8Mbps~12Mbps;
Rate Control CBR/VBR, 16KBIT/S~12MBIT/S
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Encoding AAC, MP3
Sampling rate Auto
Bit-rate 32K/48K/64K/96K/128K/160K/192K
Sampling precision 16 bit
Data Rate 64Kb/s ~ 384Kb/s

Ethernet/RJ45 1000 Base-T Ethernet interface
Dimension 482mm*320.2mm*108mm
Net weight 7.5kg
temperature -20℃+ 60℃
