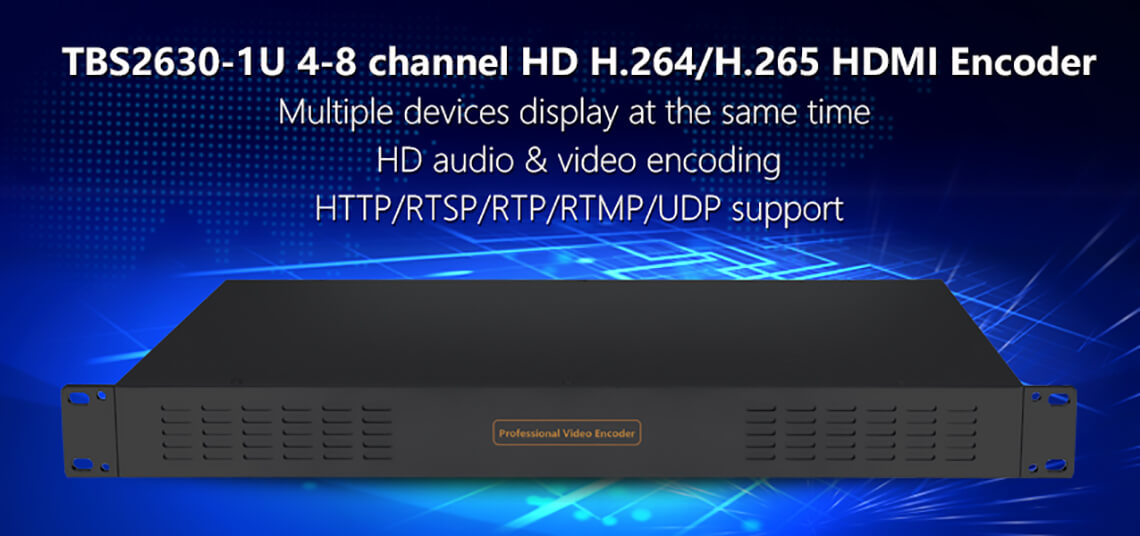

TBS2630 1U 8 channel Professional H.265/H.264 HDMI video encoder

  • Product Model: TBS2630-1U-HDMI
  • Weight: 12,000.00g
  • Reward Points: 1500
  • Price in reward points: 75000

In Stock

US$1,500.00

What's 4/8 channel Professional H.265/H.264 HDMI video encoder ?

TBS2630 1U is our professional Multi channel HD H.264/H.265 HDMI encoder, which is our most powerful HD audio and video encoding device with powerful functionality, this 1U rack version supports 4/8 channels HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format.

From any HDMI input source, it generates H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols and ONVIF.

The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Why you should choose H.265?

--Downsize large HD videos with nothing lost
An HD video is usually very large in size, so converting the HD video to an H.265 video is the perfect solution to save space while remain the video quality.

--Convert DVDs/Blu-rays to H.265 videos for feasible playback
If you want to view a DVD or Blu-ray movie on your video player devices, you need to convert the movie to a specific video at first. Here you can use H.265 encoder to get a video with high video quality and relatively smaller size.

--Convert regular videos to H.265 for better video quality
You can convert regular videos in other formats to H.265 videos with better video quality, and the file size is not large.

--The type of the equipment is 1U chassis
Easy Deployment and Use cards can be added or removed from the rack with no loss of server uptime

H.264 VS H.265

H.265/HEVC H.264/AVC
Names MPEG-H, HEVC, Part 2 MPEG 4 Part 10, AVC
Approved date 2013 2003
Progression Successor to H.264/AVC Successor to MPEG-2 Part
Key improvement * 40-50% bit rate reduction compared with H.264 at the same visual quality
* It is likely to implement Ultra HD, 2K, 4K for Broadcast and Online (OTT)
* 40-50% bit rate reduction compared with MPEG-2 Part
* Available to deliver HD sources for Broadcast and Online
Support up to 8K Yes No. Support up to 4K.
Support up to 300 fps Yes No. support up to 59.94 fps only.

Applications:

  • IPTV
  • Digital Signage
  • Video Conference
  • Replace HD Video Capture Card
  • Hotel TV system
  • Live Broadcast
  • Teaching/Campus Broadcast
  • Recording System

Product Features:

  • System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
  • Support multiple equipments display at the same time on a computer
  • Support direct network connection without HD capture card
  • Main stream and secondary stream can use different network protocols for transmission
  • Low Power consumption, less than 6W
  • compliant with HTTP/RTSP/RTP/RTMP/UDP protocols and ONVIF
  • support HDCP

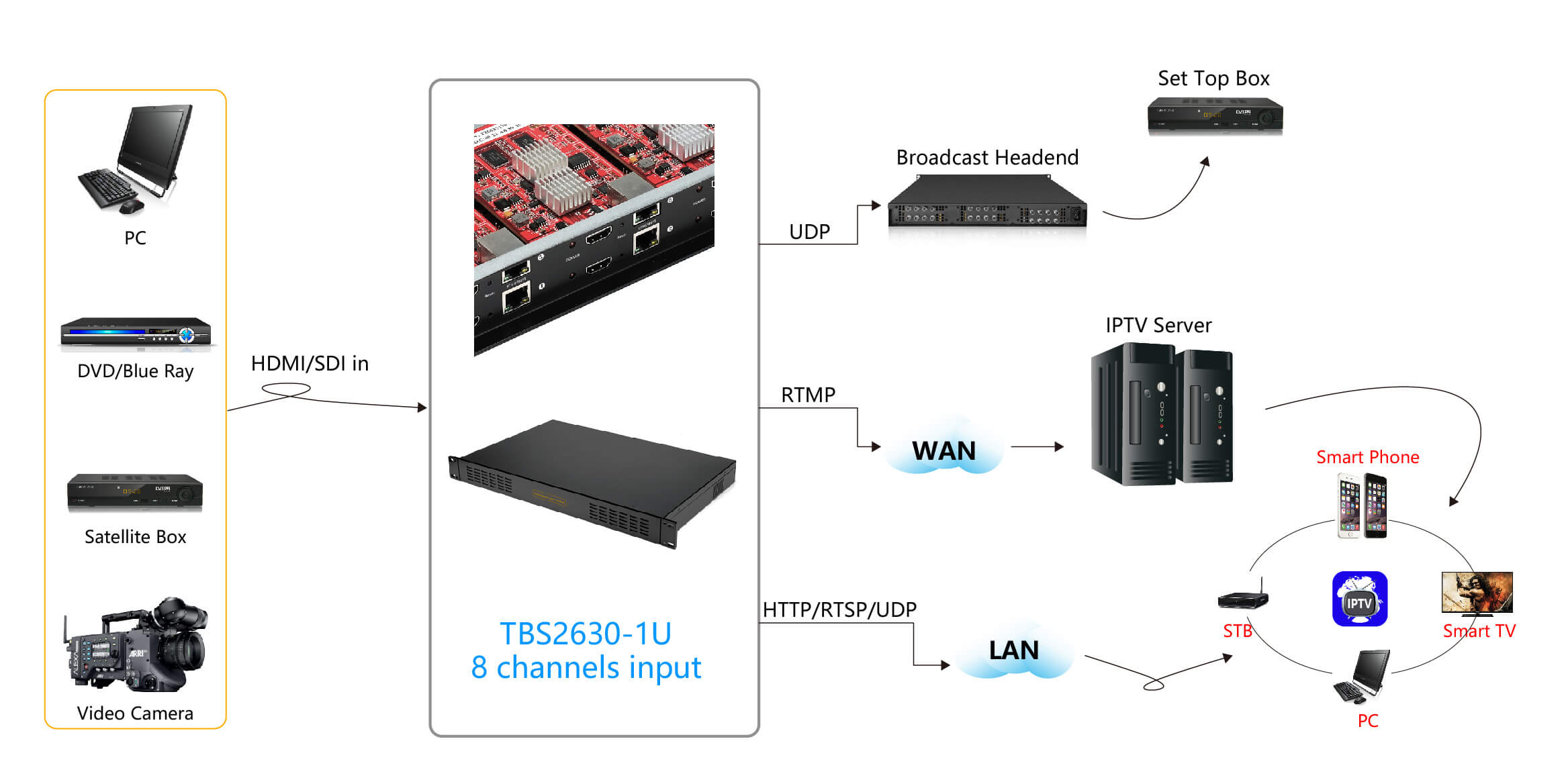

How it
works
?
Specification
Input
Video Input 8 x HDMI 1.3a
Audio input HDMI embedded audio
AC IN 110V~240V
AC rate 60/50Hz
Output
DC output 12V
Power Dissipation <100W
Vedio
HDMI Resolution: 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc
Encoding BASELINE PROFILE (for H.264 and H.265)
MAIN PROFILE (for H.264 only)
HIGH PROFILE (for H.264 only)
Data Rate 0.8Mbps~12Mbps;
Rate Control CBR/VBR, 16KBIT/S~12MBIT/S
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio
Encoding AAC, MP3
Sampling rate Auto
Bit-rate 32K/48K/64K/96K/128K/160K/192K
Sampling precision 16 bit
Data Rate 64Kb/s ~ 384Kb/s
System
OS WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64; LINUX
Ethernet/RJ45 1000 Base-T Ethernet interface
Others
Size 1U
Net weight
temperature -20℃+ 60℃
