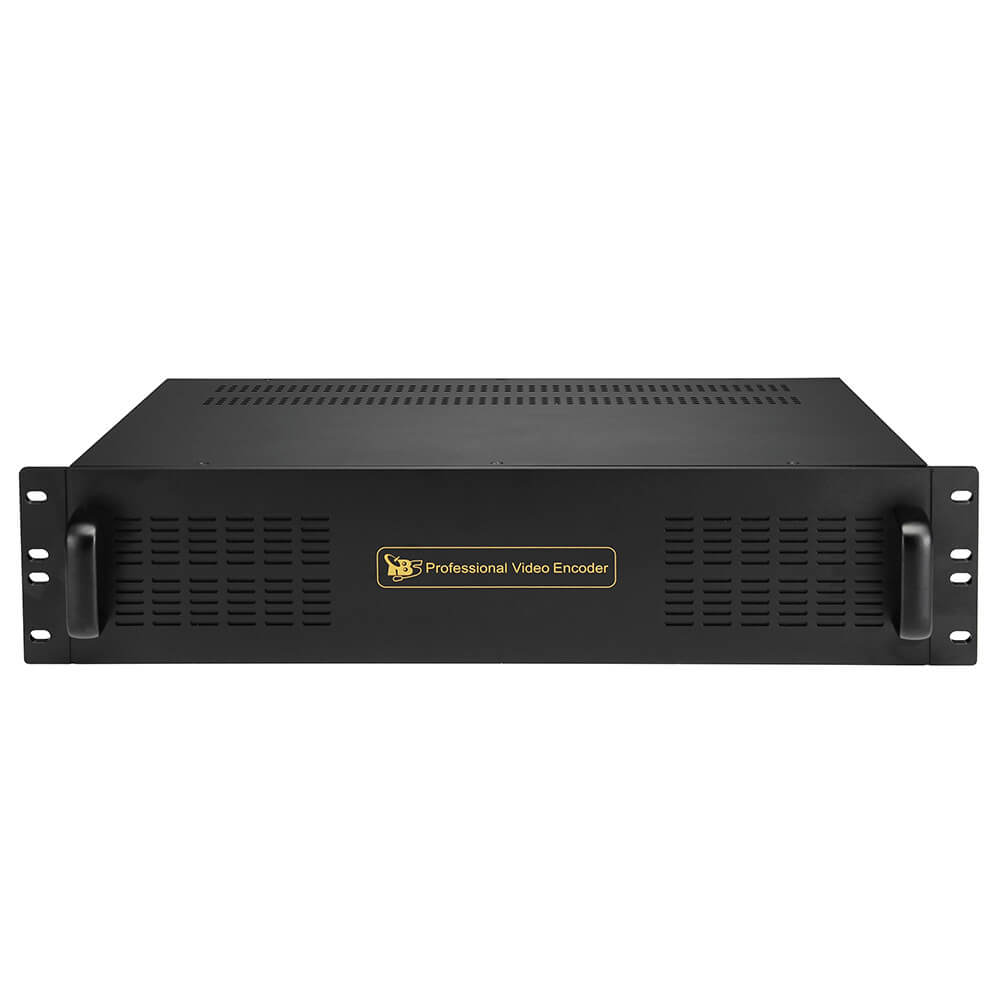

TBS2630ASI professional multi-channel H.265/H.264 HDMI encoder to ASI converter


TBS2630ASI professional multi-channel H.265/H.264 HDMI encoder to ASI converter

  • Product Model:TBS2630-ASI
  • Weight:17,000.00g
  • Reward Points:3199

In Stock

US$2,900.00

TBS2630ASI multi-channel IP encoder to ASI converter is a professional 14x HDMI H.265/H.264 audio/video encoding and 1x DVB-ASI output device. It has a main management board inside, based on the "demux" and "remux" function, 14 HDMI H.265/H.264 video inputs will be multiplexed and combined to one new transponder stream and output via ASI or as a UDP content to IP simultaneously in broadcast quality.

TBS2630ASI supports unicast / multicast. It is ideal for digital TV Broadcasting System. With TBS Network Tool, it’s very easy to operate and dispose.

What’s and remux mean?

Remux is a lossless process that simply takes the video and audio streams from one container and puts them into a new container, keep same quality movie without extra features. In a remux, the remuxer can remove the other audios/subtitles that he/she doesn’t want, thus saving themselves and others some space while having the same quality as the untouched disc. It is a rip of a Blu-ray or HD DVD disc to another container format or just stripping the disc of menus and bonus material while keeping the contents of its audio and video streams intact (also keeping the current codecs), guaranteeing the exact 1:1 movie quality as on original disc.


How it works?


Features:

  • Accepts 14 channels H.265/H.264 digital HD and SD video and audio signals
  • Output is ASI and IP simultaneously in broadcast quality
  • Supports IP to ASI conversion
  • Supports UDP/RTP output, unicast and multicast mode
  • Management via WEB-IF or Front Panel, easy updating by web-interface

Application:

  • Digital TV Broadcasting System
  • Digital TV Programs Transmission
  • IPTV System
  • Head-end system of Digital TV branch network
  • CATV Broadcasting system
  • Edge side of Digital TV backbone network

Specifications:

Interface 14*HDMI 1.3a
RJ45 1000 Base-T Ethernet interface
Function IP to ASI conversion
Stream input http, unicast
Stream output UDP/RTP, TS stream
Control Web interface
Input video
Format H.265/H.264 video
HDMI Resolution 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc
Data Rate 0.8Mbps~5Mbps
Rate Control CBR/VBR, 16KBIT/S~12MBIT/S
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Encoding ASELINE PROFILE (for H.264 and H.265)
MAIN PROFILE (for H.264 only)
HIGH PROFILE (for H.264 only)
Input Audio
Encoding AAC, MP3
Sampling rate Auto
Bit-rate 32K/48K/64K/96K/128K/160K/192K
Sampling precision 16 bit
Data Rate 64Kb/s ~ 384Kb/s
Output DVB-ASI
Others
AC in : 110V~240V
DC output 12V/12.5A
Power: 96W
Dimension 482mm*320.2mm*108mm
Net weight 8kg
temperature -20℃+ 60℃
