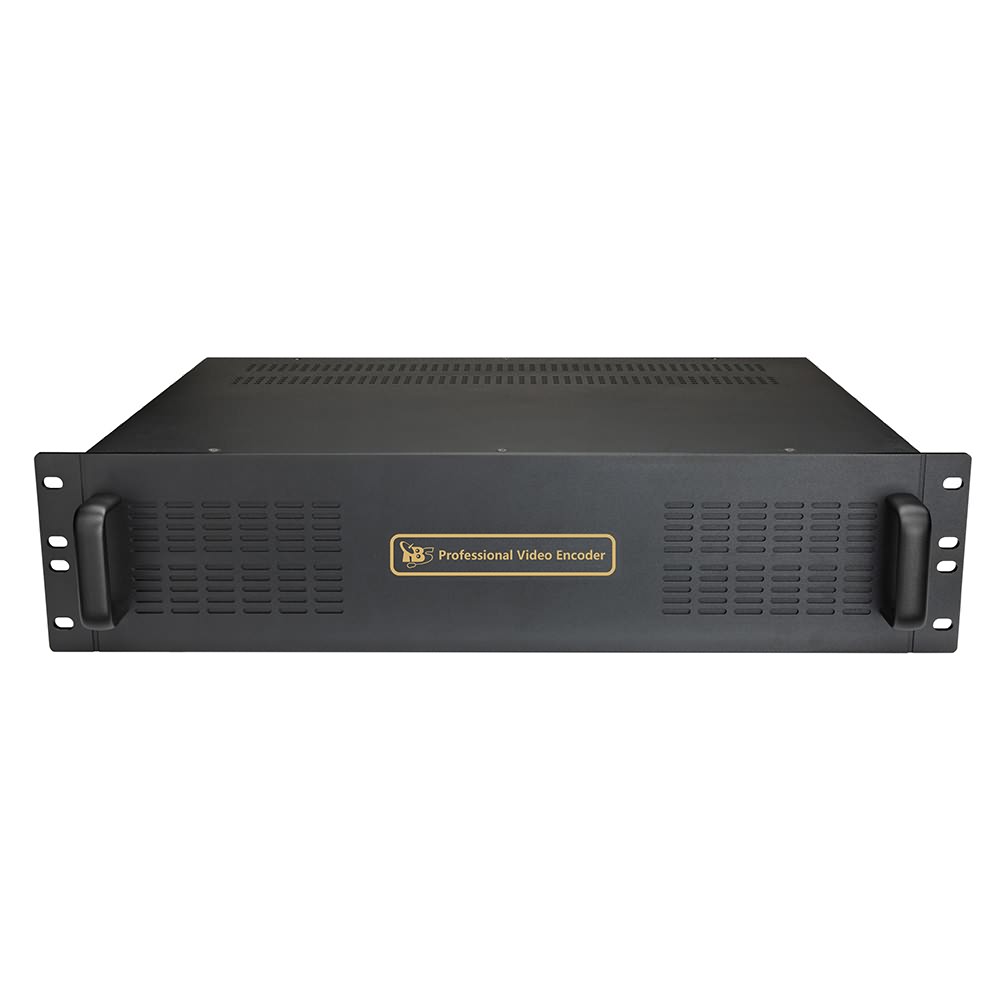

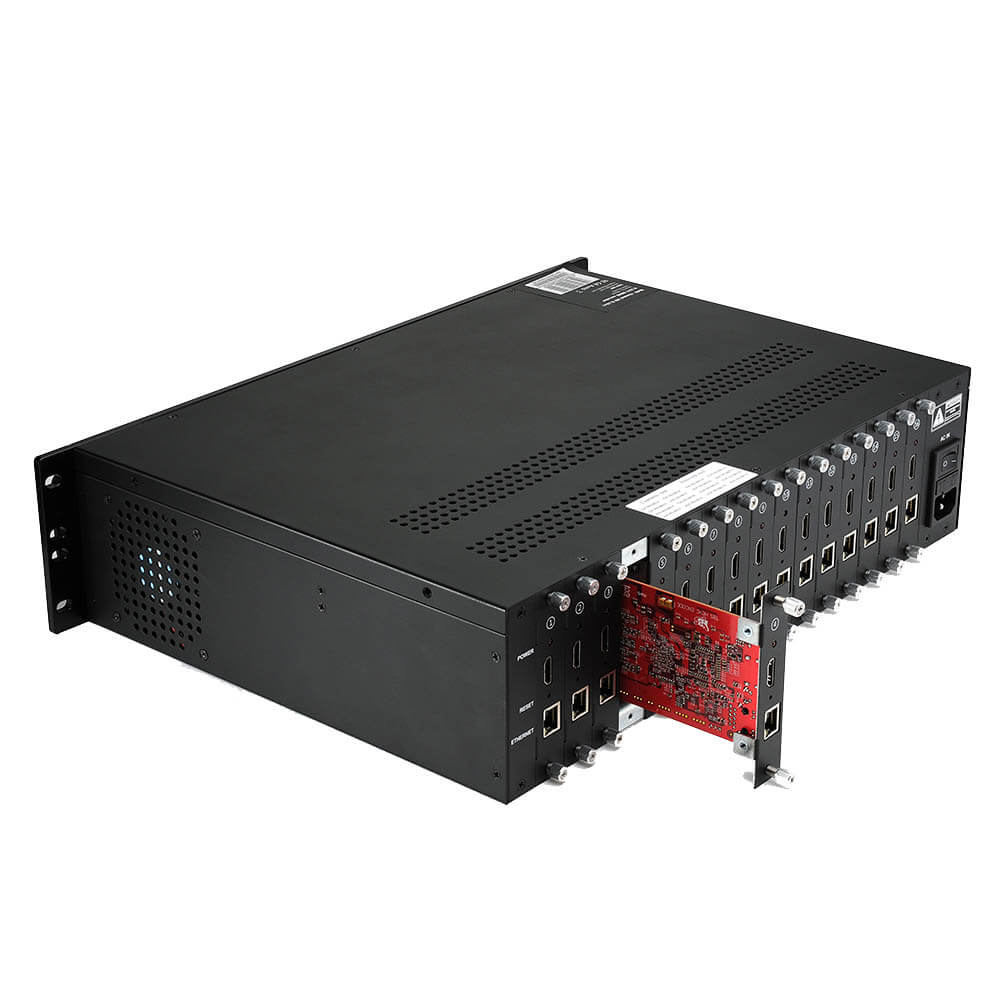

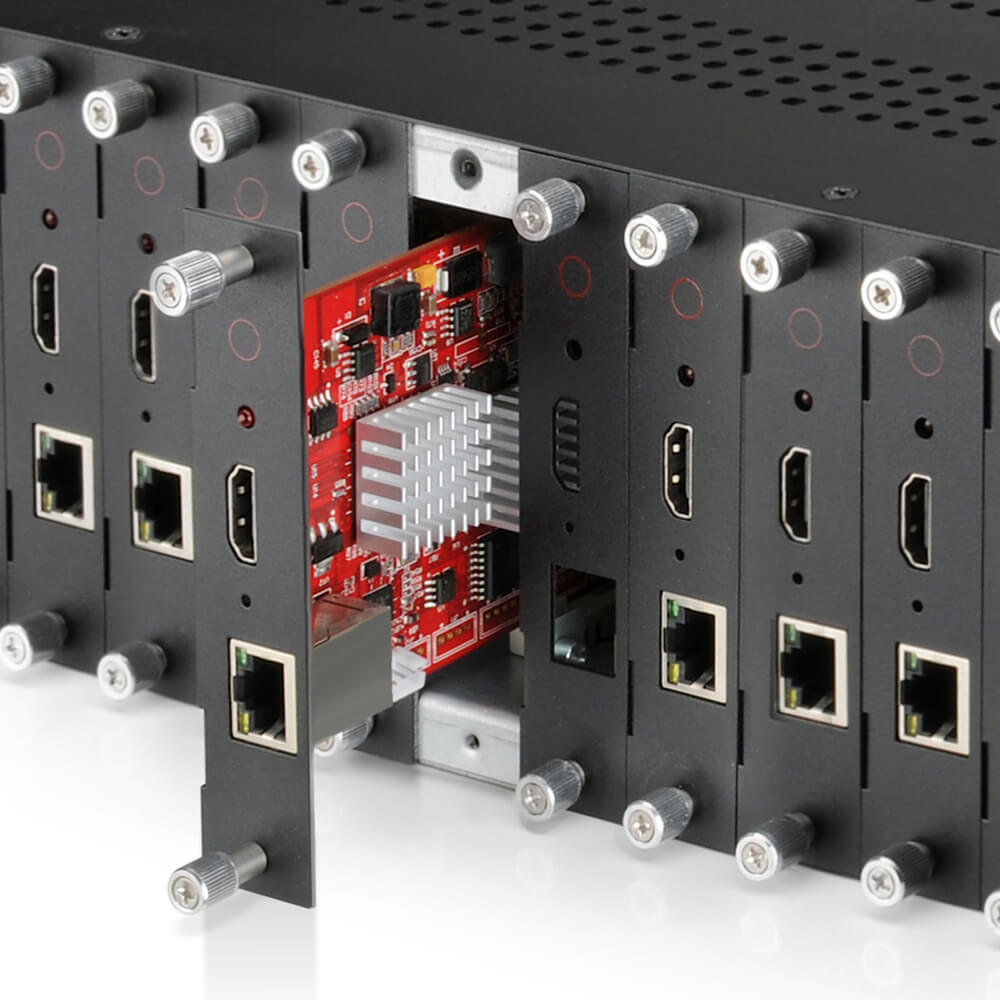

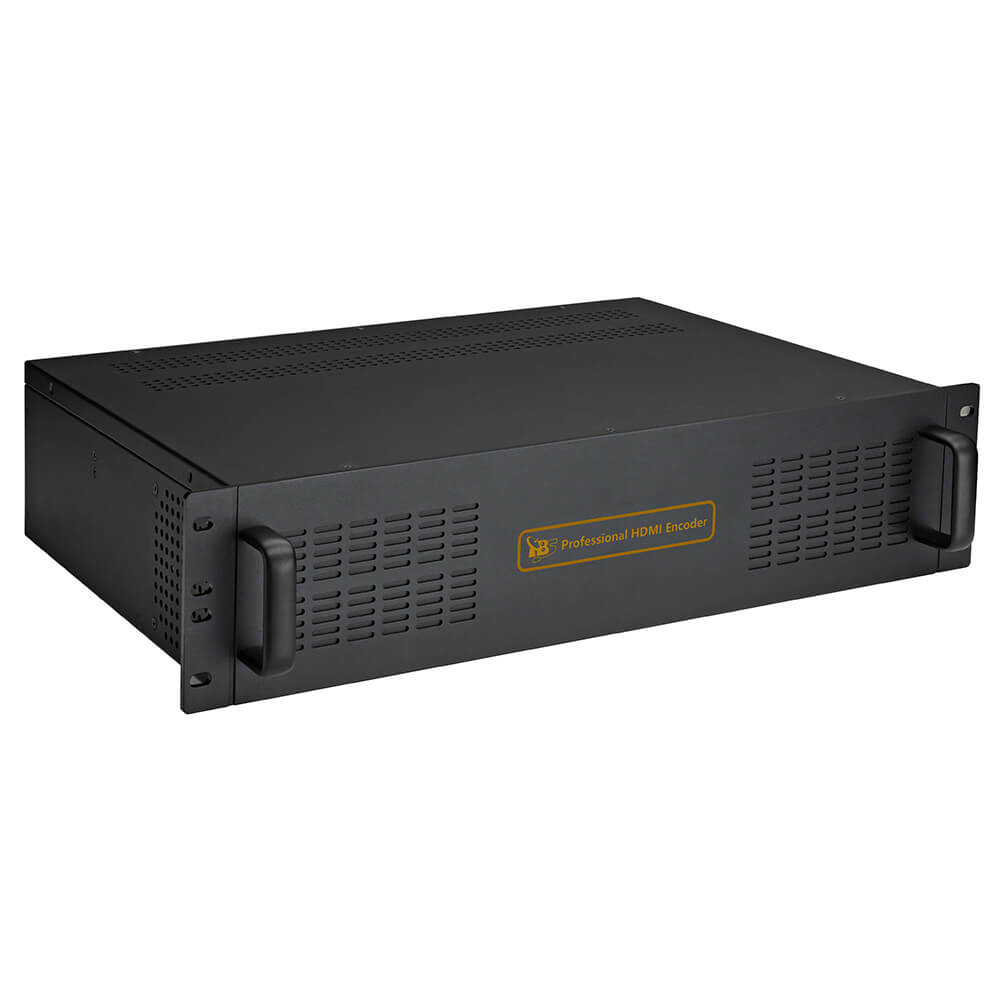

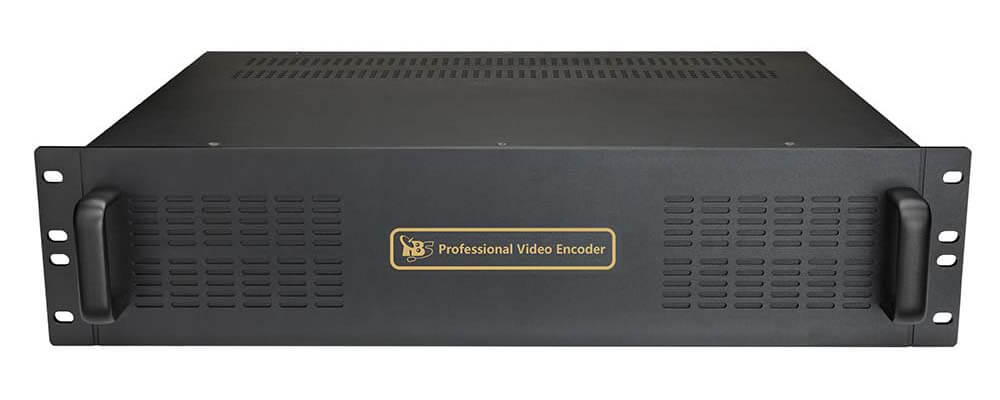

TBS2640 16 channel Professional 4k H.265/H.264 HDMI Video Encoder


TBS2640 16 channel Professional 4k H.265/H.264 HDMI Video Encoder

  • Model: TBS2640
  • Weight: 17,000.00g

Discontinued

Successor

TBS2640 is a 16 channels 4K UHD H.265 & H.264 HDMI Video Encoder, capable of up to max 3840 x 2160P@30fps. It supports to encode with dual stream streaming (Primary 1 x H.265 or H. 264 / Secondary 1 x H.264) via an IP LAN Ethernet connection. TBS2640 HDMI Video encoder supports H.265 encoding, which is ideal choice for customers who need lower bit rate video transfer over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

TBS2640 is coupled with Web UI managing system and Telnet remote access, which provide users flexible choices to control the encoder at anytime and anywhere.

TBS2640 16 channel 4K HDMI encoder supports Wi-Fi 802.11n 2.4G for Web UI control as well as video streaming out. Due to the Wi-Fi network limitation, low bitrate video will be suggested to be streamed out over wireless.


Features:

  • 3840 x 2160P@30fps. Max Resolution (4K/UHD)
  • H.265 and H.264 Encoder
  • HDMI 1.4a Inputs
  • Support Wi-Fi 802.11n 2.4G
  • HTTP/RTSP/RTP/RTMP/UDP protocols supported
  • ONVIF discovery
  • Support logo inserted

Application:

  • IPTV
  • Digital Signage
  • Video Conference
  • Replace HD Video Capture Card
  • Hotel TV system
  • Live Broadcast;
  • Teaching/Campus Broadcast
  • Recording System
  • NVR (Net Video Recorder)

Specification:

Connection:

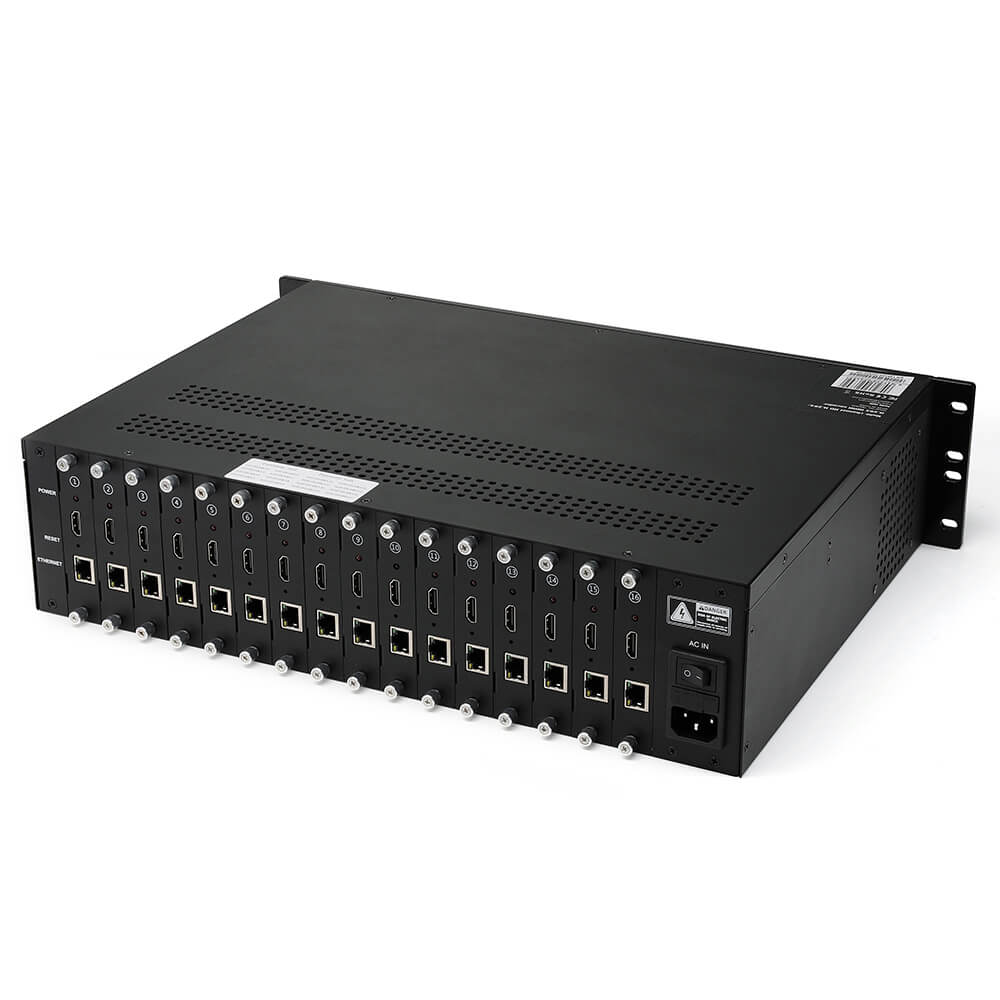

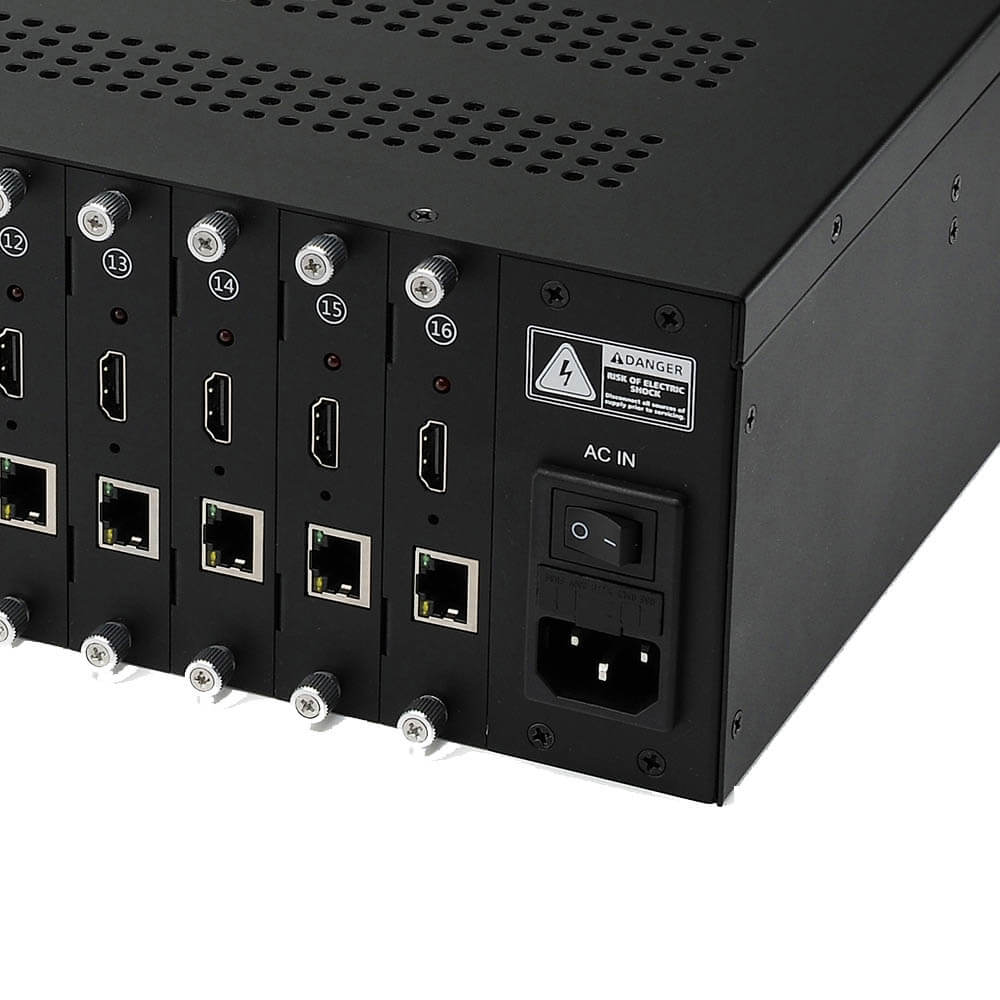

Video Input 16 x HDMI 1.4a
Audio input Audio Line inHDMI Audio
Ethernet/RJ45 output 1000 Base-T Ethernet interface
Encoding performance:
HDMI Resolution: 3840x2160/1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc.
Encoding Profiles Main Profile (for H.264 and H.265)Baseline Profile (for H.264 only)High Profile (for H.264 only)
Encoding streaming Main stream x 1 (Ÿ H.264 MJPEG-4 / H.265 HEVC)Second stream x 1 (H.264 MJPEG-4)
Data Rate Range 0.8Mbps~30Mbps;
Rate Control CBR/VBR, FIXQP
GOP Structure IBBP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening
Audio Encoding AAC, MP3
Audio Bit-rate 48K/64K/96K/128K/160K/192K/256k
Sampling precision 16 bit
Network:
Ethernet/RJ45 1000 Base-T Ethernet interface
Network Standard 100/1,000 base-T Ethernet, Auto speed, Unicast, multicast
Streaming Protocols HTTP/RTSP/RTP/RTMP/UDP
Wi-Fi 802.11n 2.4G
Control Web UI control/Telnet
Physical:
DC output 12V/12.5A
Temperature Operating Temperature Range: 0 ~ 45 degrees Celsius
Dimension 60cm*48cm*26cm
Net weight 12kg
