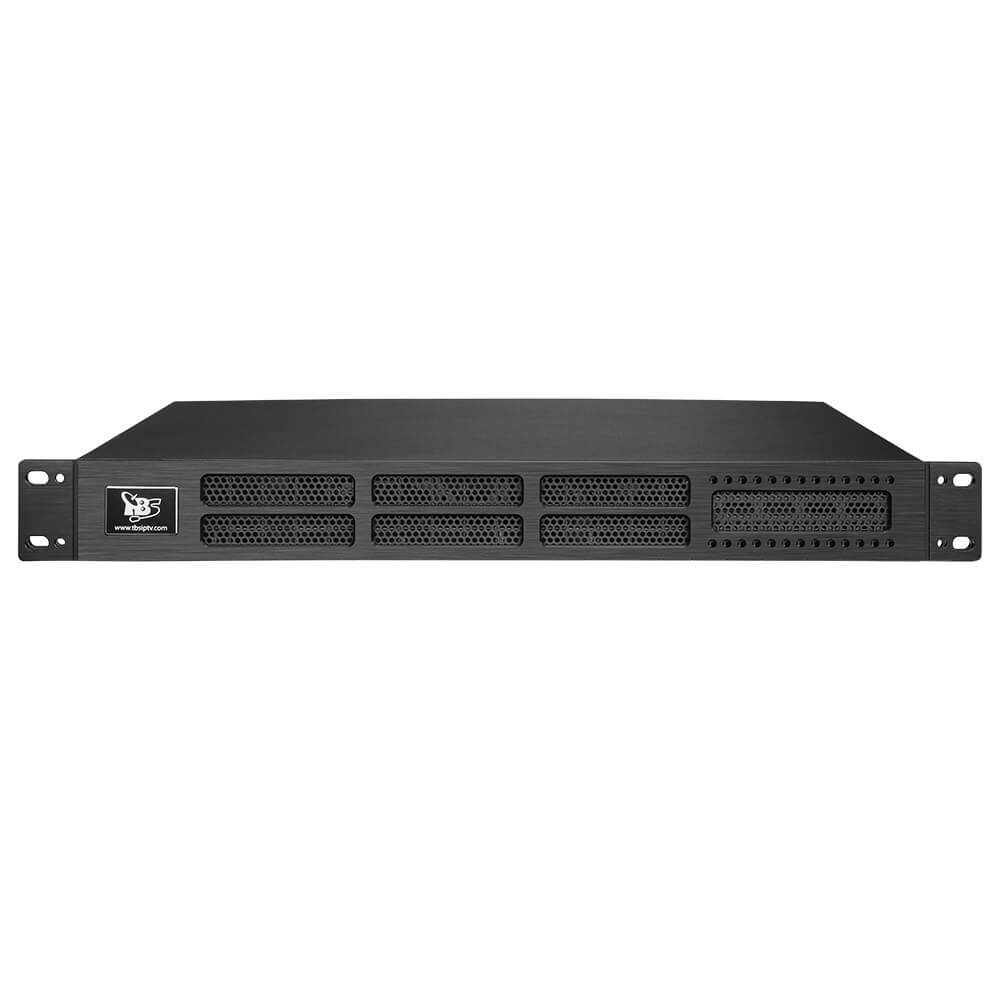

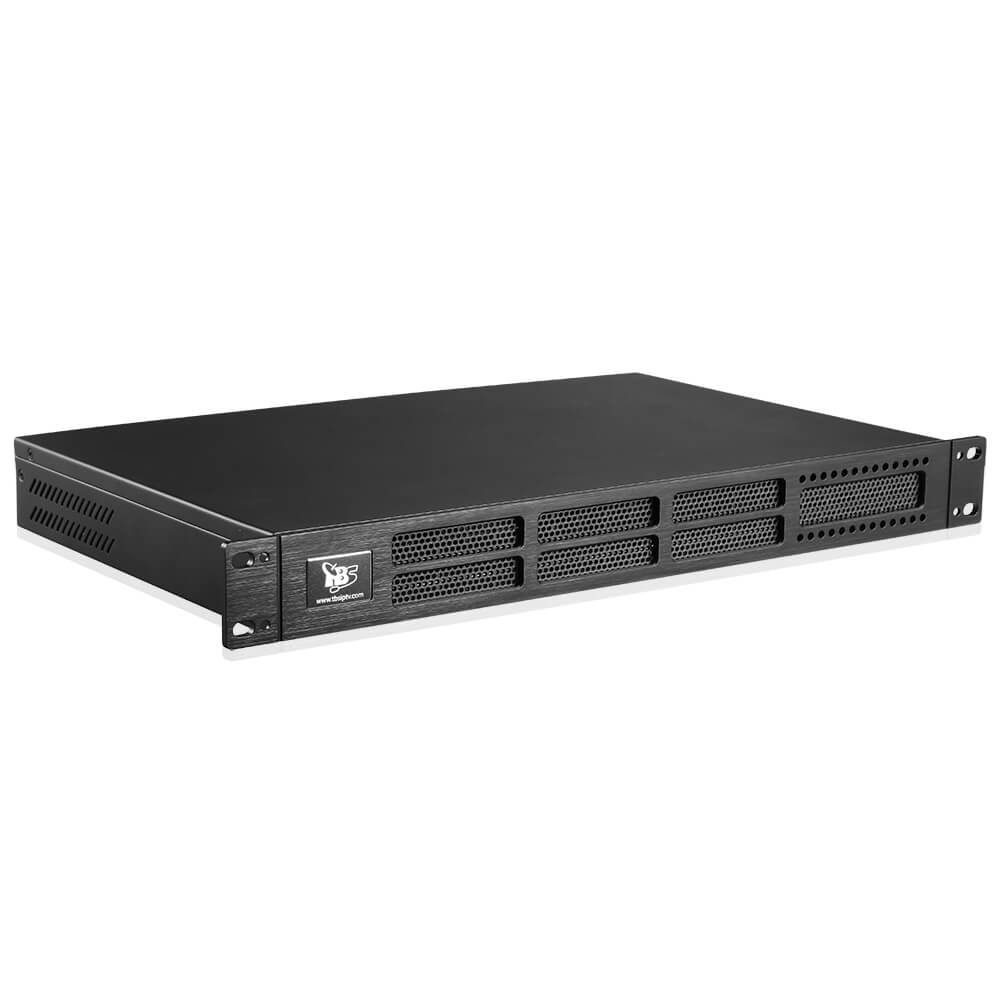

TBS2650 8 channels 4K /20 channels 1080p HD HDMI Video Encoder


TBS2650 8 channels 4K /20 channels 1080p HD HDMI Video Encoder

  • Product Model:TBS2650
  • Weight:10,000.00g

In Stock

US$2,999.00

TBS2650 is a professional 4K/H.265 HDMI encoder, which is our newest HD audio & video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps.

TBS2650 HDMI Video encoder not only supports 8 channels 4K or 20 channels H.265 encoding, but also supports multiprotocol output, each channel supports HTTP/HLS/RTMP/RTSP/UDP protocols simultaneously for outputting. Which is ideal for the customers who need to output with different protocols.

TBS2650 is coupled with Web UI managing system and telnet remote access, and with video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere.

The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

  • 20 x HDMI 1.4 inputs
  • Support Network streams in for video mix or protocol converting
  • H.265/H.264 Encode
  • Multiple protocol outputs: HTTP/HLS/RTMP(RTMPS)/RTSP/UDP (Multicast, Unicast)
  • Support video mix and split screen function ( 1, 3, 4, 9 screens for your choices )
  • Support OSD logo, text, mosaic
  • Single LAN port output and management
  • WebUI control
  • LCD display for IP, encode status and bitrate info

Application:

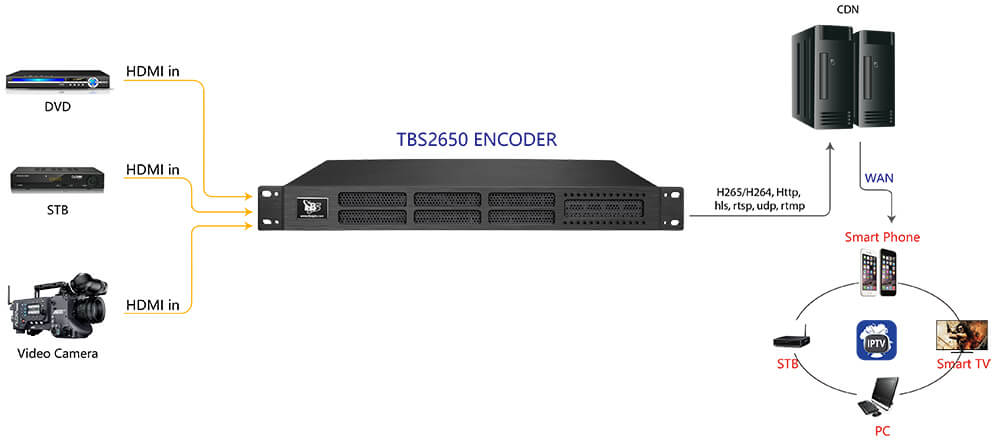

IPTV - Topology

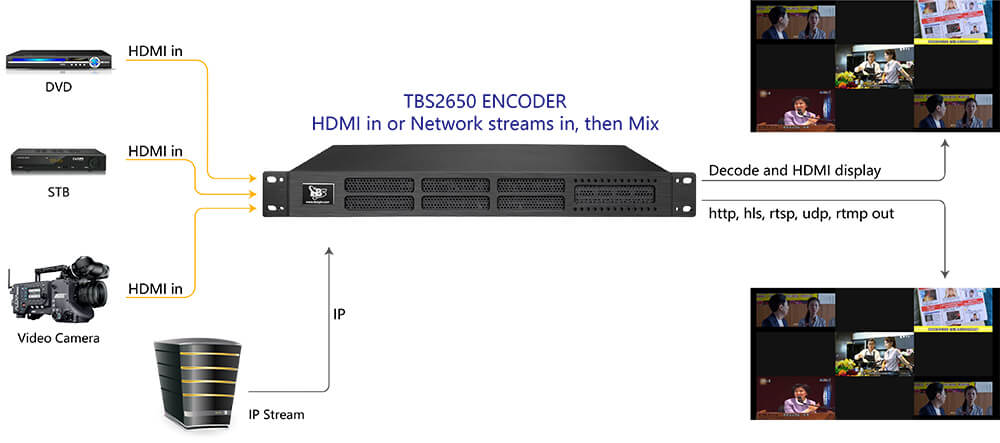

Video Mix and monitoring - Topology

Advantages:

Supports 20 channels H.265/h.264 encode or 8 channels 4K encode

  • 3840 x 2160P@30fps. Max Resolution (4K/UHD)
  • Real-time encoder supporting resolutions up to 4K with HEVC and H.264 encoding.
  • Efficient encoding leads to bandwidth savings, even at high resolutions.
  • Ideal for future-proofing workflows that need to move to 4K UHD and for those that require the highest video quality.

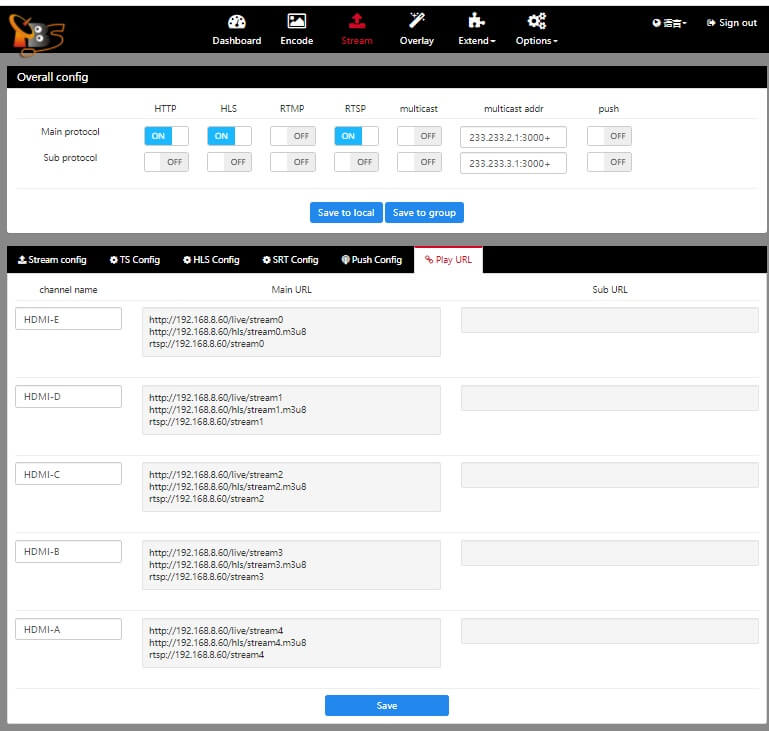

Multiprotocol output

  • Compliant with HTTP/HLS/RTMP/RTSP/ UDP protocols
  • Each channels have multiple protocols for outputting

Video mix function, multiplex and split screen display

Video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere.

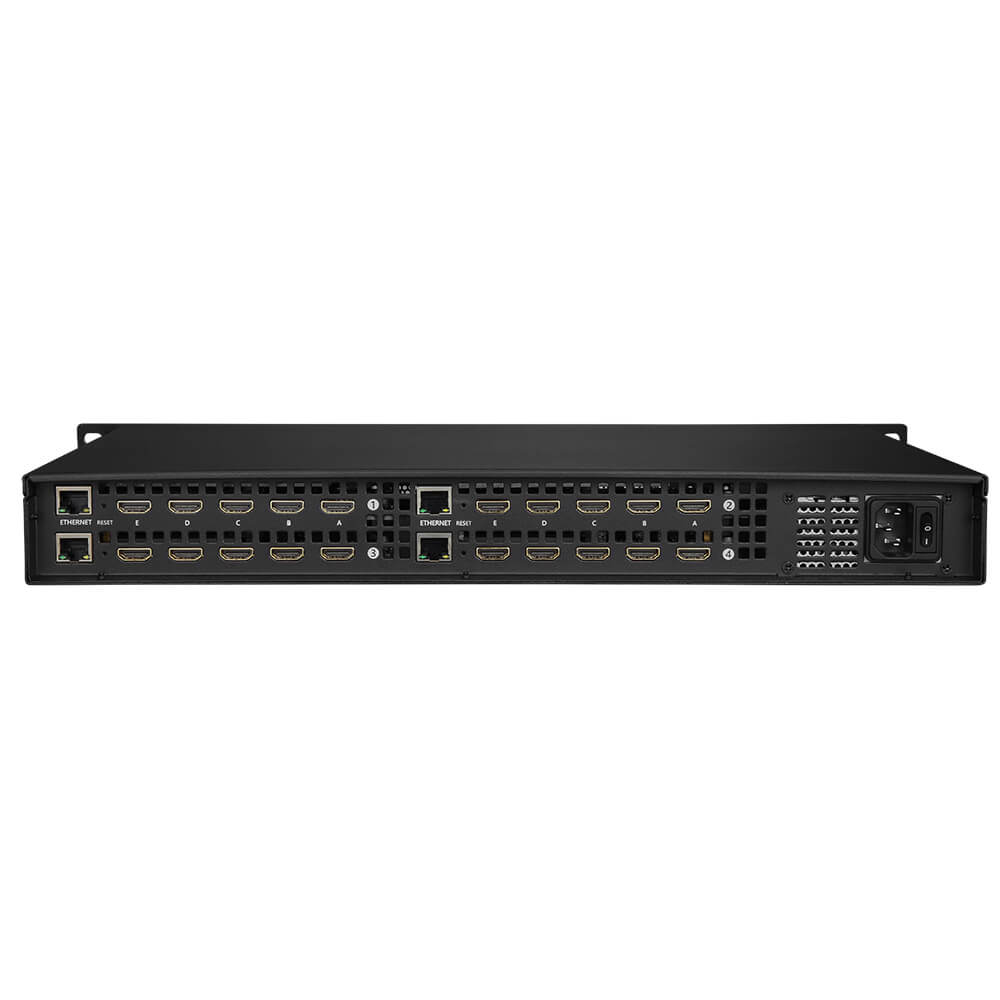

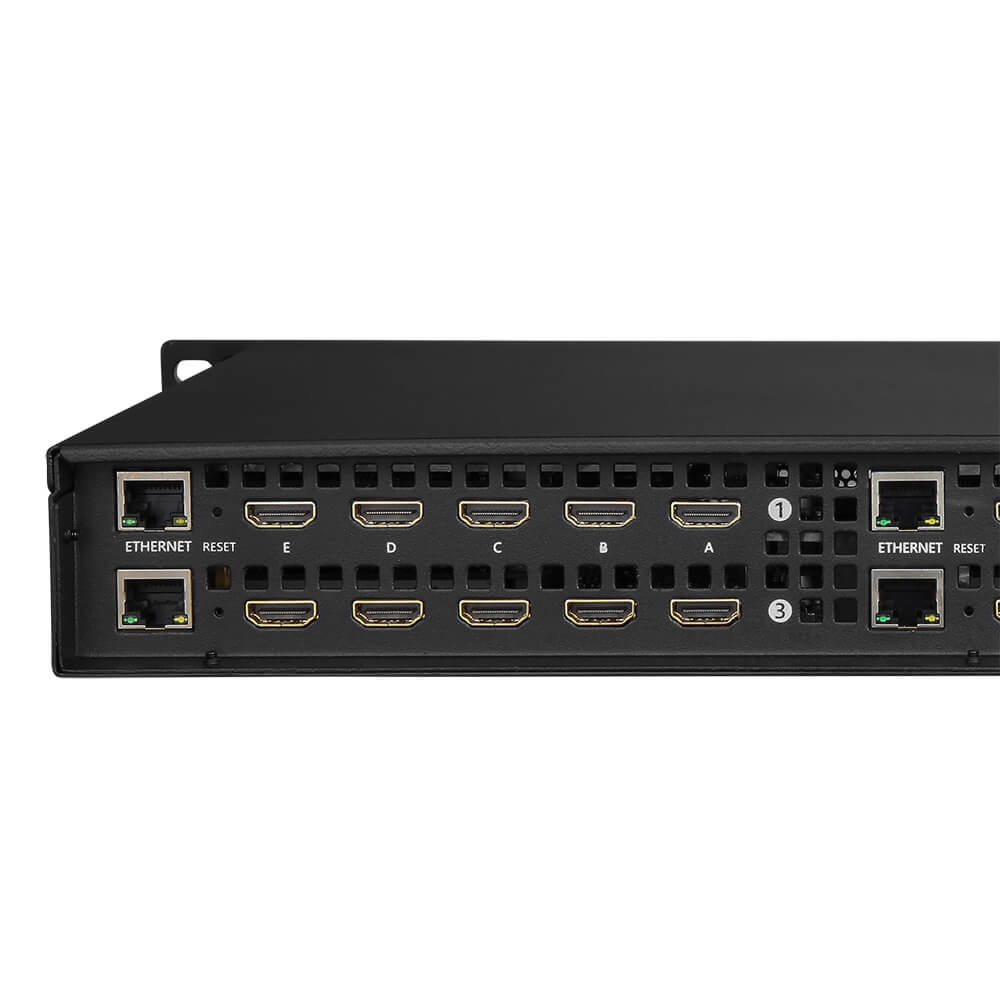

Multiple HDMI input , four LAN ports for output and management , save source , space for you. Reliable WebUI let you easy to setup and manage

Specification

Model number TBS2650
Video Input 20x HDMI 1.4
Audio Input HDMI embedded audio
Ethernet 4xRJ45 1Gbps
Video
Resolution 3840x2160, 3392x2208, 2592x1520, 2560x1440, 2304x1296, 1920x1090, 1690x1056, 1290x720, 1024x576, 850x490, 720x576, 640x490, 360x240, and etc.
Encoding H264 base line, H264 Main, H264 High, H265 Main
Data Rate 0.8Mbps~20Mbps
Rate Control CBR/VBR
Protocol HTTP/HLS/RTMP/RTSP/ UDP
Advanced Pretreatment De-interlacing, Noise Reduction, Sharpening.
Audio
Encoding AAC, MP3, PCMA, MEPG2
Bite rate 16K, 32K, 44.1K, 48K
Sampling precision 16 bit
Data Rate 64Kb/s ~ 256Kb/s
Dimension 1U (482*281*44.4mm)
Power less than 60W
