TBS2660 Professional H.265 IP Video decoder

  • Product Model: TBS2660
  • text_weight 1,500.00g
  • Price in reward points: 25000

Out Of Stock

US$499.00

Introduction

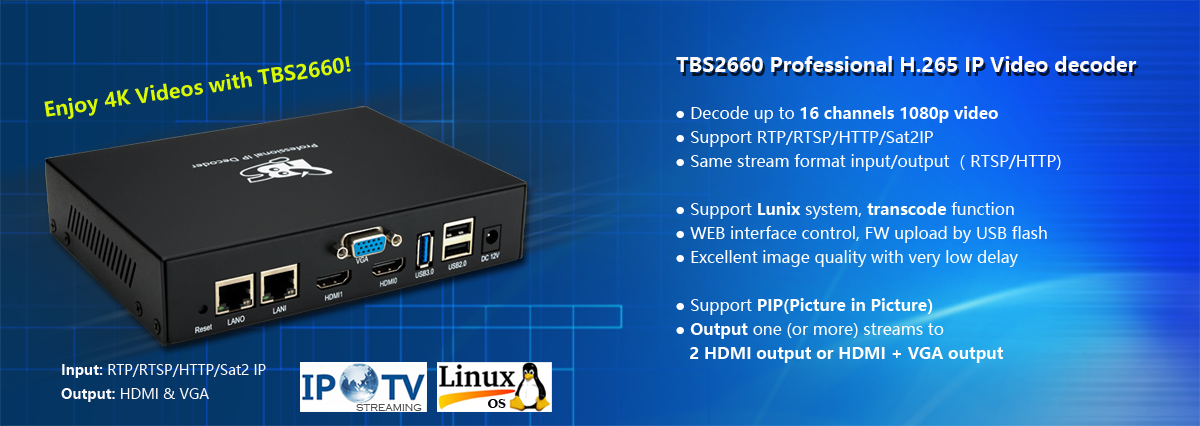

TBS2660 is a Professional H.265 IP Video decoder with HDMI/VGA, composite, and analog audio outputs, which decodes digital video and audio streams into analog video signals, this allows analog devices such as monitors and video switches to be connected to an IP-based video system. Built-in with high-performance A17 processor, TBS2660 is a codec engine with the ability to decode up to 16 channels 1080p video, compatible with multi- protocol , support RTP/RTSP/HTTP input (TS, NON TS) h264/h265.

TBS2660 can be paired with the TBS2603 / TBS2630 H.265 HDMI Encoder (sold separately), allowing up to Full HD point-to-point video links over the Internet.

Applications:

  • IPTV
  • HD Video Surveillance
  • Video Conference
  • Teaching/Campus
    Broadcast
  • Hotel TV system
  • Live Broadcast
How it
works
?
Options for Your Choice:

TBS2660 H.265 IP Video decoder + TBS2603 HD H.264/H.265 HDMI Video Encoder

TBS2660 H.265 IP Video decoder + TBS2630 16 channel HD H.264/H.265 HDMI Video Encoder

TBS2660 H.265 IP Video decoder + MIO Pro AMD Professional IPTV Streaming Server

Specification
Standard
Video Decoding Standard H.265 Main Profile Level5.1
H.264 Baseline/Main/High Profile level5.0
MPEG4 SP L0~L3/ASP L0~L5
MJPEG/JPEG Baseline
Video Encoding  Standard H.264 Baseline/Main/High Profile Level5.1
MJPEG/JPEG Baseline
Supported protocols RTP/RTSP/HTTP/Sat2IP
Decode 4x4K*2K(3840*2160)@30fps/2x4Kx2K(3840*2160)@60fps H.265/H.264
16x1080p@30fps /8x1080p@60fpsH.265/H.264
32x720p@30fps/16x720p@60fps H.265/H.264
Hardware
Network interface: 2x Gigabit LAN
CPU ARM Cortex A17 (4 cores @Max. 1.4GHz)
RAM 2G
Nand flash 256M
Interface 1x HDMI 2.0, Maximum support 3840 x2160@60fps
1x VGA, Maximum support 2560 x1600@60fps
3x SATA
3x usb (1*3.0 + 2*2.0)
System LINUX
Package contents TBS2660
Power Adapter,AC Cable, HDMI Cable

Related Porducts:

TBS2603 TBS2630 MOI PRO AMD
