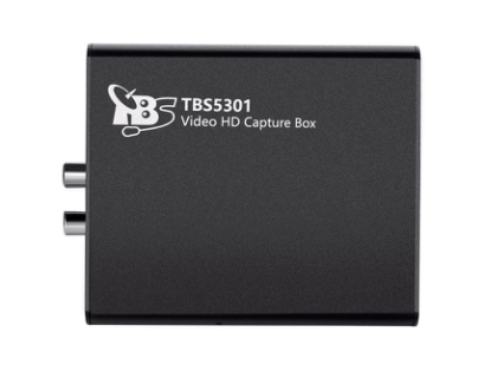

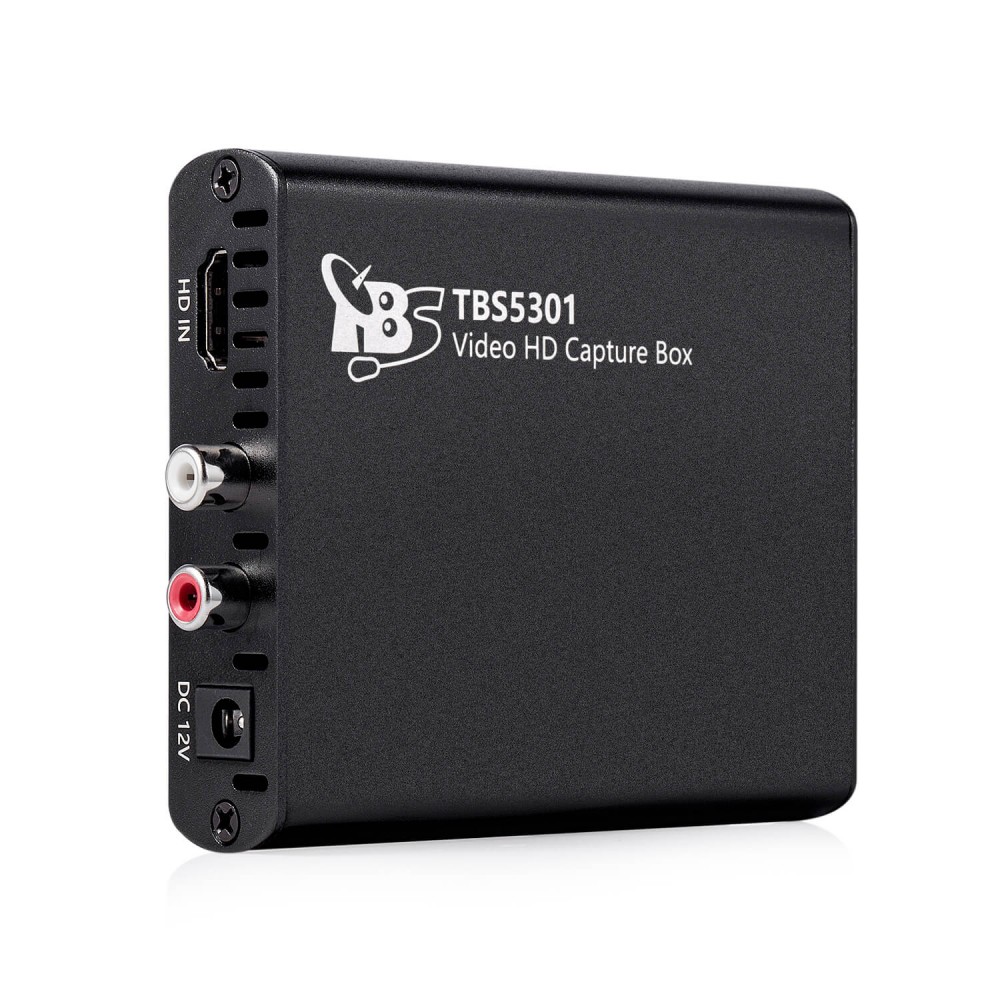

TBS5301 USB2.0 HDMI HD Capture card

  • Product Model: TBS5301

In Stock

TBS5301 USB2.0 HDMI HD Video capture card with HDMI 1.4 port, completely support full HD Video and Audio capture and playback. Compact in size and equipped with a USB 2.0 port, the device is a practical and easy-to-use USB 2.0 capture solution. It provides HDMI input of highest quality, d meets the HDMI 1.4 standard, satisfies the 1080 50/60p resolutions and H.264 hardware compression, you can easily capture and encode signals from different kinds of device without limitation. With the LAN port, TBS5301 allows you to stream the signals out directly without PC, makes it a device portable and easy to use with or without PC.

TBS5301 is suitable for recording, editing, videoconferencing, and streaming applications. windows driver is BDA architecture compatible with DVBDream,DVBView..., Linux driver is V4L architecture compatible with dvblast,tvheadend,astra....

Main Features:

  • Real HDMI Digital Interface
  • Compatible with 1080 50/60P Full HD Input Signals
  • Compliant with HDMI 1.3, HDMI 1.4a 3, HDCP 1.4 specifications
  • Hardware encoding, H.264 hardware compression
  • Supports UDP/RTP
  • Supports 20 bits DeepColor
  • Automatically Detecting Input Signal
Applications:
  • IPTV Servers
  • Datacasting and monitoring
  • Live TV Capture and streaming

Specification:

Module Tbs5301
Interface USB 2.0, 100M Ethernet
input 1xHDMI 1.4a
output TS
Recording Mode Hardware compression, real time mode
Encode Format H.264
Audio input HDMI Embedded audio & audio line in
Update Firmware could be updated.
OS and Driver Windows XP / Vista / Windows 7 /Windows 8 / Windows 10/Linux
Temperature 0 ~ 60 ℃
Consumption 5w
Dimension
Card Size 103x88x22 mm
Package box size
Weight
Package content 1x TBS5301
1x USB cable
1x Power adapter

HDMI Input Video Format Support:

Horizontal size Vertical size Rate Interleave/Progressive) Remark
1920 1080 60/59.94 P
1920 1080 50 P
1920 1080 60/59.94 I
1920 1080 50 I
1920 1080 30/29.97 P
1920 1080 25 P
1920 1080 24 / 23.98 P
1280 720 60/59.94 P
1280 720 50 P
1280 720 30 / 29.97 P
1280 720 24 / 23.98 P
720 483/480 59.94 P
720 576 50 P

※: Before encoding ,1920*1080 60P/50P convert to 1080 50/60i first
