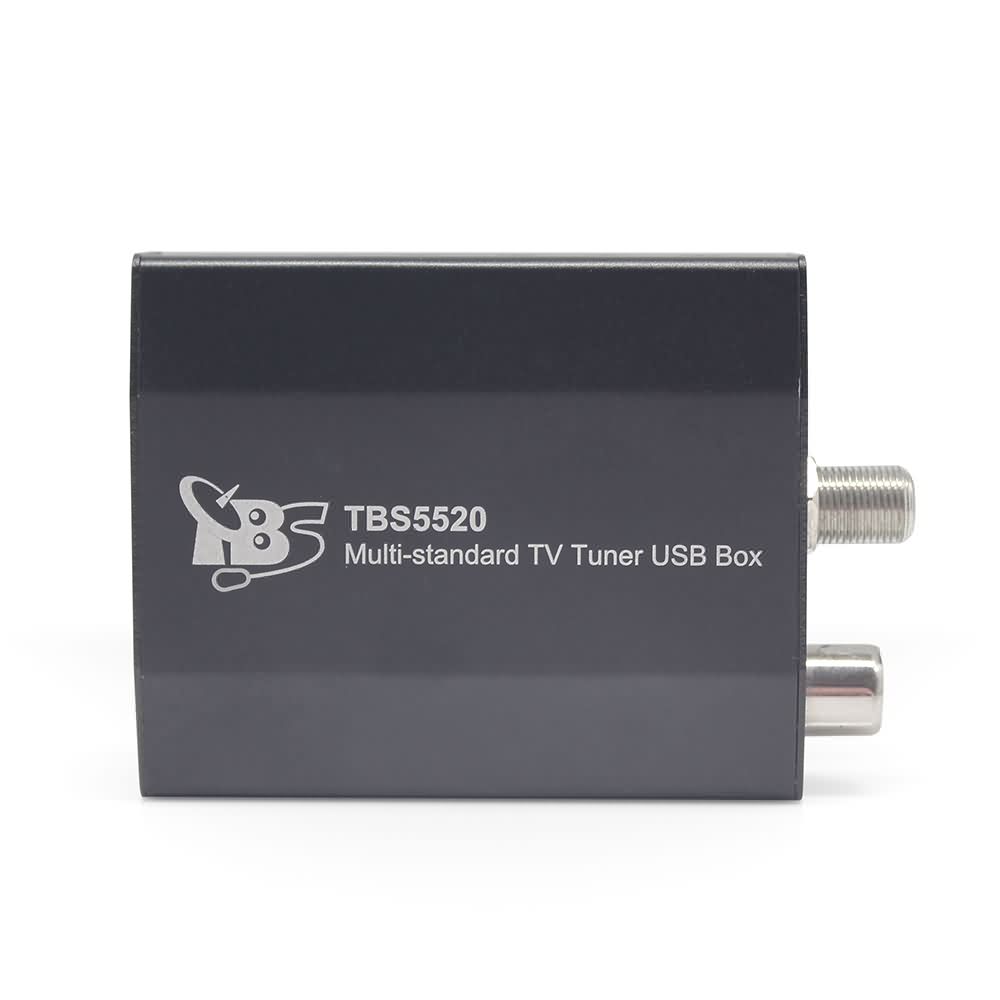

TBS5520 Multi-standard Universal TV Tuner USB Box

  • Product Model: TBS5520
  • Weight: 500.00g
  • Reward Points: 80
  • Price in reward points: 4000

2-3 Days

US$79.99

  • Qty.Range(unit) Price(per unit)
    2 + US$74.99
    6 + US$69.99

TBS5520 is a multi-standard external TV tuner with USB2.0 interface, it is capable of receiving digital TV channels of multiple standards: DVB-S2/S, DVB-T2/T, DVB-C, J.83/B, ISDB-T. Through the USB interface, you can easily plug the TBS5520 Universal TV Tuner to your desktop or laptop PC, with appropriate signal cable connected and software installed, it’s convenient to switch among different standards, and enjoy more TV channels than using just one single TV standard.


Benefits:
Multi-standard dual tuner card
Watch & record satellite TV/ radio programs on PC
EPG (Electronic Program Guide) support
Unicable/one cable compatible


Specification:
DVB-S2/S
Symbol rate: 1~45Msps
FEC:
DVB-S2
    8PSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
    QPSK: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-T2/T
Receiving channel: VHF band, UHF band
Bandwidth: 1.7,5, 6, 7, 8 MHz
FEC: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
RF-Input impedance: 75Ω (IEC-DIN female)

DVB-C & ITU J83 A/B/C
Frequency range: 47~862 MHz
Signal level: -65~-10dBm
Symbol rate: 0.87 to 9Mbaud
QAM modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM

ISDB-T
supported modes: 1, 2, 3
Bandwidth: 6 MHz, 7MHz, 8MHz
QAM modes: DQPSK, QPSK, 16QAM, 64QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

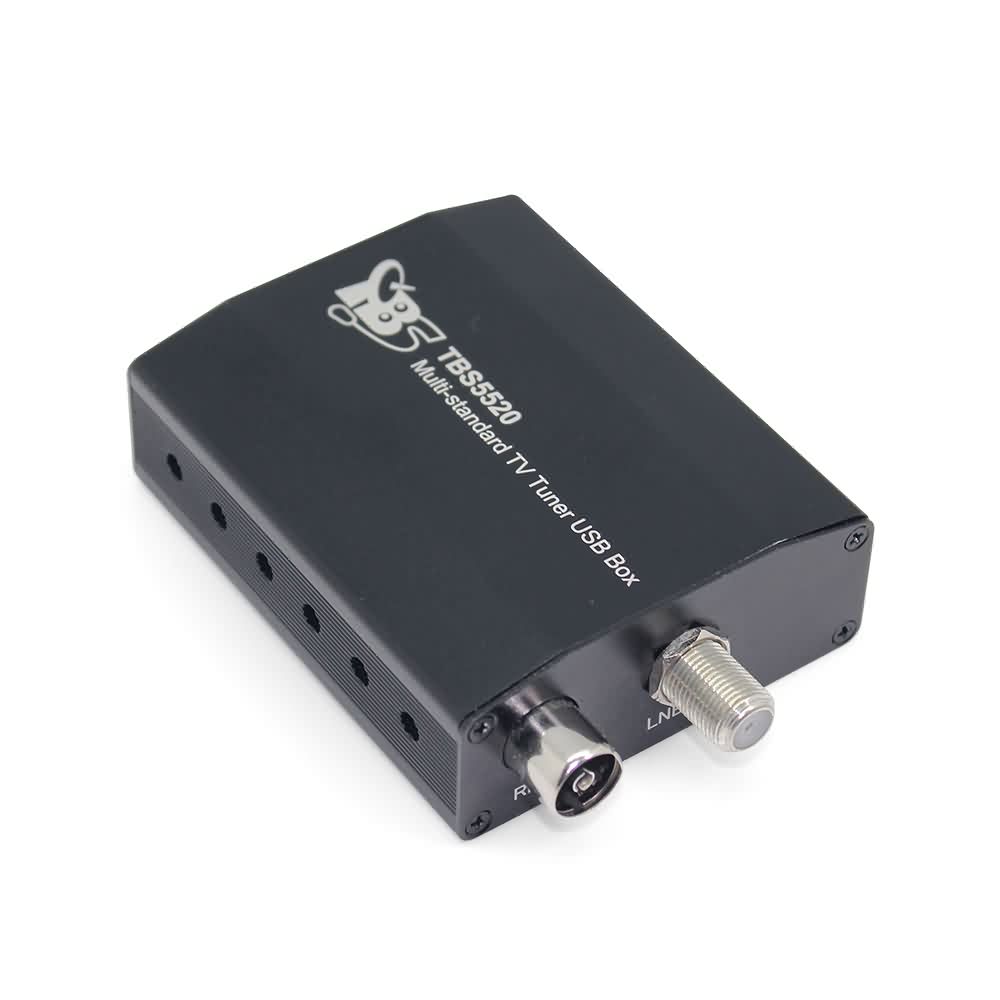

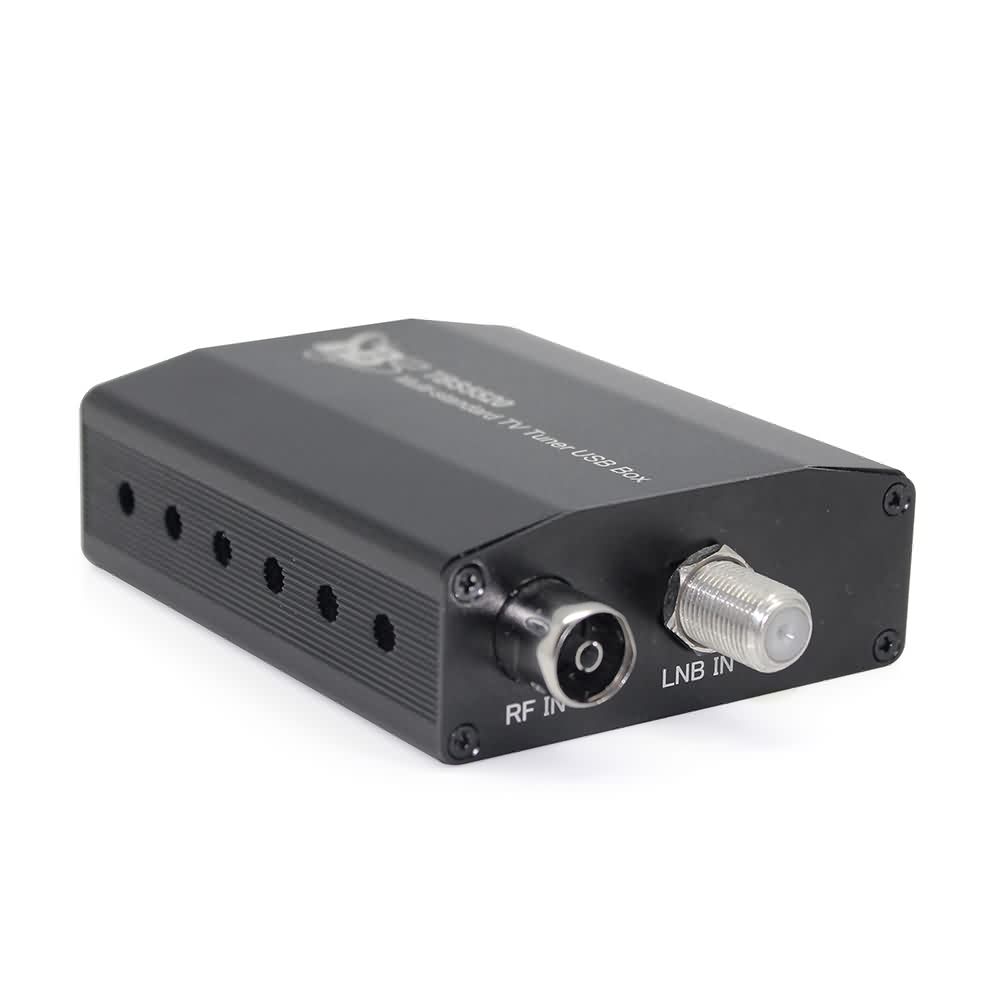

Connections
USB2.0
1x LNB IN
1x RF IN

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Digital TV signal (DVB-S2/S/DVB-T2/T/DVB-C/ISDB-T)


Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution

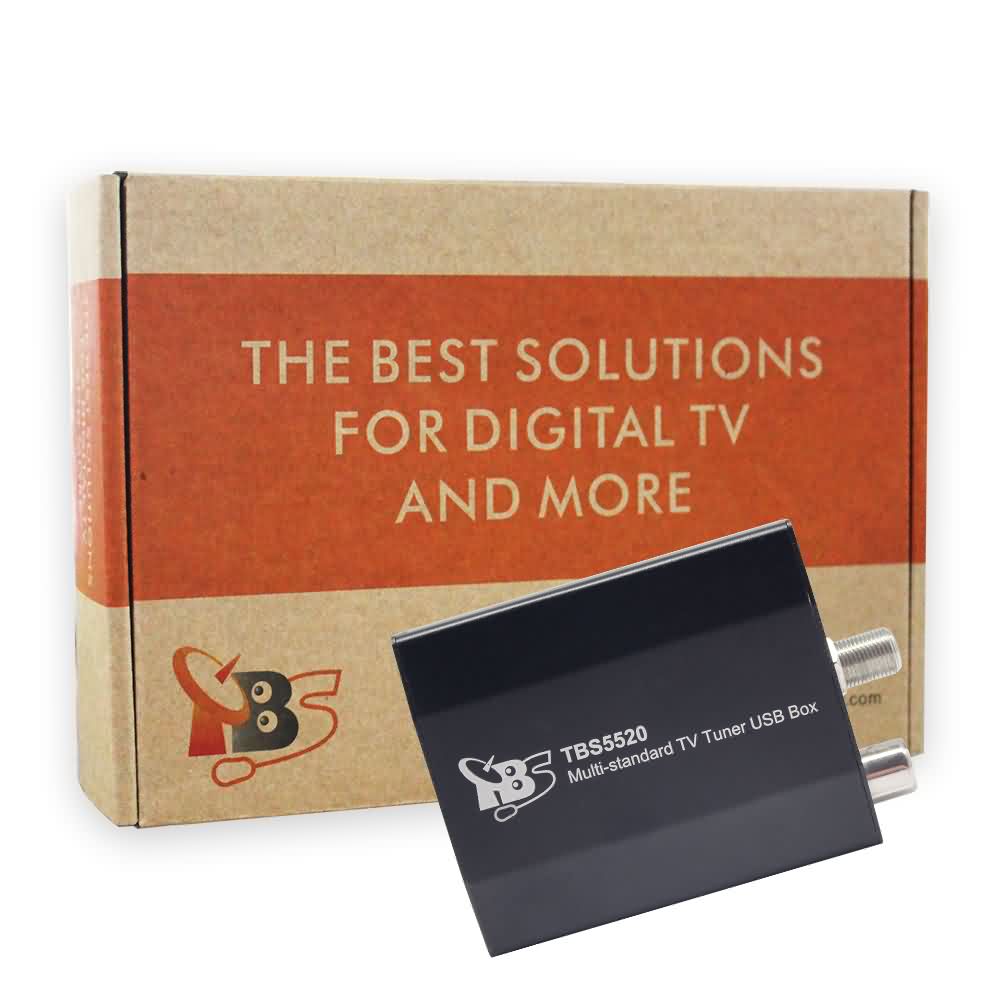

Package Contents:

1 x TBS5520
1 x Remote control
1 x USB cable
1 x F connector
