TBS5520SE Multi-standard Universal TV Tuner USB Box


TBS5520SE Multi-standard Universal TV Tuner USB Box

  • Model: TBS5520SE
  • Weight: 350.00g

Out Of Stock

US$109.00

TBS5520SE is a multi-standard external TV tuner with USB2.0 interface, it is capable of receiving digital TV channels of multiple standards: DVB-S2X/S2/S/T2/T/C2/C/ISDB-T. Through the USB interface, you can easily plug the TBS5520SE Universal TV Tuner to your desktop or laptop PC, with appropriate signal cable connected and software installed, it’s convenient to switch among different standards, and enjoy more TV channels than using just one single TV standard.

TBS5520se is powered by USB cable, which is not powerful enough for heavy power load, like Motor LNB.

Main Features:

  • Multi-standard TV USB box
  • Watch & record satellite TV/ radio programs on PC
  • EPG (Electronic Program Guide) support
  • Unicable/one cable compatible

Applications:

  • Data receiving
  • IPTV streaming
  • Media monitoring
  • Digital content distribution


Specifications:

ISDB-T COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVB-T2 and T2-Lite Receiving channel:  VHF band, UHF band
Bandwidth:  1.7, 5, 6, 7, 8MHz
FEC:  QPSK, 16QAM, 64QAM,256QAM
FFT mode:  1K, 2K, 4K, 8K, 16K, 32K
Code rate:  1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2 COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex B QAM demodulator
FEC decoder
1 to 7.2MSymbol/s
DVB-S/S2/S2X symbol rates: 1-45Msps
FEC:

DVB-S/S2

          QPSK:  1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

          8PSK:  3/5, 2/3, 3/4, 5/6, 8/9, 9/10

        16APSK:  2/3, 3/4, 4/5, 5/6, 8/9, 9/10

        32APSK:  3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2X

          QPSK:   13/45, 9/20, 11/20

    2_4_2_APSK:   100/180, 104/180

          8PSK:   23/36, 25/36, 13/18

8_8_APSK:   90/180, 96/180, 100/180, 18/30, 20/30

16APSK:   26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180

4_12_16rb_APSK:   2/3

4_8_4_16_APSK:   128/180, 132/180, 140/180
Power consumption
Input/ Power: 5V/5W
temperature 0~60℃

Other information:

System Requirements Windows XP / Vista/ 7/8/10, Linux
AvailableUSB 2.0 slot
Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S)
Dimension:
TV tuner box size 9*7.5*2.5(cm)
Net weight 110g

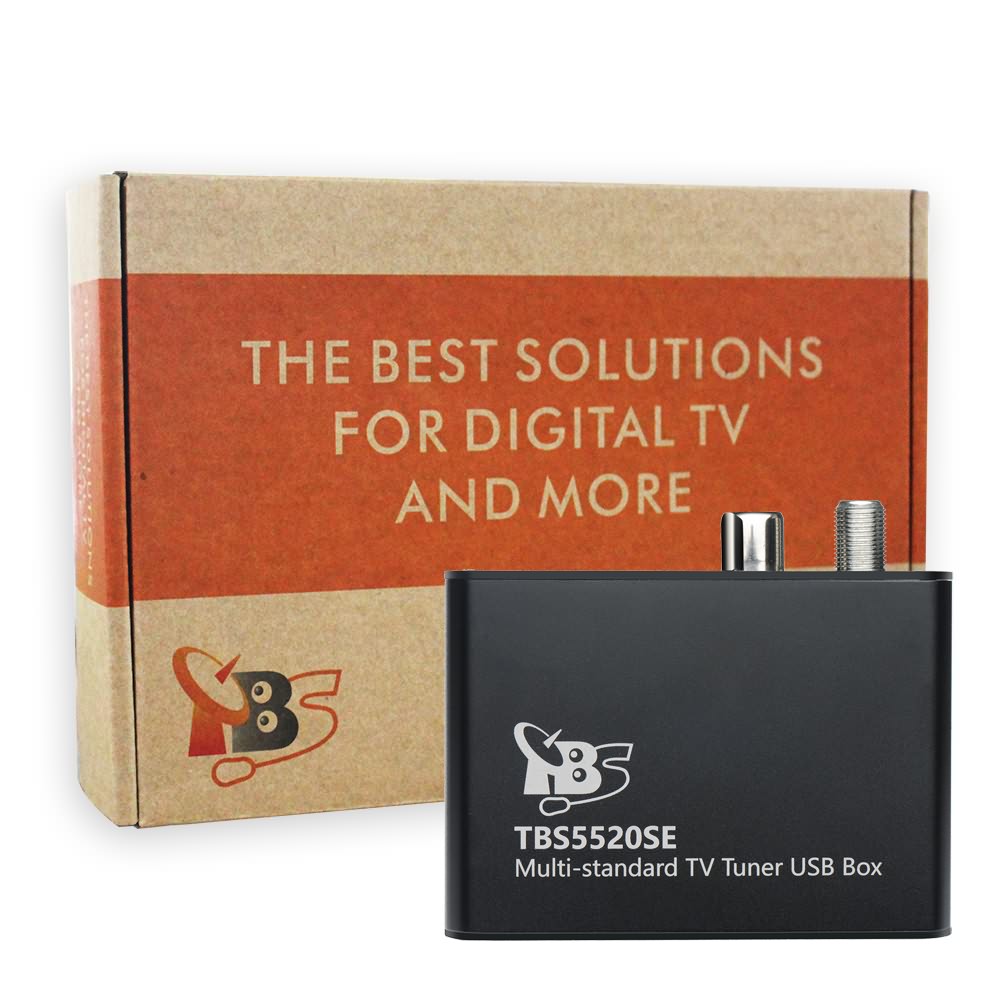

Gift Box Size 17*16.5*8.5(cm)
Weight 350g
Package Contents 1 x TBS5520SE
1 x USB cable
1 x F-IEC
