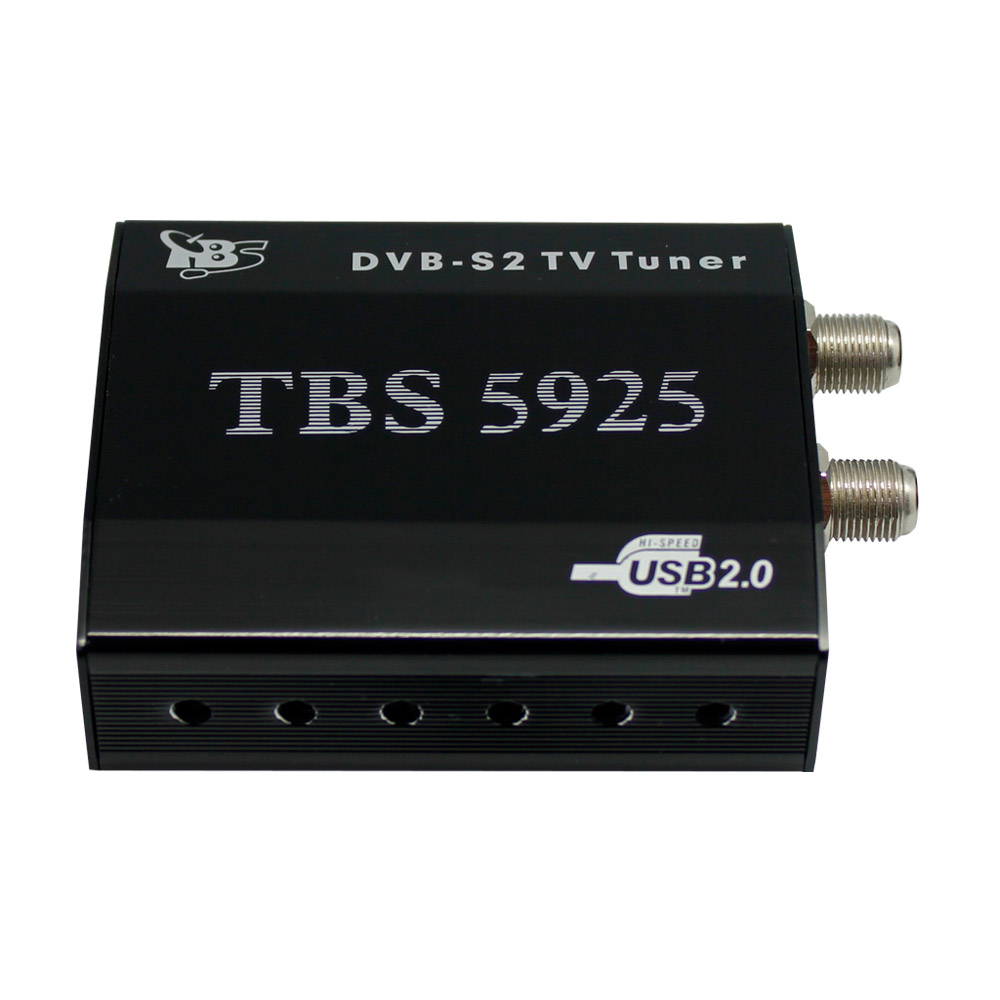

TBS5925 is a Professional level digital satellite TV Tuner box with USB2.0 connection to PC. TBS5925 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also ACM, VCM, Multi Input Stream, 16APSK and 32APSK mode, which most satellite receiving devices can’t support. With use of dedicated TBS tools, those special streams can be captured. Both Windows BDA driver and Linux driverup to the latest kernel 3.X are provided.

TBS5925 USB DVB-S2 Professional TV Tuner external box, built with the highest industry standard, with its rock reliability is the device that any personal enthusiasts or engineers in digital satellite TV industry dream to have. The applying of an unique DVB-S2 demodulator chipset makes it possible to receive special streams broadcasted withACM, VCM, Multi Input Stream, 16APSK, 32APSK. The built in hardware blind scan feature allows scanning of unknown satellite transponder with symbol rate as low as 200ksps, while most satellite receiving device can receive no less than 1Msps symbol rate. Such blind scan feature can be achieved by dedicated TBS tool or Crazyscan tool.


Main Features:
EUMETCast Compatibility
DVB-S2/S Transponders Receiving
CCM, VCM,ACM and Multi Input Stream Support
Wide range symbol rates support from 200Ksps to 45Msps
High-speed Data download via Satellite
Unicable/One Cable compatible
Blindscan
High reliability

Applications:
Satellite feed hunting
Satellite Data download
Lock of special transponders


Specifications:
Receiving Frequency: 950~2150 MHz Tuning Range
Input level: -69~-23dBm
DVB-S2/DVB-S 8PSK QPSK 16APSK 32APSK Demodulator
Symbol Rate:
DVB-S QPSK 0.2~45Msps
DVB-S2 QPSK/8PSK 0.2~45Msps
Carrier Capture Range: ±10MHz
-DVB-S2 CCM ACM VCM
    QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10
    16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    32APSK+3/4, 4/5, 5/6, 8/9, 9/10
-DVB-S
    QPSK+1/2, 2/3, 3/4, 5/6, 7/8
Support Data Burst & Tone Burst
Support DiSEqC2.X and Motor
TV Box Size: 78x64x26mm (Length x Width x Height)
TV Box Weight: 137 Gram
Package Gift Box Size: 200x162x55mm (Length x Width x Height)
Package Gift Box Weight: 647 Gram

System Requirements:
Windows 2000/XP/Vista/7/8/10 or Linux
DirectX9.0 or later Version
Available USB2.0 Port
Satellite Dish and LNB

For DVB-S:
1GHz CPU or above
256MB RAM or above
Graphic Card with at least 16MB RAM

For DVB-S2 HDTV:
Dualcore CPU
1GB RAM or Above
Graphic Card with at Least 64MB RAM

Package Content:

1 x TBS5925 USB DVB-S2 TV Tuner Box
1 x Power Adapter
1 x USB Cable
