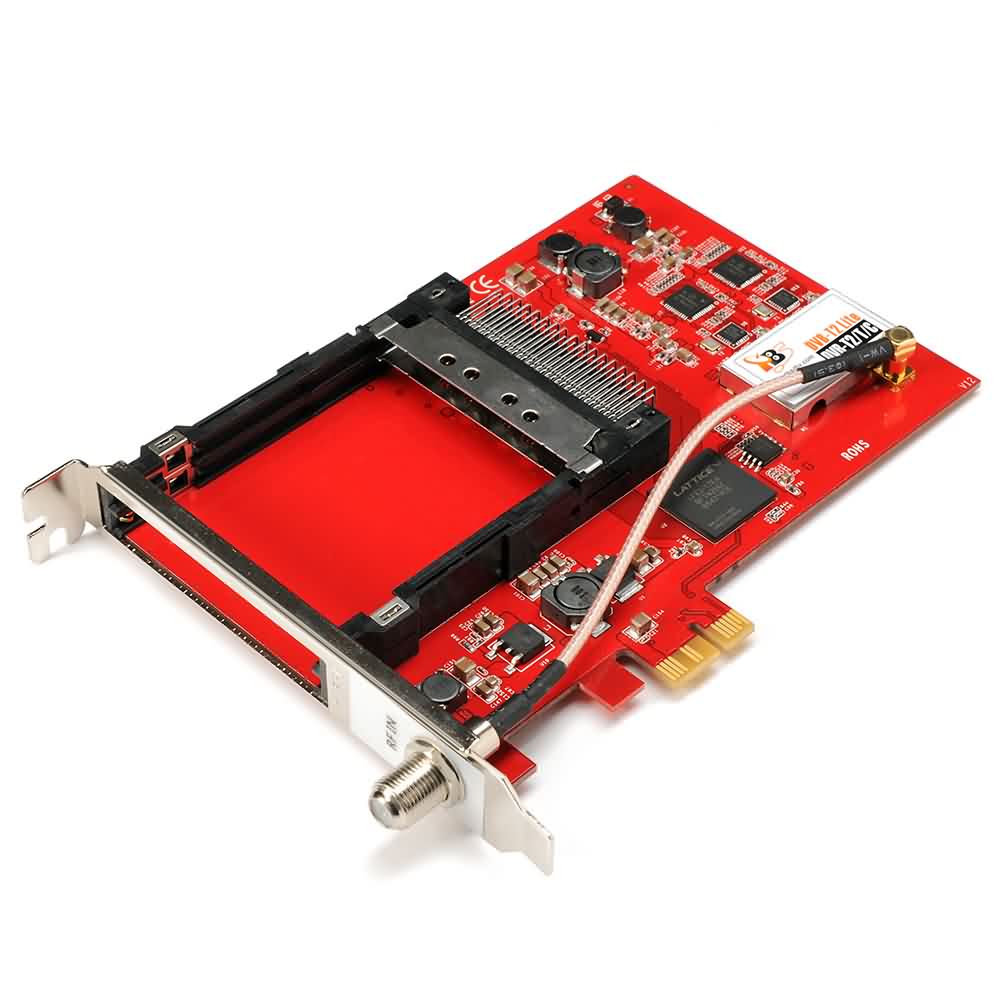

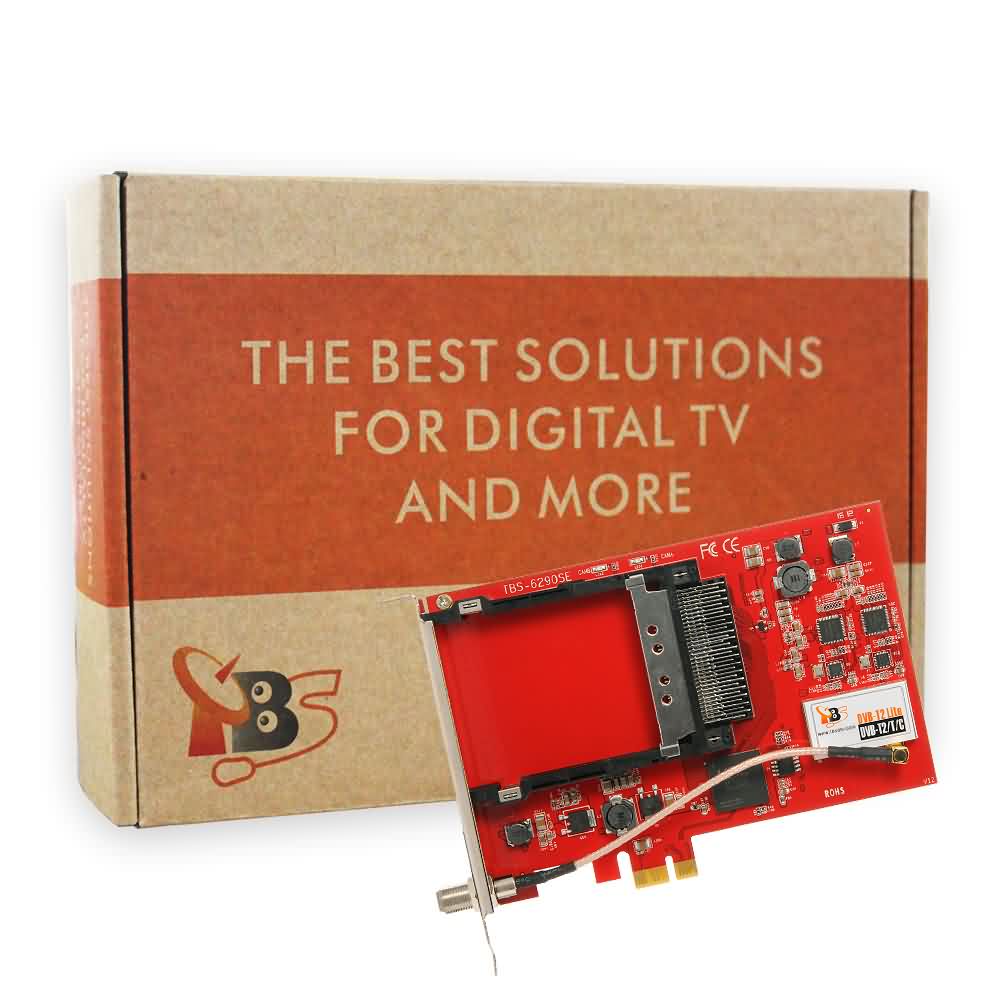

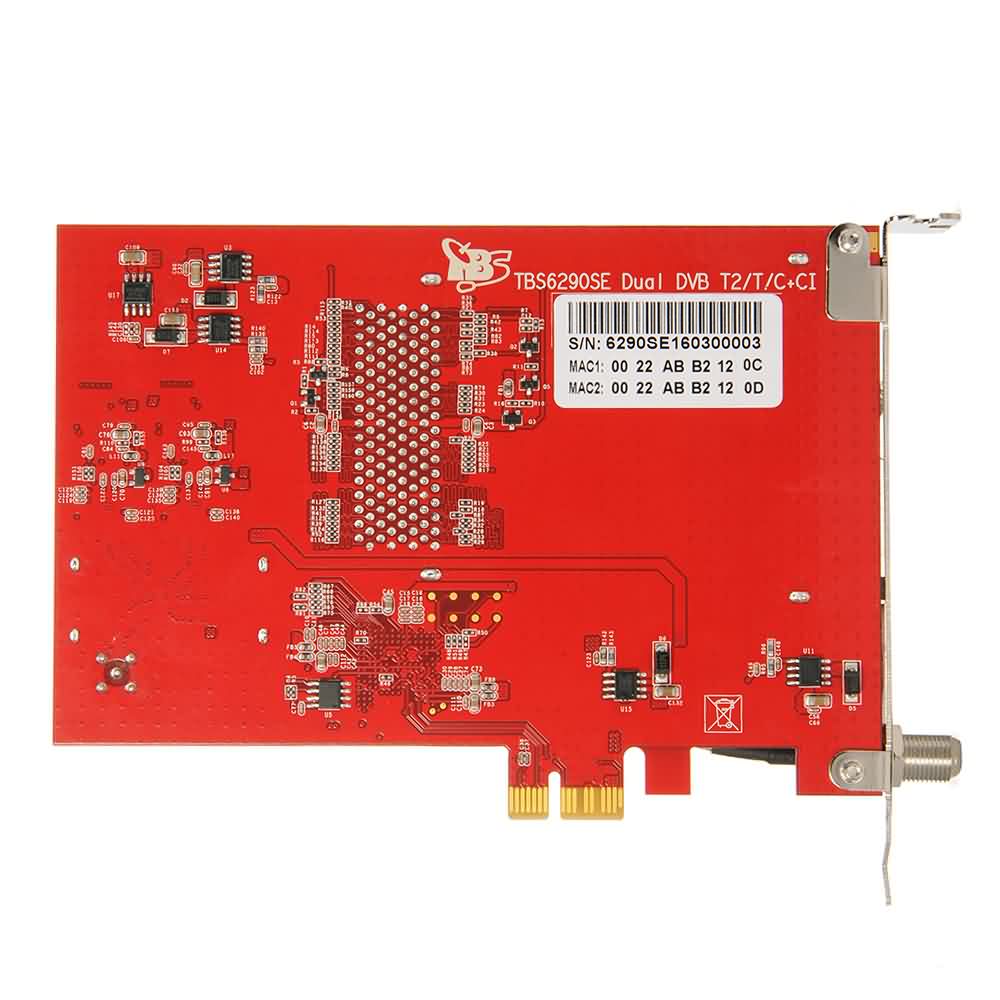

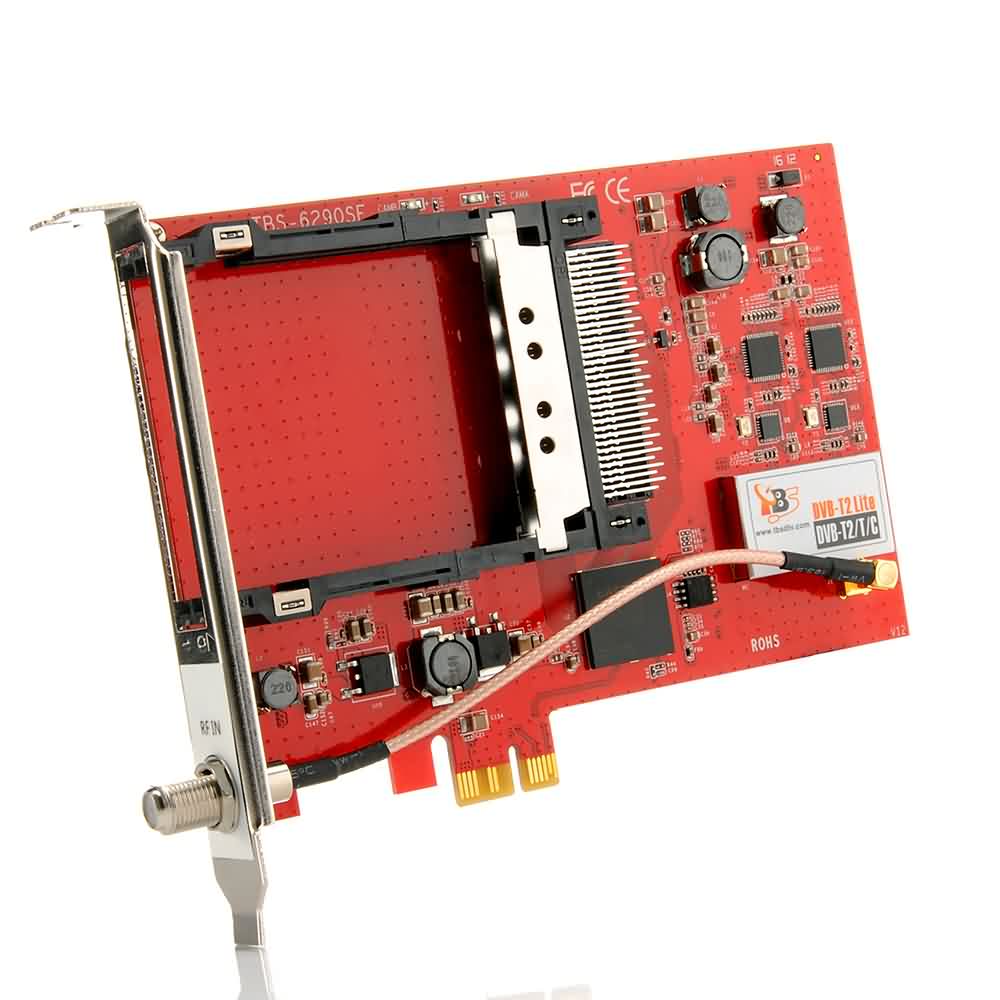

TBS6290SE DVB-T2/T/C Dual Tuner Dual CI PCIe Card

  • Product Model: TBS6290SE
  • text_weight 380.00g
  • Reward Points: 180
  • Price in reward points: 9000

In Stock

US$179.99

  • Qty.Range(unit) Price(per unit)
    2 + US$174.99
    6 + US$169.99

TBS6290SE is the latest DVB-T2/T/C PCI Express tuner, it’s equipped with dual tuner and dual CI slot, which allows you to enjoy two live terrestrial TV channels from two different frequencies at the same time, and it supports both reception of FTA (free to air) TV channels and encrypted TV channels.  TBS6290SE DVB-T2/T/C Dual Tuner Card can be used as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. With the time-shifting function, it also enables you to pause a live broadcast and continue from where you left. This DVB T2 PC TV card is ready with windows BDA

Specifications:
Support PLP (Physical Layer Pipe)
• DVB-T2/T2 Lite/T
Receiving channel: VHF band and UHF band
Channel bandwidth: 6, 7, 8 MHz
DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
Intermediate frequency
IF mode: low IF
Center IF Frequency: 3 ~ 5 MHz
Note: default 4MHz
RF-Input impedance 75Ω (IEC-DIN female)
RF-Output impedance 75Ω (IEC-DIN male)
• DVB-C
Fully compliant with DVB-C and ITU J83 A/B/C specifications
Receiving Frequency: 47~862 MHz Tuning Range
Input level: -65~-10dBm
16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
Symbol Rate: 0.87 to 9Mbaud

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
CD/DVD drive for software installation

Package Contents:

1x TBS6290SE DVB-T2/T/C Dual Tuner Dual CI PCIe Card
1x F connector
