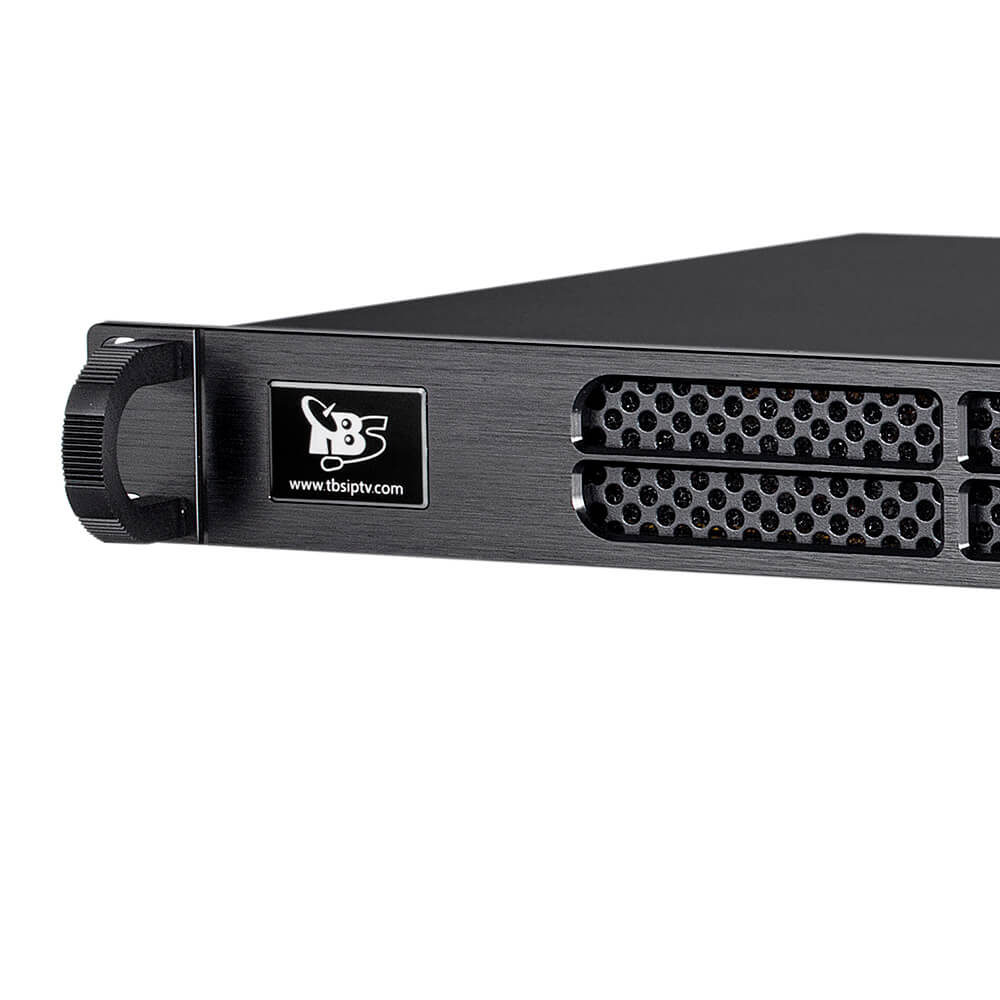

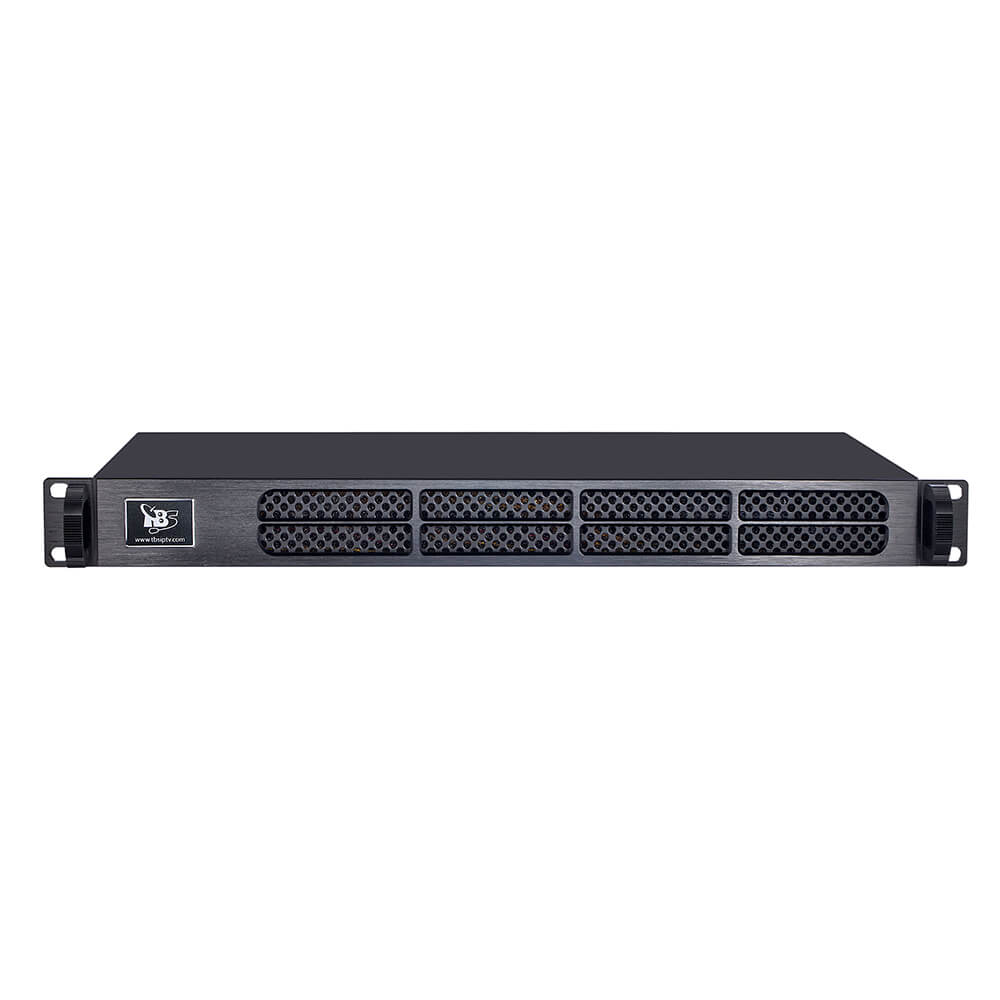

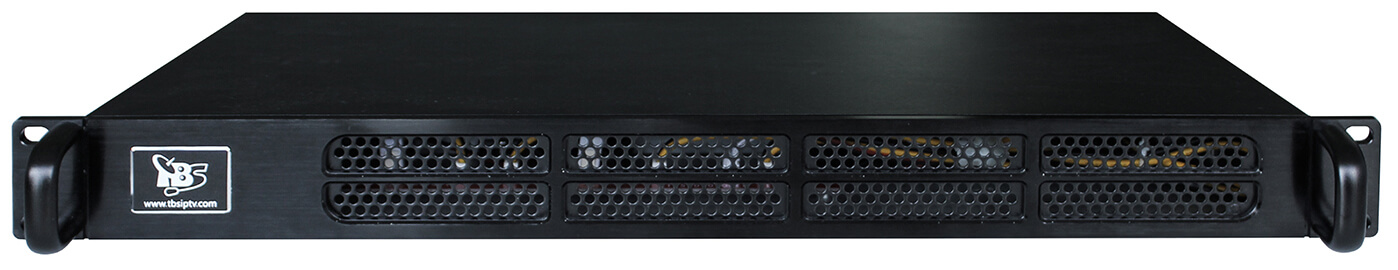

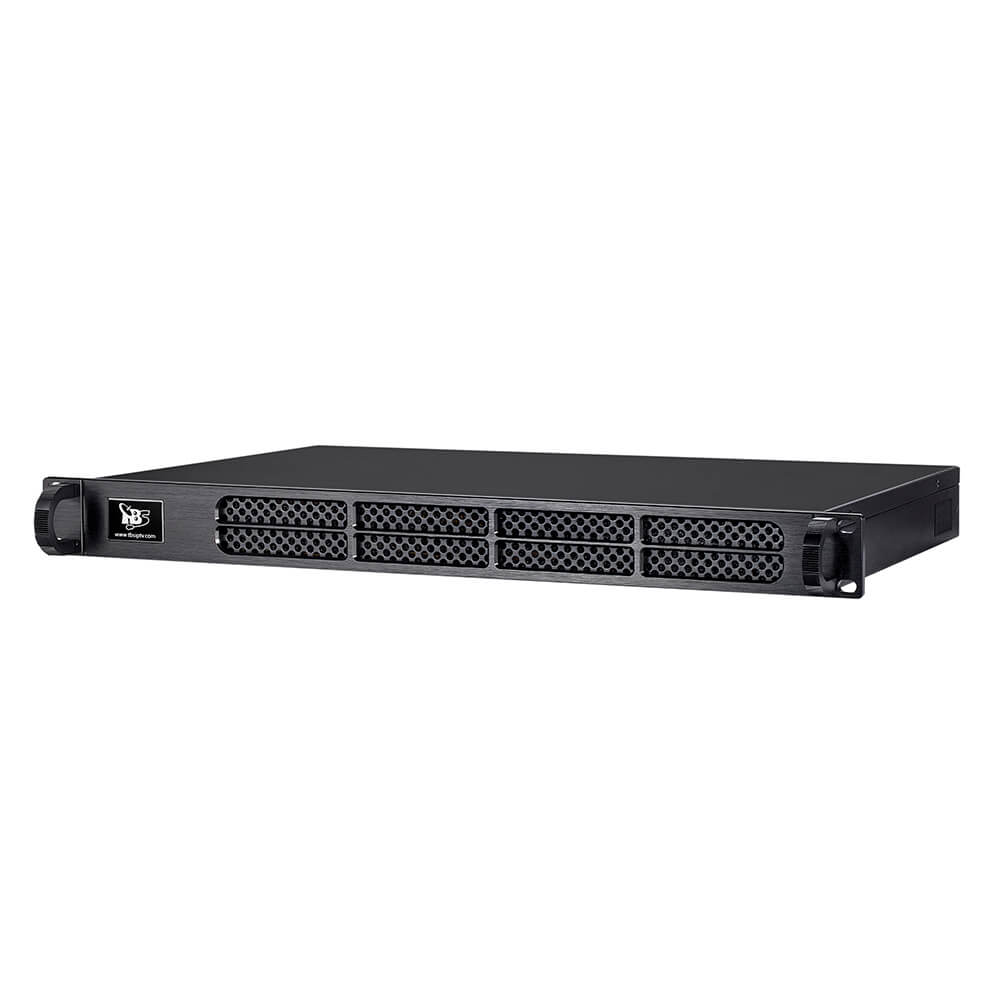

TBS8030 1U 16 channels HD H.264 HDMI Encoder


TBS8030 1U 16 channels HD H.264 HDMI Encoder

  • Product Model:TBS8030
  • Weight:60,000.00g

In Stock

TBS8030 1U 8/16 channels HD H.264 HDMI Encoder is a Multi-channel HD H.264 HDMI encoder, which is using hardware compression (FUJITSU) solution. Compare with the TBS2630 2U Encoder using Hisilicon solution, TBS8030 has much video quality outputs. TBS8030 supports up to 16 x channel inputs with 2x Ethernet interface in a 1U chassis.

TBS8030 HDMI Encoder supports RTP/UDP protocols and displays resolutions up to 1080i, which makes it to be an ideal encoding server for digital data transfer. It supports to capture and record HD content in H.264 format from PS3, Xbox 360 and digital video cameras. Besides, TBS8030 is lower power consumption and cost effective than other HDMI encoders.



TBS8030 – 16CH VS TBS2630 – 16CH:

TBS8030 – 16CH TBS2630 – 16CH
Hardware solution FUJITSU Chipset HISILICON Chipset
Framework FPGA ARM
Inputs interface 16/8 x HDMI 1.4a 16/8 x HDMI 1.4a
Output interface 1 x RJ45 16 x RJ45
Output protocol UDP/RTP HTTP/RTSP/RTP/RTMP/UDP
Color Depth 10 Bit absolute encoding 8 Bit absolute encoding
Chassis 1U 2U

Application:

  • IPTV
  • Digital Signage
  • Video Conference
  • Replace HD Video Capture Card
  • Hotel TV system
  • Live Broadcast;
  • Teaching/Campus Broadcast
  • Recording System

Specification:

Model TBS8030 HDMI Encoder

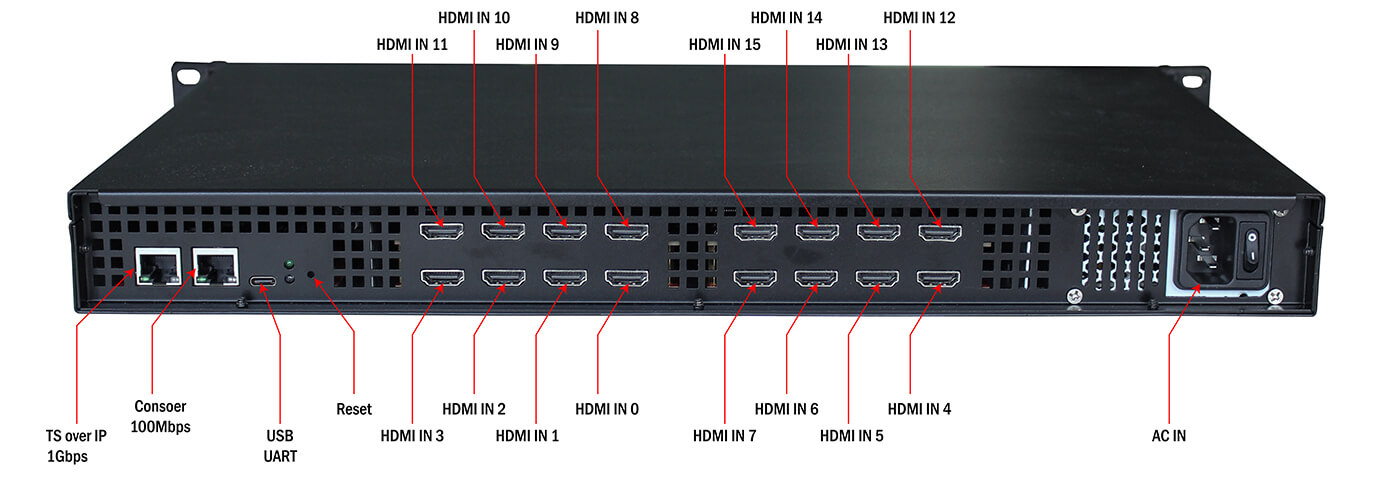

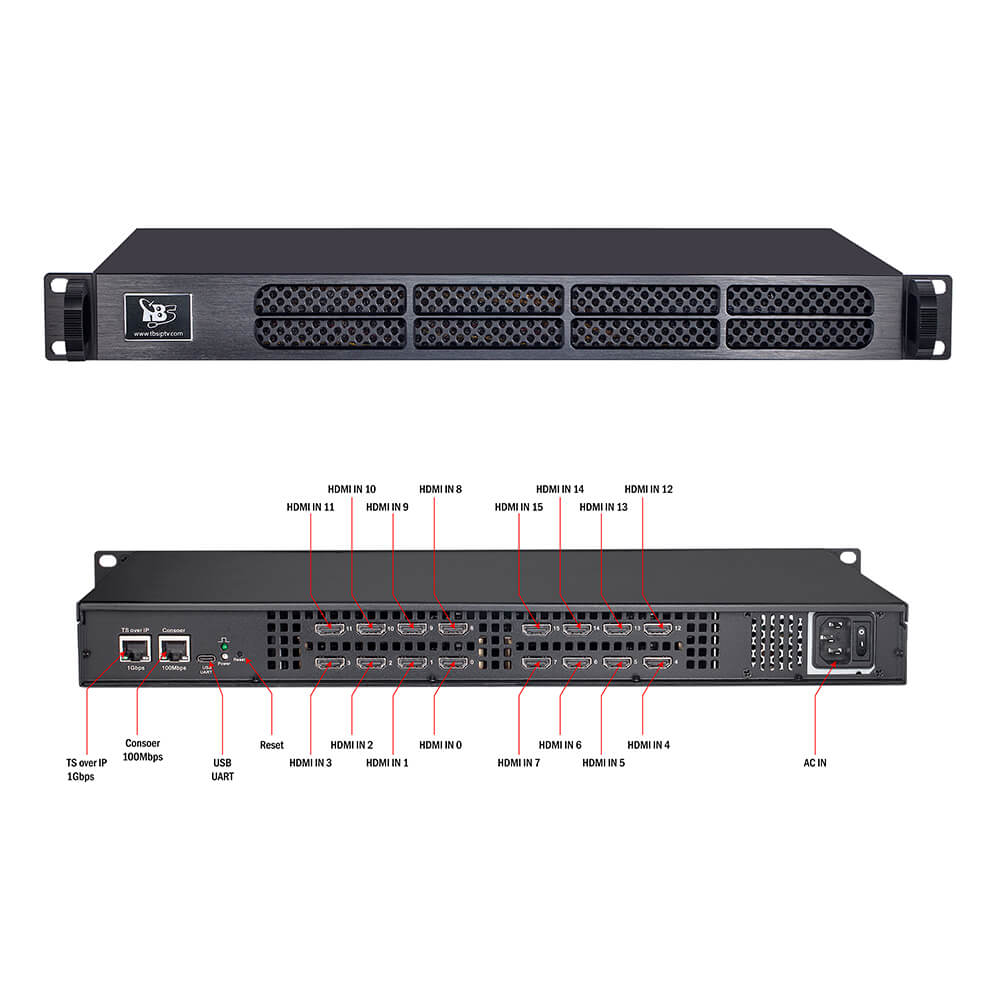

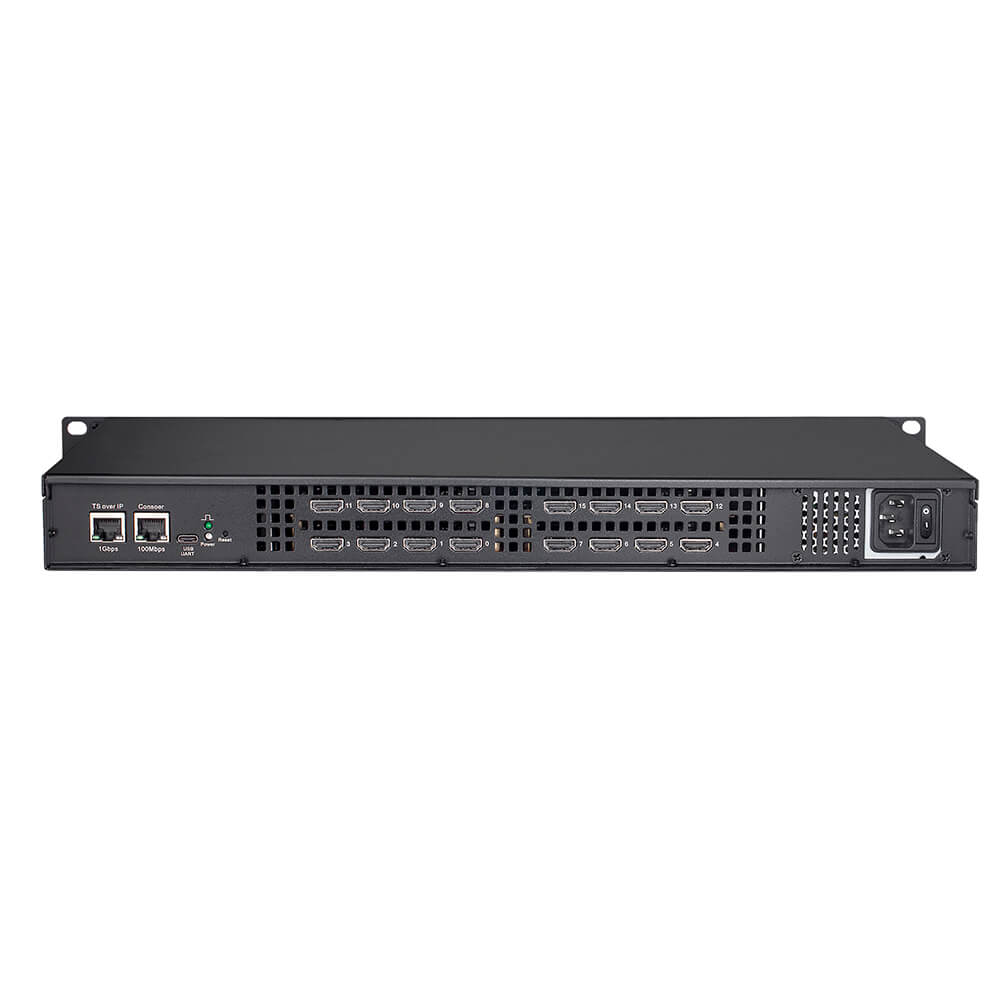

Input 8x/16x HDMI 1.4a

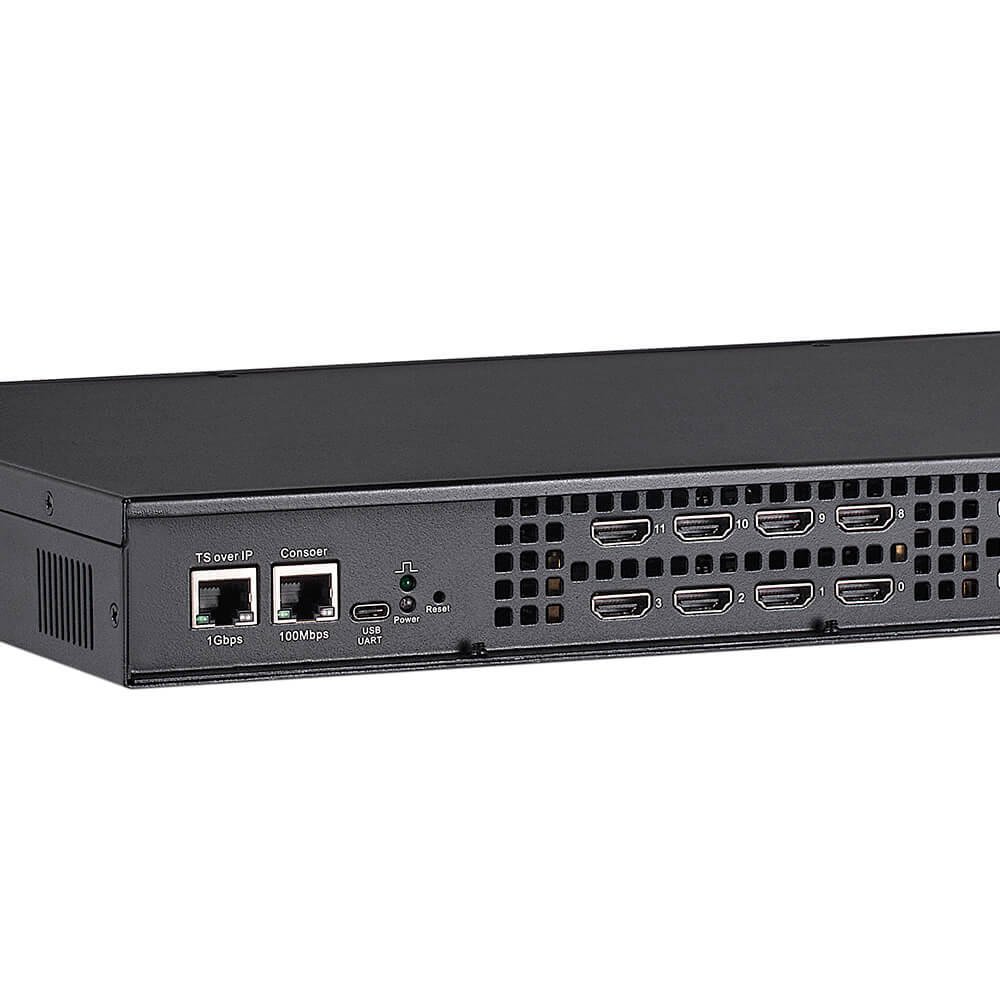

Ethernet 1xRJ45 100M, 1xRJ45 1Gbps
Output TS
Output types UDP/RTP
Recording Mode Hardware compression, real time mode
Encode Format H.264
Audio Input HDMI Embedded audio
Update Firmware could be updated
OS and Driver Win7 or above / Linux4.4 or above
Temperature 0 ~ 60 ℃
Others
Size 1U (482*281*44.4mm)
Power Consumption <60W
Weight 8KG

HDMI Input Video Format Support:

Horizontal size Vertical size Rate I or P
1920 1080 60 / 59.94 P
1920 1080 50 P
1920 1080 60 / 59.94 I
1920 1080 50 I
1280 720 60 / 59.94 P
1280 720 50 P
720 483(480) 59.94 P
720 576 50 P
1920 1080 30 / 29.97 P
1920 1080 25 P
1920 1080 24 / 23.98 P
1280 720 30 / 29.97 P
1280 720 24 / 23.98 P
