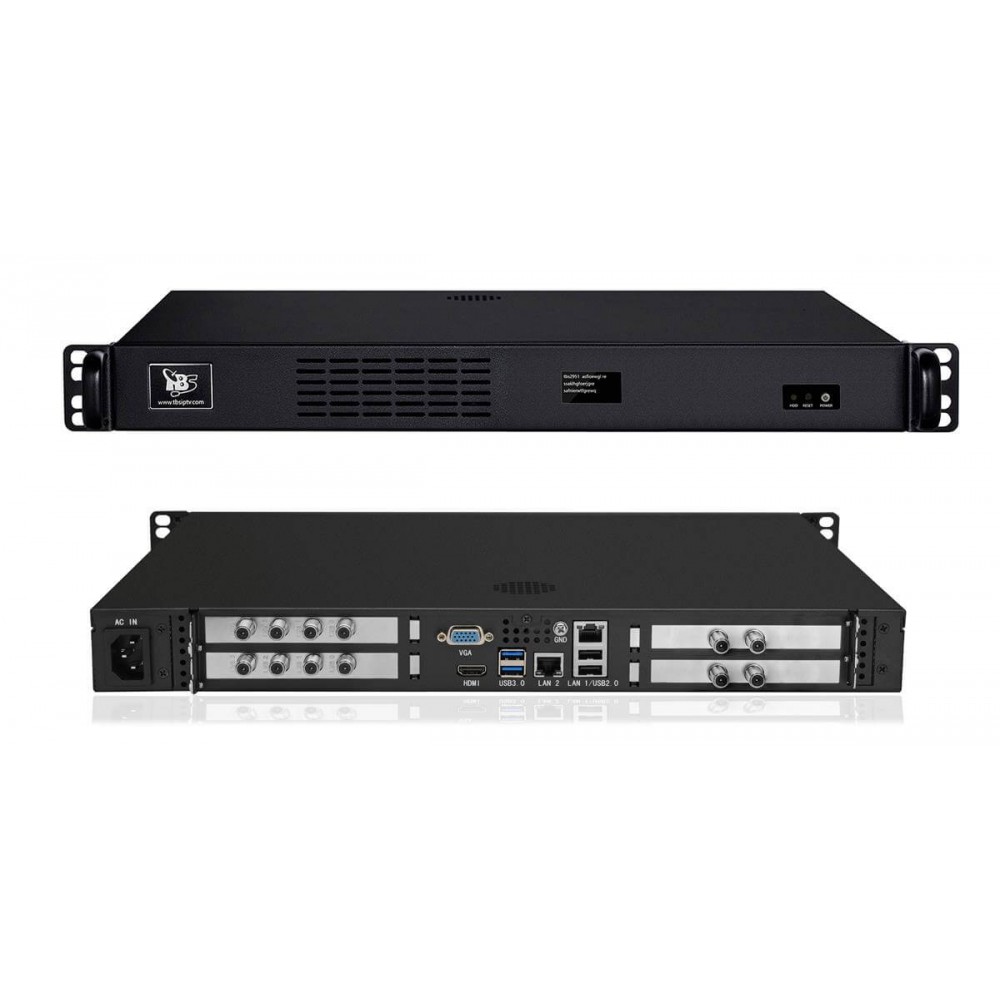

TBS8110 All in One 8 Channel DVB-T Modulator Server

  • Product Model: TBS8110

Out Of Stock

TBS8110 DVB-T modulator server is TBS latest product, it works as a DVB-T signal generator and supports 8 channel DVB-T transmission. Based on the multiplex platform, the server is able to broadcast in DVB-T using TS stream and also from IP input, it designed to support most broadcast industry standard forms, such as DVB-S2/S standard, DVB-ASI input via PCI-e and also MPEG from HDMI/SDI encoder over IP input.

Based on the powerful AMD® Embedded G-Series SoC, it supports to install 2 TBS tuner card inside, up to 8~16 TV tuners with different DVB standards, and to meet customers’ various requirements, this device is also equipped with 128 IP input and 8 MPTS output over UDP and RTP. With "Remux" technology, you can easily select popular channels from input streams, then multiplexed to a new TS stream to 8 RF output.

TBS DVB-T modulator server is the perfect solution for Digital Signage, Private Circuit, STB Testing, and Laboratory Applications. It also provides a very cost-effective solution to transmodulation system and IPTV systems.




Features:

  • RF modulation (terrestrial digital) output option
  • 8~16 TV tuner with different broadcast standard (DVB-S2/S/C, ISDB-T, ATSC, DVB-ASI)
  • 8 channel DVB-T transmission
  • Managed through web UI
  • Multiplex DVB-S/S2, ISDB-T, ATSC, DVB-ASI and IP inputs
  • Integrated modulating and multiplexing functions


Applications:

  • DVB-T signal generator
  • Video broadcast/distribution
  • IPTV system

Application: With TBS Tuner/Capture card, covert DVB-S2 signal to DVB-T with this device you can easily manage all channels from different standard and configuration the DVB-T output frequency information.


Specification:

Size 1U
CPU AMD® Embedded G-Series SoC (Quad Core, 2GHz)
RAM 4GB DDR3 1333
Graphics Integrated AMD Radeon™ HD
Ethernet 2x LAN Gbit / 100 Mbit / 10 Mbit
SSD 30G mSATA SSD
Interface 4 x PCI-E;
2 x USB 2.0
2 x USB 3.0
Input 8~16 tuner with different broadcast standard
128 IP input over UDP and RTP, RJ45, 1000M/100M Unicast/Multicast
Output 8 * RF COFDM DVB-T out (4 carriers combined output)
Remote management web NMS
DVB-T
Frequency range 50~950 MHz
Channel bandwidth 6, 7, 8 MHz
FFT mode 2K, 8K
FEC 64QAM/16QAM/QPSK
Code rate 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/4, 1/8,1/16, 1/32
Carrier Suppression > 50dB
MER > 40dB
Spectrum Shoulders 55 dB for perfect
Channel band width variable channel band width from 2 MHz to 8 MHz
