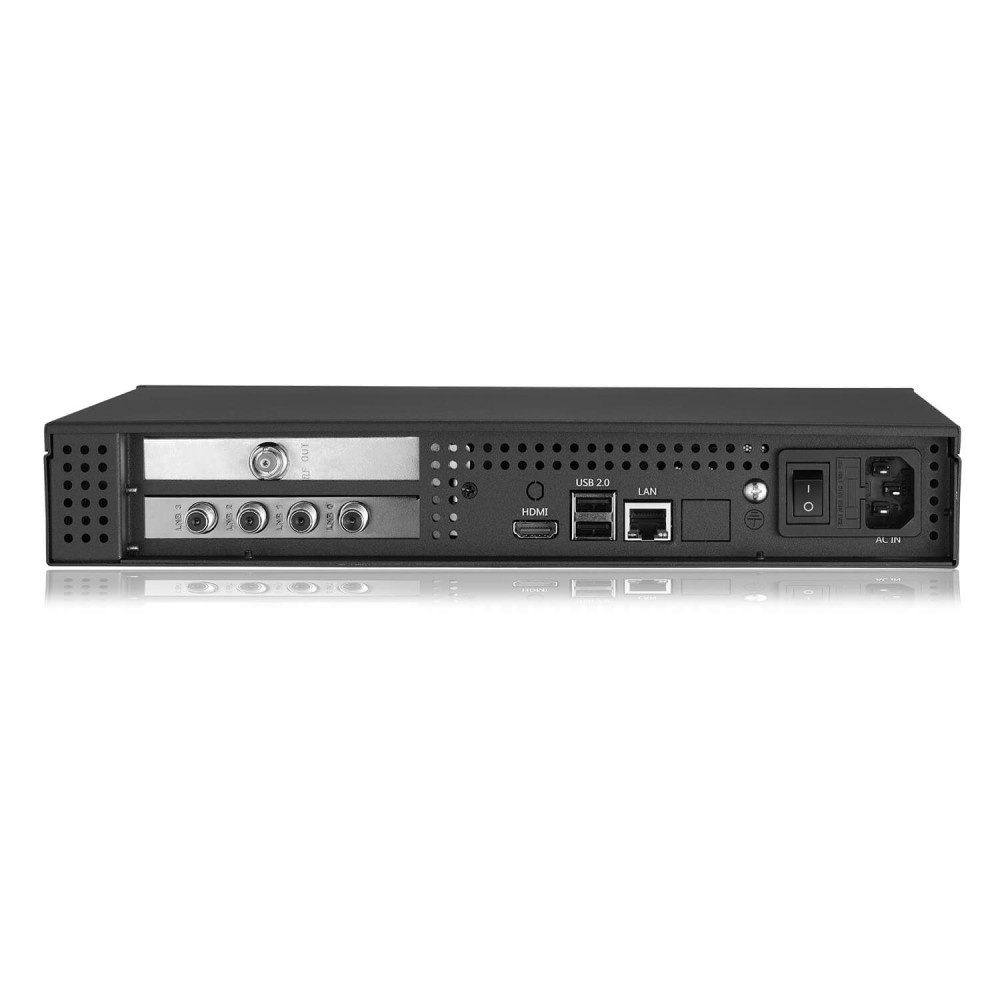

TBS8112 DVB-S/S2/S2X TO DVB-T Trans-Modulator


TBS8112 DVB-S/S2/S2X TO DVB-T Trans-Modulator

  • Model: TBS8112
  • Weight: 5,000.00g
  • Reward Points:1100

In Stock

US$1,100.00

TBS8112 is a compact trans-modulation device that is used to convert free DVB-S/S2/S2X satellite TV channels to DVB-T (Digital Terrestrial Television) format. It supports to receive free satellite channels from 4 frequencies via 4 RF port, and output DVB-T channels in 4 frequencies.

To meet customers' various requirements, TBS8112 DVB-S/S2/S2X to DVB-T trans-modulator also supports IP streams input and local video file storage. With "Remux" technology, you can randomly select required channels from input streams or local video files, then multiplexed to a new TS stream and output in 4 DVB-T Frequencies.

TBS8112 DVB-S/S2/S2X to DVB-T trans-modulator supports NMS system, can be controlled and configured via Ethernet using a standard browser.

Main Features

  • DVB-S/S2/S2X to DVB-T trans-modulator: 4 frequencies DVB-S/S2 input and 4 frequencies DVB-T output
  • MAX 108M DVB-T TS output available in 4 frequencies.
  • Smart channel "REMUX" system supports modulating and multiplexing functions
  • RF input/output - type F
  • 1Gb onboard Ethernet – RJ45 for web control and IP streaming
  • Web control and SNMP agent
  • Robust mountable housing

Specifications

4 Frequencies DVB-S/S2/S2X satellite input
Frequency range 950 ~ 2150 MHz
Standard DVB-S/S2 DVB-S2X
code rate QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 QPSK: 1/4,1/3, 2/5 (S2-MODCODs), 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 32/45
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 3/5, 32/45
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 32APSK (32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10(S2-MODCODs), 32/45, 11/15, 7/9
Symbol rate 1 ~ 45Msymb/s
Input power range –70 to ~ 20 dBm typ., –50 dBm nominal, –5 dBm max
Input Impedance 75 Ω
Input return loss > 10 dB
Noise figure 14 dB maximum
4 Frequencies DVB-T output
Frequency range 47 MHz - 858 MHz
Output level –20 dBm ± 1 dB, 50 ohms
Modulation DVB-T QPSK, QAM16, QAM64
Channel bandwidth 7/8 MHz
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Trans-modulation process
TS REMUX
  • Select arbitrary number of services from the received DVB-S/S2/S2X TS, REMUX and convert to DVB-T TS
  • User-defined NID, ONID, Network Name
Remote control
  • 1000 Mbps Ethernet connector to access a webserver
  • User-defined IP address
OS and Driver Linux 11 (bullseye)
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
Dimensions(chassis) 313*220*48 mm
