TBS8113 DVB-S/S2/S2X TO DVB-C Trans-Modulator


TBS8113 DVB-S/S2/S2X TO DVB-C Trans-Modulator

  • Model: TBS8113
  • Weight: 5,000.00g
  • Reward Points:1200

In Stock

US$1,200.00

TBS8113 is a compact trans-modulation device that is used to convert free DVB-S/S2/S2X satellite TV channels to DVB-C (Digital Cable Television) format. It supports to receive free satellite channels from 4 frequencies via 4 RF port, and output DVB-C channels in 4 frequencies.

To meet customers' various requirements, TBS8113 DVB-S/S2/S2X to DVB-C trans-modulator also supports IP video input and local video file storage. With "Remux" technology, you can randomly select required channels from input streams or local video files, then multiplexed to a new TS package and output in 4 DVB-C Frequencies.

TBS8113 DVB-S/S2/S2X to DVB-C trans-modulator supports NMS system, can be controlled and configured via Ethernet using a standard browser.

Main Features:

  • DVB-S/S2/S2X to DVB-C trans-modulator: 4 frequencies DVB-S/S2 input and 4 frequencies DVB-C output
  • MAX 180M DVB-C TS output available in 4 frequencies.
  • Smart channel "REMUX" system supports modulating and multiplexing functions

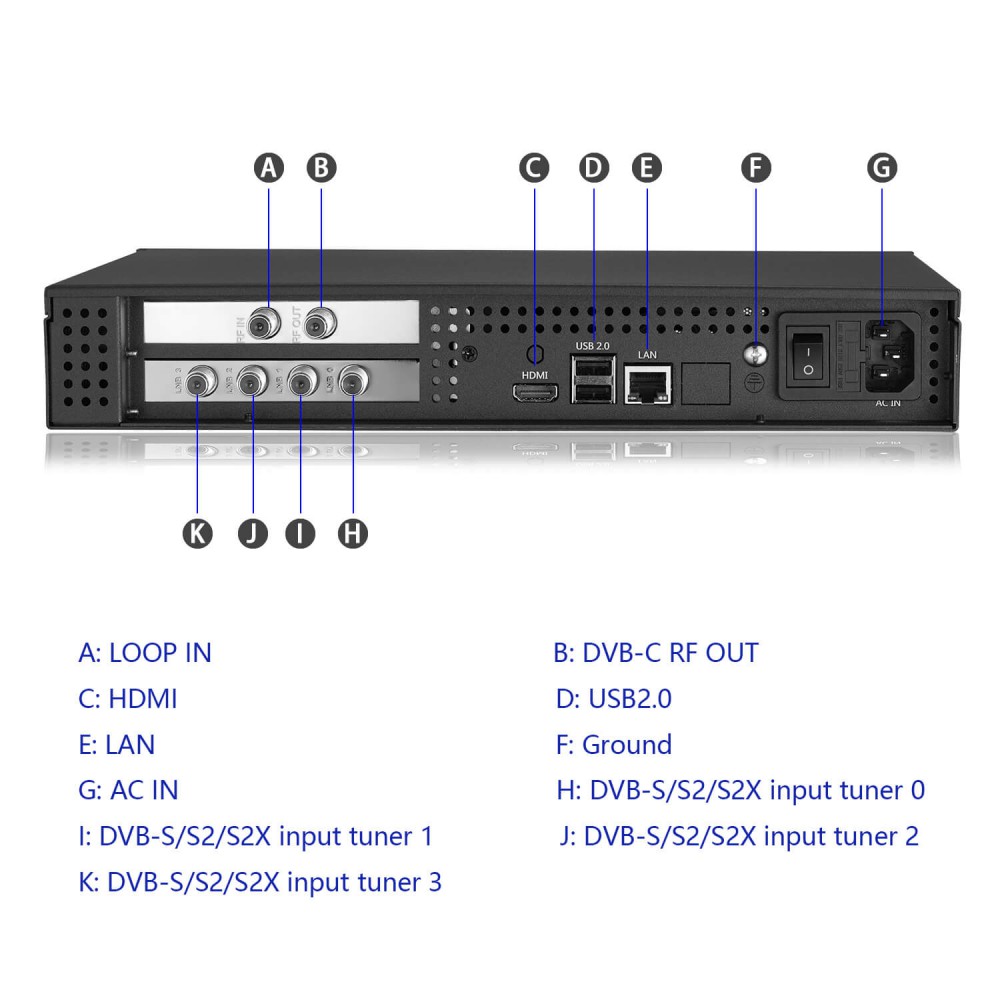

  • RF input/output - type F
  • 1Gb onboard Ethernet – RJ45 for web control and IP streaming.
  • Web control and SNMP agent
  • Robust mountable housing,

Specifications

4 Frequencies DVB-S/S2/S2X satellite input
Frequency range 950 ~ 2150 MHz
Standard DVB-S/S2 DVB-S2X
code rate QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 QPSK: 1/4,1/3, 2/5 (S2-MODCODs), 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 32/45
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 3/5, 32/45
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 32APSK (32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10(S2-MODCODs), 32/45, 11/15, 7/9
Symbol rate 1 ~ 45Msymb/s
Input power range –70 to ~ 20 dBm typ., –50 dBm nominal, –5 dBm max
Input Impedance 75 Ω
Input return loss > 10 dB
Noise figure 14 dB maximum
4 Frequencies DVB-C output
Frequency range 100 ~ 1000 MHz
Symbol rate 2000 ~ 7200kbps
Level 5-120
FEC 16QAM,32QAM,64QAM,128QAM,256QAM
Max bit rate 53 Mbps/per channel (7200kps, 256QAM)
Trans-modulation process
TS REMUX
  • Select arbitrary number of services from the received DVB-S/S2/S2X TS, REMUX and convert to DVB-C TS
  • User-defined NID, ONID, Network Name
Remote control
  • 1000 Mbps Ethernet connector to access a webserver
  • User-defined IP address
OS and Driver Linux 11 (bullseye)
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
Dimensions(chassis) 313 * 220 * 48 mm
