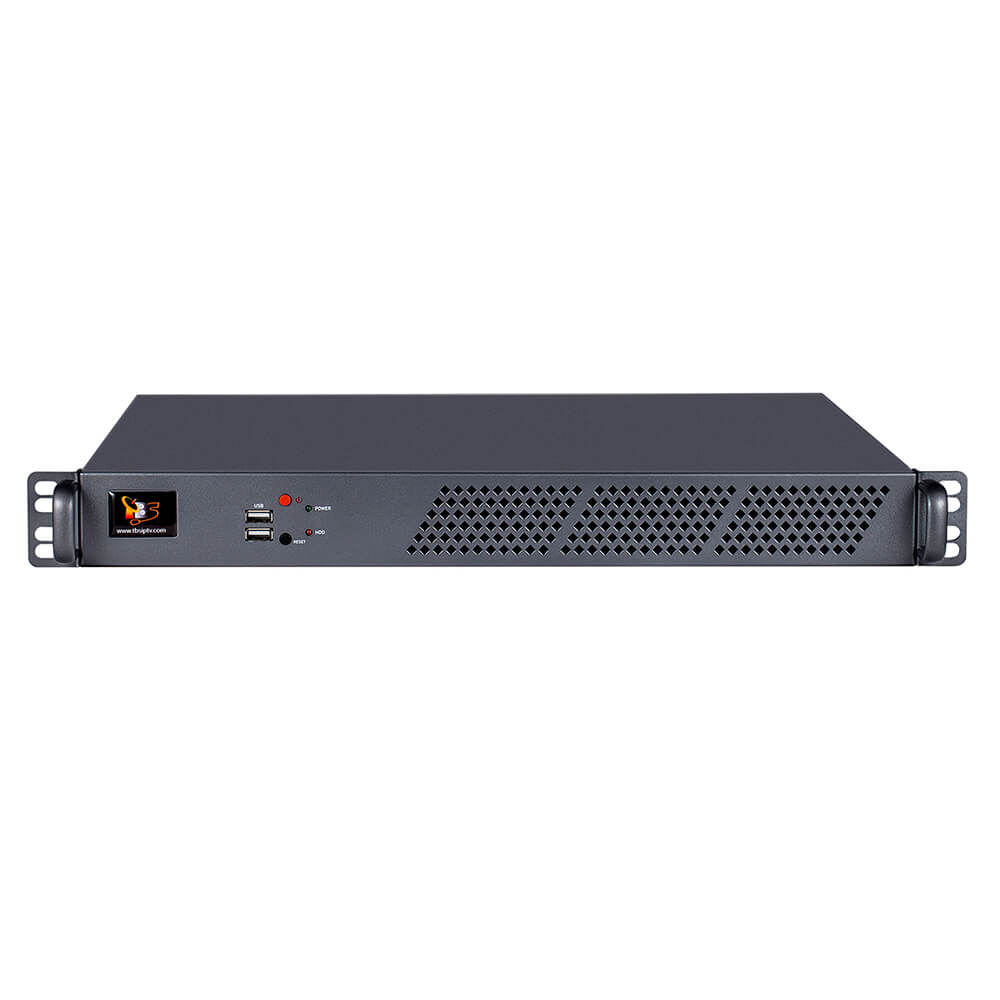

TBS8500 Professional 8 HDMI Inputs H.265/H.264 Live Stream IPTV Encoder
TBS8500 Professional 8 HDMI Inputs H.265/H.264 Live Stream IPTV Encoder
- Product Model:TBS8500
- Weight:11,500.00g
- Reward Points:2800
Out Of Stock
US$2,800.00
TBS8500 is a professional 8 channel HDMI encoder, which can realize 8 HDMI channel collections, real-time H.265/H.264 encoding and compatible with HTTP/RTMP/RTP/UDP/TCP Protocols.
With highly integrated hardware and software, it is convenience for customers release live streams into streaming media sever and will greatly save the network traffic, electricity and space utilization rate, improve the live operator front-end equipment reliability, reduce operating costs and entry barriers.
The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.
Main Features:
- Support 8 HDMI channels input
- Support H.264/H.265 High Profile video encoding
- Support VBR/CBR video encoding
- Supports maximum 4-way Adaptive Bitrate Streaming in HLS output
- Supports IP whitelist based security mechanism for HLS output
- Real-time encoding status monitoring
- Output Interface: RJ45 100/1000Mbps
- Compatible with HLS/HTTP/RTMP/RTP/UDP/TCP Protocols
- Reasonable Web interface based management system
Applications：
- IPTV
- Video Conference & Live Broadcast
- Teaching/Campus Broadcast
Specifications:
| Model | TBS8500 | ||||
| Input Resolution | 1920x1080P 50/60 Hz | Output Resolution 25/30/50/60 Hz |
1920x1080 | ||
| 1280x720P 50/60 Hz | 1280x720 | ||||
| 720x576 50 Hz | 852x480 | ||||
| Note: Other non-standards resolution is supported | 720x576 | ||||
| 720x480 | |||||
| 640x480 | |||||
| Video | Codec | H264 | H265(High Efficiency Video Coding) | ||
| Profile | Baseline, Main, High, High444p | Profile | Main, Main10, Rext | ||
| Rate Control Mode | CBR, VBR | ||||
| Frame Rate | 0 – 60 | ||||
| Keyframe Interval | 0 – 250 | ||||
| Output Resolution | HD1080P, HD720P, HD480P, PAL576P, NTSC480P…. | ||||
| Watermark / Logo | Supports jpg, jpeg, png format logo image. | ||||
| Hashcode Compare | Supports maximum 4 channels hashcode compare and 1080p@60 fps FHD output. | ||||
| Audio | Codec | MP3, AAC | |||
| Channels | 1 – 2 | ||||
| Sample Rate | 8000, 11025, 22050, 44100, 48000, 96000 Hz | ||||
| Output Protocols | HLS (HTTP Live Stream)/RTMP/ RTSP/ RTP/ UDP/ TCP | ||||
| Note* | Supports custom output resolution. | ||||
| Supports custom frame rate. | |||||
| Supports custom overlay watermark/logo location. | |||||
| Supports default highest, high, middle and low 4-way HLS adaptive bitrate settings. | |||||
| Supports multiple protocols and multiple output. | |||||
| Supports h264 web player for real-time stream monitoring. | |||||
| Supports change web login password and port. | |||||
| Supports reboot web interface or system remotely. | |||||
| Supports web login protect, too frequent failed login attempts will be banned temporarily. | |||||
| Supports offline package based remote upgrade. | |||||
| Supports real-time stream status monitoring. | |||||
| Supports real-time CPU, memory and network monitoring. | |||||
| Temperature | 0~60℃ | ||||
| Power consumption | Less than 120W | ||||
