TBS6331R-SDI 3G-SDI Video Raw Data Capture Card
TBS6331R-SDI 3G-SDI Video Raw Data Capture Card
- Model: TBS6331R-SDI
- Weight: 1,000g
- Reward Points: 149
In Stock
US$149.00

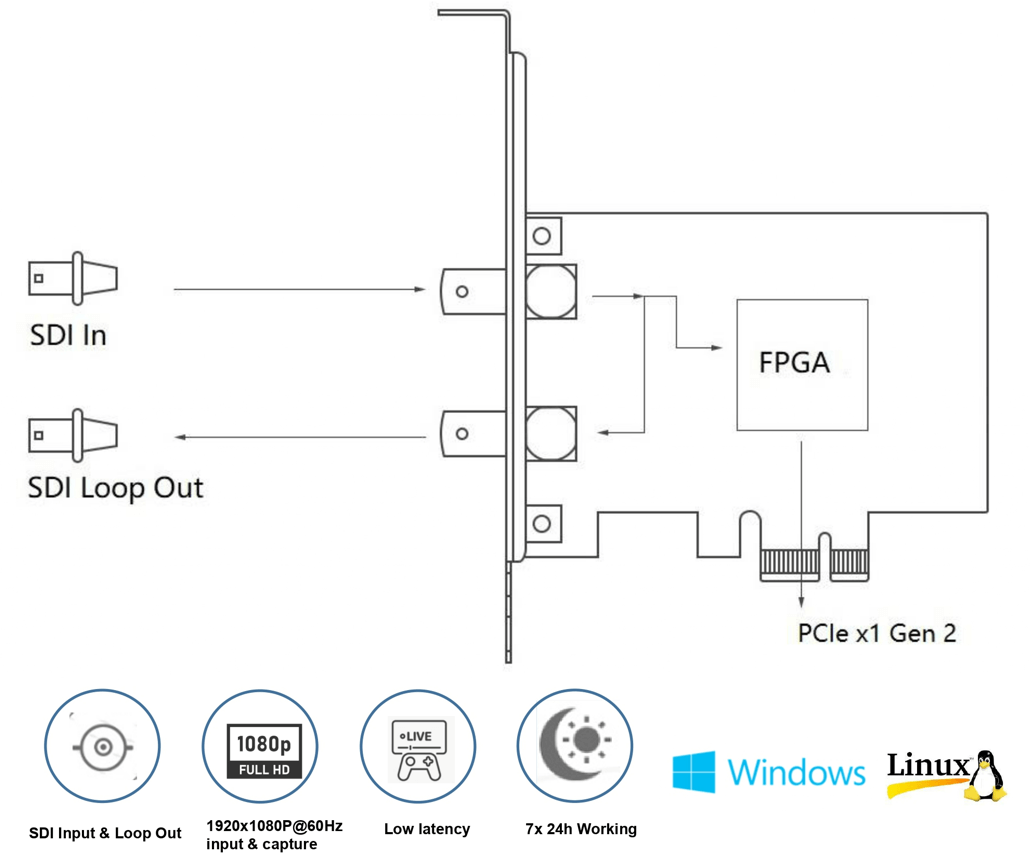

TBS6331R-SDI is a high-quality, PCIe x1 (Gen 2) raw data capture card. It features one 3G/HD/SD-SDI input that supports capturing uncompressed, real-time video at full HD resolutions of up to 1920x1080P@60Hz. Additionally, this card also includes an SDI loop-out, allowing for easy monitoring of the input signal.
TBS6331R-SDI capture card is compatible with all major operating systems and software such as OBS, vMix, and Wirecast, enabling seamless integration for video recording, streaming, and live production scenarios.
TBS6331R-SDI capture card provides a versatile and cost-effective choice for live streaming, broadcasting, video production and more.
Features
- 1x 3G/HD/SDI-SDI input supports high resolution up to 1920x1080P@60Hz
- 1-channel raw data video capture and broadcast
- Software compression, real-time mode
- High performance, ultra low latency
- Compatible with versatile software: OBS, vMix, XSplit, Wirecast etc.
- Stable, effective, and capable of 7x24 continuous operation.

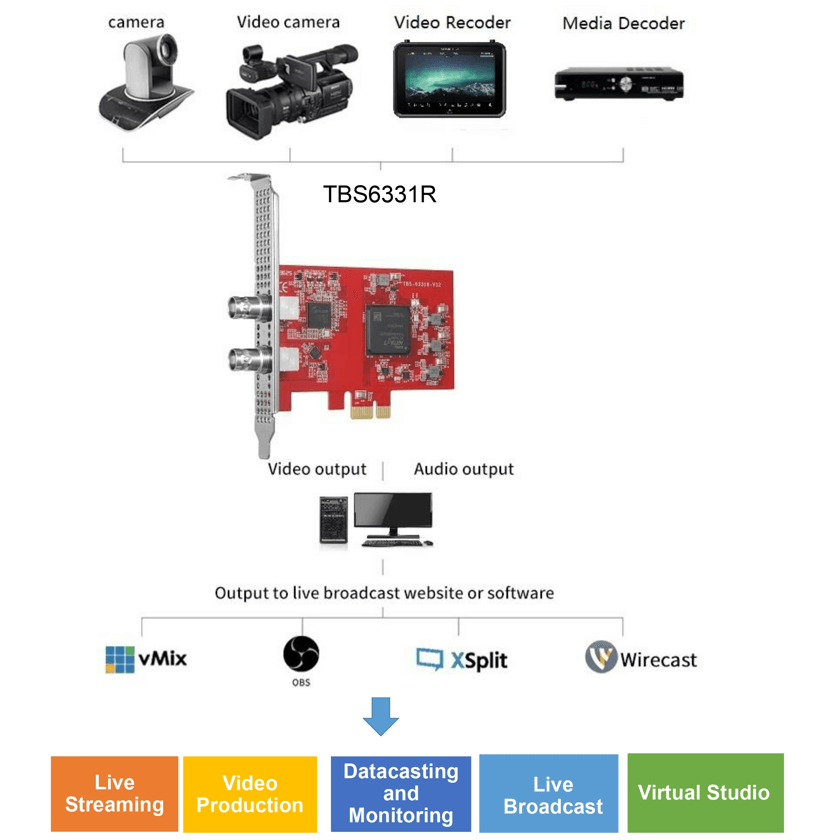

Applications
Specification
| Model No. | TBS6331R-SDI |
| Product Name | 1-CH 3G-SDI Video Raw Data Capture Card |
| Input Interface | 1x SDI In (BNC Female) |
| Loop-through Interface | 1x SDI Loop Out (BNC Female) |
| Video & Audio: Professional-Grade Uncompressed Capture | |
| Video Capture Formats | NV12, YV12, YUY2, 4:2:0 |
| Video Input | 3G-SDI:1920x1080p_60/50hz, Level A & Level B |
| HD-SDI: 1920x1080p_30/25/24hz,1920x1080i_60/50hz,1280x720p_60/50hz | |
| SD-SDI: 576i, 480i | |
| Audio Input | SDI embedded audio |
| Audio Input Format | 48Khz |
| Video Processing Feature | Video scaling |
| Compatibility and Software Support | |
| Compatible Software | VLC, OBS, vMix, xSplit, VirtualDub, VidBlaster, Wirecast |
| Microsoft Media Encoder, Adobe Flash Media Encoder etc. | |
| System Requirements | |
| Driver | Windows driver: AVStream Driver |
| Linux Driver: V4L2, ALSA | |
| Supported OS | Windows OS: Windows 7, Windows 8, Windows 10, or Windows 11 |
| Linux OS: Ubuntu, Rocky, Debian (with kernel 5.15 or higher) | |
| Slot | PCIe x1 (Gen 2) |
| General Spec. | |
| Working Environment | Operating Temperature: 0°C to 60°C |
| Storage Temperature: -20°C to 70°C | |
| Relative Humidity: 5% to 90% non-condensing | |
| Power Consumption | 3 Watt |
| Dimension | 100mm x 68.9mm |
| Net Weight | 70g |
| Gross Weight | 230g |
| Package Contents | 1x TBS6331R-SDI 3G-SDI Video Raw Data Capture Card |
| 1x Low profile bracket | |
| 1x SDI Cable | |
