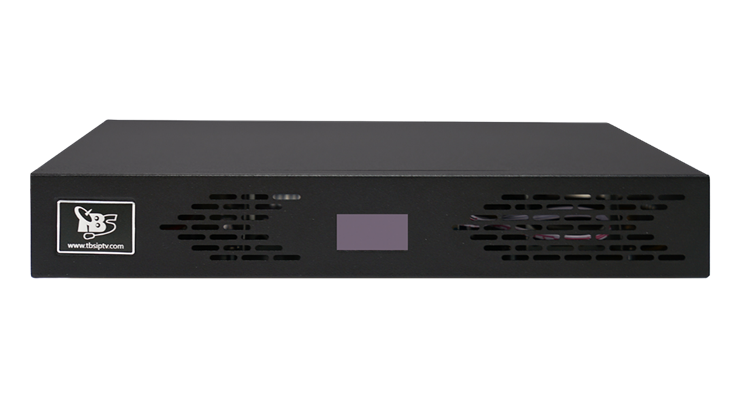

MOI SMART BOX (TBS2925)

MOI SMART BOX is designed to capture live TV channels and convert to IP streams, pushing to IPTV servers or CDN. It can be mounted in different locations to capture global live channels for your IPTV/OTT system. It can be also used to build up a small household IPTV system in some big house or villa.

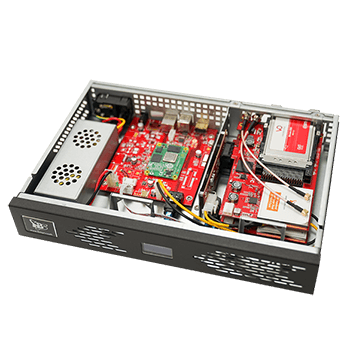

MOI SMART BOX is powered by Raspberry Pi Computer Module 4, incorporating a quad-core ARM Cortex-A72 processor. It is designed for exposing every interface from Compute Module 4.

MOI SMART BOX is designed for offering customized IPTV streaming server solution. TBS prepares a Demo Form of the MOI SMART BOX for performance and testing.

TBS offers customization for both hardware and system software, not only simply customize logo and packing, but for the PSU, wi-fi module, network port, HDMI port, USB port or even PCIe slot and so on.

Hardware
Demo hardware Custom Optionals
CPU BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz  No additional option.
RAM 4GB LPDDR4 1GB,2GB,8GB (Depending on variant)
Flash 16GB eMMC 32GB,8GB
LAN 1Gb onboard Ethernet 10M/100M Additional Ethernet
Wi-Fi Not included 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless module
Card Reader Not included Support to add Card reader on board

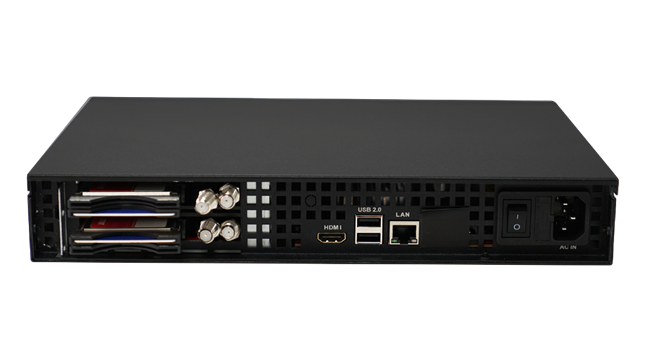

USB2.0 2 * USB2.0 port 2 * on-board USB2.0 port for additional card reader 1 * Micro USB port for OTG upgrading
HDMI 1 * HDMI2.0 Out Additional HDMI2.0 out
PCIe Slot 1 x PCIe 2.0 slot Second PCIe 2.0 slot
UART 1 x LCD Display Additional UART for card reader
RTC Not available Supports to be equipped with RTC.
FAN connecter  Not loaded 1 x 3 pin port for system cooling fan 1 x 2 pin port for RPi CM4 board cooling fan
PSU 12V /4A 48W internal PSU Internal or external PSU according to system requirements
Software

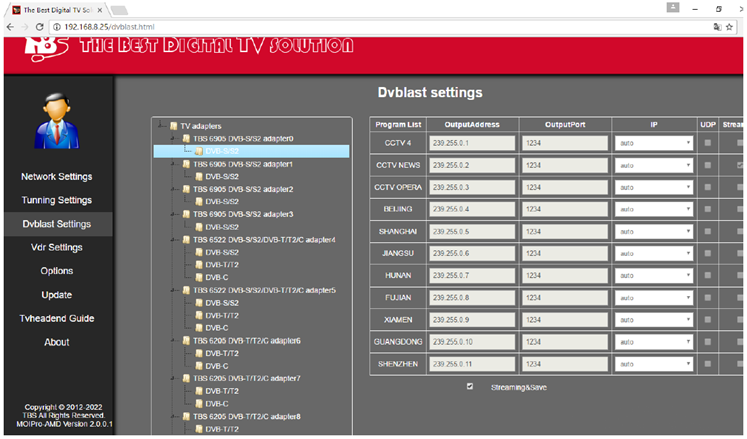

TBS Streaming Platform
Default OS – Centos 7

MOI SMART BOX demo form is with Centos 7 system and TBS streaming platform, embedded with many streaming software, like Tvheadend, VDR, MuMuDVB, DVBlast, DVBdate, DVBscan and so on.

TBS will assist customers to customize the streaming platform for the MOI SMART BOX, including customize the logo, UI, and so on; or even embedded customers’ own platform into the server.
