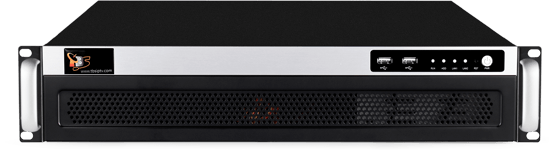

TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder


TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder

  • Model: TBS8510
  • Weight: 16,000.00g

In Stock

"Customized guide rail" for TBS8510 transcoder is available.
Please contact sales person to buy it when you place order.

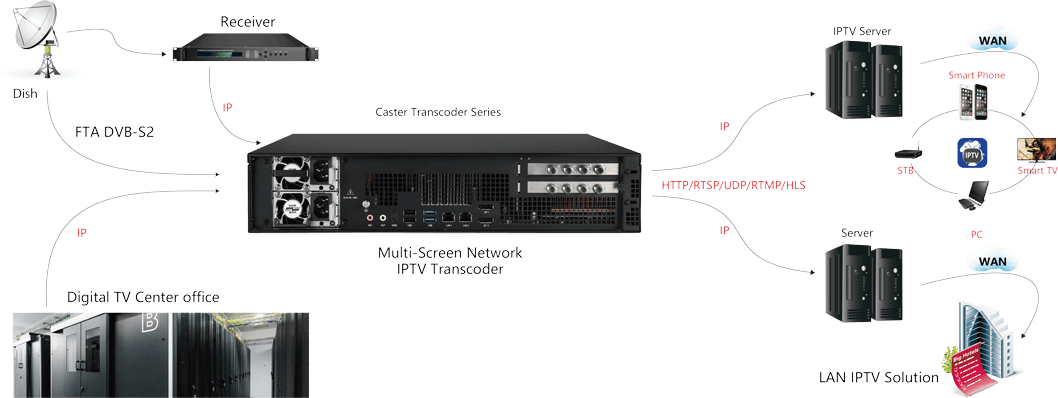

TBS8510 is a real-time SPTS/MPTS transcoder, which supports converting media files from their source format into the best possible quality stream to downstream network, CDN or any other specific video distribution system.

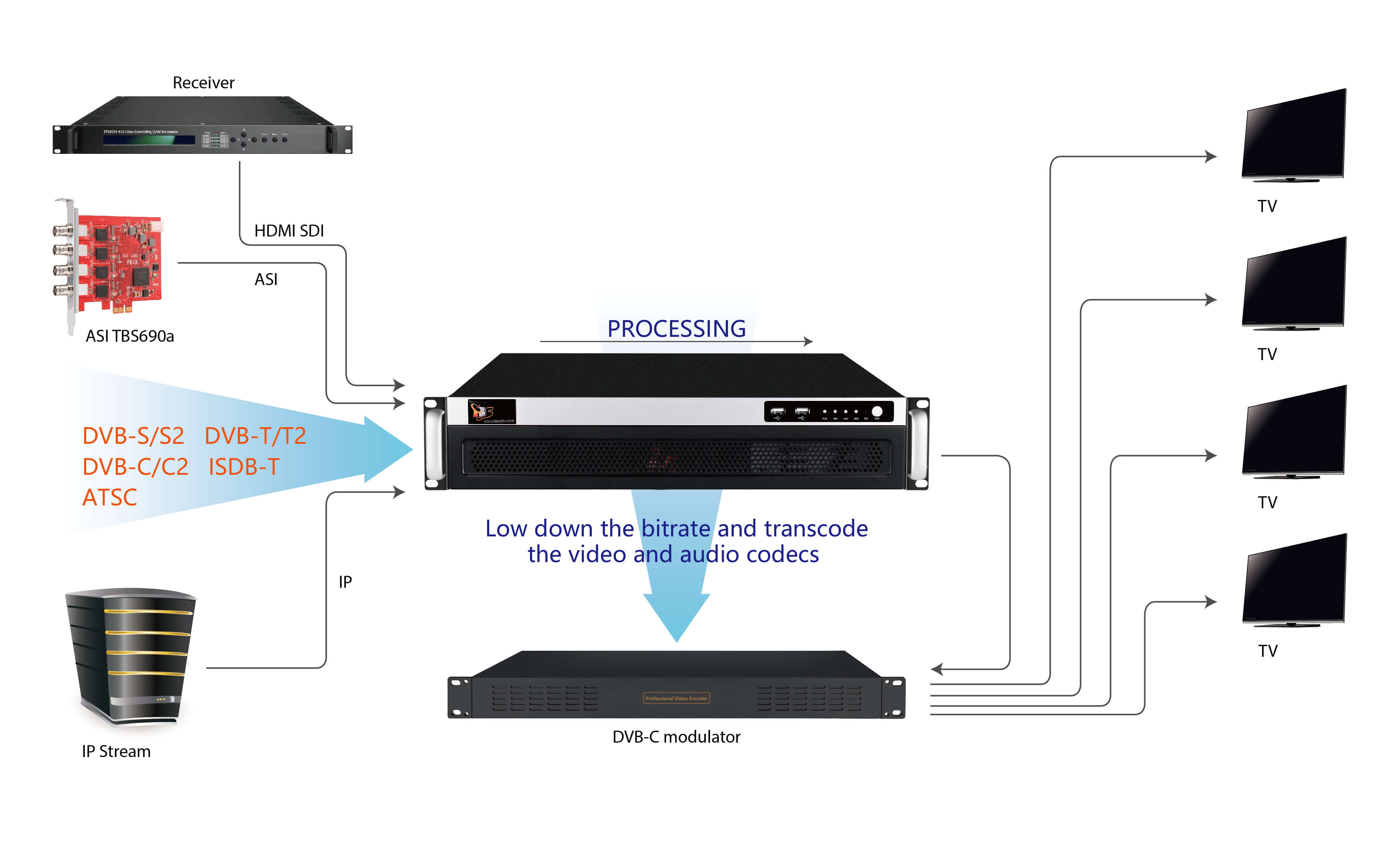

TBS8510 supports multiple media resource input, capable of ingesting IP feeds, DVB feeds, ATSC feeds, ISDB-T feeds or HDMI videos. It supports converting streams to MPEG-4 or H.264/H.265 format, compressing the streams' bit rate, changing the graphics resolution and so on.

TBS8510 can be easily managed through NMS system and has become an ideal solution for operators to provide high quality video transcoding.

TBS8510 Transcoder is upgraded to Kylone V3 transcoding system

Overview of the "Web page playing function"

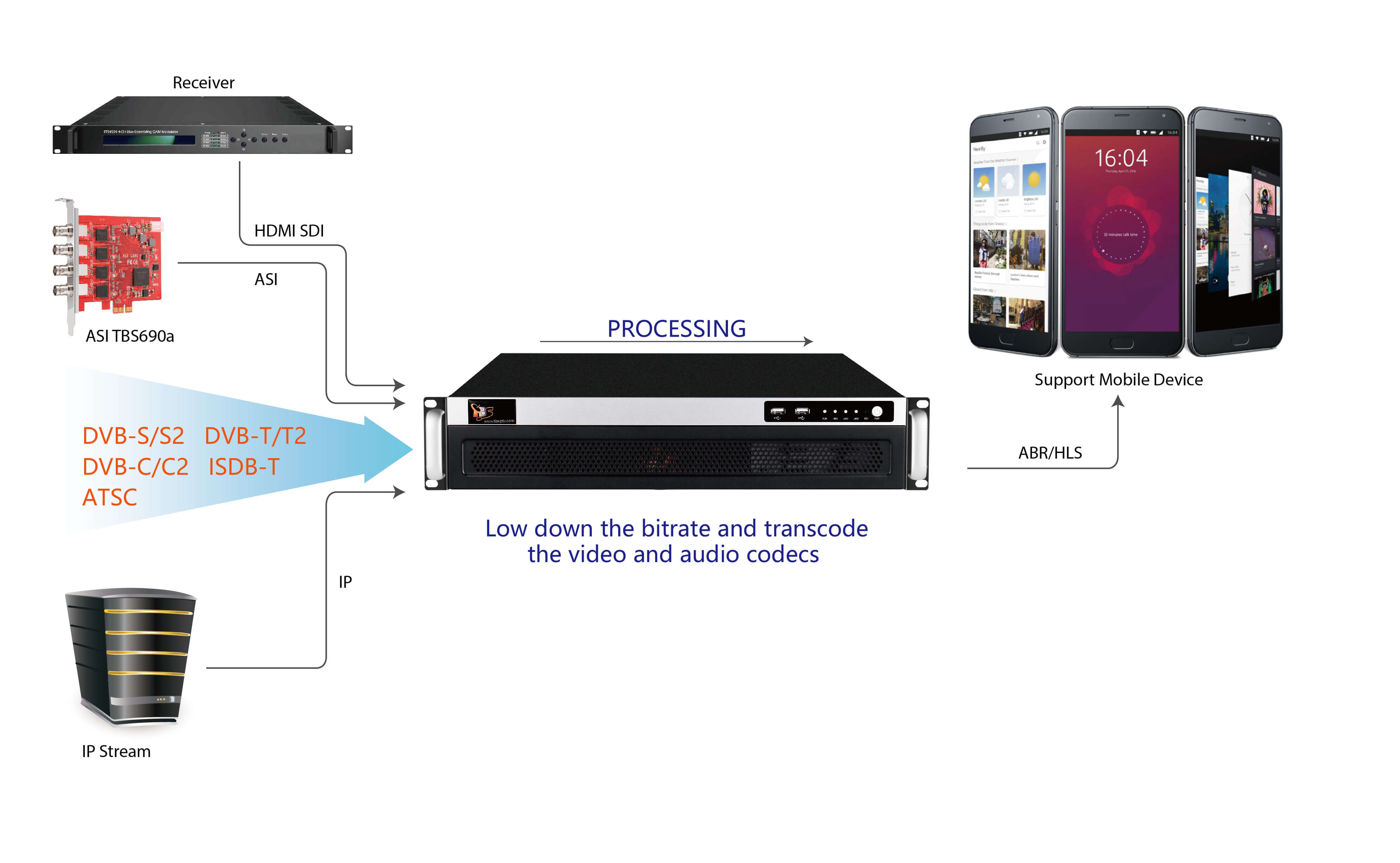

Once the video stream is output from TBS8510 transcoder in HLS protocol, users can easily watch/preview the video by appointing URL in browser or scan a QR code via smartphone or smart Pad.

Input the URL in browser to preview the stream or watch the video. Scan QR code by smart phone or smart Pad to preview the stream

TBS8510 currently has 3 hardware versions to meet various system's requirements:

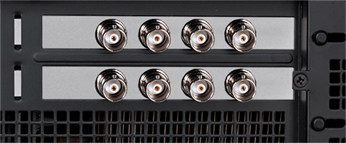

Version 1 supports installation of 2 TBS DVB/ATSC/ISDB-T capturing cards (up to 16 tuners) for receiving signals from DVB/ATSC/ISDB-T. It supports transcoding up to 30 HD or 60-80 SD channels.

Version 2 only supports IP stream input, not available to be installed with any TBS tuner card. It supports transcoding up to 40 HD or 80-100 SD channels.

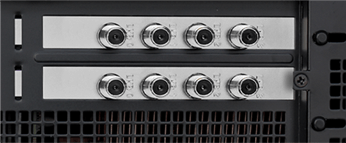

Version 3 supports installation of 2pcs TBS DVB-C/DVB-T modulator cards (up to 8 frequencies) for converting IP streams to DVB-C or DVB-T signals and output via RF ports. It supports to output of up to 360Mbps DVB-C signal or 217Mbps DVB-T signal.

Every version of the TBS8510 transcoder has the following features and specifications:

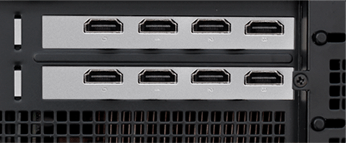

  • Multiple inputs available: DVB/S2/S/T2/T/C, ISDB-T, HDMI, ASI or IP.
  • Optimized to be 1000Kbps for SD, 1800Kbps for HD 720P, 2500Kbps for HD 1080p.
  • Supports HEVC / H.265 transcoding.
  • Baseline, main profile and high profile with variable GOP.
  • Multiple codecs, Protocols, Bitrate Resolution, Profile per channel.

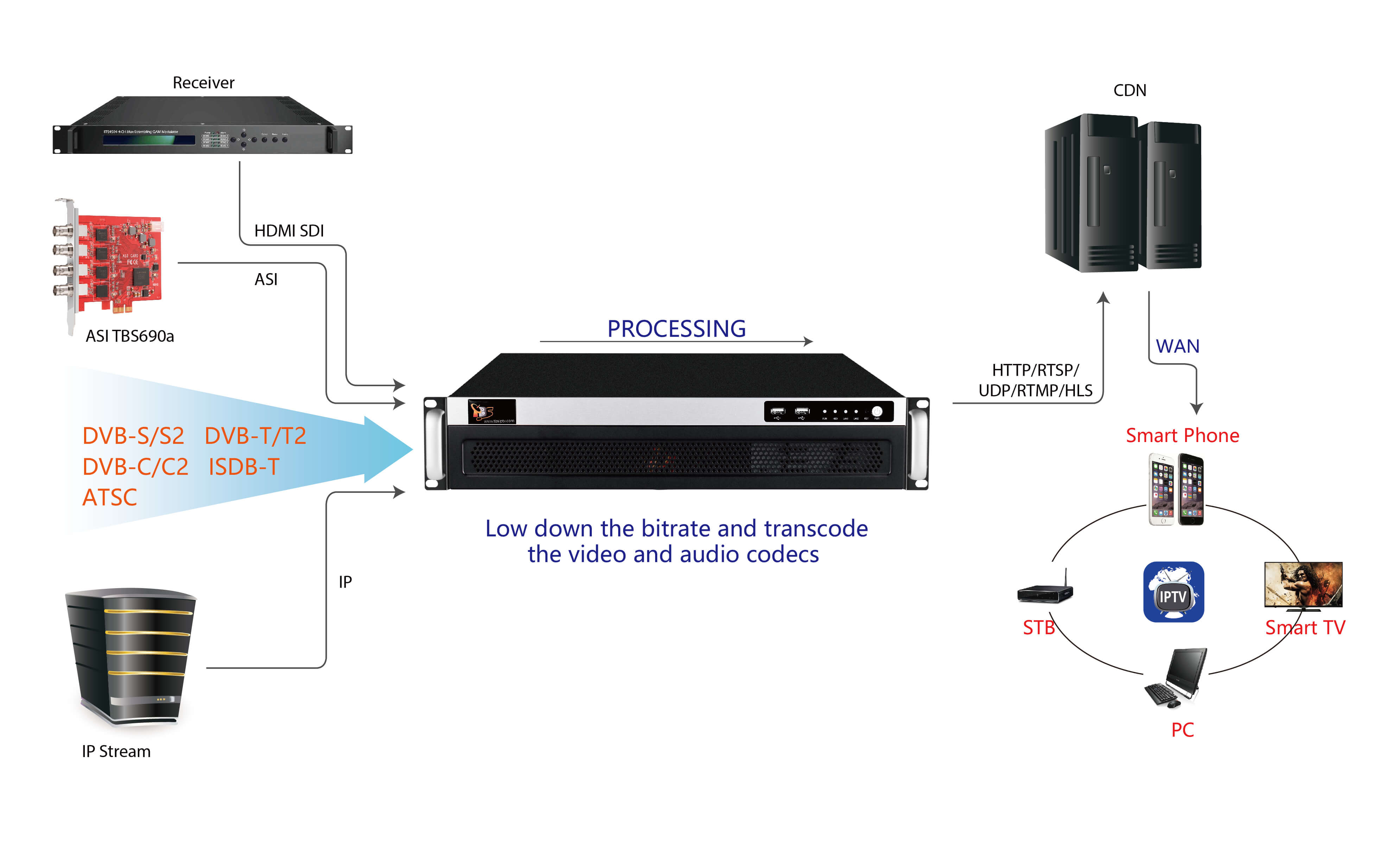

  • GbE IP output: UDP, RTP, RTMP, Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist file.
  • Flexible GOP structure with Reference-frame and B-frame editing.
  • Up and down conversion of frame rate.
  • High quality pre-processing, including filtering, de-interlacing, cross scaling, image insertion.
  • Support variable Bit Rate (VBR) encoding, maximizes adaptive streaming video quality and bandwidth efficiency.
  • Based on embedded Centos 7 Linux.
  • Supports setting the MPEG-TS service provider and service name.
  • Support by pass the EIA-608 Closed Captioning Subtitle
  • Support transcoding all audio tracks and keep all subtitles
  • DVB Subtitle and Logo insertion.
  • Parameter templates settings and imports
  • Easy configuration via Web UI
  • Designed for safe 24*365 operation

Specifications:

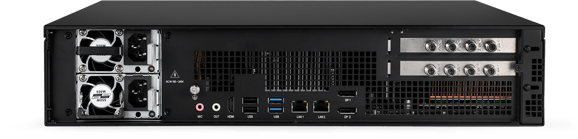

Interface 2xRJ45, 1000M Base-T2
2xPCI-E slot
DDR
V1 16G
V2 32G
Input
Input signal DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI
Input Net Stream UDP, RTP, HTTP, HLS, RTSP, Media Files, RTMP, SRT
Video codecs MPEG-2, AVC/ H.264, HEVC / H.265
Resolution 1920x1080P, 1920x1080i, 1280x720P, 1024x576, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576
Audio codecs AAC, MP2, MP3, AC-3
Output
Output types UDP, RTP, RTMP, HTTP, HLS(ABR), SRT
GbE IP output UDP, RTP, RTMP, SRT,Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist file
Video codecs AVC/ H.264, HEVC / H.265
Resolution 1920x1080P, 1920x1080i, 1280x720P, 1024x576, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576
Audio codecs AAC, MP3
Rate Control CBR VBR
External EPG support
Announcement (SAP) support
Transcoder
Version 1:

up to 60-80 SD/30 HD 1080 AVC(h.264) streams
up to 50-60 SD/28 HD 1080 HEVC(h.265) streams

Version 2:

up to 80-100 SD/40 HD 1080 AVC(h.264) streams
up to 60-80 SD/36 HD 1080 HEVC(h.265) streams

Version 3:

output up to 360Mbps DVB-C signal
output up to 217Mbps DVB-T signal

Power Consumption 90 ~ 230V, less than 200W
Dimensions 76CM * 62CM * 17CM
Weight 22kg

Application:

1. How to import HTTP Streams to TBS8510 IPTV transcoder?

https://youtu.be/1XDDMpcVE8A

2. How to import local TS Files to TBS8510 IPTV Transcoder?

https://youtu.be/D2POajqIhtM

3. How to change the IP of TBS8510 Transcoder?

https://youtu.be/-kEO8-IkrDQ

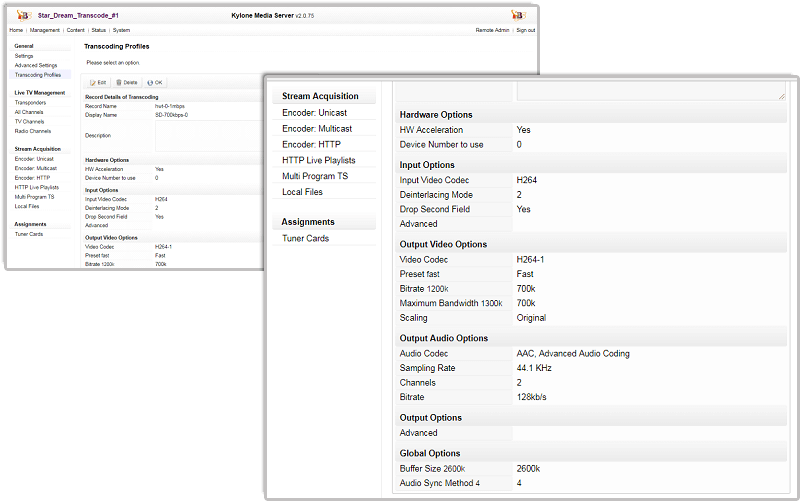

4. How to create the transcode profile with TBS8520/TBS8510 IPTV Transcoder?

https://youtu.be/JUYKkmnsyg0

5. How to use TBS8520 transcoder to output udp multicast streams?

https://youtu.be/esyru0Y0Bjo

6. How to use TBS8520/TBS8510 IPTV Transcoder to output HLS streams?

https://youtu.be_xjn9jK-mY

7. How to use TBS8510 IPTV transcoder to output HTTP streams?

https://youtu.be/iFRL1CGfbUs

8. How to output RTMP strems and push to your CDN server?

https://youtu.be/VhSHwbWBPNc

9. How to OSCAM software decryption with Kylone CMS?

https://youtu.be/J_ZwkZlsHug

10. How to import m3u8 HLS streams to TBS8510 / TBS8520 IPTV transcoder?

https://youtu.be/U2wnNAr4JiE

11. How to import MPTS streams and output as SPTS?

https://youtu.be/pj-M3OX31dE

12. How to remux output MPTS with TBS8510/TBS8520 IPTV transcoder?

https://youtu.be/ujk5YxAahgc

13. How to import multicast streams to TBS8510/TBS8520 IPTV transcoder?

https://youtu.be/QCoE_uDrMTk
