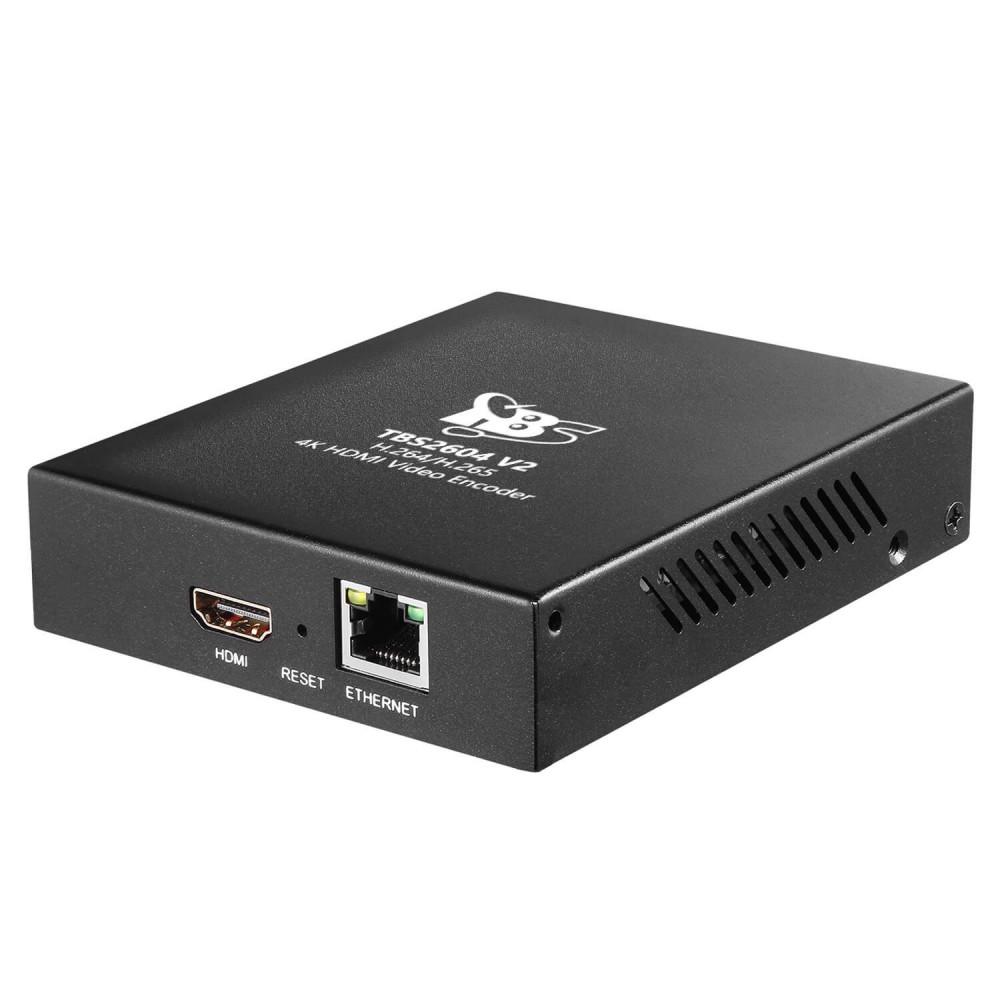

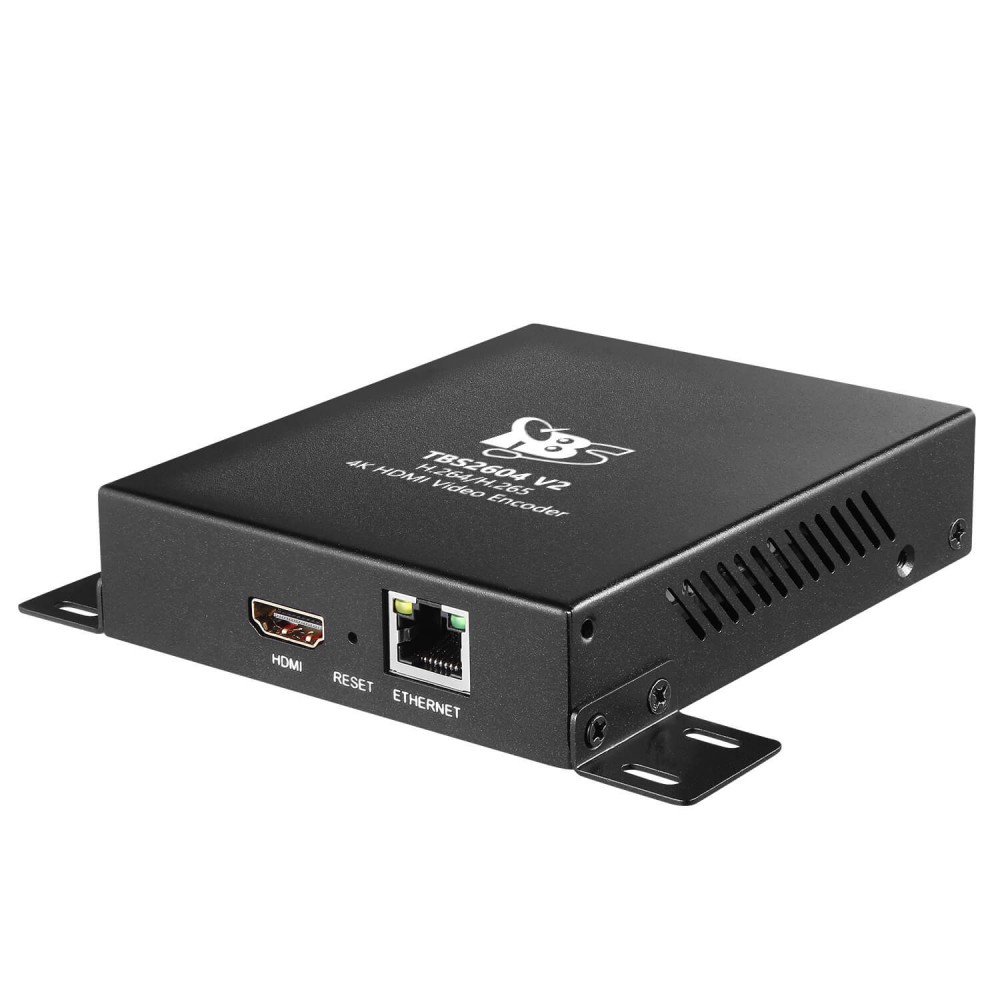

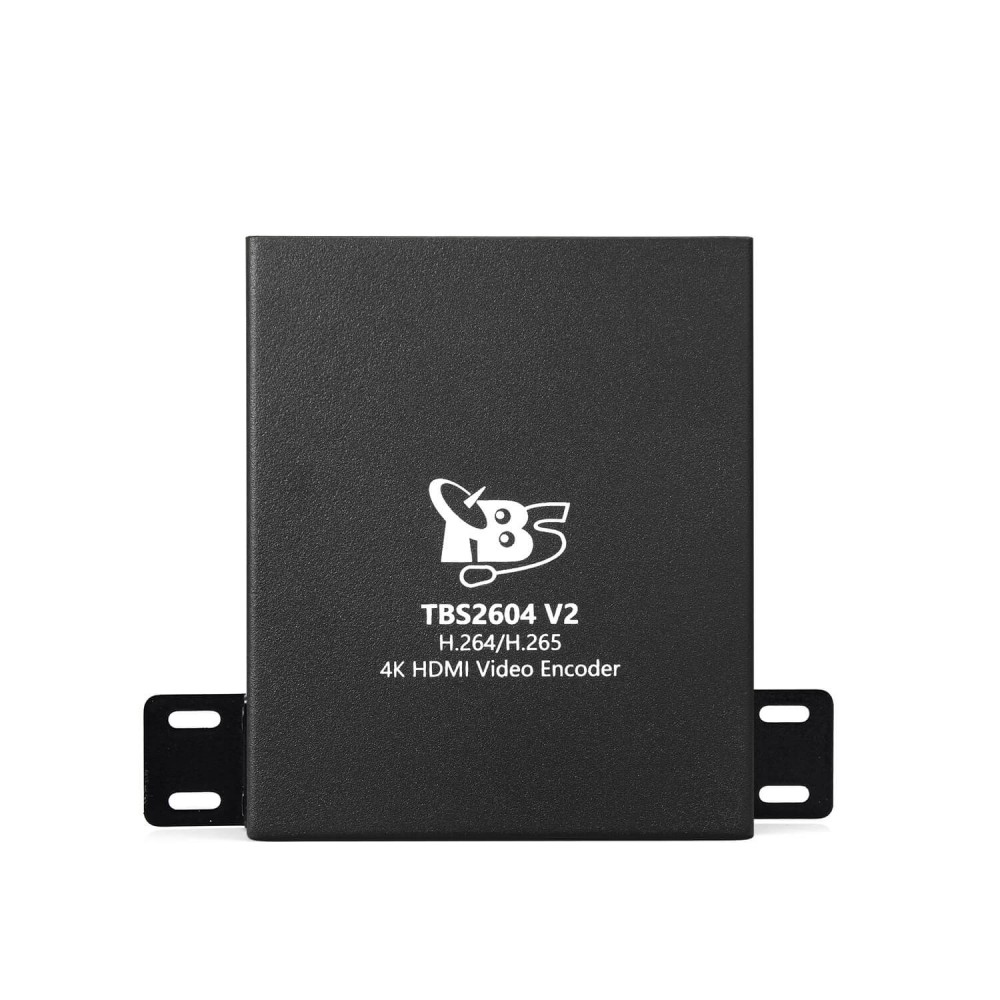

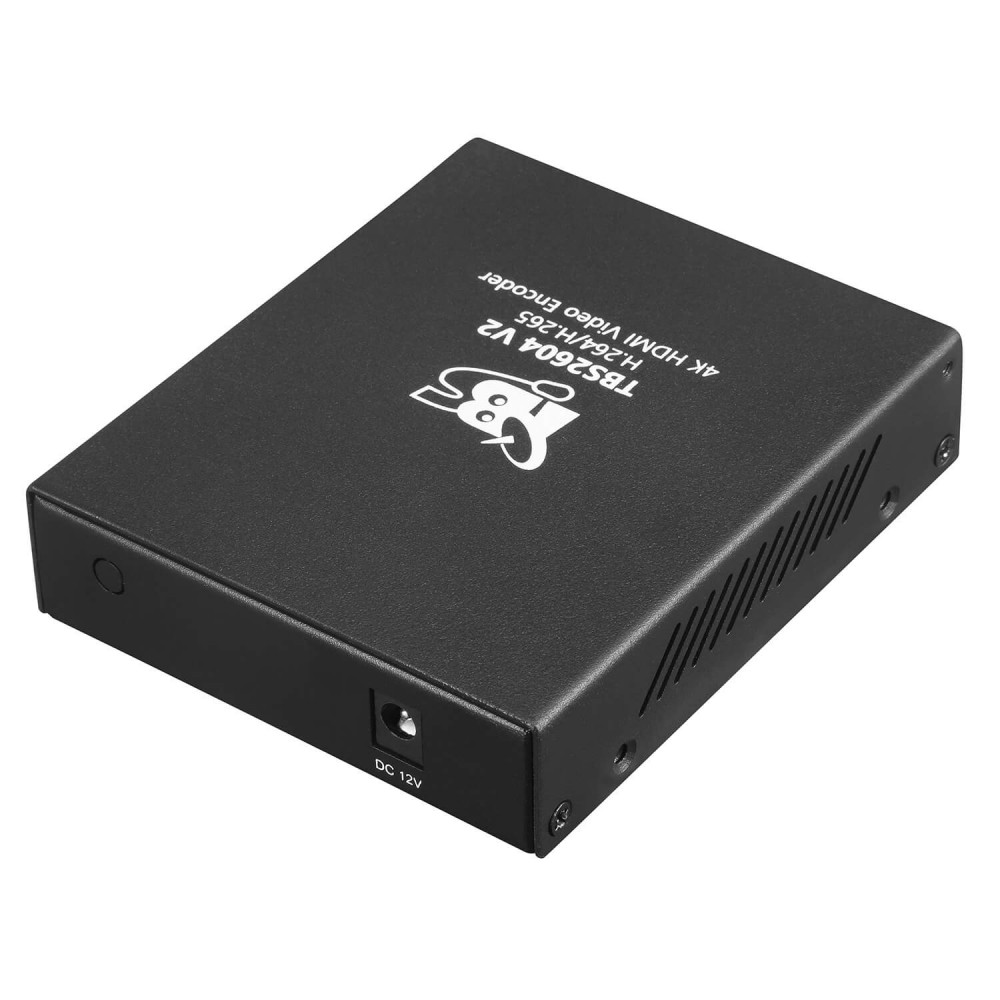

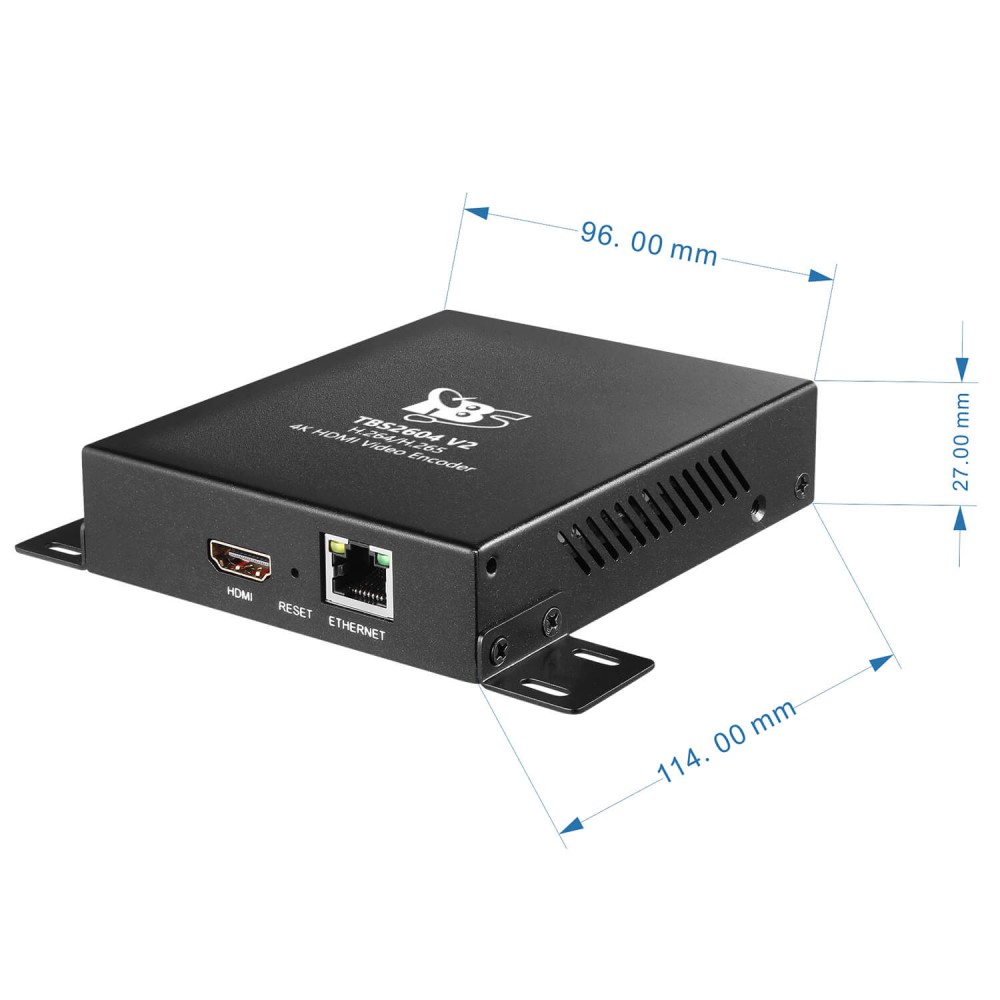

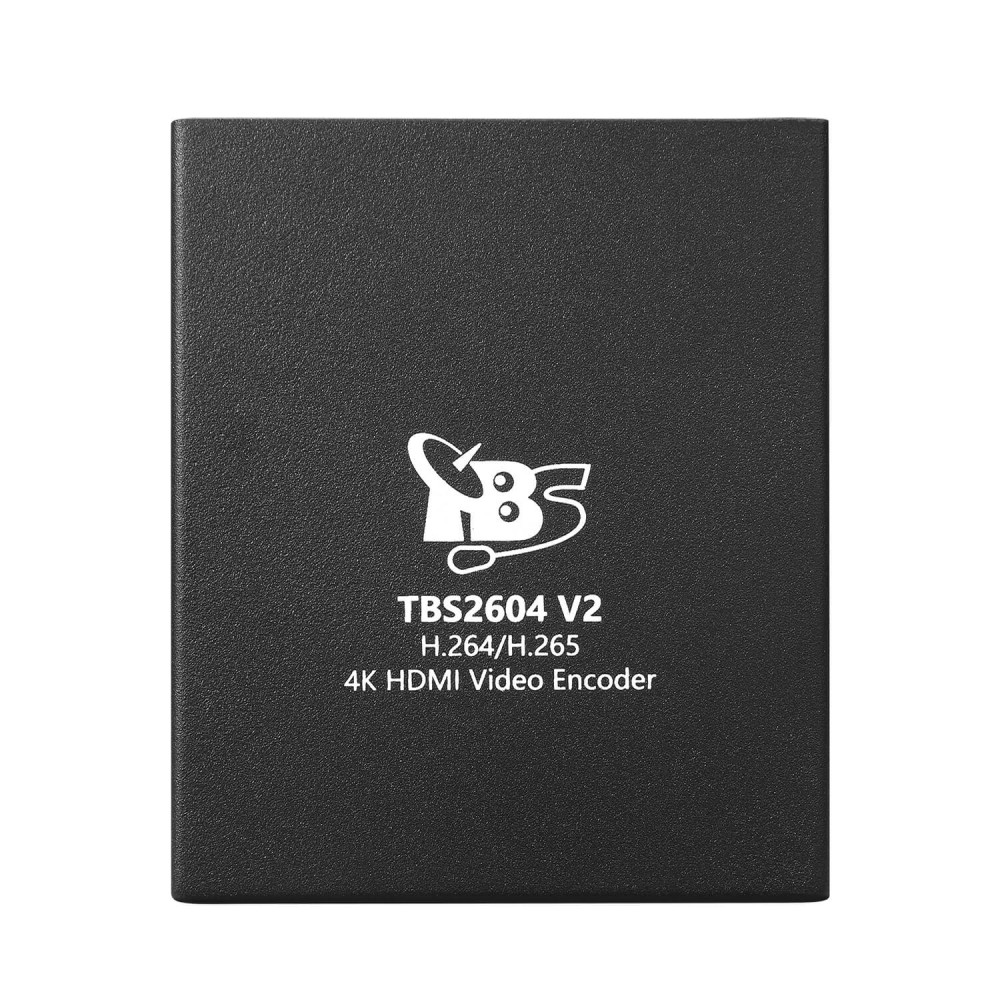

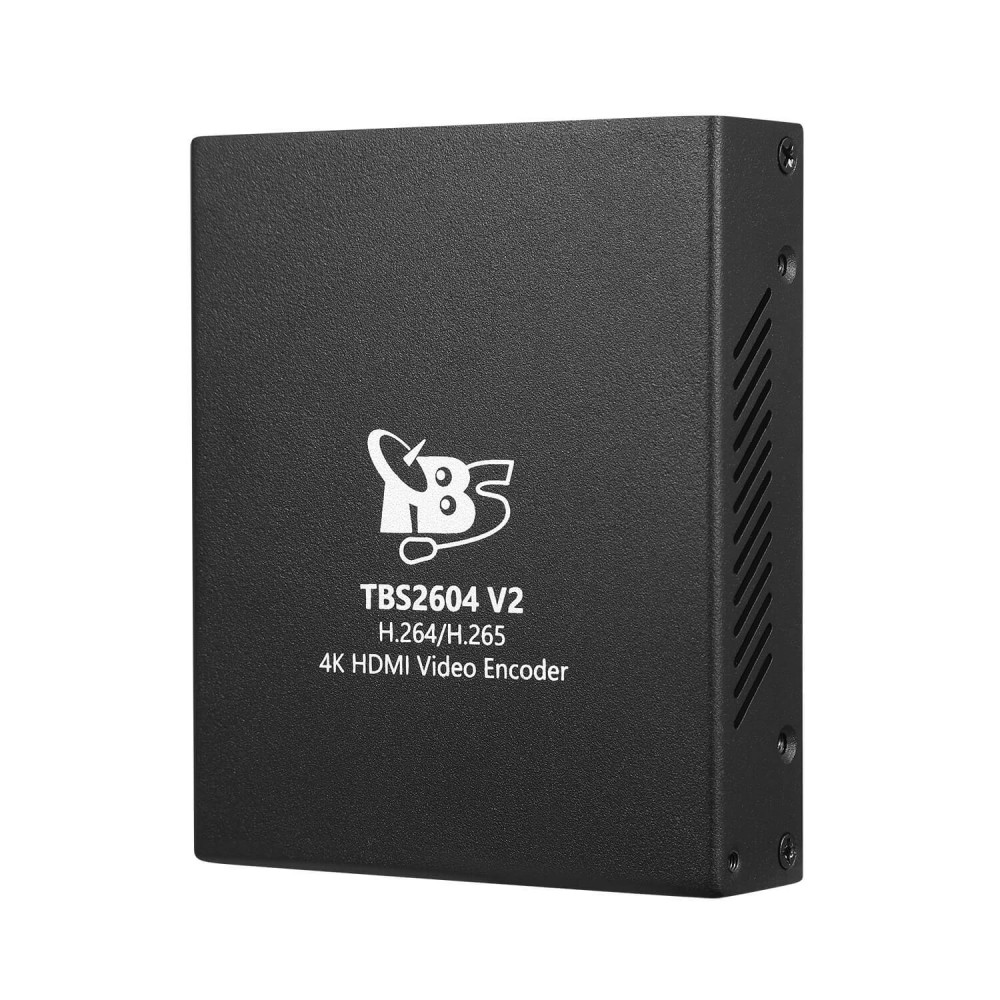

TBS2604V2 4K UHD HD H.265 & H.264 HDMI Video Encoder


TBS2604V2 4K UHD HD H.265 & H.264 HDMI Video Encoder

  • Model: TBS2604V2
  • Weight: 760.00g
  • Reward Points:229

In Stock

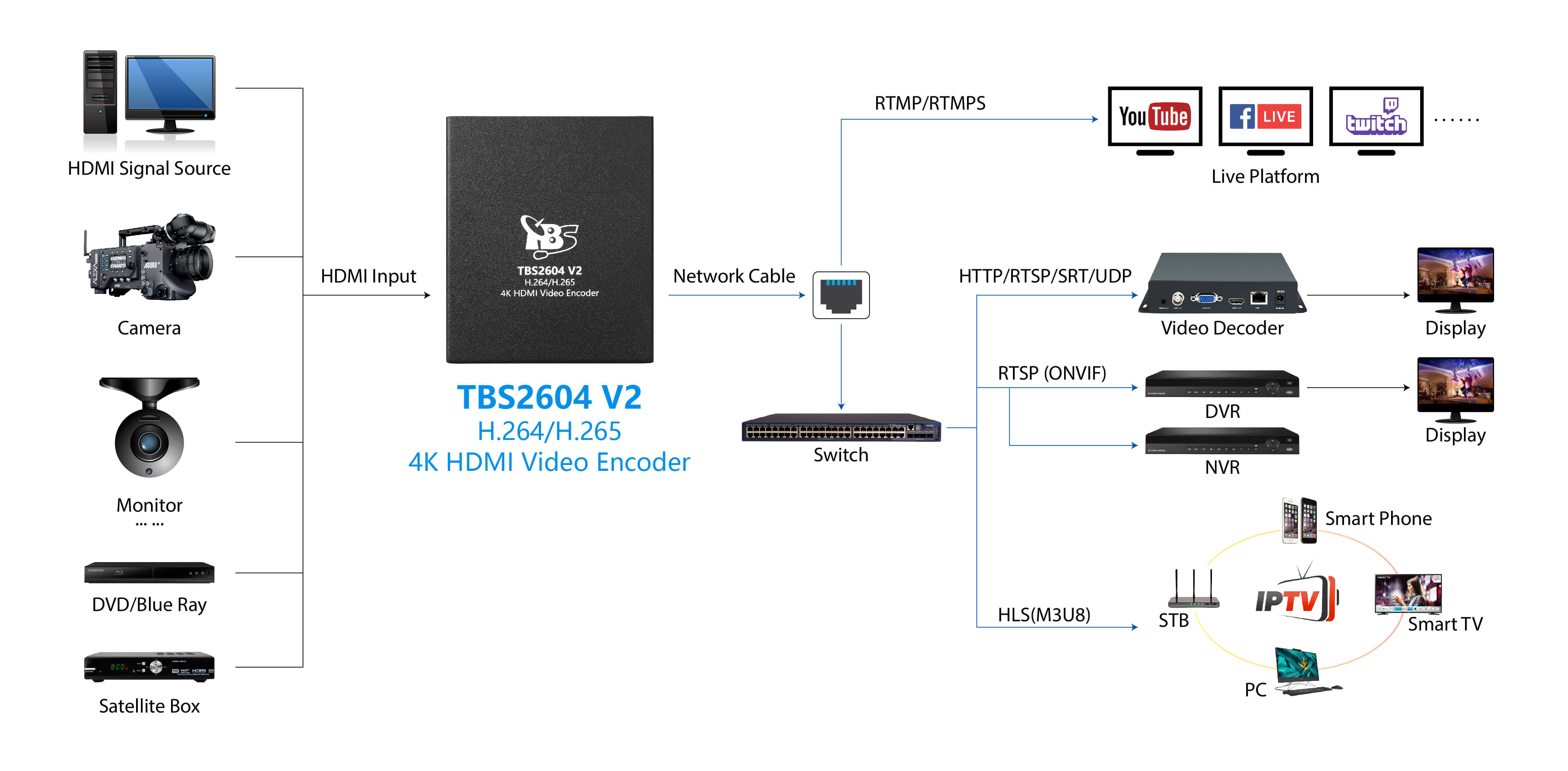

TBS2604V2 is a 4K UHD H.265 & H.264 HDMI Video Encoder, capable of up to max 3840 x 2160P@30fps. It supports to encode with dual streams and streaming via IP,the main stream and the sub-stream can be encoded into different resolutions, bit rates, and then adapted to different terminals.

TBS2604V2 HDIM Video encoder supports H.265 encoding, which is ideal choice for customers who need lower bit rate video transfer over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.

TBS2604V2 is coupled with Web UI managing system and Telnet remote access, which provide users flexible choices to control the encoder at anytime and anywhere.


  • 3840x2160p@30hz In and 3840x2160p@30fps encode maximum
  • H.264/H.265 Encode
  • AAC-HE, AAC-LC, G.711 audio encoding
  • Bitrate of output video stream is adjustable from 500kbps to 20Mbps
  • Support HTTP, HLS(m3u8), RTSP, UDP Unicast & Multicast, RTMP/RTMPS, SRT
  • Support inserting Logo, Text (OSD overlay)
  • PCR adjustment
  • Support HDCP 1.4
  • Flexible and friendly webpage control
  • Stable and effective, support 7 x 24h working time


3840x2160p@30fps (H.265/H.264), 4K encode

Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.

http/rtsp/udp/unicast & multicast/srt (caller mode, listener mode)/rtmp/rtmps/hls m3u8/rtmp compatible with different terminals

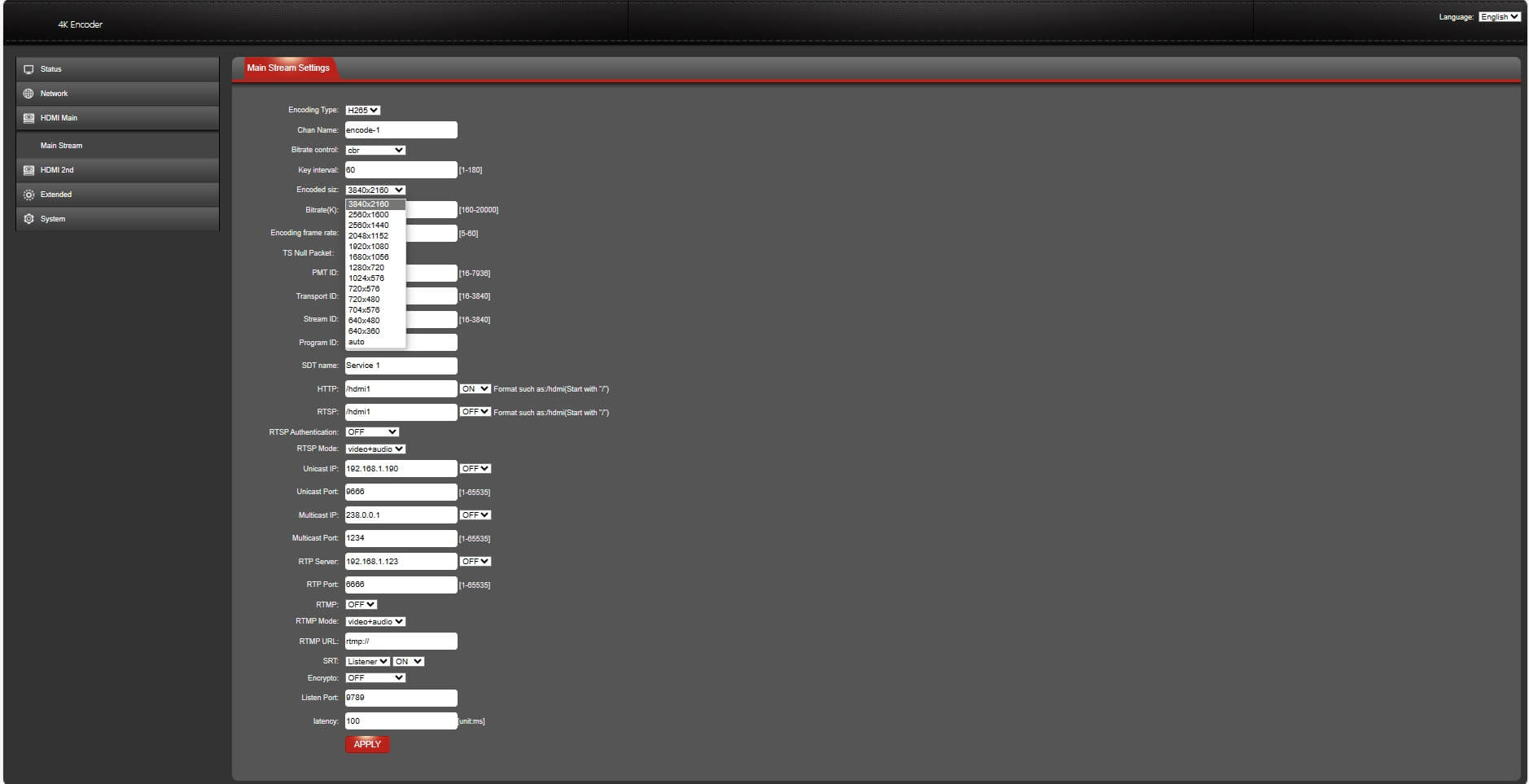

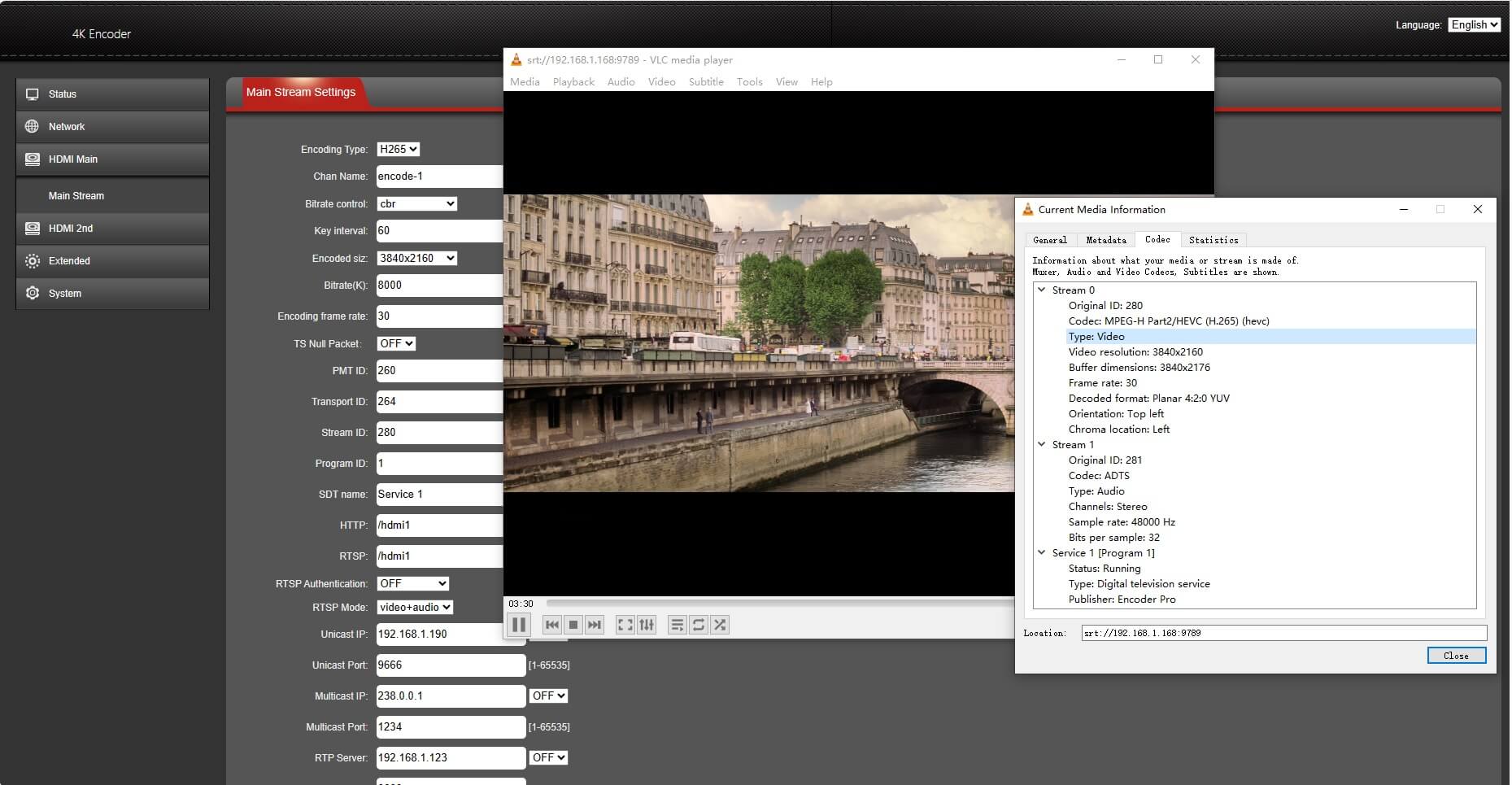

Flexible and friendly webpage control, easy to check and control the status of the device


Model TBS2604V2
Input 1x HDMI 1.4a HDCP 1.4 supported
Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz
1280x720p_60/50hz, 720x576p, 720x480p, etc.
Encode Size 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
Video output 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etc
Video Codec H.264/H.265
Profile H.264: Baseline, Main, High
H.265: Main
Level H264 Level 4.2; H265 Level 4.1
Bitrate Control CBR/VBR/EVBR
Frame Rate 5~60fps
Key Interval (gop) 5~180fps
GOP Structure IPPP
Video Bitrate 300~20000Kbps
Color depth 8 bits
Chroma subsampling 4:2:0
De-interlace Supported. Force to do de-interlace when i (interlace) input
Audio Input HDMI embedded
Audio Codec AAC-LC, AAC-HE
Audio Bitrate 24000/32000/44100/48000/64000/96000/128000/160000/
Audio Resample 48k, 44.1k, 32k
Audio Bitrate 24000/32000/44100/48000/64000/96000/128000/256000bps
Control web GUI
Protocols http, hls m3u8, rtsp, srt caller & listener, udp unicast & multicast, rtmp/rtmps
Recommended Browser Windows or Linux OS Google Chrome, Firefox, Microsoft Edge and etc.
Power Consumption less than 5 Watt
Net Weight 320g
Gross Weight 760g
Working Environment
  • Operating temperature: 0 to 40 ℃
  • Storage temperature: –20 to 70 ℃
  • Relative Humidity: 5% to 90% (non-condensing)
