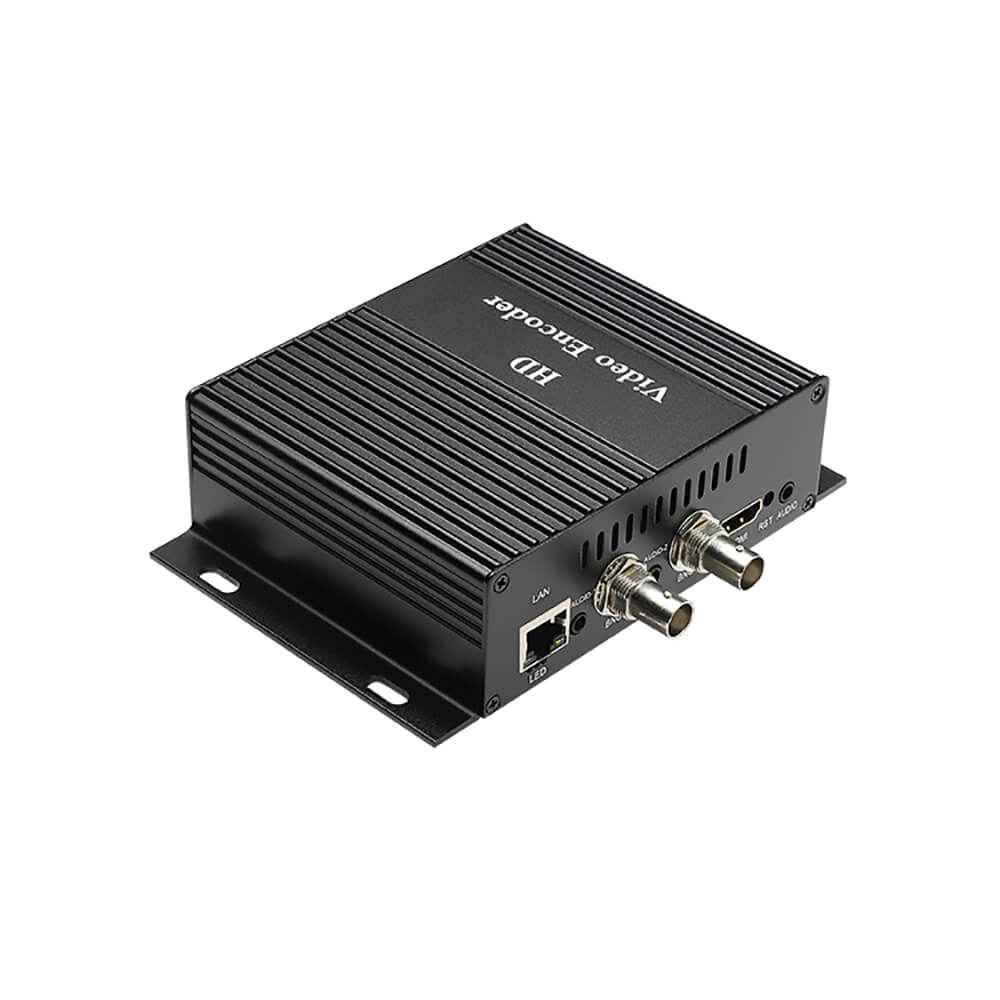

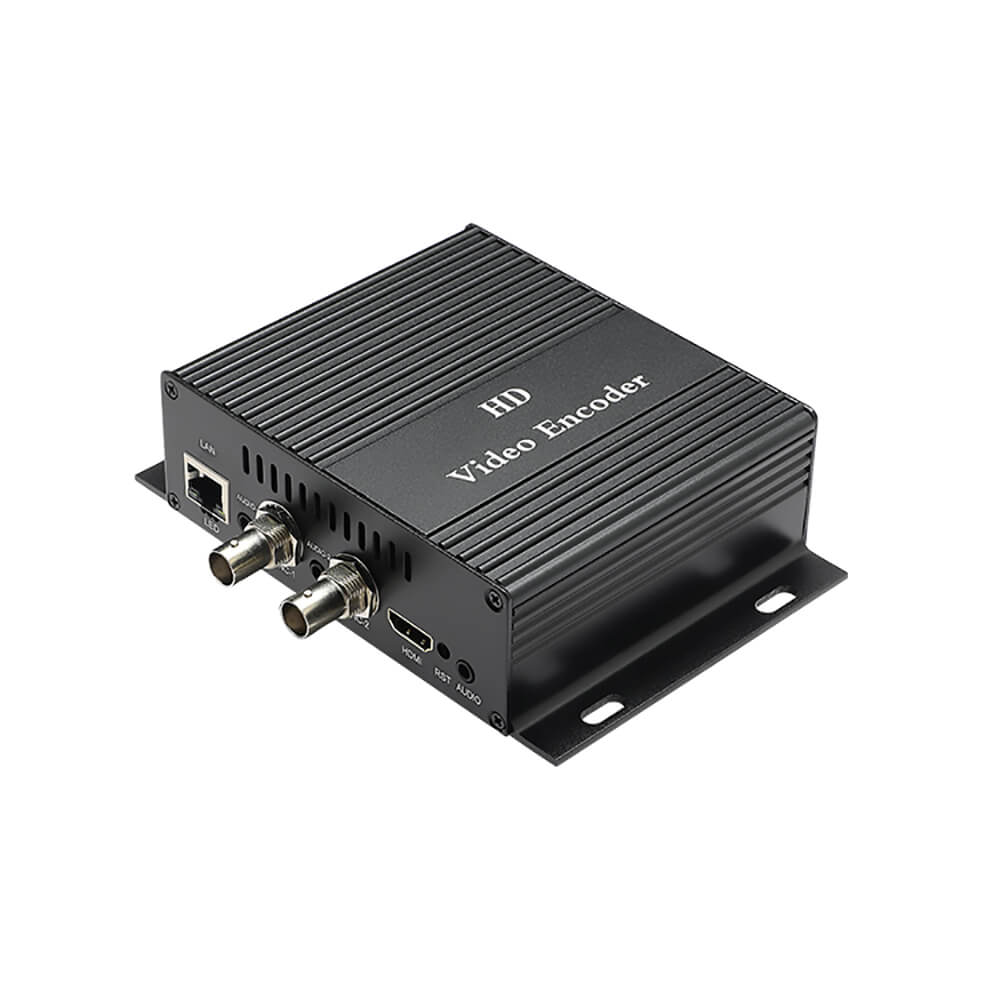

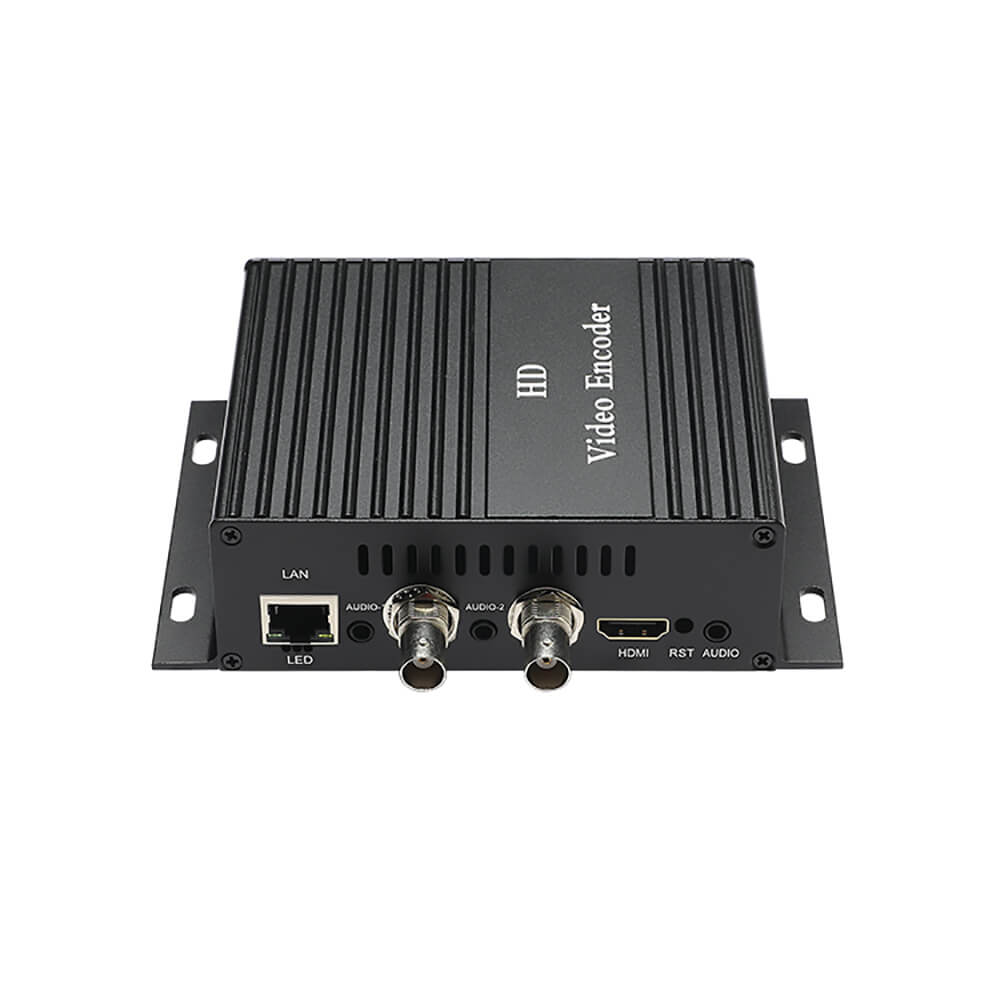

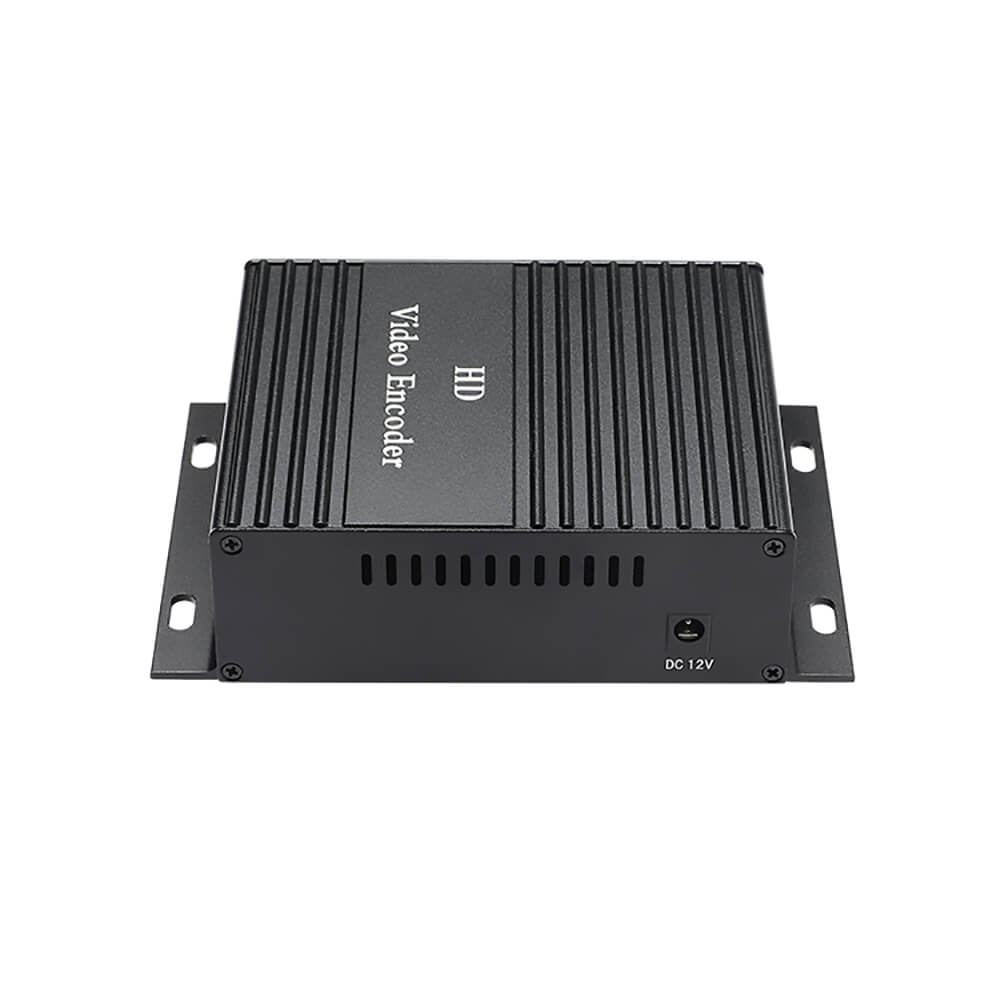

TBS2610 1 HDMI + 2 AV/CVBS Video Encoder
TBS2610 1 HDMI + 2 AV/CVBS Video Encoder
- Model: TBS2610
- Weight: 800g
Discontinued
TBS2610 is a professiomal high-definition product which support 1 channel HD HDMI video and 2 channels CVBS/AV video input. 3 channels 3.5MM independent audio interface acquisition function. Dual Streams output H.264 format, Audio MP3/AAC format. The coding rate can be adjusted and the picture quality can be controlled. Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF protocols.
Application:
- Digital TV Broadcasting System
- IPTV & OTT system
- Digital Signage Project
- Remote Video Conference
- Live Streaming
- Head-end system of Digital TV branch network
Specification:
| Product model | TBS2610 1*HDMI+2*AHD CVBS video encoder | |
| Input | 1 HDMI input, 2 channels CVBS input, 3 channels 3.5 audio input | |
| Output | 1 channel IP output | |
| Video | Input resolution | 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 And other conventional resolution |
| Coding standard | H.264 | |
| Coding level | H.264 BASELINE PROFILEH.264 MAIN PROFILEH.264 HIGH PROFILE | |
| Encoded size | 320*240~1920*1080(Can customize) | |
| Video bit rate | Rate control :CBR/VBR 16KBIT/S~12MBIT/S | |
| Video frame rate | 1080*60fps (5-60 Fps) | |
| OSD | Character ,images | |
| Audio | Input selection | 1 channel embedded audio hdmi, 2 channel AV,1 channel 3.5MM independent audio(Support audio gain) |
| Audio coding | AAC/MP3/G711 | |
| Audio bit rate | 64Kb/s~384Kb/s | |
| Sampling rate | 32000、44100 48000etc | |
| IPoutput | 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol | |
| System | Network protocol | Supports HTTP, RTSP, RTMP, UDP, multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade | |
| The common use | Power supply | 12V~2A |
| power consumption | 5W | |
| Size | 100mm *118mm * 40mm(length*width*height) | |
| Operating temperature | -20℃+ 60℃ | |
| Working humidity | < 90%, Non-condensing | |
| Weight | 0.3KG | |
