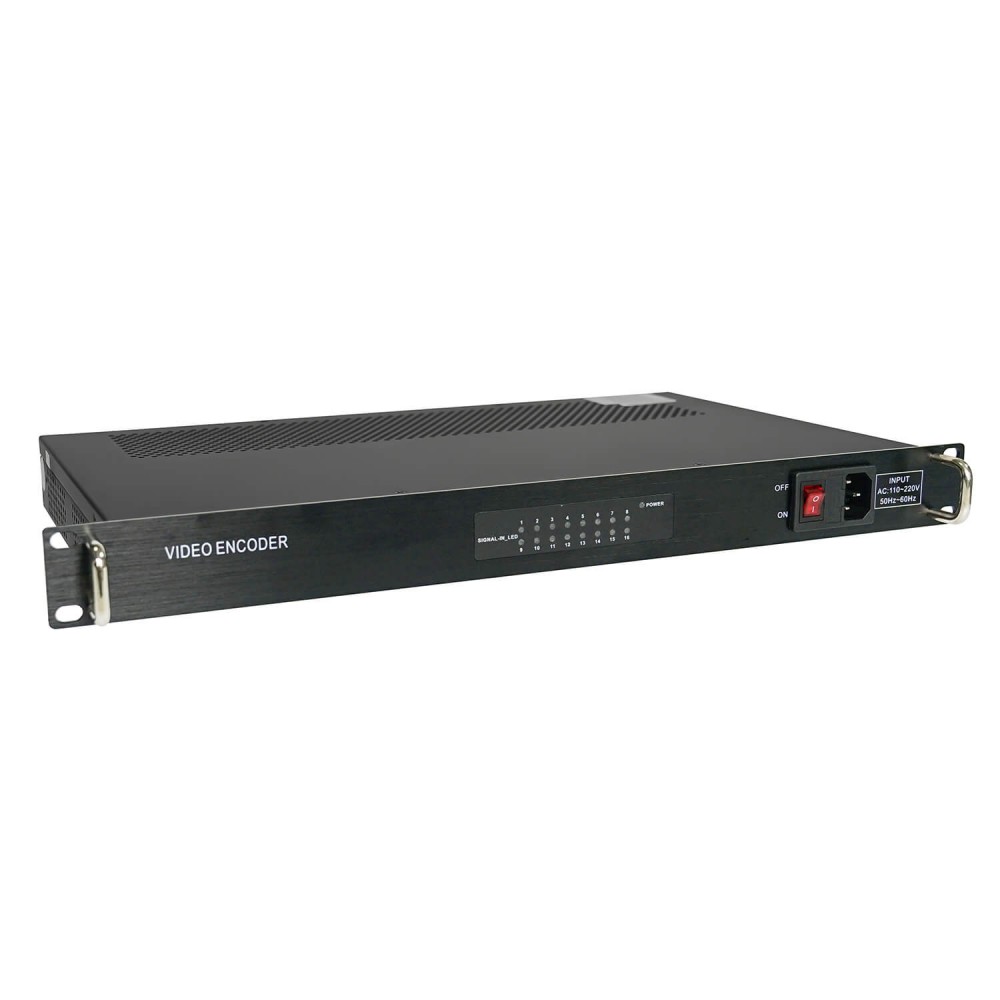

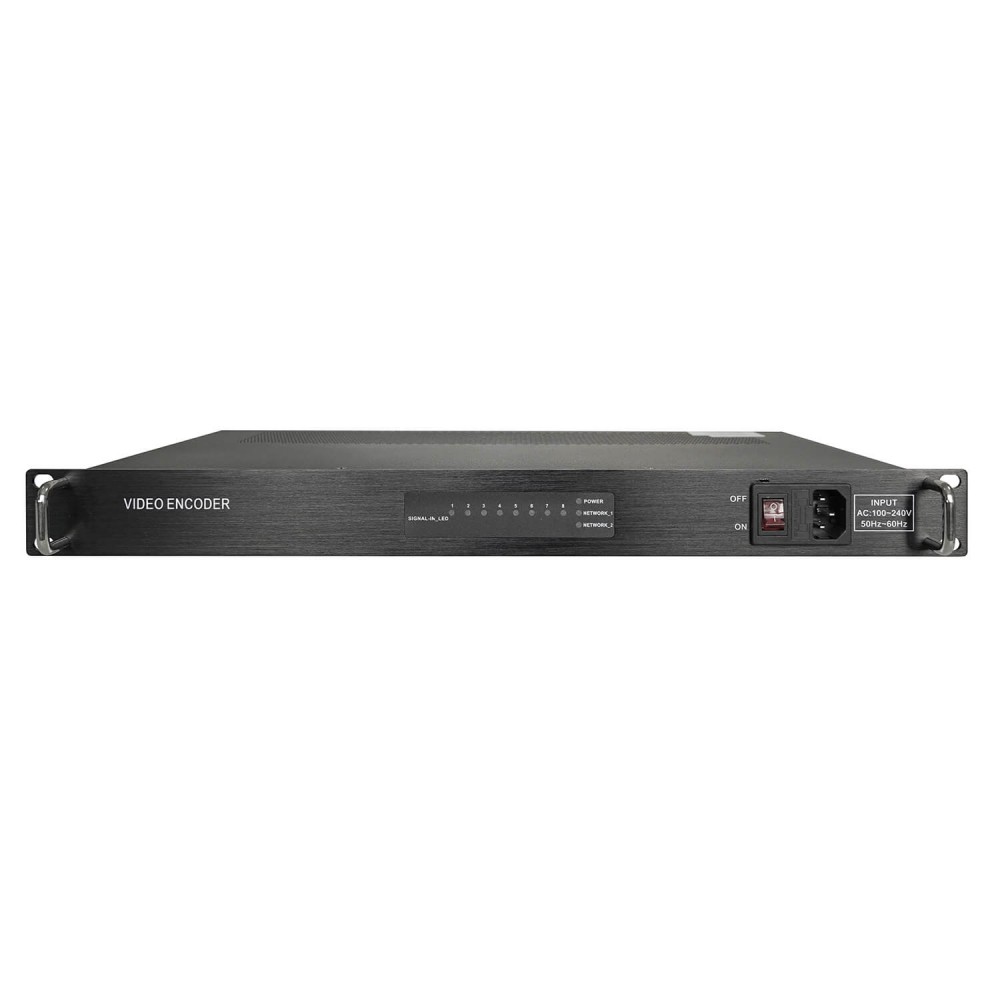

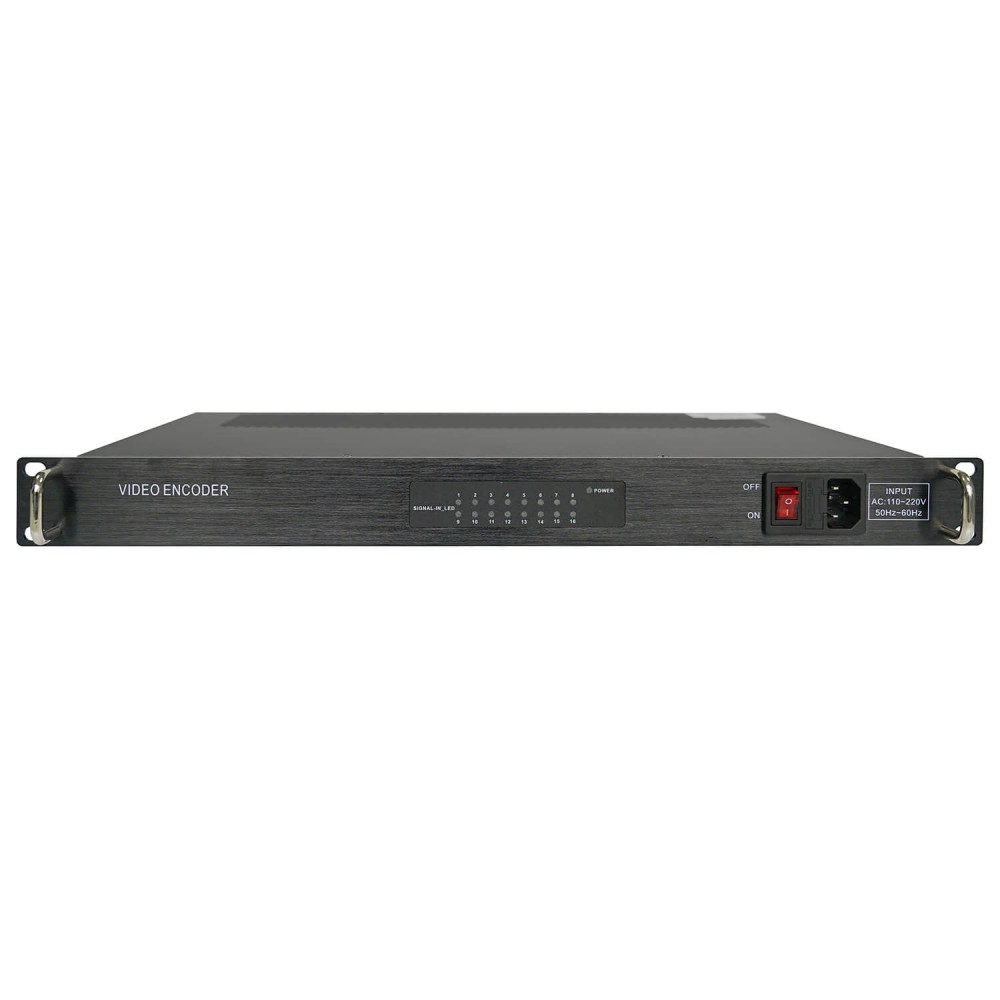

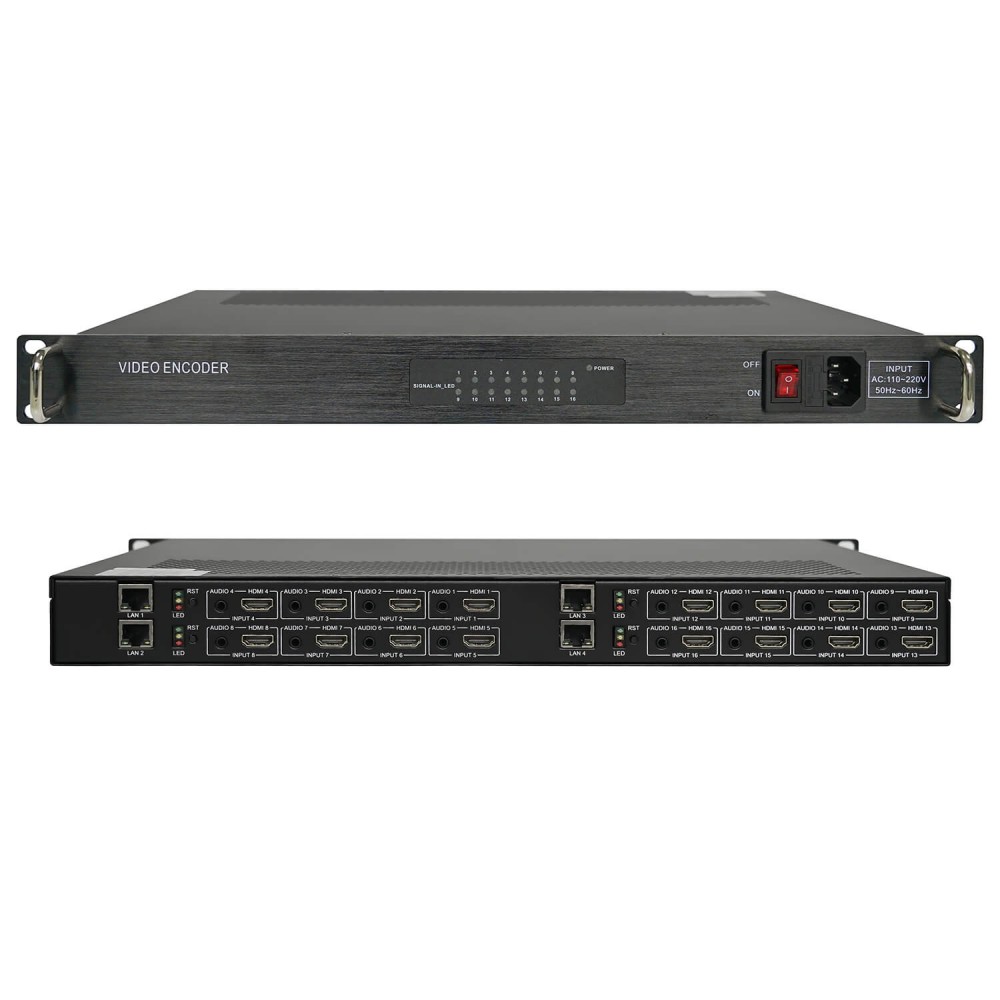

TBS2616 8 Channels 4K /16 Channels 1080P HDMI Video Encoder


TBS2616 8 Channels 4K /16 Channels 1080P HDMI Video Encoder

  • Model: TBS2616
  • Weight: 8,000.00g

In Stock

Available Options

TBS2616 HDMI video encoder is a professional high-definition video encoder, which not only supports 8 channels 4K or 16 channels H.265 encoding, but also supports multiprotocol output, each channel supports simultaneous output of HTTP/HLS/RTSP/UDP/RTP/SRT/RTMP(RTMPS) protocols, which is ideal for customers who need to use different protocols output.

The product can be applied to education, health care, IPTV, conference, distance education, news interview, banking, transportation, and other industries.


  • Digital TV Broadcasting System
  • IPTV & OTT system
  • Digital Signage Project
  • Remote Video Conference
  • Live Streaming
  • Head-end system of Digital TV branch network

Key Features

  • 3840x2160/1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i resolutions
  • Support H265 main profile; /H.264 baseline profile / main profile/ high profile
  • Support multiple devices display on a computer at the same time
  • Supports dual ethernet ports 1000M/100M
  • Support HTTP/HLS/RTSP/SRT/RTMP(RTMPS)/RTP&UDP unicast and multicast protocol. Support DHCP/, ONVIF protocol, support HD Blue-ray
  • Support Main TS stream and the sub-TS stream use in different network protocols for transmission (multi-rate multi-protocol support)
  • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
  • Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
  • Support streaming add watermark (OSD), XY axis, the font can be set;
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods, support left and right sound channel, Support audio gain, be able to turn volume individually
  • Support coding without video signal;
  • Complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • Low power consumption design


Model TBS2616

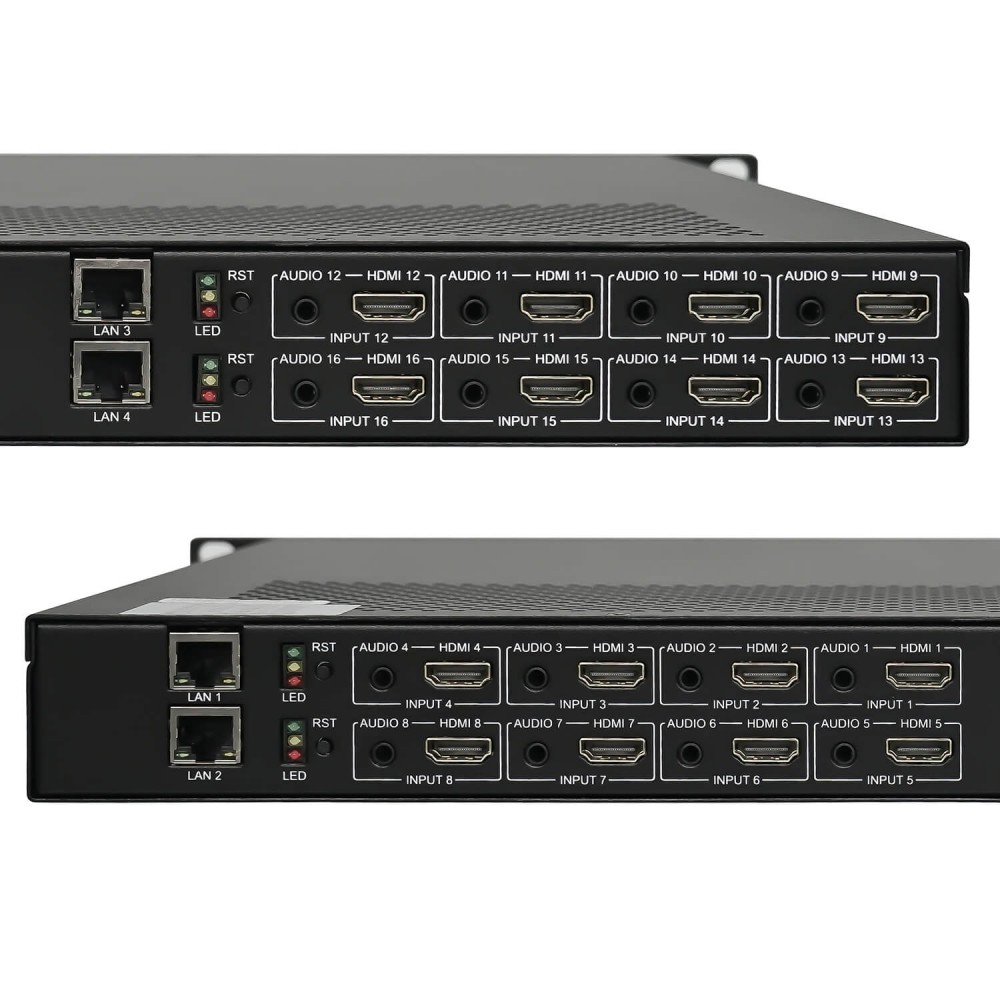

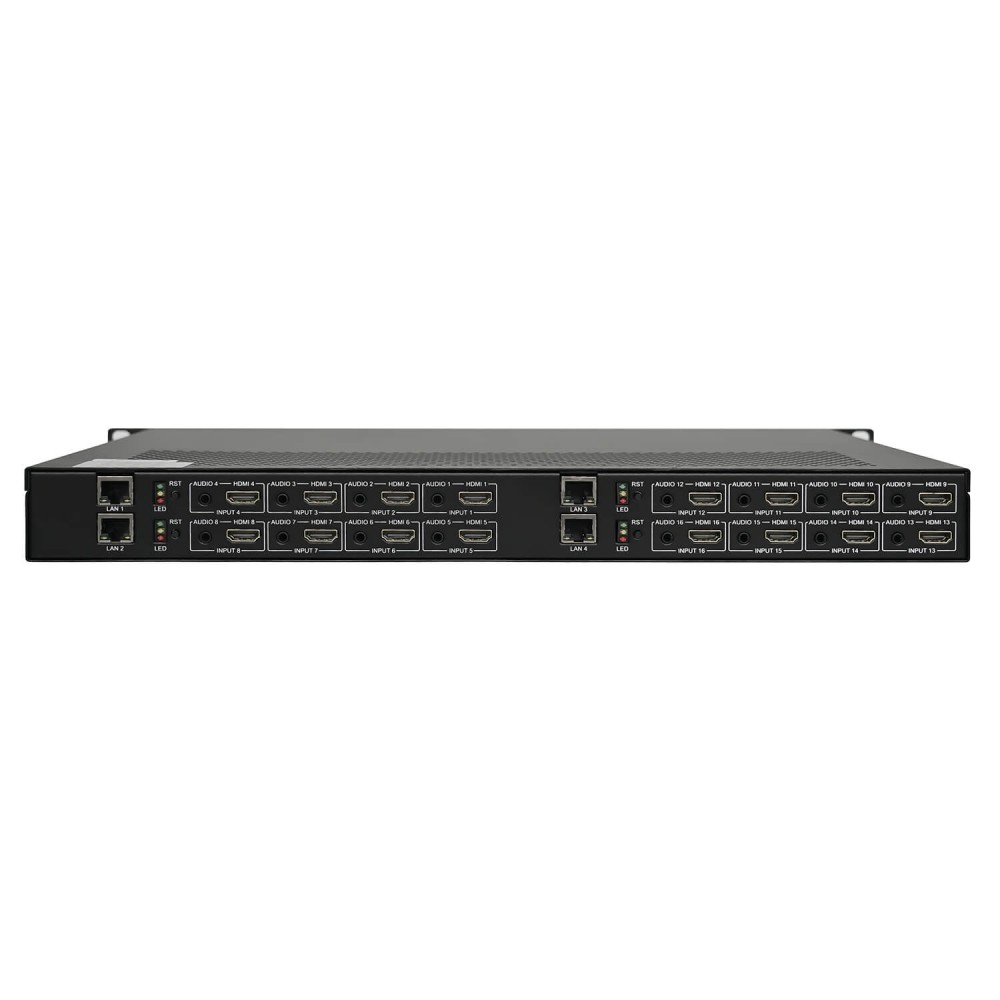

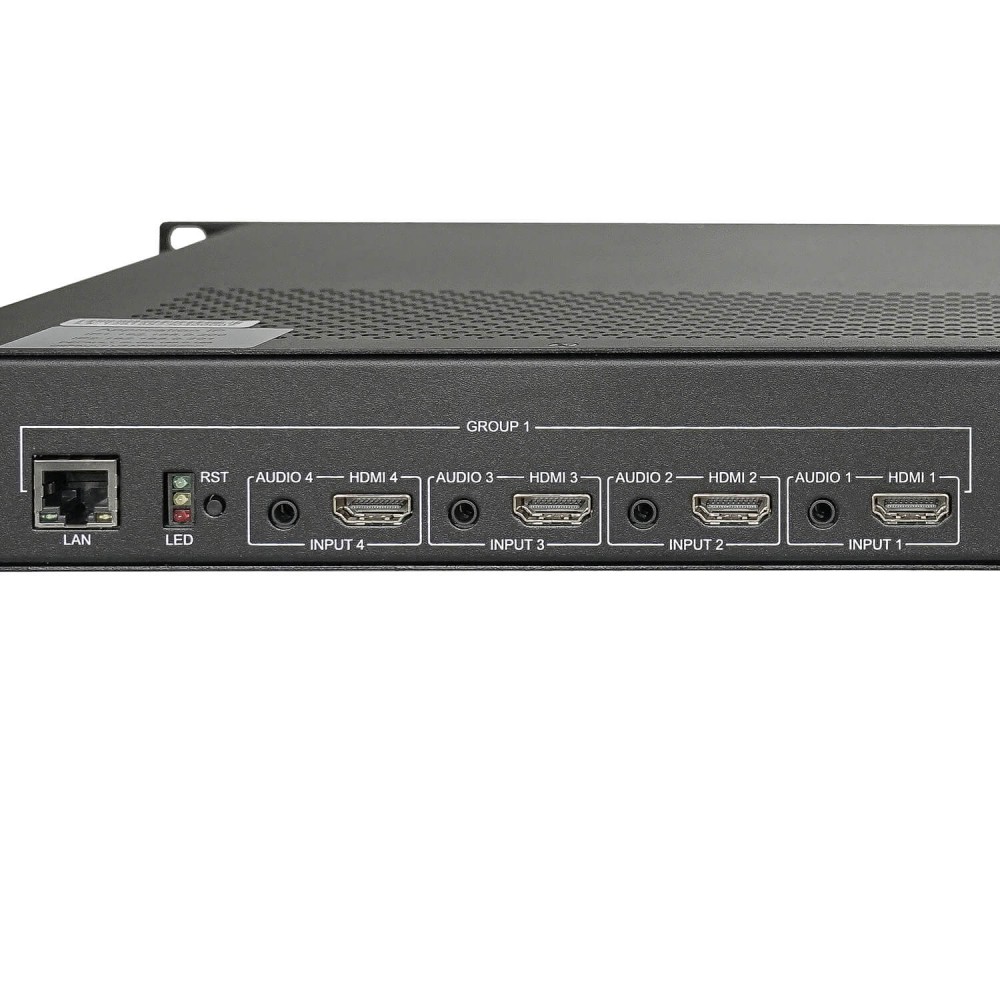

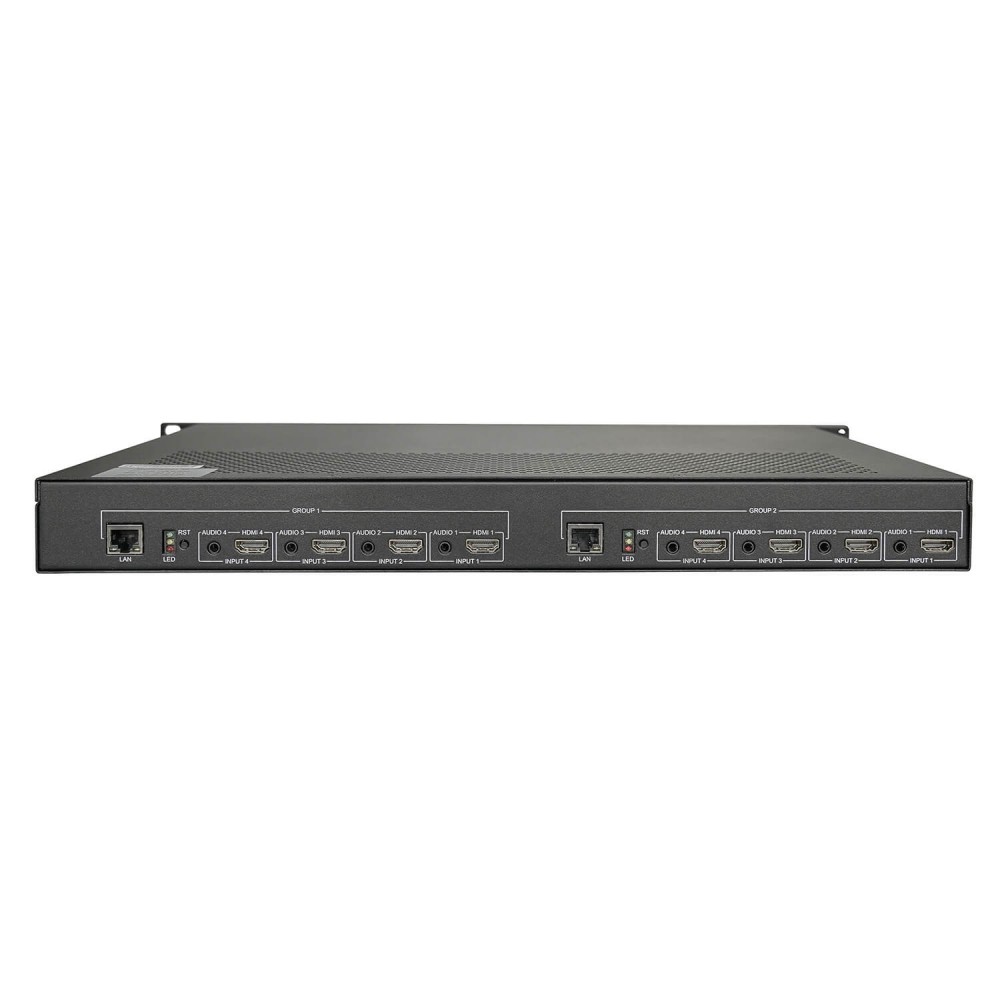

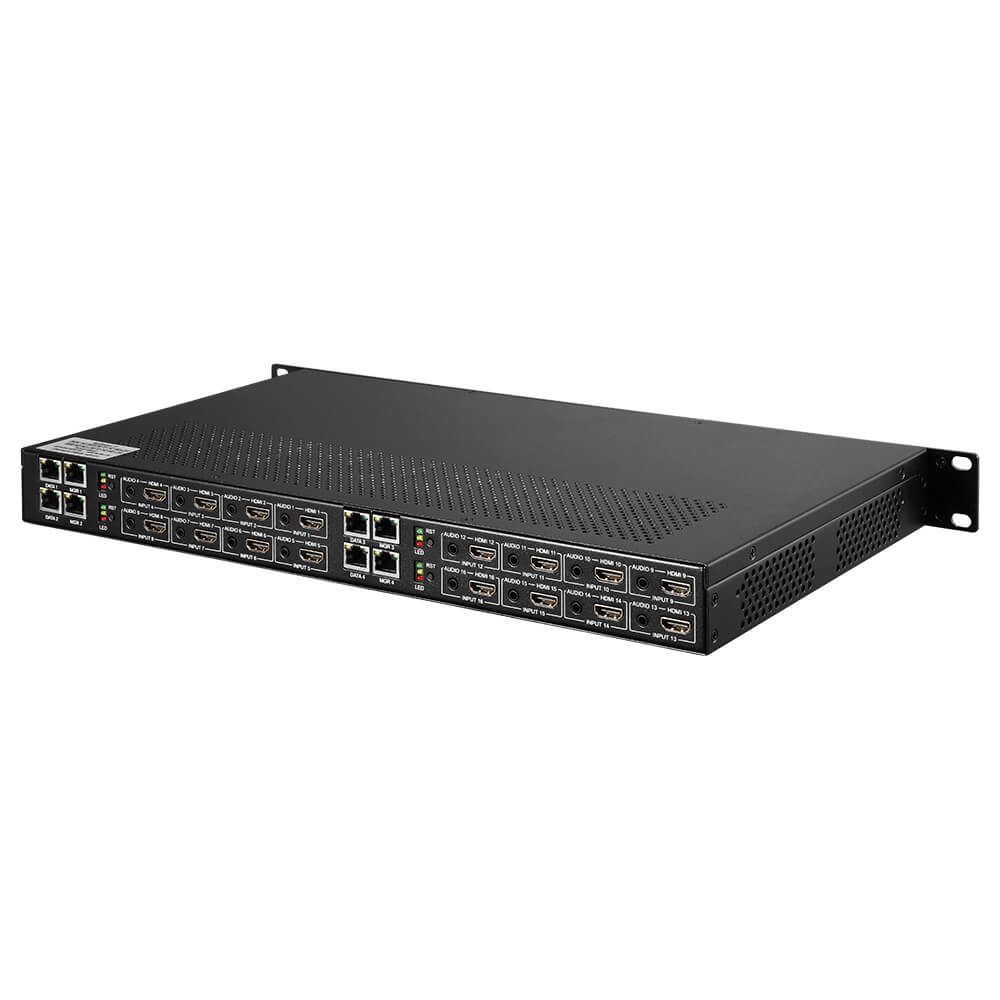

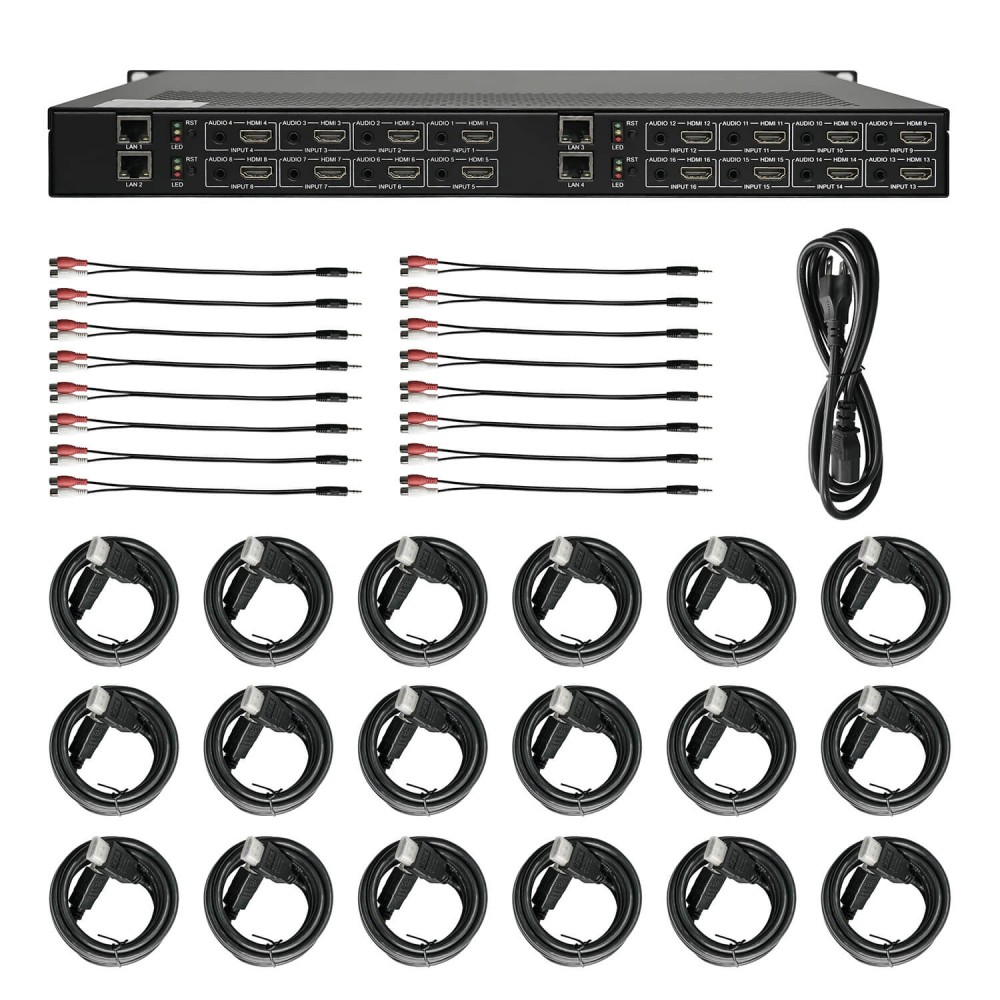

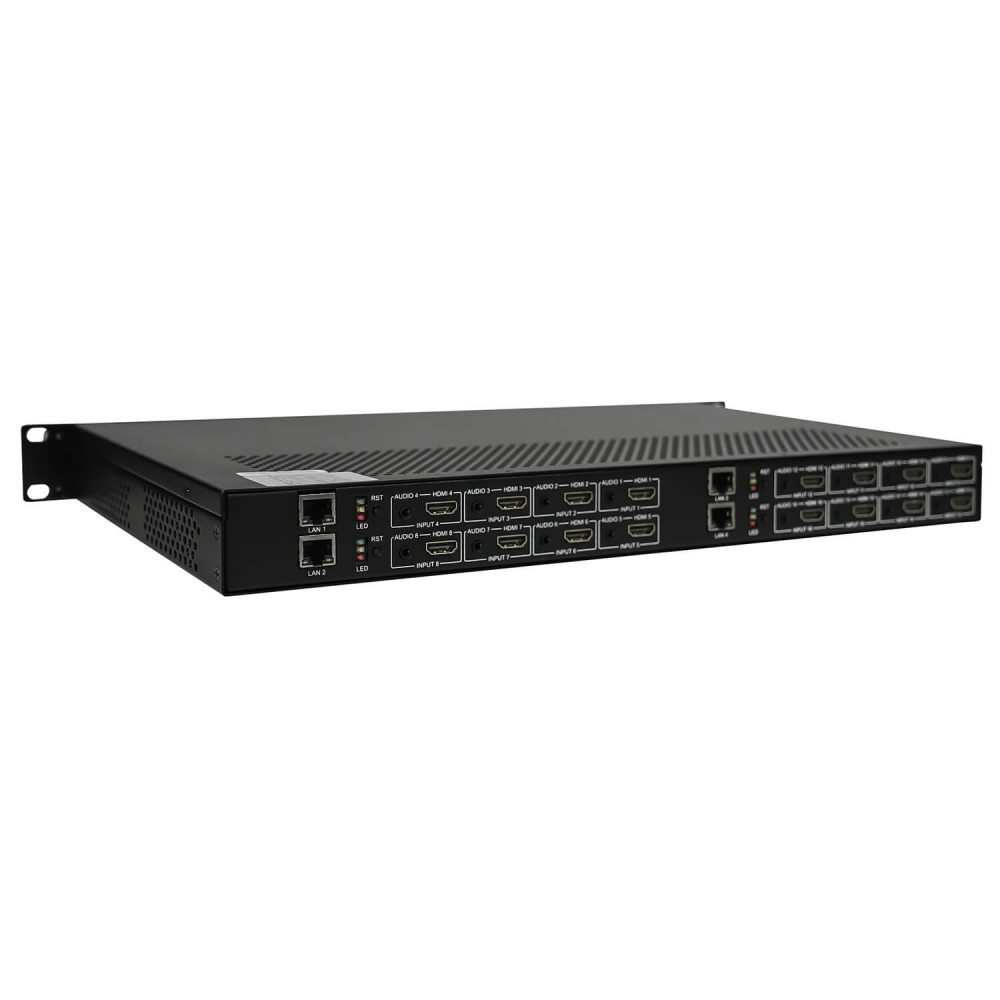

Input 16 x HDMI input, 16 Channel line in audio, HDCP supported
Output 4 x RJ45 1Gbps
Video Input resolution 3840x2160p_30hz, 1920x1080p_60hz, 1920x1080p_50hz, 1920x1080i_60hz, 1920x1080i_50hz, 720p, 720x576i, 720x576p, 640x480i, and ect.
Codec H.265 / H.264
Profile H.265 Main profile H.264 Baseline profile H.264 Main profile H.264 High profile
Encoded size 3840x2160,1920x1080,1680x1056,1280x720,1024x576,960x540, 850x480, 720x576, 720x540, 720x480, 640x480, 640x320, and ect.
aspect ratio 16:9, 4:3
Color setting Brightness, Contrast, Saturation
Bitrate control CBR, VBR
Bite rate 16Kbps ~ 12Mbps
Video frame rate 5 ~ 60 fps (1080p and low: 5 ~ 60fps; 4k: maximum is 30fps)
OSD Text, Image
Audio Input selection HDMI embedded: 4 channel HDMI embedded audio Line in: 4 channel 3.5mm Jack independent audio support audio gain
Audio coding AAC(LC/HE), MP3, G.711
Audio bit rate 24Kb/s ~ 320Kb/s
System Protocols HTTP, HLS, RTSP, RTMP/RTMPS, RTP/UDP unicast & multicast, SRT (Caller mode, Listener mode), Onvif
Configuration management Web User interface, remote upgrade, multi-one management platform
power consumption 50w
Size 1U
Operating temperature -20℃ ~ 60℃
Working humidity < 90%, Non-condensing
Weight 8KG
Our company reserves the right to adjust the product parameters, if you have any questions, please contact us to check
