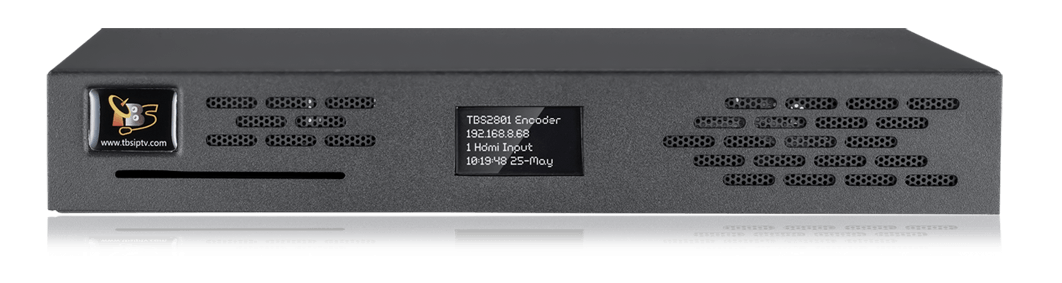

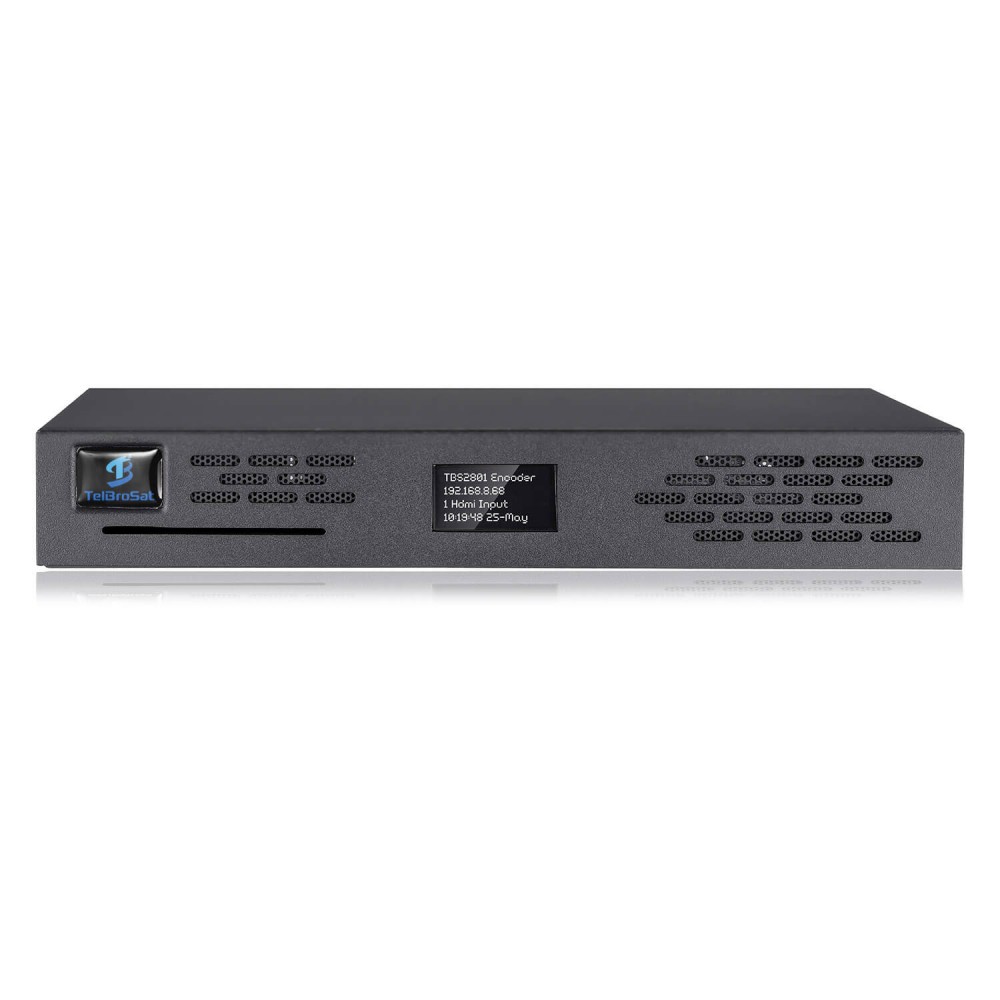

TBS2801 Professional 4K 60Hz HD H.265 & H.264 HDMI Video Encoder


TBS2801 Professional 4K 60Hz HD H.265 & H.264 HDMI Video Encoder

  • Model: TBS2801
  • Weight: 1,500.00g
  • Reward Points:869

In Stock


TBS2801 Professional 4K 60Hz HD H.265 & H.264 HDMI Video Encoder

------ Simple, Powerful and Reliable

TBS2801 is a professional H.265 HDMI Video Encoder that enables high-quality content streaming and display. It supports maximum of 4K@60Hz HDMI input and can stream to popular online media platform such as YouTube Live, Facebook Live, Twitch or to a custom-specified RTMP/RTMPS servers. It compatible with HTTP/HLS(M3U8)/RTSP/RTP/UDP /Unicast & Multicast/SRT/RTMP/RTMPS, what's more, it supports multiple protocol output, up to 6 protocols at the same time.

TBS2801 supports to capture and record HD content in H.265/H.264 format from playstations and digital video cameras. Besides, with flexible web UI control, it can easily switch between channels and adjust configurations, offering better TV viewing experience.


  • Supports H.265/HEVC and H.264/AVC compression
  • Supports up to 4K@60Hz HDMI input

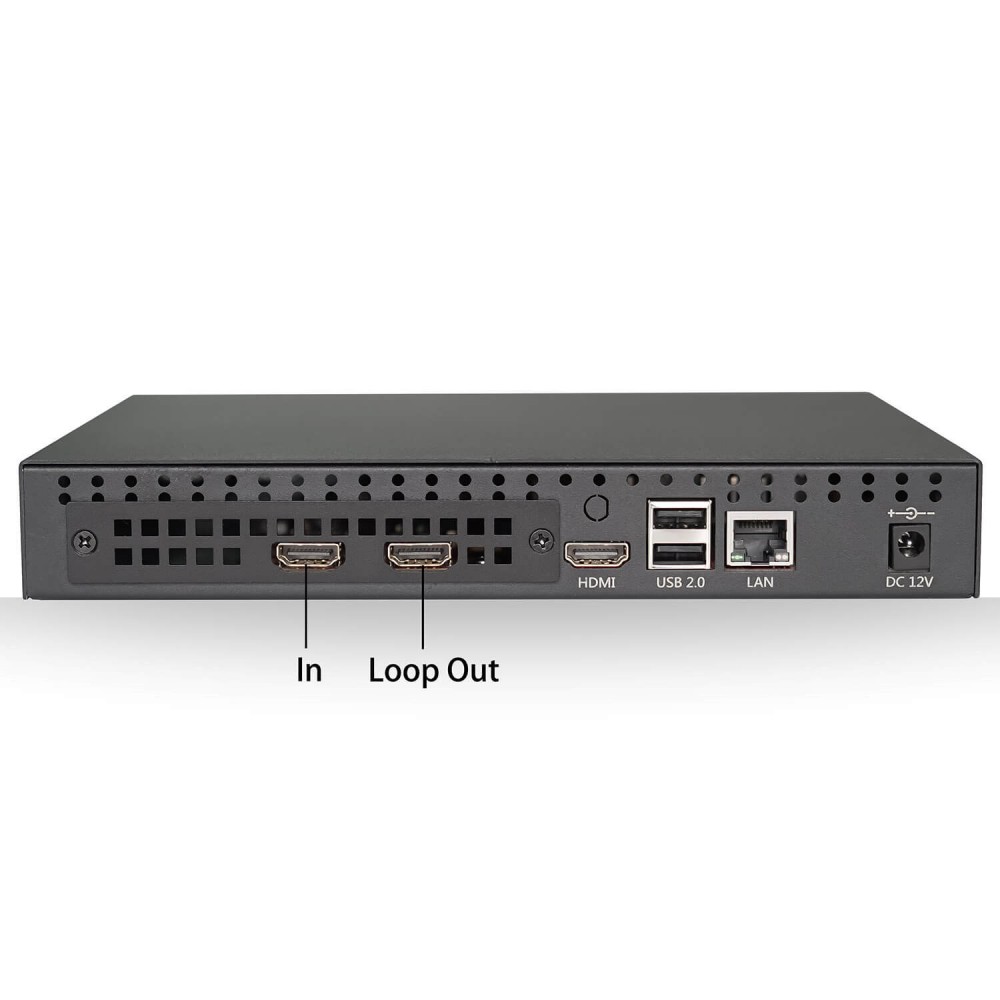

  • Zero-latency HDMI loop-out, up to 4K@60Hz
  • Controlled by user-friendly web UI
  • Supports multiple streaming protocols, including HTTP/HLS(M3U8)/RTSP/RTP/UDP /Unicast & Multicast/RTMP/RTMPS

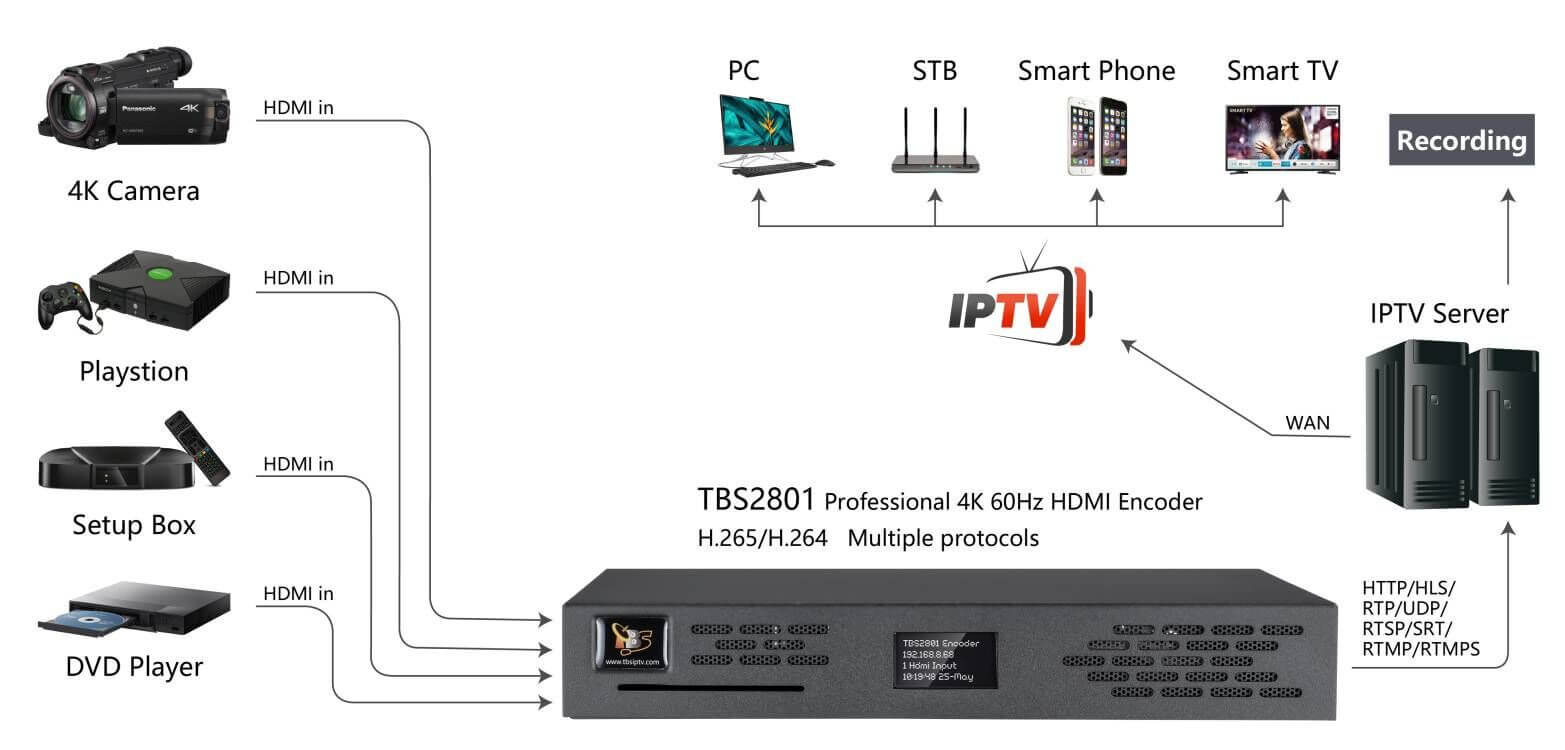

  • IPTV Servers
  • Datacasting and monitoring
  • Live TV Encoding and streaming
  • Broadcast TV

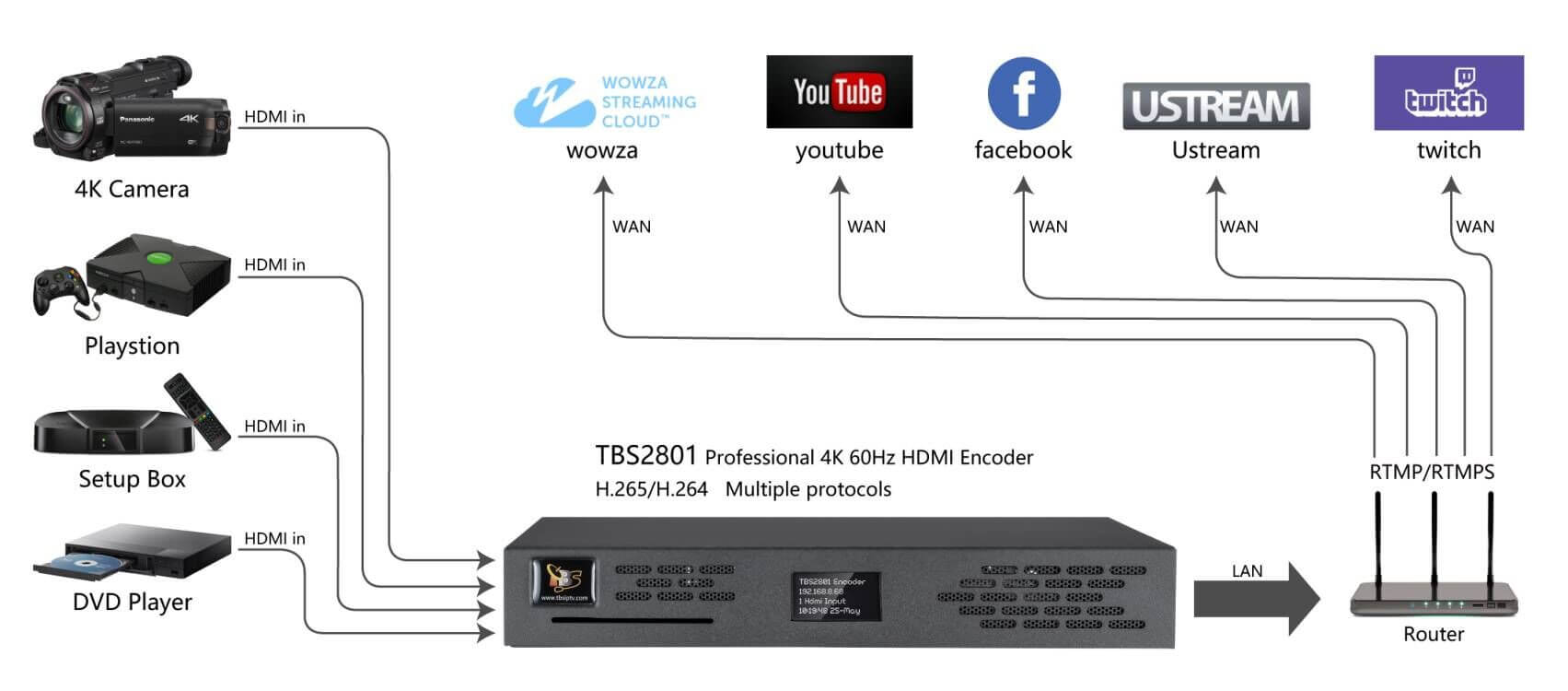

Live streaming to social media

Why choose TBS2801?

- Supports real 4K@60Hz encode

  • 3840x2160p@60fps (H.265) , real 4K encode
  • Capture & Deliver Live Video in 4K Ultra HD over Public Internet
  • Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
  • Efficient encoding leads to bandwidth savings, even at high resolutions.

- Multiple protocol output

  • Compliant with HTTP/HLS(M3U8)/RTSP/RTP/UDP /Unicast & Multicast /SRT/RTMP/RTMPS
  • Each channels have multiple protocols for outputting

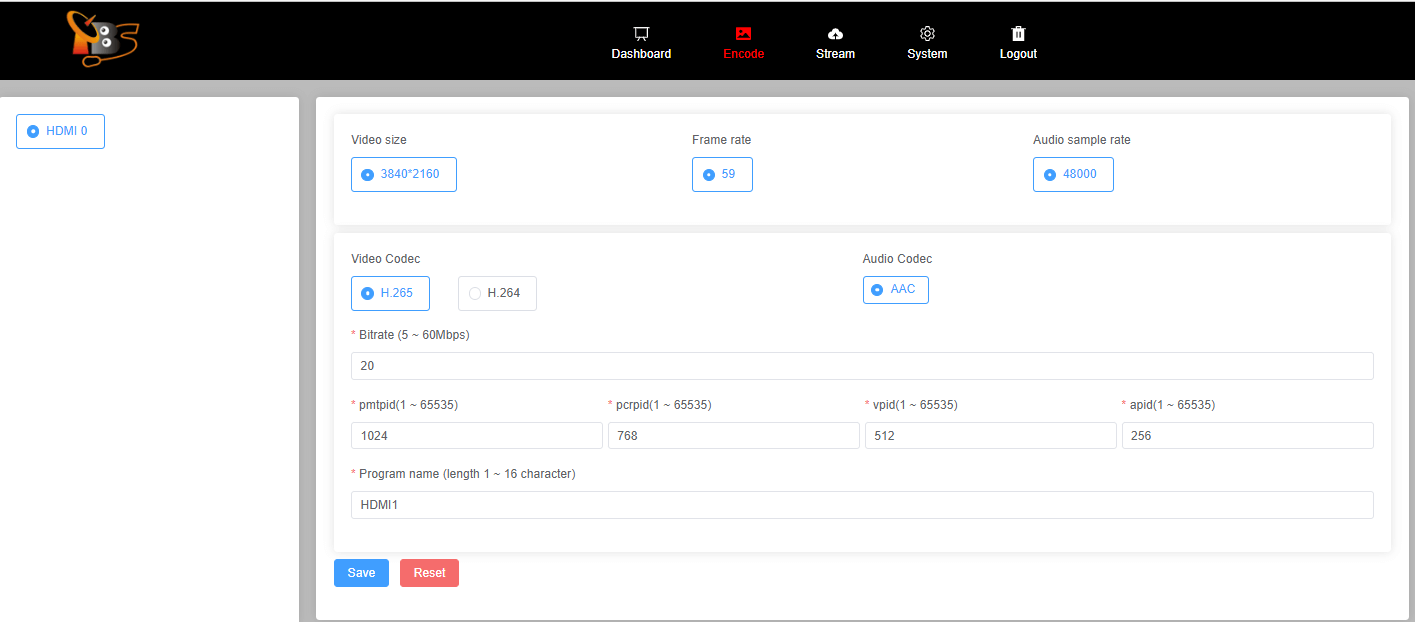

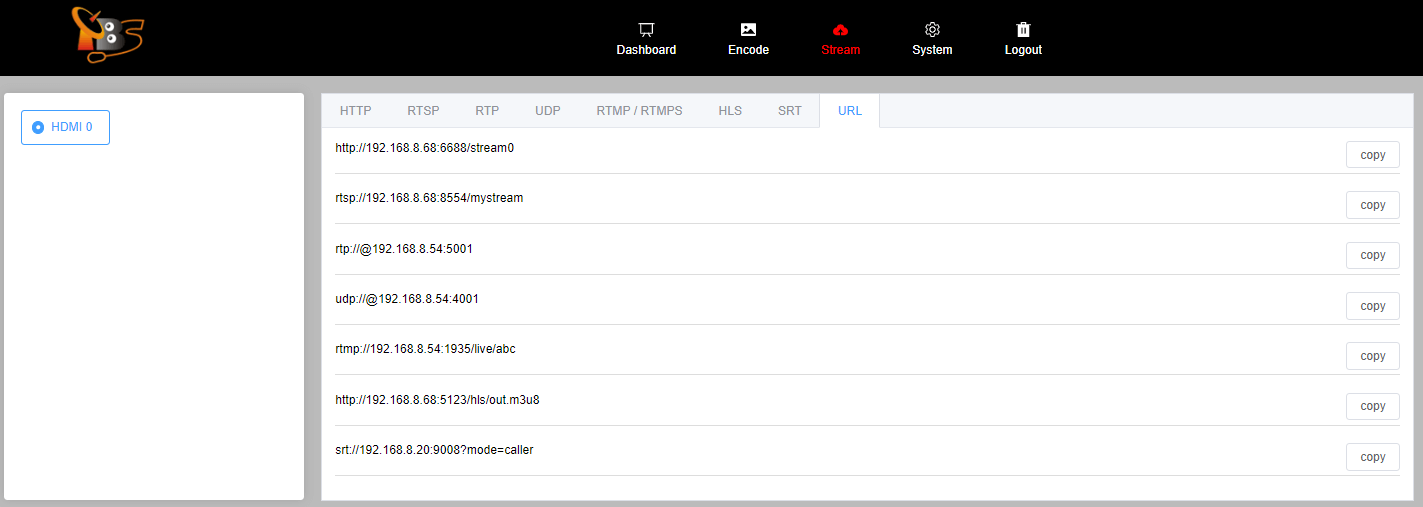

- Friendly web UI for control

Reliable Web UI let you easy to setup and manage.


Model No. TBS2801

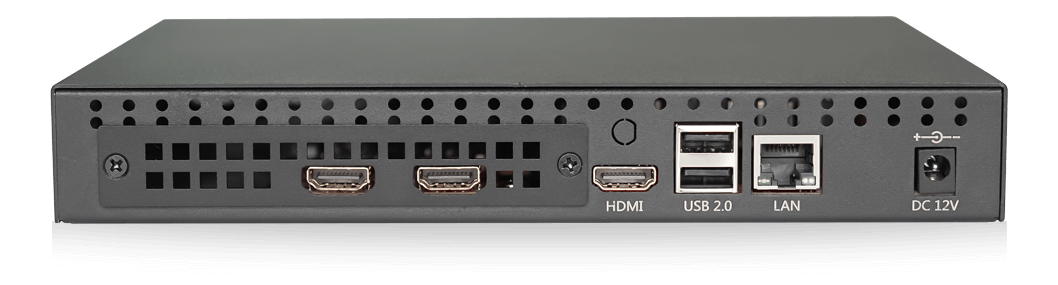

Input Interface 1x HDMI 2.0, HDCP 2.2
Video Input 3840x2160p_60hz, 3840x2160p_50hz, 3840x2160p_30hz,3840x2160p_24hz,
1920x1080p_60hz, 1920x1080p_50hz,1920x1080p_30hz,720p_60hz,720p_50hz,
or lower Progressive input (does not support "Interlace" Input)
Video Output 3840x2160p@60fps(H.265), 3840X2160p@50fps(H.265),3840x2160p@30fps,3840x2160p@24fps,1920x1080p@60fps, 1920x1080p_50fps,1920x1080p_30fps,1280x720p@60fps,1280x720p@50fps or lower
Sampling format YUV4:2:2,YUV4:2:0
Video Codec H.265/H.264
Bit Rate Control CBR
GOP Length 0.5sec
GOP Structure I,P
Bitrate 1-70Mbps
Bite depth 8 bit
Audio Input HDMI embedded
Audio Codec AAC
Output Protocol HTTP, HLS(M3U8), RTSP, RTP/UDP Unicast & Multicast,SRT, RTMP/RTMPS
Control Web UI
Ethernet/LAN 1000M Base-T Ethernet Interface
Dimension 230mm* 180mm * 34mm
Power Consumption less than 12w
