TBS5927 Professional DVB-S2 TV Tuner USB


TBS5927 Professional DVB-S2 TV Tuner USB

  • Model: TBS5927
  • Weight: 615.00g
  • Reward Points:230

In Stock


TBS5927 is a Professional level digital satellite TV Tuner box with USB2.0 connection to PC. TBS5927 not only supports normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also supports ACM, VCM, Multi Input Stream, 16APSK and 32APSK mode, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can’t support. The built in hardware blind scan feature allows scanning of unknown satellite transponder with symbol rate as low as 200ksps, while most satellite receiving device can receive no less than 1Msps symbol rate. With use of dedicated TBS tools, those special streams can be captured. Both Windows BDA driver and Linux driver are provided.

View More

Main Features:

  • EUMETCast Compatibility
  • DVB-S2/S Transponders Receiving
  • CCM, VCM,ACM and Multi Input Stream Support
  • Watch & record satellite TV/ radio programs onPC
  • Wide range symbol rates support from 200Ksps to 45Msps
  • High-speed Data download via Satellite
  • Unicable/One Cable compatible
  • Blindscansupport
  • High reliability


Receiving Frequency 950~2150 MHz Tuning Range
Input level -69~-23dBm
Demodulator Yes
Symbol Rate:
DVB-S QPSK 0.2~45Msps
DVB-S2 QPSK/8PSK 0.2~45Msps
DVB-S2 CCM ACM VCM QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK+3/4, 4/5, 5/6, 8/9, 9/10
DVB-S QPSK+1/2, 2/3, 3/4, 5/6, 7/8
Data Burst & Tone Burst Support
DiSEqC2.X and Motor Support
Carrier Capture Range: ±10MHz ±10MHz
Applications Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Power consumption
Input/Power: +12/
temperature 0~60℃
System Requirements Windows 2000/XP/Vista/7/8/10 or Linux
Available USB2.0 Port
Satellite Dish and LNB
TV tuner Boxsize 12x9x2 (cm)
Net weight 190g
Gift Box Size 16x16x8(cm)
Weight 615g

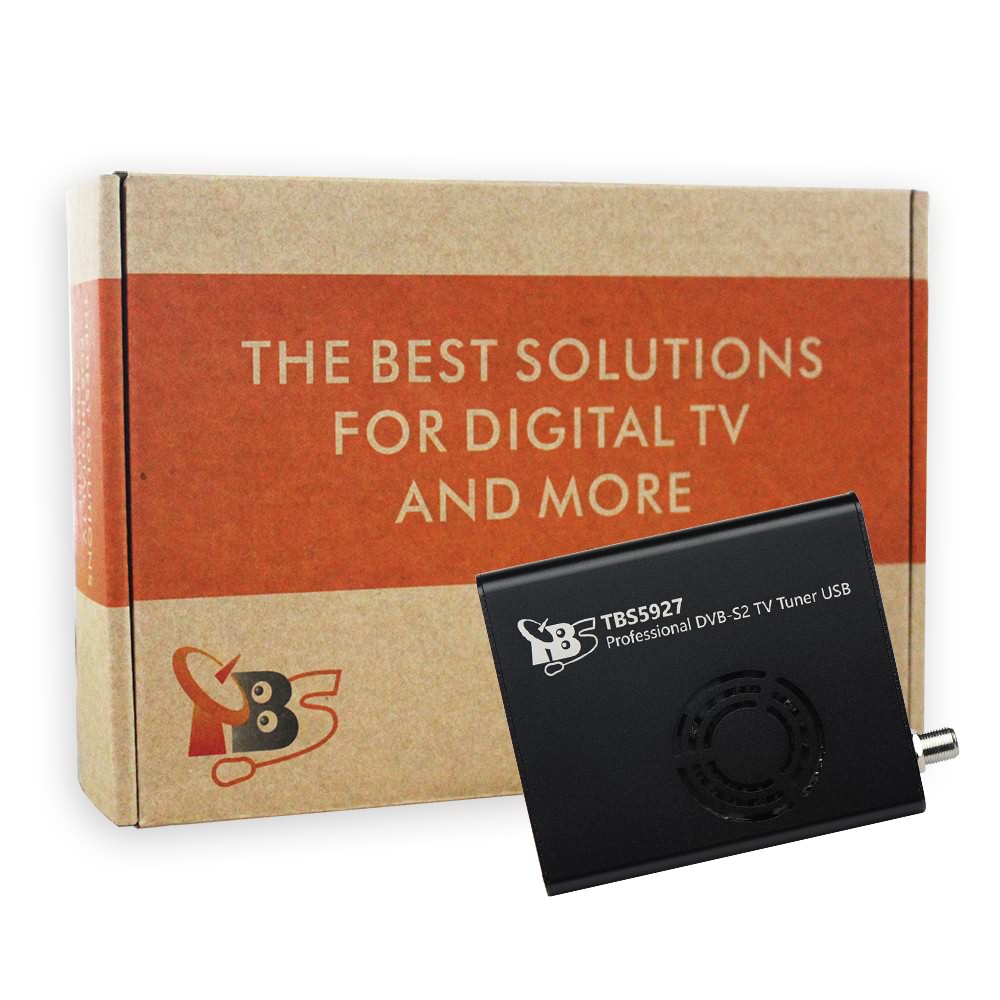

Package Contents 1 x TBS5927
1 x Power adapter
1 x USB cable
