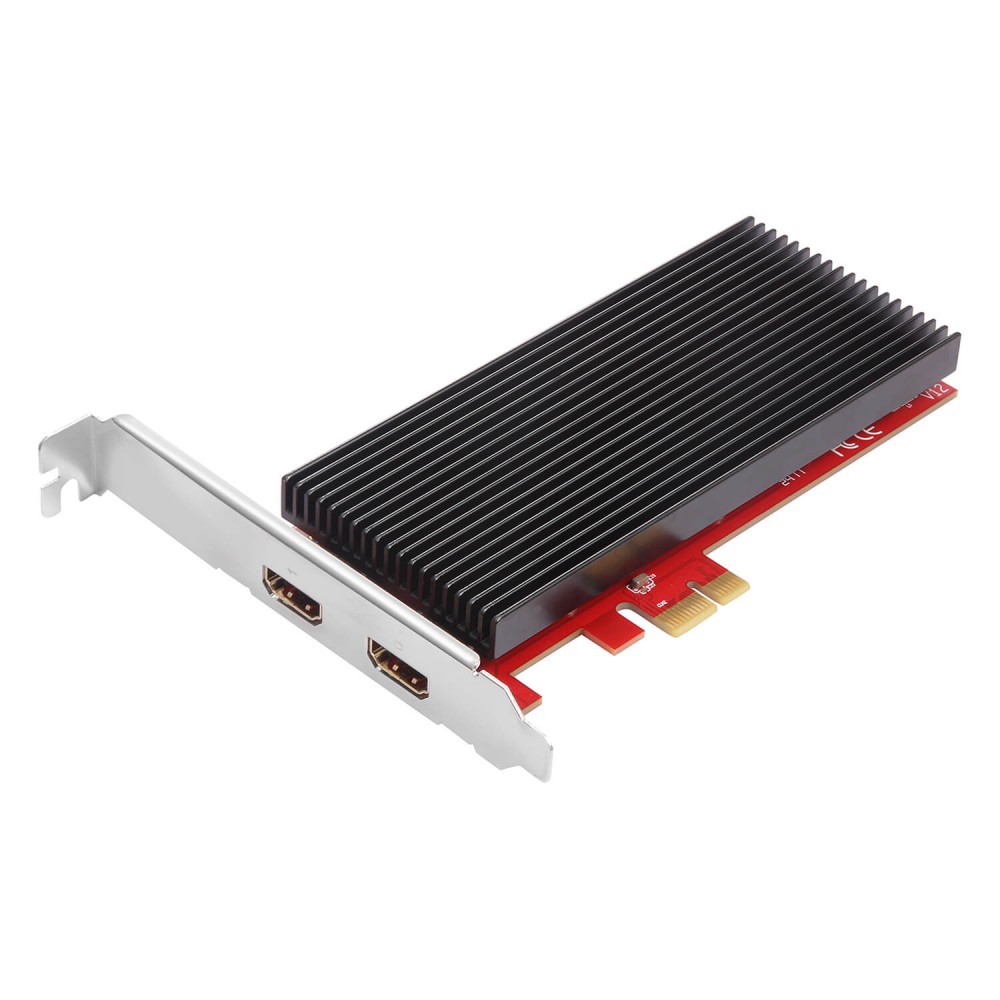

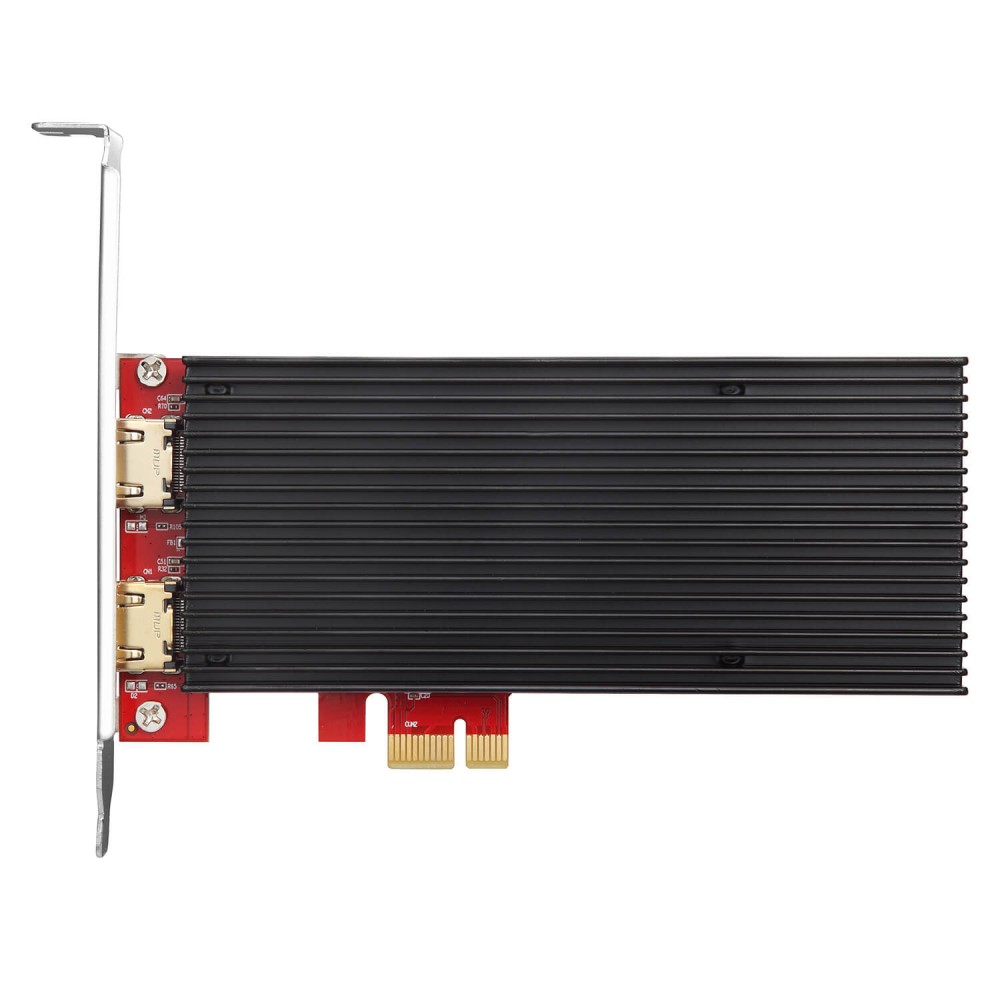

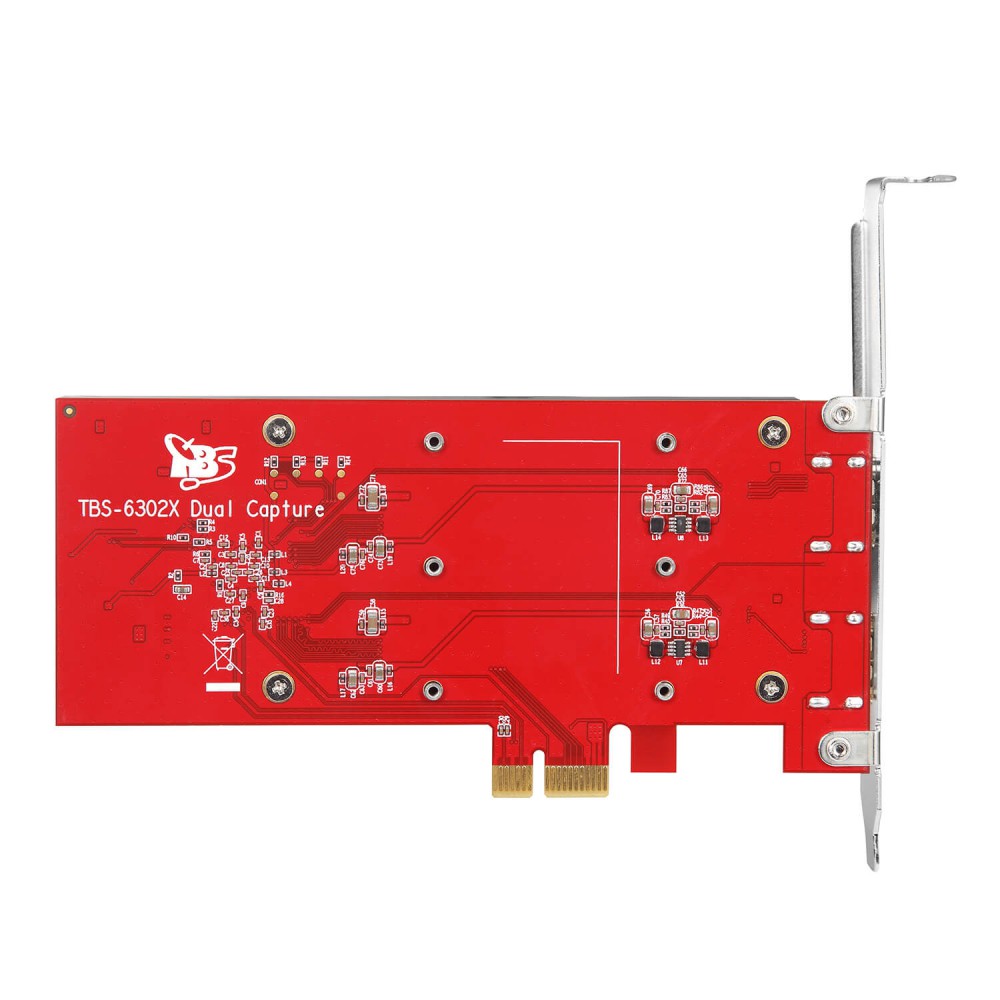

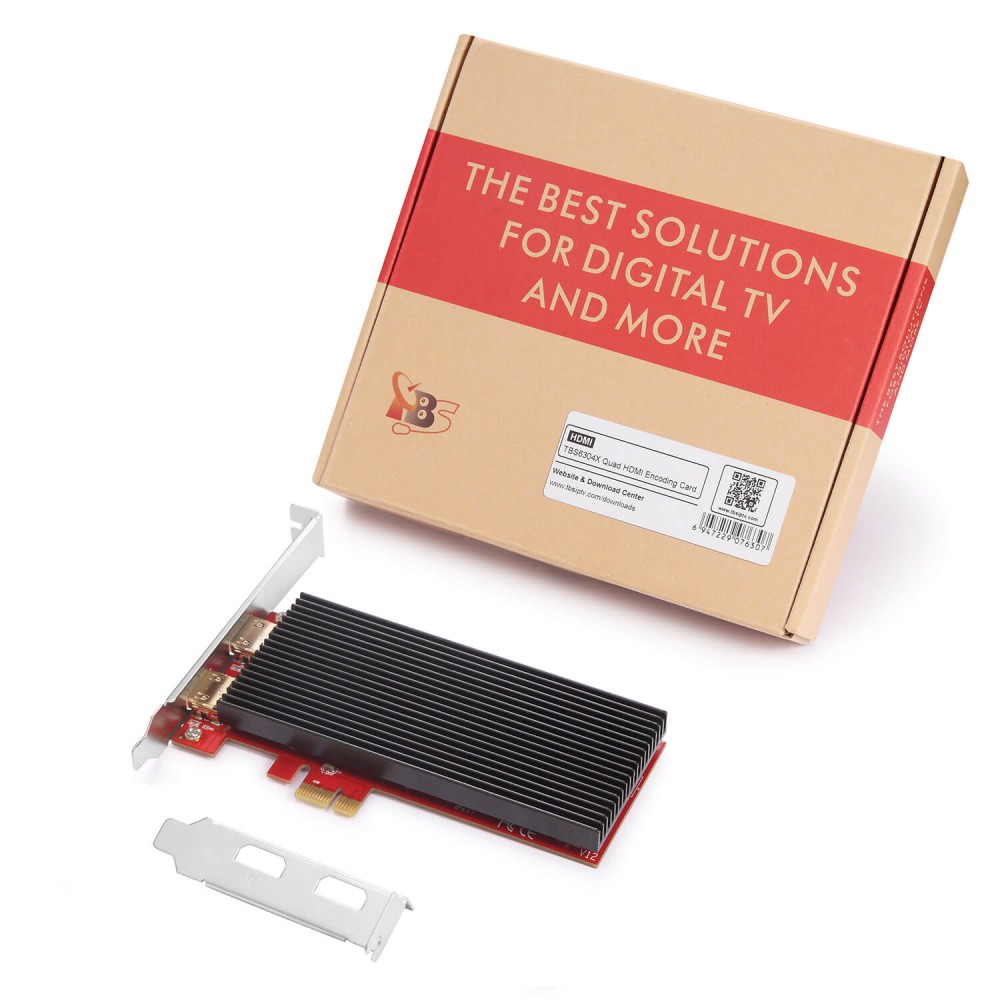

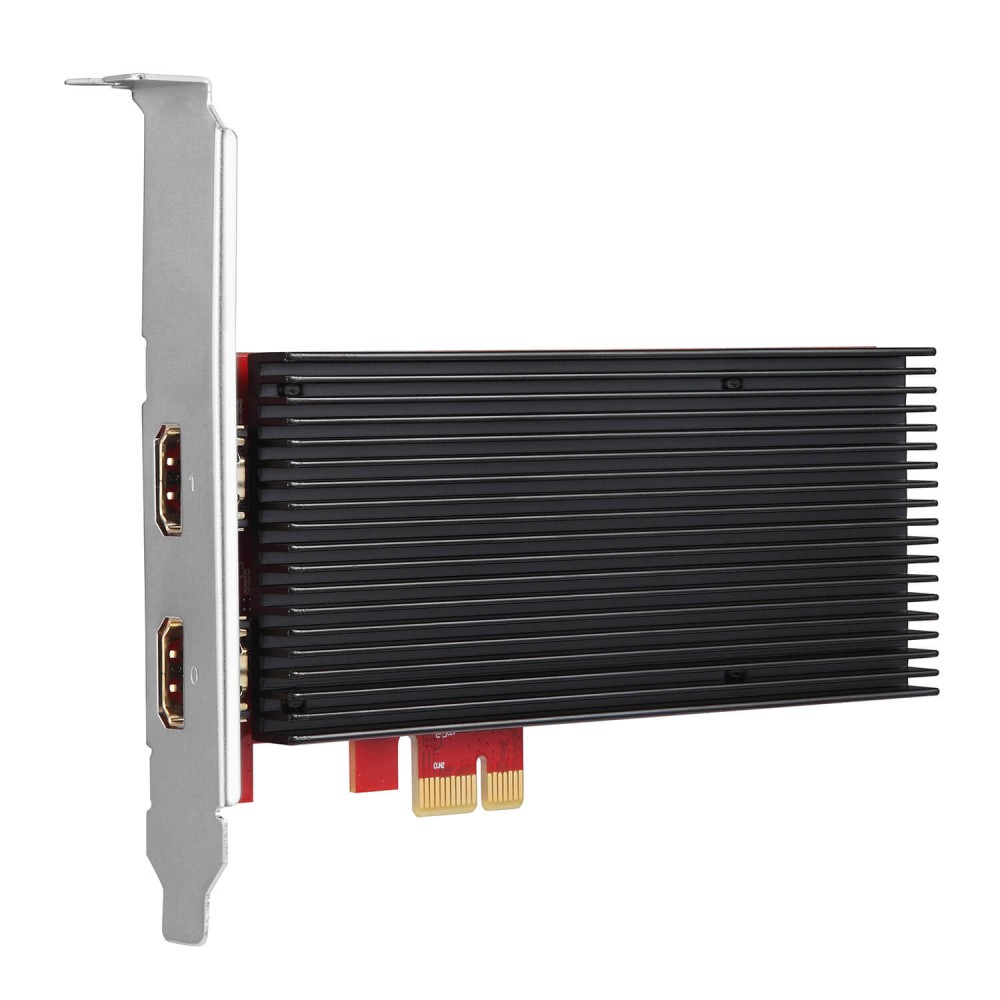

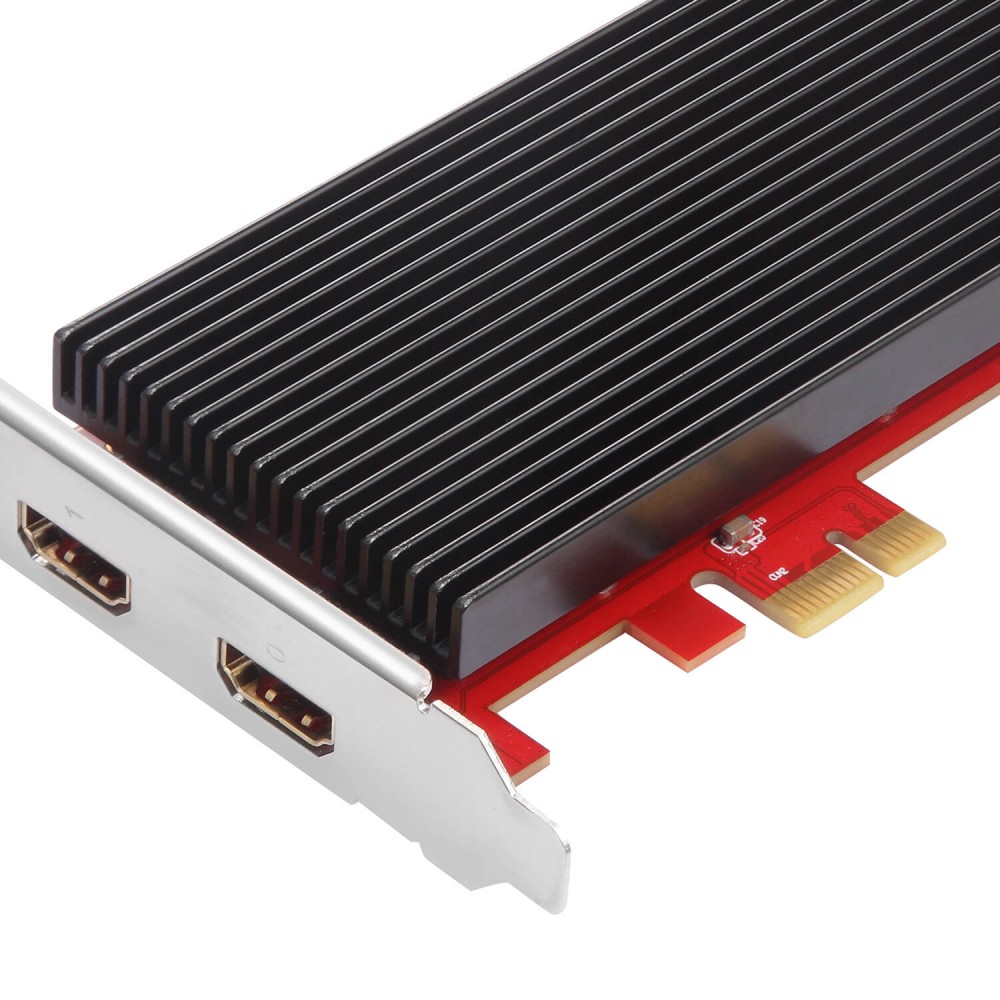

TBS6302X 4K Dual HDMI Capture Card
TBS6302X 4K Dual HDMI Capture Card
- Model: TBS6302X
- Weight: 350.00g
- Reward Points:399
In Stock
US$399.00
TBS6302X is a high and standard definition capture & 4K encoding card with dual HDMI 1.4 inputs, it being capable of max 3840 x 2160P@30fps input and H.265 & H.264 encoding. It is an ideal device for whom need to stream lower bit rate video over LAN or WAN networks – often due to internal network limitations, whilst maintaining high quality video.
After capturing UHD/HD video from HDMI ports, TBS6302X will generate H.264/H.265-encoded stream in TS packet and output via PCIe connection. TBS6302X can be used as a normal DVB Tuner PCIe card, so it will stream the video to network by many DVB streaming software, like "DVBLast", "TVheadend", "Astra Cesbo" in Linux. TBS6302X is equipped with 2 HDMI 1.4 inputs. The PCIe interface allows users to install TBS6302X into any full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers.
Applications:
- IPTV Servers
- Datacasting and monitoring
- Live TV Capture and streaming
- Broadcast TV
Main Features:
- Dual HDMI 1.4a input, HDCP 1.4 is supported
- Capable of max 3840 x 2160p@30fps input and 3840x2160p@30fps encode
- Supports H.265/HEVC and H.264/AVC Video hardware encoding, AAC-LC/AAC-HE Audio encoding
- With the support of DVB streaming software , support to stream the video in several different protocols simultaneously
- Support to be applied to various IPTV system in the industries of education, health care, conference, news interview, and so on
- Supports OSD overlay: insert logo, text
- DVB Architecture, compatible with DVB software
With TBS encoded setting tool, it can easily switch between channels and adjust configurations.
Linux Platform: command line control
Windows Platform: GUI setting tool
Specification:
Input | 2x HDMI 1.4a, HDCP 1.4 supported |
Video Input | 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz |
1280x720p_60/50hz, 720x576p/i, 720x480p/i, and etc. | |
Encode Size | 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576,720x576, 720x480, 704x576, 640x480, 640x360, auto |
Video output | 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etc |
Video Codec | H.264/H.265 |
Profile | H.264: Baseline, Main, High |
H.265: Main | |
Level | H264: Level 4.2; H265: Level 4.1 |
Bitrate Control | CBR/VBR/EVBR |
Frame rate | 5~60fps |
Key Interval (gop) | 5~180fps |
GOP Structure | IPPP |
Bitrate | 300~20000Kbps |
Color depth | 8 bit |
Chroma subsampling | 4:2:0 |
De-interlace | Supported. Force to do de-interlace when i (interlace) input |
Audio Input | HDMI embedded |
Audio Codec | AAC-LC, AAC-HE |
Audio Bitrate | 24000/32000/44100/48000/64000/96000/128000/160000/192000/256000bps |
Audio Resample | 48k, 44.1k, 32k |
Bitrate | 24000/32000/44100/48000/64000/96000/128000 |
160000/192000/256000bps | |
Slot | PCIe 1x |
Control | Linux command line, Windows GUI setting tool |
Driver | Windows Driver 64-bit, 32-bit OS; Linux driver |
Application | Compatible with DVB software: Windows platform: DVBream, DVBviewer, and etc. Linux platform: DVBlast, Tvheadend, Astra Cesbo and ect. |
Power Consumption | 6.6 Watt |
Net Weight | 170g |
Working Environment |
|
