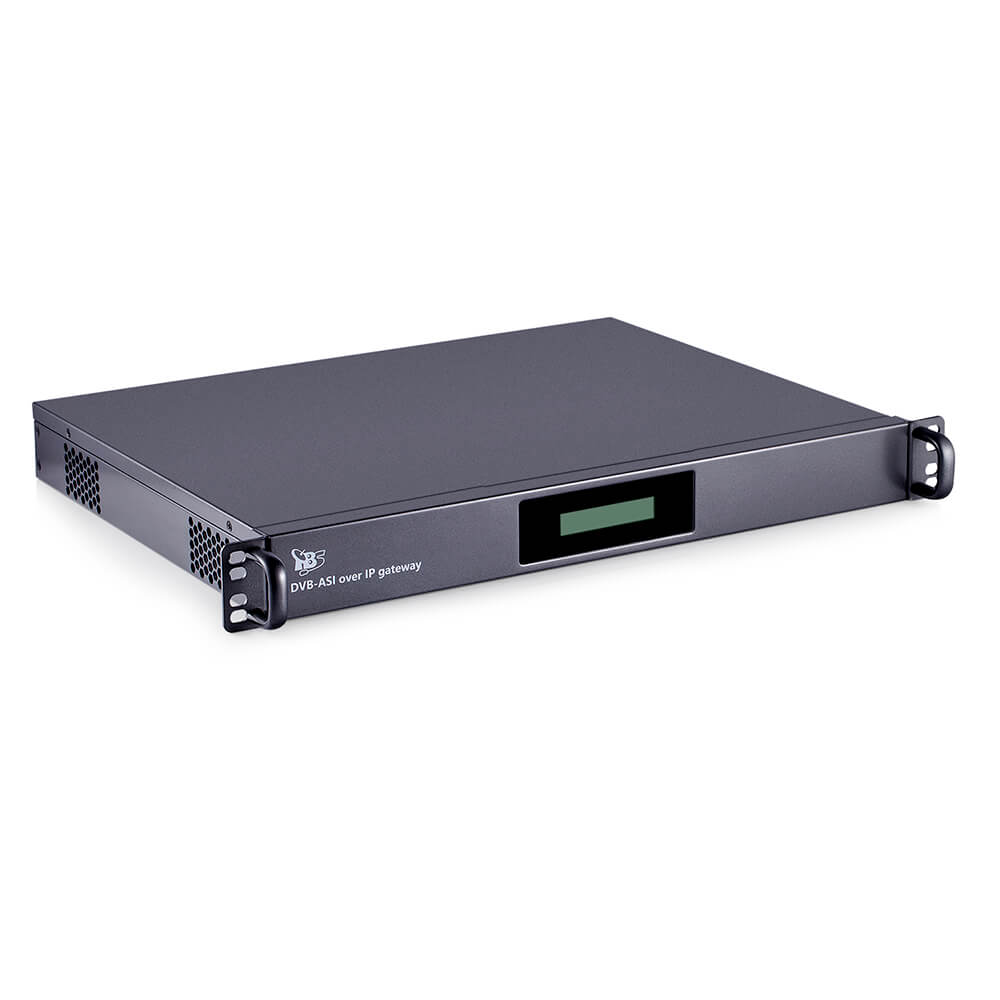

TBS8012 DVB-ASI to IP Gateway

  • Product Model: TBS8012
  • Weight: 12,000.00g

Out Of Stock

TBS8012 DVB-ASI to IP Gateway supports to grab MPTS or SPTS streams from 16 ASI inputs, and allows to select and multiplex desired input programs from each DVB-ASI stream, outputs MPTS or SPTS via IP multicast through two Gigabit Ethernet ports.

TBS8012 DVB-ASI to IP Gateway is designed to be standards-compliant for interoperability with a wide variety of DVB-ASI and Gigabit Ethernet devices. It is an ideal solution for integrating and bridging DVB-ASI interfaces to IP networks via Gigabit Ethernet.

TBS DVB-ASI to IP Gateway allows to strip NULL stream packets and select desired programs only when converting DVB-ASI sources to IP streams which will maximize IP efficiency.


Features:

  • Standards-compliant to DVB-ASI, MPEG2-TS, IP multicast
  • Supports MPTS or SPTS input/output
  • 16 DVB-ASI inputs
  • 2 Gigabit Ethernet Ports for streams output or management
  • NULL packet stripping on input
  • Desired channels selected for output.
  • VBR to CBR conversion
  • 140Mbps DVB-ASI data rate on each port
  • Web-based GUI for configuration and monitor
  • Client-based SNMP for remotely managing
  • 1U Rack space, minimizes rack space requirements

Application:

  • IPTV Servers
  • ASI to IP conversion
  • Datacasting and monitoring
  • Electronic Program Guides (EPG's)
  • Broadcast TV

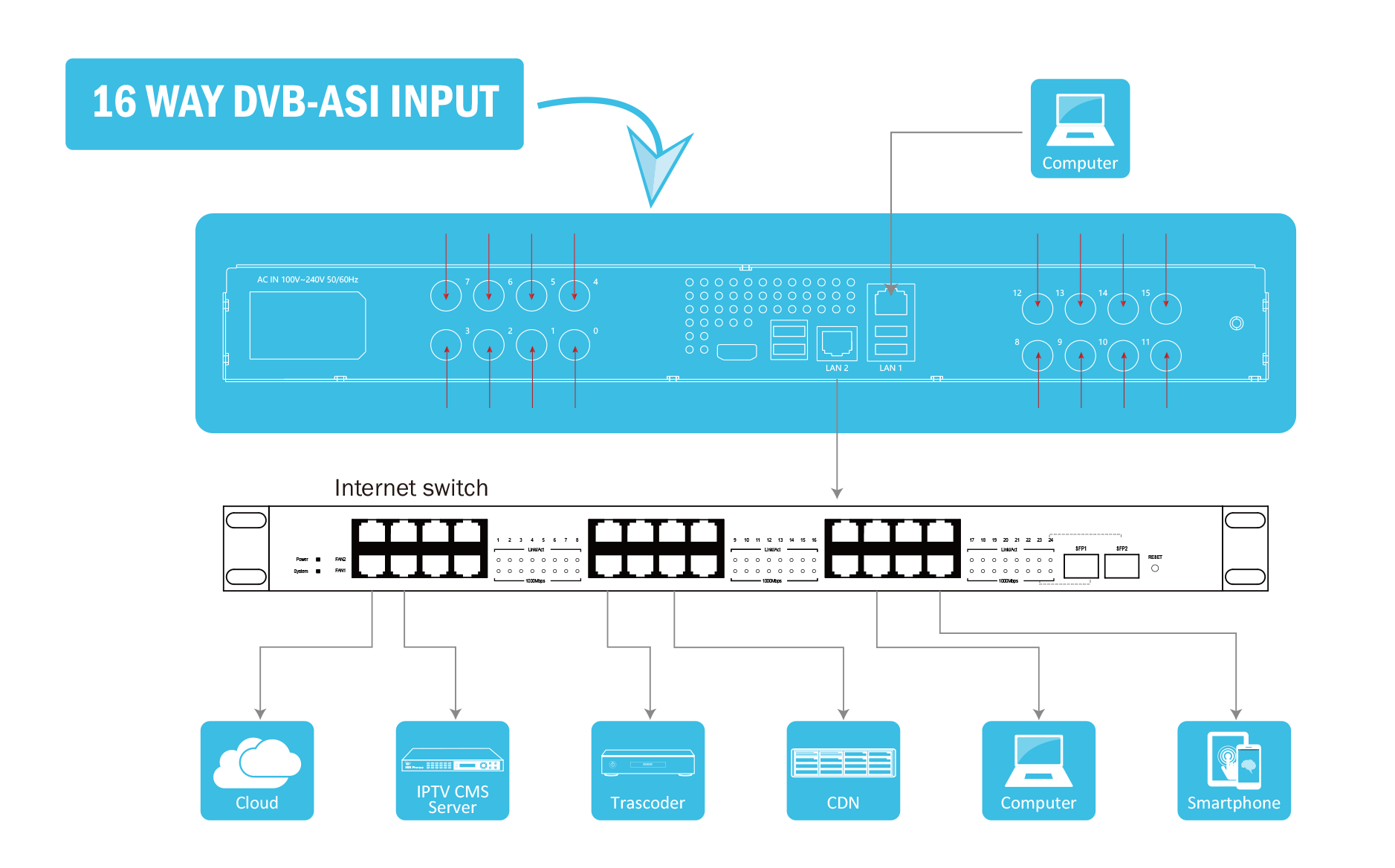

How it works ?

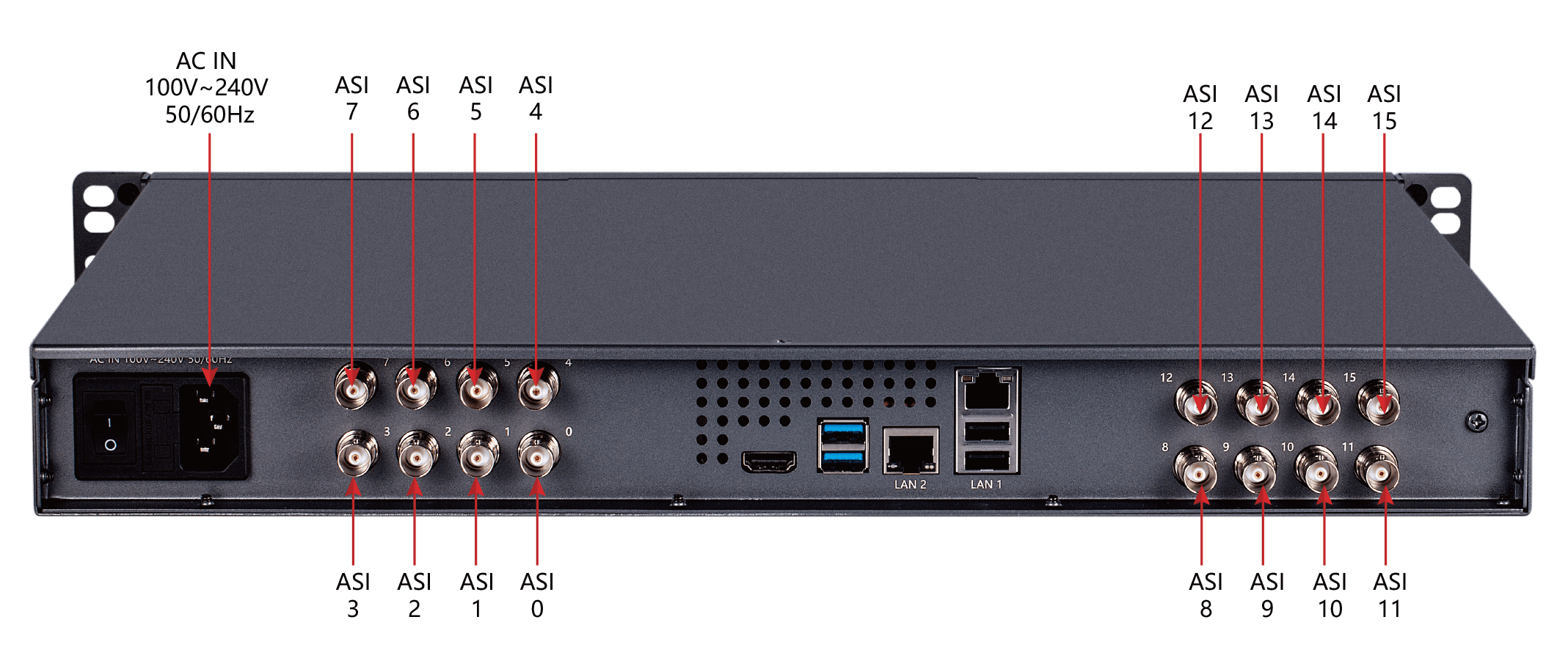

Specification:

Size 1U
Interface
Input 16 ASI, 75 ohm BNC
Output 2 x Gigabit Ethernet RJ-45
Bite Rate/Protocol:
Input Max of each channel is 140Mbps
Max total bit-rate is 1.6Gbps
Output UDP/RTP
Unicast and Multicast
Management:
GUI Chrome or Firefox browser
Protocols SNMP
Others
Dimensions 43.5 x 32 x 4.7cm
Weight 12KG
input Voltage AC 100-240V, 50/60Hz
