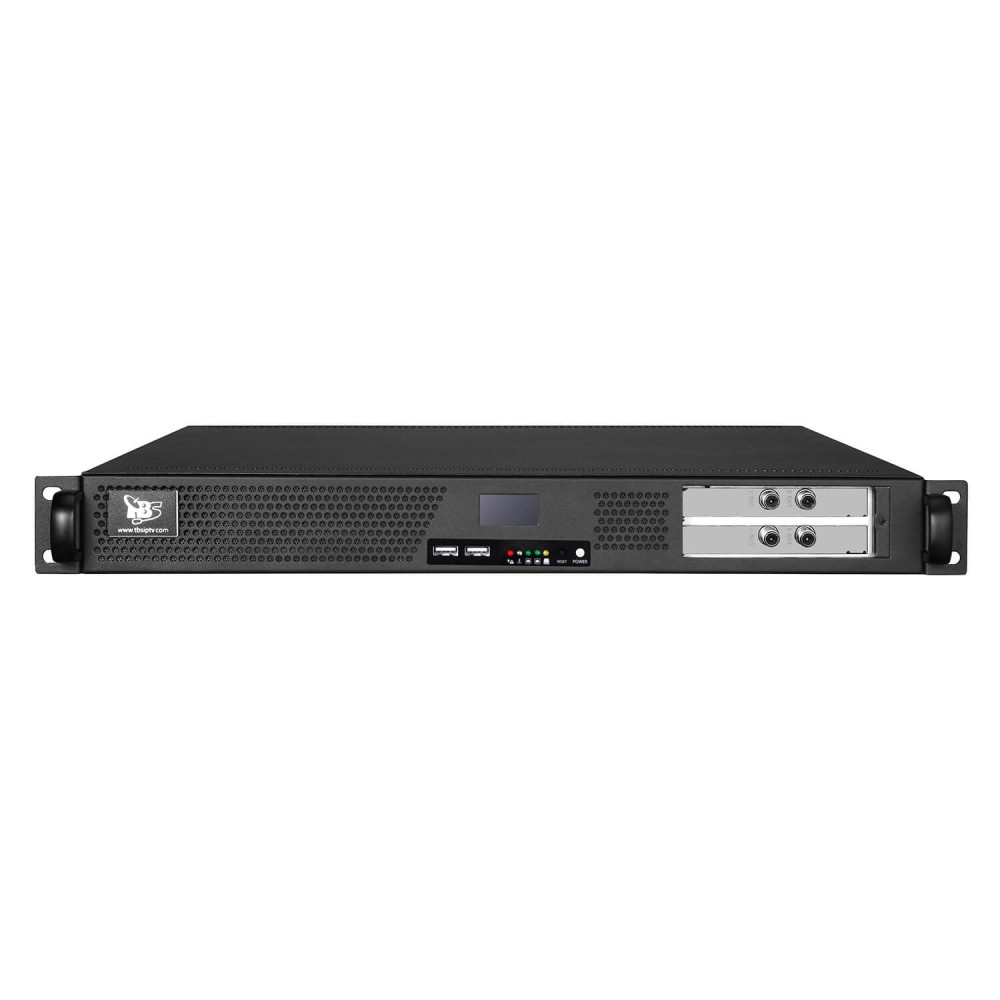

TBS8510-6205-6004 DVB-T2 H.265 AC3 to DVB-C H.264 AAC modulator


TBS8510-6205-6004 DVB-T2 H.265 AC3 to DVB-C H.264 AAC modulator

  • Model: TBS8510-6205-6004
  • Weight: 22,000.00g

Pre-Order

The DVB-T2 H.265 AC3 to DVB-C H.264 AAC modulator is combined by a TBS8510 Video transcoder, a TBS6205 DVB-T2 Quad Tuner PCIe Card and a TBS6004 DVB-C Quad Mods modulator PCIe card. It supports to generate around 22 HD DVB-C channels.

Why we need to use this modulator?

Nowadays, more DVB-T2 signal is adopted, especially in EU countries. These kind of DVB-T2 channels are mostly in H.265/HEVC video format and in AC3 audio format.

However, there are still many villages are still with old DVB-T/C system, and not every family has TV sets supporting HEVC and AC3.

In the case, TBS DVB-T2 H.265 AC3 to DVB-C H.264 AAC modulator will help to solve the problem.

Key Features

  • Change DVB-T2 H.265 AC3 channels to DVB-C H.264 AAC channels.
  • DVB-T2 input: RF input in 4 frequencies. (Bandwidth: 6, 7, 8 MHz)
  • DVB-C output: RF output in 4 frequencies. (100 ~ 1000 MHz)
  • Transcoding capacity: Around 22 channels.

Specifications

Input
Input Signal DVB-T2/T
Receiving channel VHF band and UHF band
DVB-T2/ T modulation type QPSK, 16QAM, 64QAM, 256QAM
FFT mode 1K, 2K, 4K, 8K, 16K, 32K
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
Guard internal 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
Multiplexing
Input Channels DVB-T2 RF input in 4 frequencies
Output Channels DVB-C RF output with around 180Mhz
Function PID remapping automatically
Accurate PCR adjustment
Automatic PSI/SI table generation
Transcoding
Video Codecs HEVC / H.265 to AVC/ H.264
Audio codecs AC3 to AAC
Resolution 1920x1080P, 1920x1080i, 1280x720P, 1024x576, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576
Rate Control CBR VBR
Modulation
Modulation Standard EN300 429/ITU-T J.83 Annex A and B (DVB-C) in 4 frequencies
Symbol Rate 5.0Msps ~ 7.0Msps, 1ksps step
FEC RS (204, 188)
Constellation 16/32/64/128/256QAM
Bandwidth 6M/8M
RF Output
Interface F-type connector
RF output frequency 50~960MHz, 1KHz step
RF output level -20 ~ +10dbm (87 ~ 117 dbµV), 0.1db step
MER ≥40db
