DVB-S2/S 4Fr input and DVB-T 8Fr output for up to 216M/26 free or Encrypted HD channels


DVB-S2/S 4Fr input and DVB-T 8Fr output for up to 216M/26 free or Encrypted HD channels

  • Model: 4Fr encrypted S2 to 8Fr T modulator
  • Weight: 15,000.00g

In Stock

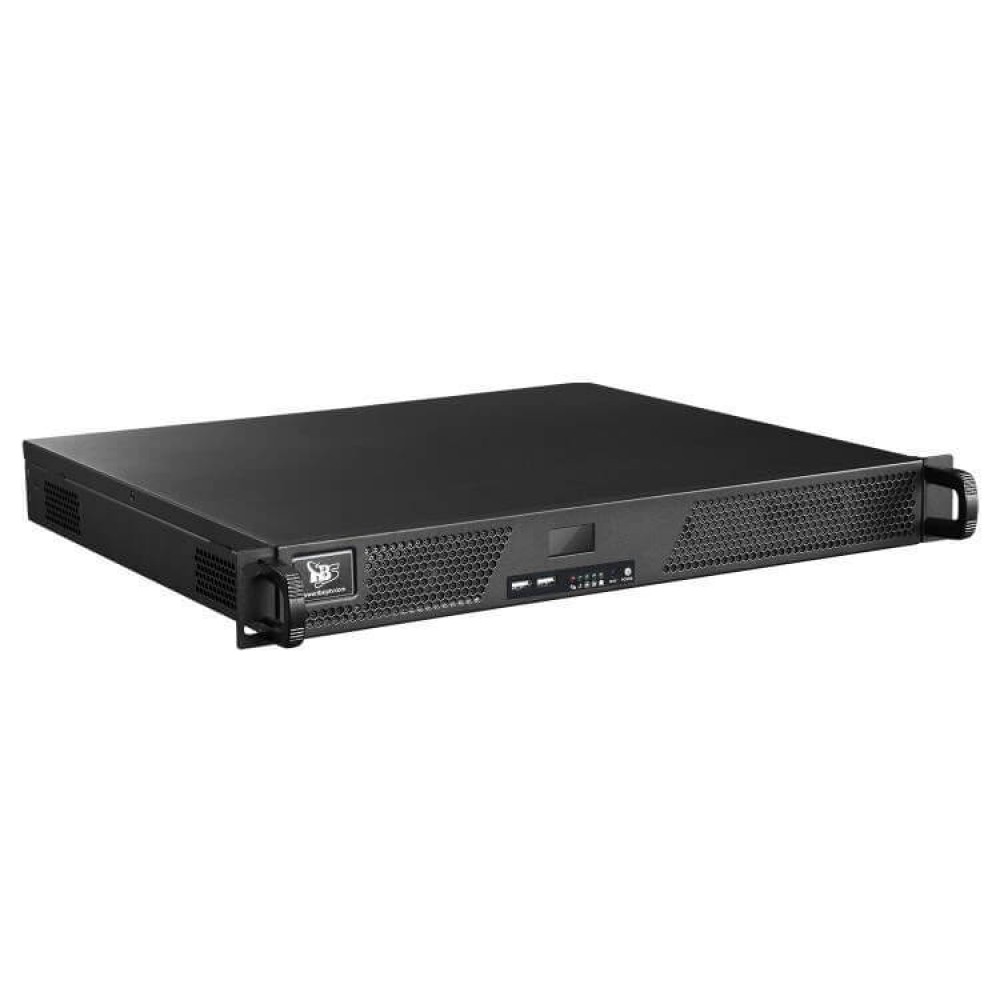

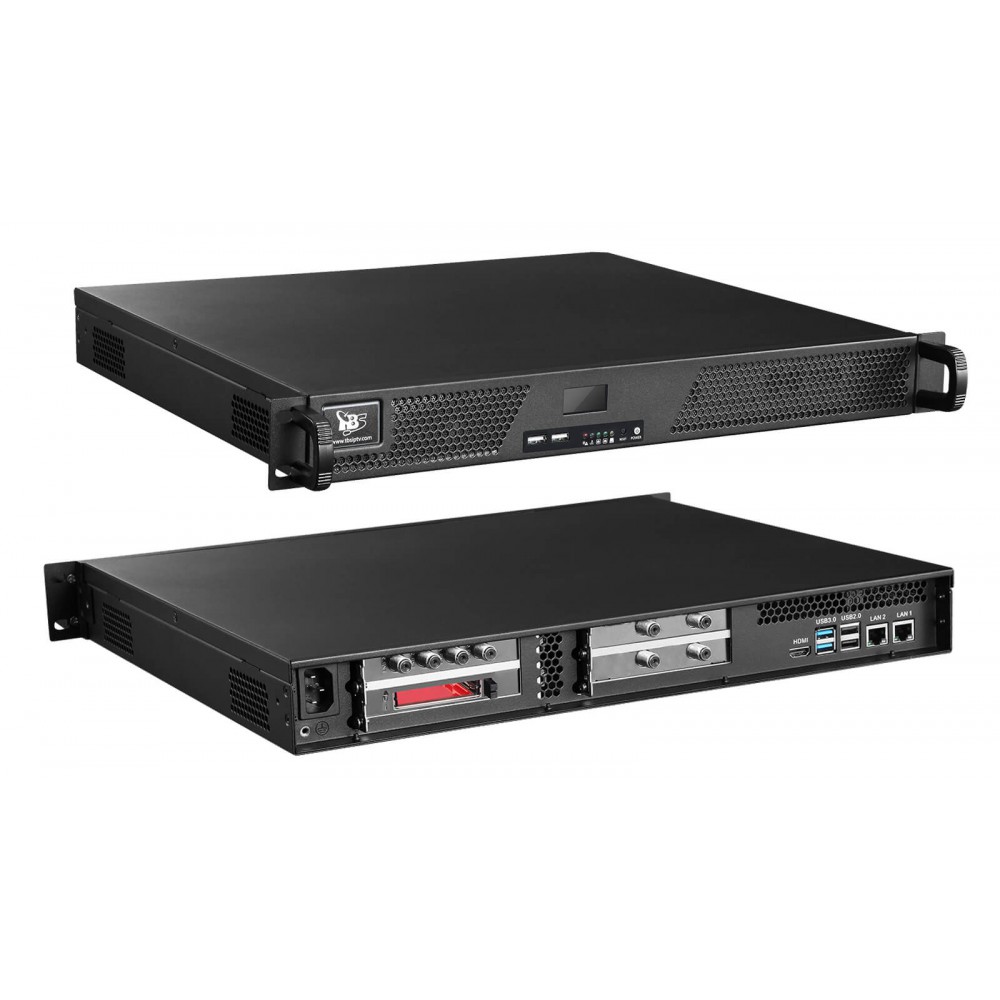

TBS DVB-S/S2 to DVB-T Modulator is a brilliant combination of TBS2955 streaming server with 1pcs TBS6904se DVB-S/S2/S2X Quad Tuner PCIe card, 1pcs TBS6900 Dual CI network PCIe Card and 2pcs TBS6104 DVB-T modulator PCIe card. It supports to receive and handle encrypted satellite channels from 4 transponders simultaneously and convert to DVB-T signal outputting through standard RF-port in 8 frequencies.

Key Features

  • 4 DVB-S/S2/S2X RF input to capture free or encrypted satellite channels in 4 transponders simultaneously
  • L-Band: 950 MHz to 2150 MHz
  • DVB FEC: (Auto Spectral Detection)
  • Modulation: QPSK, 8PSK, 16APSK, 32APSK
  • 2 CI slots for CAM modules
  • Outputs: DVB-T in 8 frequencies
  • DVB-T output frequencies range: 50 ~ 950 MHz
  • Output Channel bandwidth: 6,7,8 MHz
  • Software embedded supporting channels REMUX.
  • Supports to output around 216M DVB-T channels through 8 RF-port (Around 26 HD CHs)

Specifications

DVB-S/S2/S2X input
Signal system: DVB-S, DVB-S2, DVB-S2X
Transponders: 4 transponders
DVB-S/S2 Modulation:
  • QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
  • 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X Modulation:
  • QPSK: 1/4, 1/3, 2/5 (S2-MODCODs), 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs), 11/45, 4/15, 14/45, 7/15 8/15, 32/45
  • 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 32/45
  • 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs), 7/15, 8/15, 26/45, 3/5, 32/45
  • 32APSK(32APSK-L): 3/4, 4/5, 5/6, 8/9, 9/10, (S2-MODCODs)32/45, 11/15, 7/9, (2/3)
  • L-Band: 950 MHz to 2150 MHz
    Symbol rate 1 ~ 45Msymb/s
    CI slot 2 x CI slots
    DVB-T output
    RF output DVB-T in 8 frequencies
    Frequency range 50 ~ 950 MHz
    Channel bandwidth 6,7,8 MHz
    Level 5-120
    FFT 2K, 8K
    Code rate 1/2, 2/3, 3/4, 5/6, 7/8
    Guard interval: 1/4, 1/8, 1/16, 1/32
    Max bit rate 27Mbps/per channel
    General spec
    OS Centos
    Pre-installed software Kylone streaming platform
    Dimension 439mm * 380mm * 52mm

    Kylone streaming platform

    DVB-S/S2/S2X Input setting:

    DVB-T Output setting:
