TBS IPTV Solution

—All you need to operate hi-end entertainment system

Hotel
Hospital
Coffee house
Vehicle-carrier

Full support in hardware & software:

Total hardware included
Software installation

TBS hotel IPTV solution customized integration of IPTV solution and property Management system (PMS), brings top level entertainment and guest services for your hotel business. TBS IPTV Solutions distribute DVB-S2/S, DVB-T2/T, DVB-C live TV channels and VOD programs to every hotel room all the way through other value added service, like Advertisement System, Food and Booking Service System. Normal Ethernet Solution, Fiber-optical Solution and Coaxial Cable Solution will be built up to accommodating to different hotels' existing network system. TBS will build up the whole system from head-end equipment to STB terminals.

  • Customizable integration of Hotel IPTV solutionand Hotel property Management system.
  • Streaming of DVB-S2/S, DVB-T2/T, DVB-C live TV channels and VOD programs to every hotel room.
  • Streaming content beyond the wired LAN lets hotelguests are able to enjoy entertainment channels on their portable device.
  • End-to-end solution including hardware and software, servers and terminal devices, products and services
  • Easy to deploy, manage and support with minimal Integration Cost.

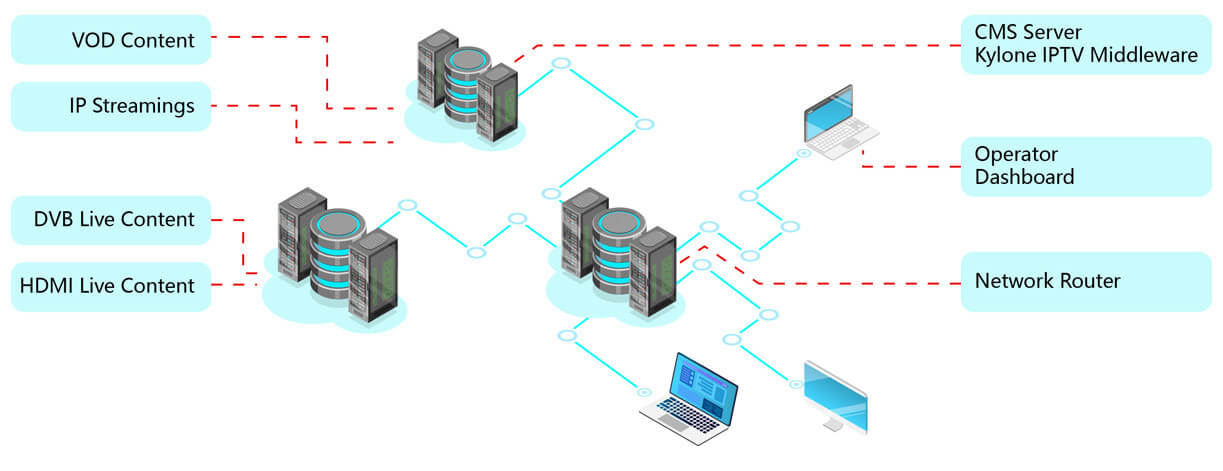

Head-end Streaming System
Antenna、Live TV receiving tuner card、Encoder、IP streaming server, etc, for receiving and streaming IPTV signals.
High Speed IP Network
Can use the original local area network, optical network or cable TV coaxial network without additional deployment.
IPTV Management System
Live TV Channels, VOD programs Management Server, Content Management server, Clients Management server and Property Management server.
User interfaces & APPs
With customized UI interface, user can be able to enjoy convenient media video service, the surrounding information functions via IP STB or Smart TV/Smartphone.

Normal Ethernet Solution

Built up with Hotel's existing Ethernet network or EPON/GPON network, from head-end video source server, IPTV server to the End-user IP player, from the system hardware, system software, to the terminal player's UI, TBS provides complete IPTV system hardware and software building.

Coaxial Cable Solution

Built up with Hotel's existing coaxial cable TV structure, IPTV signal will be modulated to coaxial cable signal and transmitting to every hotel room. This solution will effectively use the existing coaxial cable structure, saving the cost of IPTV construction.

Economic IPTV solution

Economic, concise system integration, suitable for coffee shop , restaurant or vehicle carrier, especially small system integrators. It is built up with TBS industrial media server, network switch/wifi switch ect.

Kylone Professional IPTV Panel

----- A reliable IPTV Panel for re-distributing IPTV channels, video and movie content

Top features:
  • HD/SD quality from Live TV and VOD source
  • Advertisement System for additional income
  • Food and beverage order menu
  • Bookings Management System
  • Consumption View Dashboard
  • Weather Broadcast
Guest Internet Services Management
With customizable integration of Hotel IPTV solution and Hotel property Management system (PMS), could covers all needs of all kinds of your guests. Both cable and wireless internet distribution in-room and on-premises supported , and support with multiplelanguage
High-Definition Live TV, latest entertainment options
Easy to set-up turnkey head-end and room premises equipment for live TV integrated with all premises related services and entertainment options. TBS IPTV system use Kylone IPTV Panel, it supports input streaming protocols of HTTP, RTMP, RTSP, RTP, UDP, and MMS. It supports MPEG-TS output over HTTP, Multicast, forwarding the original input stream, or stream in HLS (HTTP Live Streaming).
VOD - Video on Demand
Kylone fully supports VOD with FAST FORWARD feature, where you can upload your movies and other video materials to the streamers or other remote video location. All provides you awesome live TV and multimedia experience. Multiple display modes support.
Customized hotel value added service
Hotel can easily add or remove its products and services – from wakeup calls, weather broadcast, through massages, Restaurant or tours reservations to taxi orders. Everything is managed by content management systems and the result appears without any intermediary work on guests TV sets
Load balancing for adding external servers
Supports Load balancing to add external servers for streaming unlimited channels, serve unlimited users.
Customizable user interface
Support to be branded the hotel's logo and colors – all the way to the menus, service and interactive messages
Hardware, Bandwidth and transponders Monitor
CPU usage, real network traffic and transponders' condition are monitored on dashboard for every streamer in system
Smart phone & Pad APP
Kylone releases app for Android and IOS, customer could access on any device.

System device & Function:

Device Name Item Number Spec and Function
IPTV Server MOI-V 1. 1U server with up to 64 DVB TV tuners
2. Centos System with Tvheadend, VDR, MuMuDVB, DVBlast.
3. Streaming DVB-S2/S, DVB-T2/T, DVB-C or ISDB-T TS via HTTP, UDP/RTP, RTMP
4. Live TV management: Configue and manage digital liveTV channels, sort channels, monitor streaming conditions.
5. VOD channels management: Manage programs, documents. Supports videos in format of AVI, MKV, TS, RM, RMVB, MOV and so on. Support Audios in format of MP3, WMA, APE, FLAC, WAV and so on.
6. Terminal device management: Design and configure UI for terminal media player, manage and update terminal media system.
7. Hotel information management: Support to importe hotel introduction, hotel advertisement, world clock, weather, flight, government information, etc.
8. Supports multi-language.
MINI IPTV Server TBS2956
IPTV Streaming server TBS2951 MOI PRO AMD 1. 1U server with up to 32 DVB TV tuners
2. Centos System with Tvheadend, VDR, MuMuDVB, DVBlast.
3. Streaming DVB-S2/S, DVB-T2/T, DVB-C or ISDB-T TS via HTTP, UDP/RTP, RTMP
DVB-S2/T2/C TV tuner card TBS6909
TBS6910
TBS6205
1. Receive and recorde satellite TV channels from multiple transponders.
2. Receive and recorde terrestrial TV channels from multiple frequencies.
HDMI Encoder TBS2630 1. 16 channels HDMI/SDI input, IP output.
2. Supports MPEG-4 AVC/H.265/H.264 High Profile code format input.
3. Supports Dual stream H.264 / H.265 format, audio ACC format output.
4. Compatible with HTTP, UDP, RTSP, RTMP, ONVIF protocols
Media Player 1. ARM Quad Core Android player for IPTV.
2. Supports 4K, VC-1, H.264, H.265, MPEG-2.
3. Supports standard RJ45 WLAN network connection and wireless network connection.
4. Support WIFI sharing.

Contact us to discuss more!
Please click here to use the contact us form, thank you.
