TBS6528 Multi Standard Tv Tuner CI PCI-e Card


TBS6528 Multi Standard Tv Tuner CI PCI-e Card

  • Product Model:TBS6528
  • Weight:191.00g
  • Reward Points:120

Out Of Stock

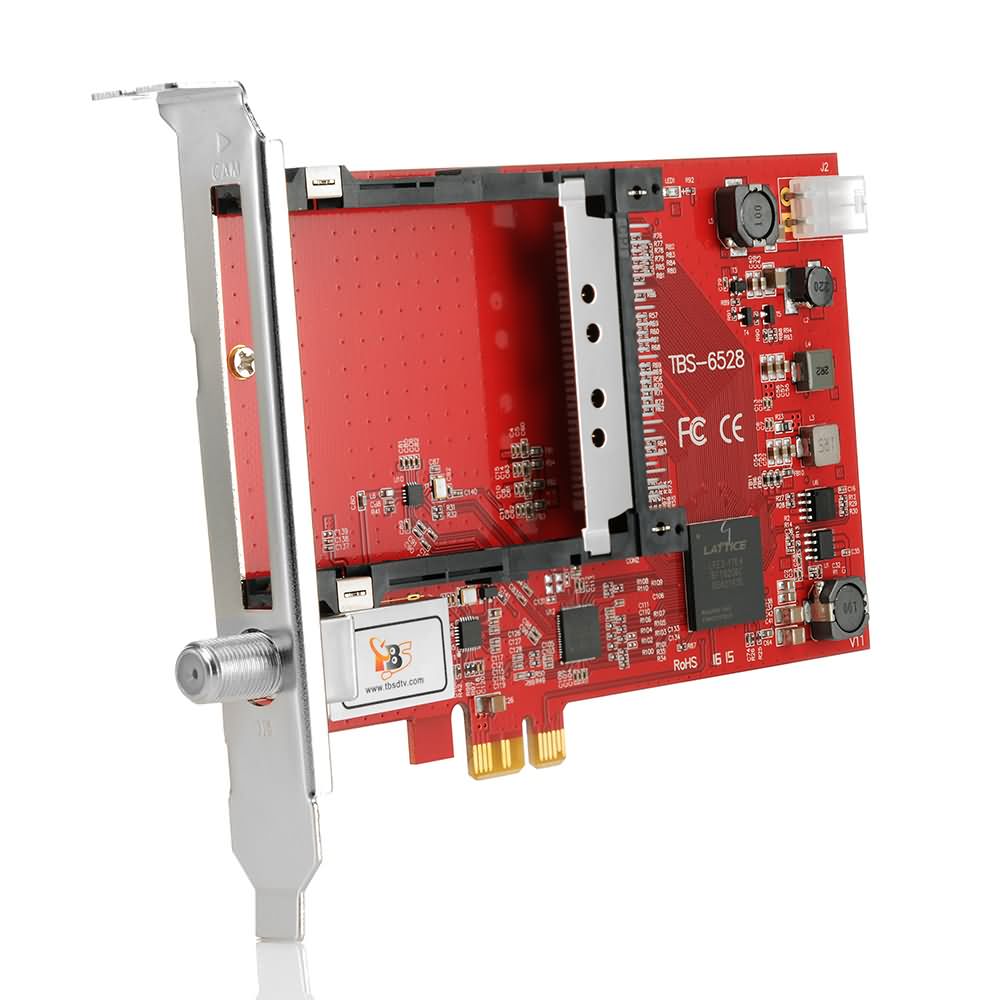

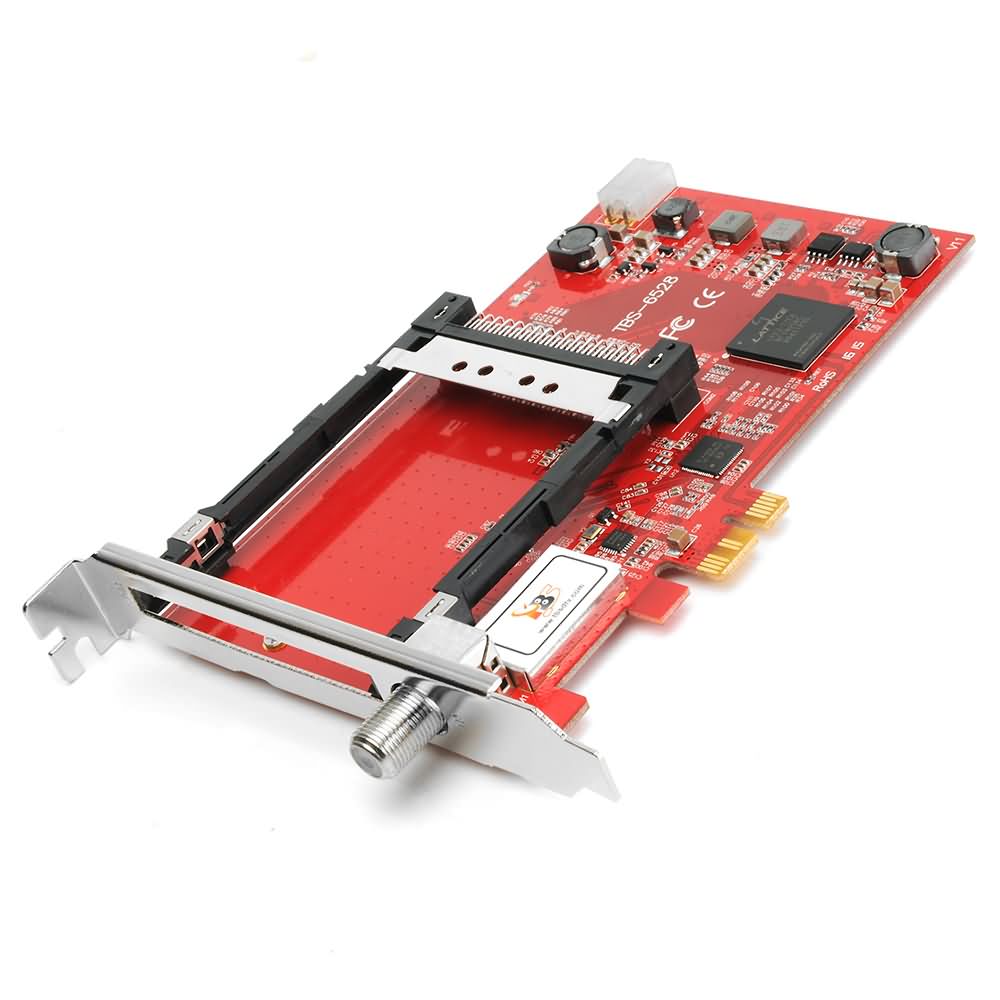

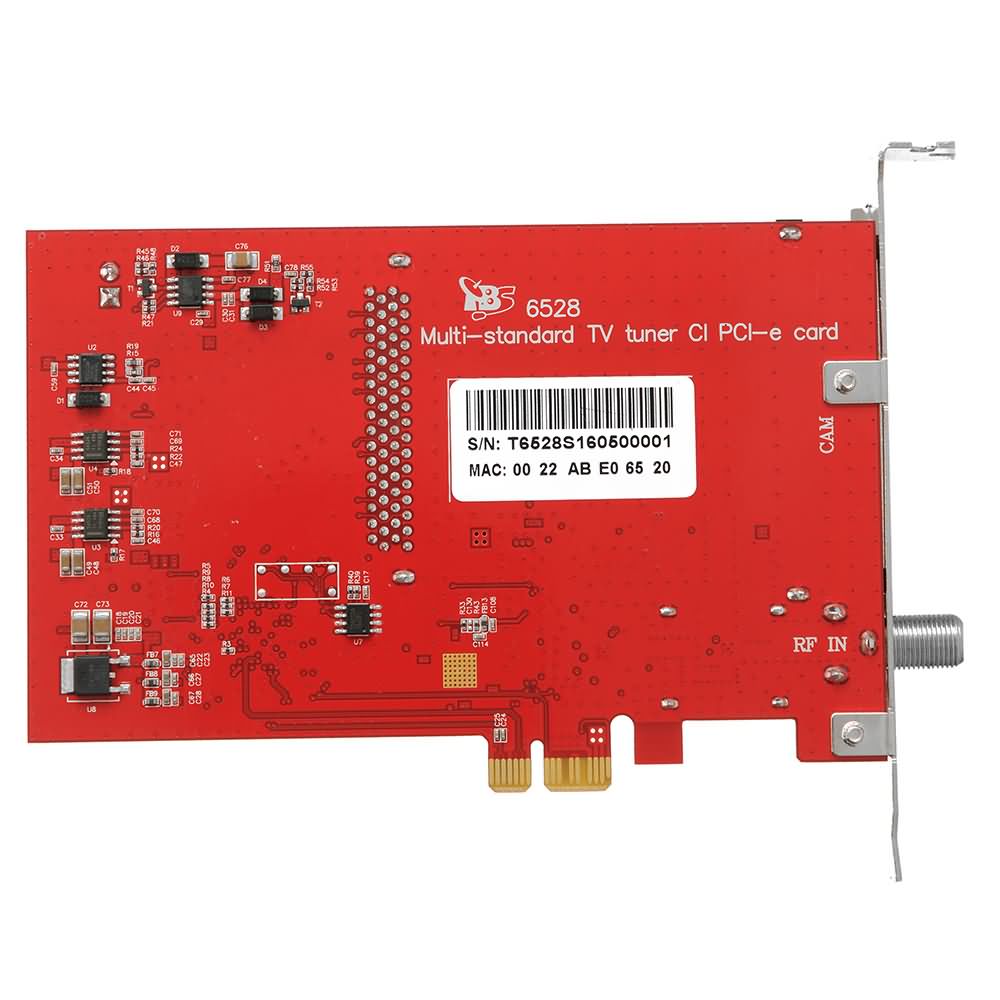

TBS6528 is a PCI Express TV tuner card that supports multiple digital TV standards, including DVB-S2/S, DVB-T2/T,DVB-C2/C, DVB-S2X and ISDB-T. It is built with Common Interface which allows insertion of CAM and smartcard for pay TV, so it is a good choice for watching/recording digital cable HD TV on PC. What's more, with this multi-standard TV tuner card, a switchover between different digital TV signals is much easier, you just need to plug another signal cable instead of taking out the card from your server.

Main Features:
Support DVB-S/S2/S2X 、 DVB-T/T2/C(ITU-T J.83 Annex A/B/C)/C2 、 ISDB-T
Watch & record TV/ radio programs on PC
Common Interface (Single CI) Support
SD or HD TV receiving

Data receiving
IPTV streaming
Media monitoring
Digital content distribution



COFDM demodulator and FEC decoding
Support 3 layers decoding
TMCC decoding
Support differential demodulation
AC1 and AC2 decoding
DVB-T2 and T2-Lite

Receiving channel:  VHF band, UHF band
Bandwidth:  1.7, 5, 6, 7, 8MHz
FFT mode:  1K, 2K, 4K, 8K, 16K, 32K
Code rate:  1/2, 2/3, 3/4, 5/6, 7/8
DVB-C2 COFDM demodulator(16_QAM to 4096_QAM)
FEC(LDPC/BCH) decoder
Bandwidth: 6MHz, 7MHz, 8MHz
DVB-C and ITU-T J.83 Annex B QAM demodulator
FEC decoder
1 to 7.2MSymbol/s

symbol rates: 1-45Msps
                     QPSK:   1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
                      8PSK:   3/5, 2/3, 3/4, 5/6, 8/9, 9/10
                  16APSK:   2/3, 3/4, 4/5, 5/6, 8/9, 9/10
                  32APSK:   3/4, 4/5, 5/6, 8/9, 9/10

                     QPSK:   13/45, 9/20, 11/20
           2_4_2_APSK:   100/180, 104/180
                      8PSK:   23/36, 25/36, 13/18
               8_8_APSK:   90/180, 96/180, 100/180, 18/30, 20/30
                  16APSK:   26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 140/180, 154/180
    4_12_16rb_APSK:   2/3
      4_8_4_16_APSK:   128/180, 132/180, 140/180
Power consumption
Input/ Power: 12V/6~15W
temperature 0°~ 60°

Other information:

System Requirements Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (DVB-S2/S/S2X /DVB-T2/T/DVB-C2/C/ISDB-T)
TV tuner card size 140mm*93mm
Net weight 93Gram

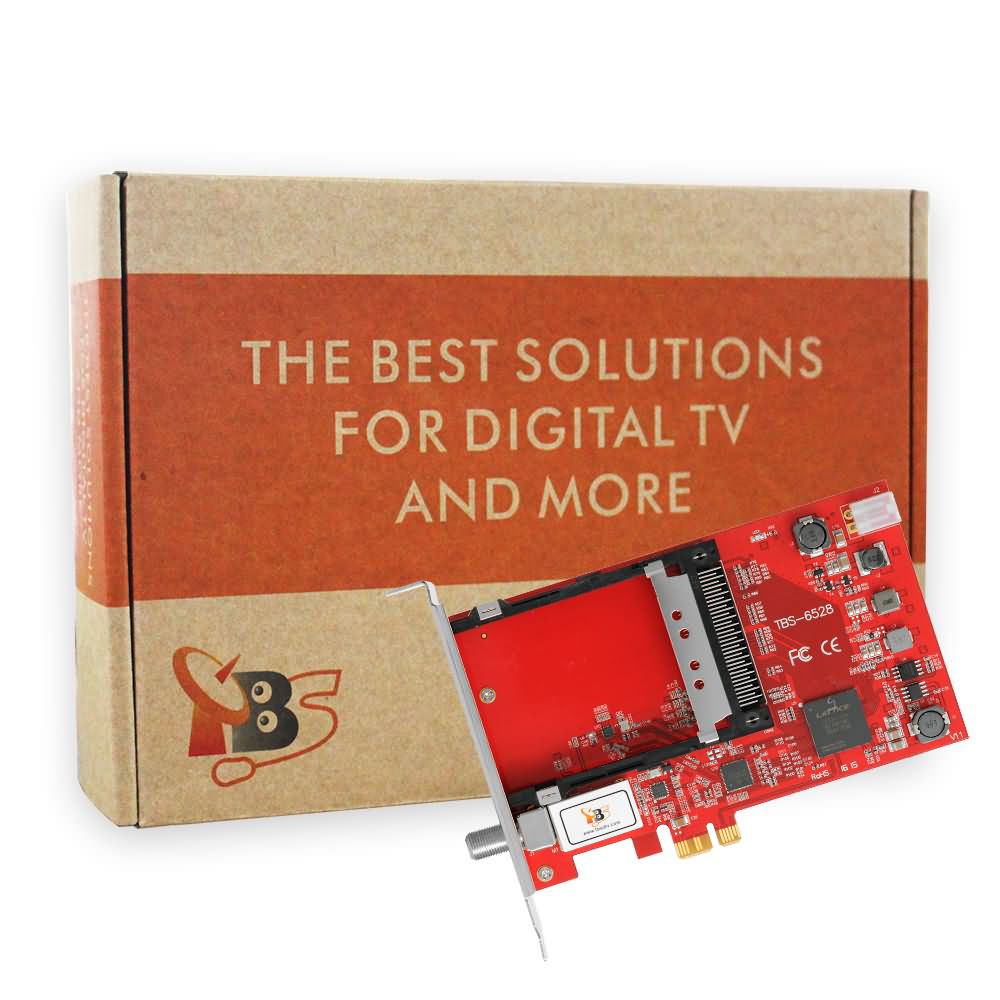

Gift Box Size 200*130*30mm
Weight 191Gram
Package Contents 1 x TBS6528
1 x power cable
1x IEC Connector
