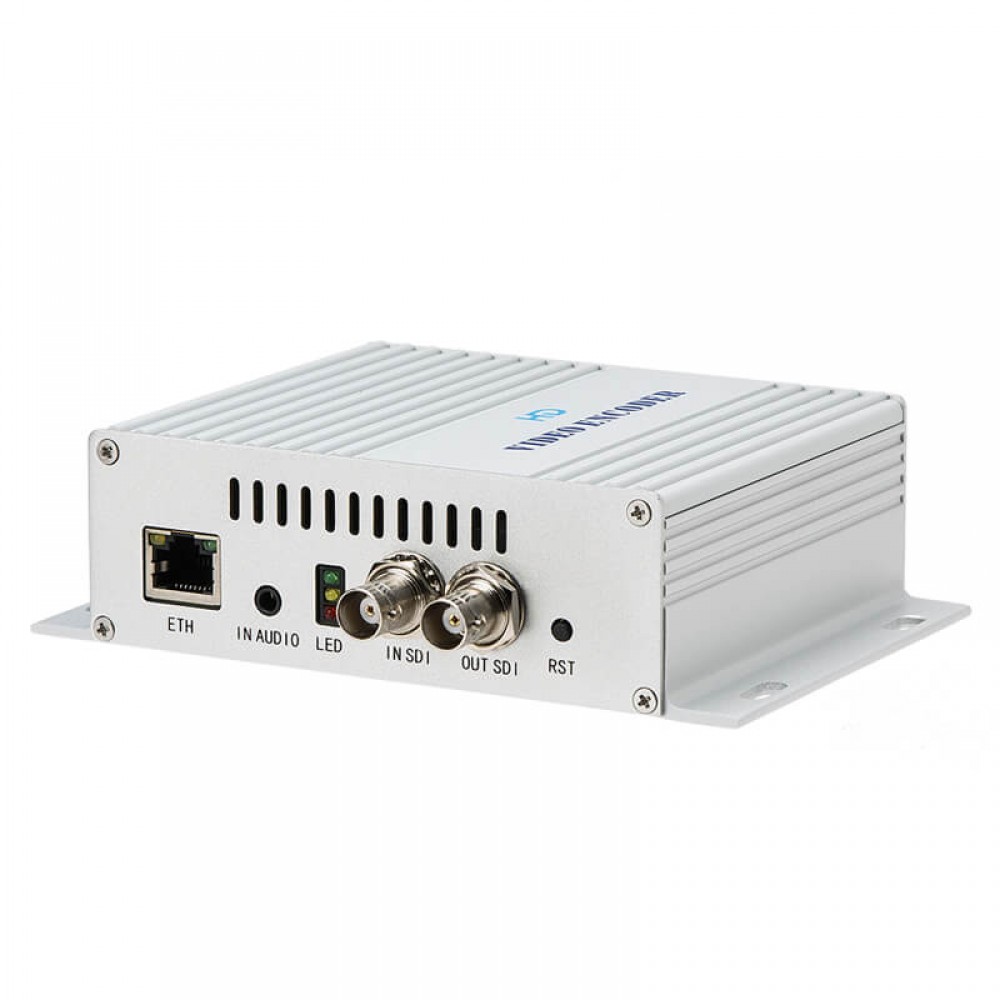

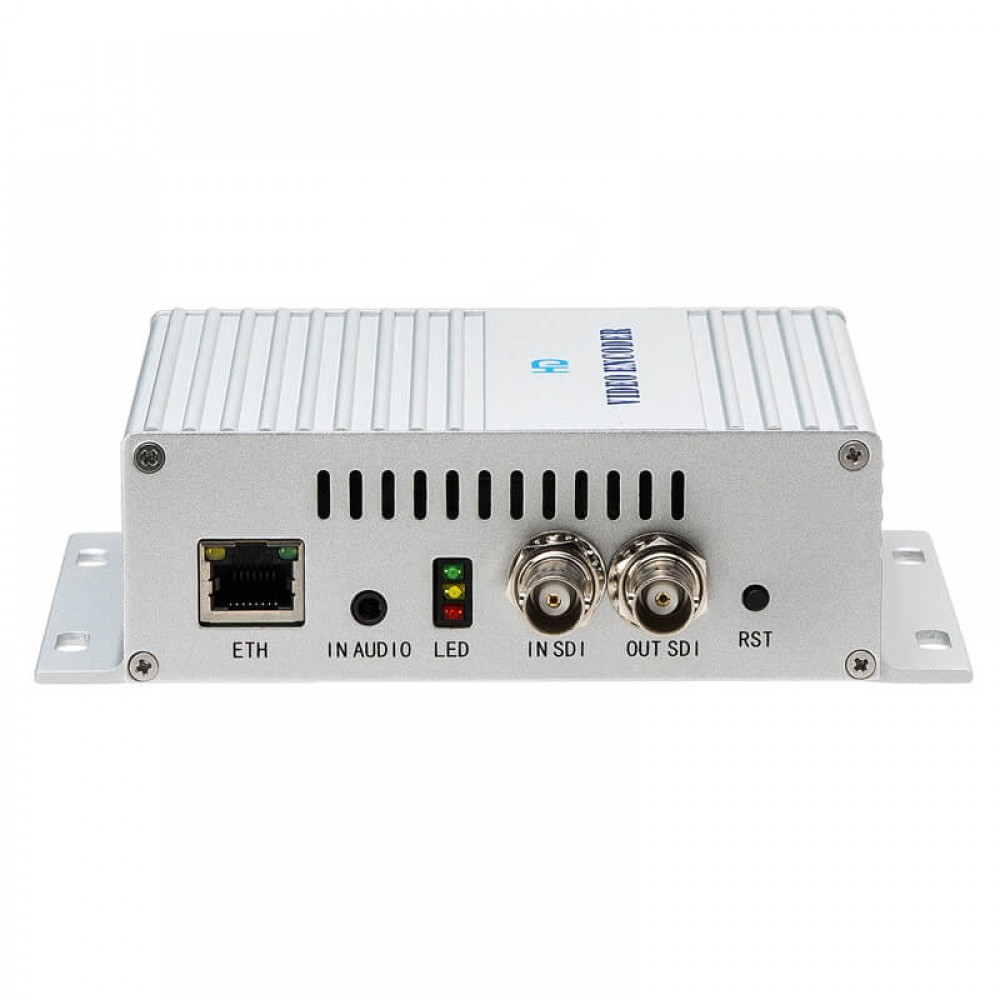

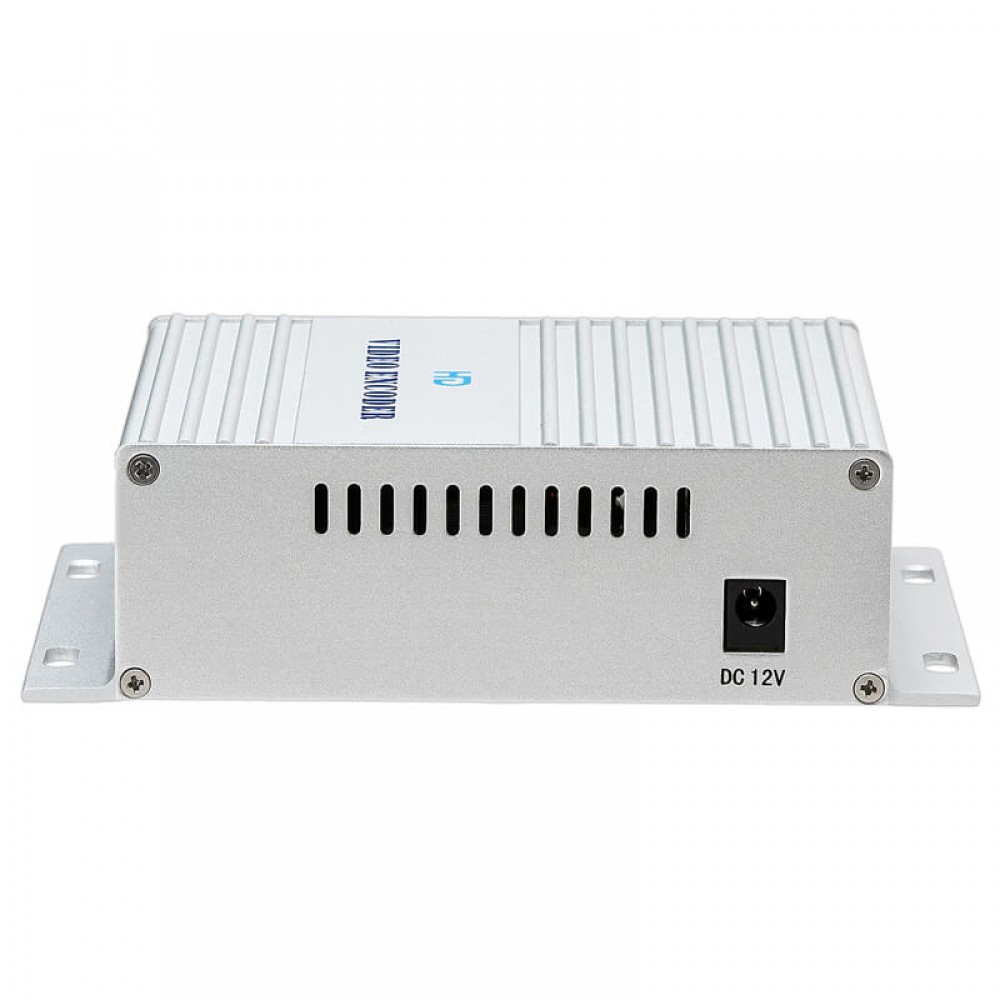

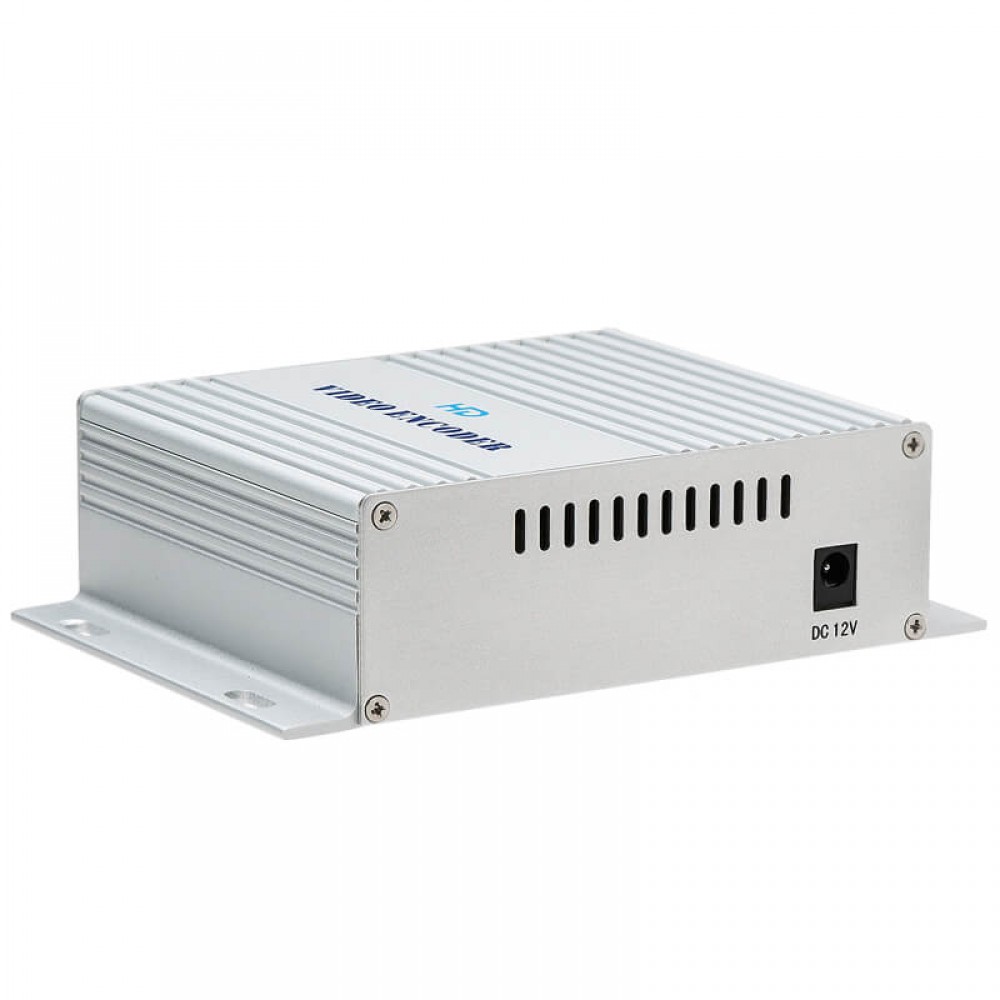

TBS2600V2 HD-SDI Video Encoder


TBS2600V2 HD-SDI Video Encoder

  • Model: TBS2600V2
  • Weight: 650.00g

In Stock

US$249.00

TBS2600V2 HD-SDI Video Encoder is a professional high-definition video encoder , which equipped with 1 SDI channel input and dual stream RJ45 output, what’s more, it has direct SDI output which can output original data. TBS2600 supports H.265/H.264 High Profile code format encode and dual stream H.264 format, audio ACC format output.

Applications

  • IPTV
  • Digital Signage
  • Video Conference
  • Replace HD Video Capture Card
  • Hotel TV system
  • Live Broadcast
  • Teaching/Campus Broadcast
  • Recording System
  • NVR (Net Video Recorder)

Specifications

Model TBS2600V2
Input 1Channel SDI input, 1 Channel line in audio
Output 1 channel IP signal output
Video Input resolution Up to 1920x1080p 60FPS, standard HDMI resolution
Coding standard H.265 / H.264
Coding level H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE
Encoded size 640*360~1920*1080
Video bit rate CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 5- 60 fps
OSD Text, Image
Audio Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/G.711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100、48000 etc
IP Output 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream (H.265/264 TS stream)
System Protocols HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast
Configuration management User interface, remote upgrade, Android APP, multi-one management platform
Power supply 12V~2A
power consumption 5W
Size 100mm x 118mm x 40mm
Operating temperature -20℃+ 60℃
Working humidity <90%, Non-condensing
Weight 0.3KG
Our company reserves the right to adjust the product parameters, if you have any questions, please contact us to check
