TBS2602 NDI®|HX2 supported HD-SDI Video Encoder


TBS2602 NDI®|HX2 supported HD-SDI Video Encoder

  • Model: TBS2602
  • Weight: 650.00g
  • Reward Points:229

In Stock

US$229.00

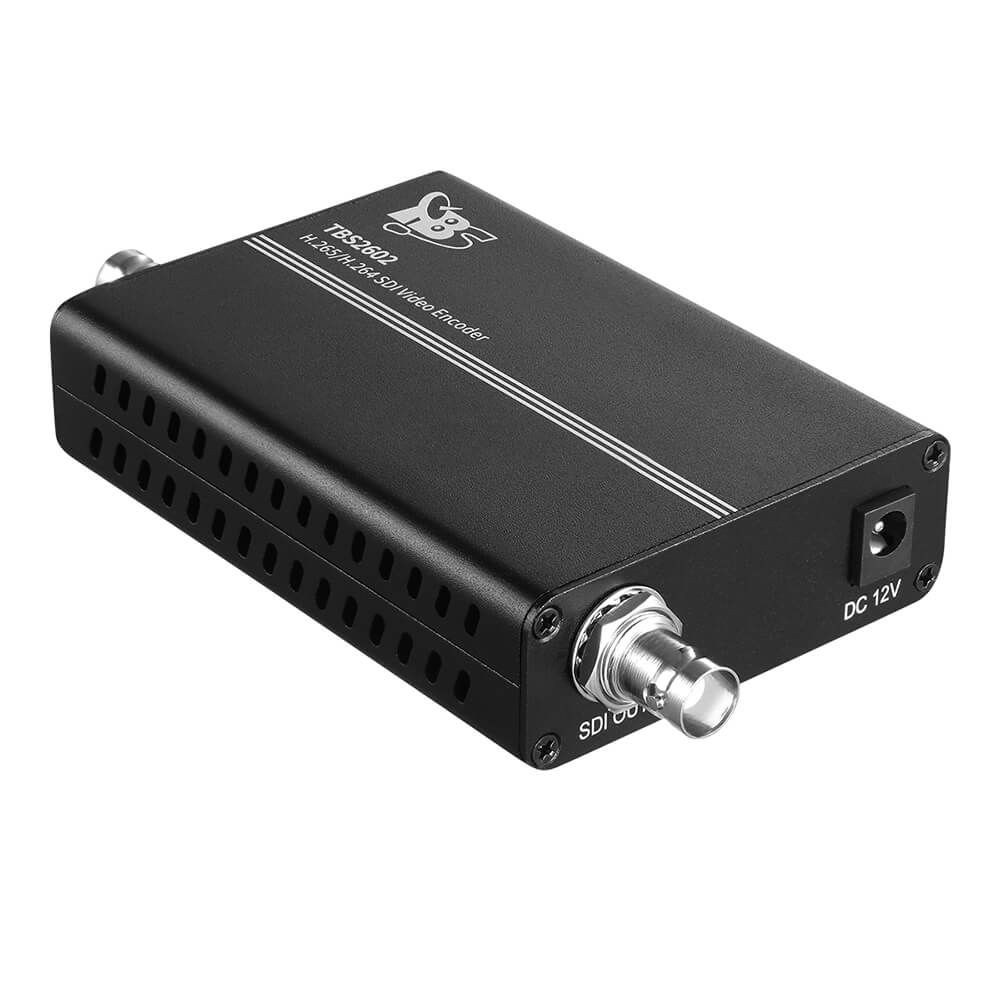

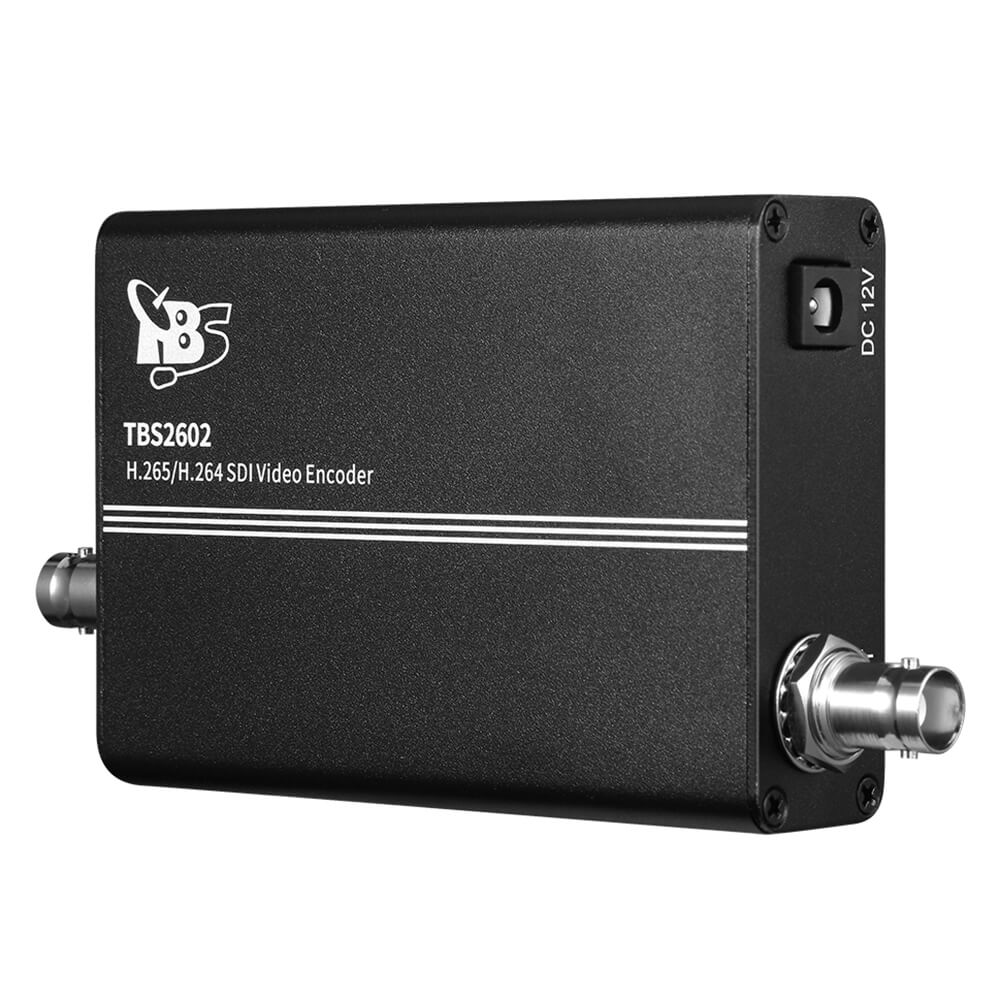

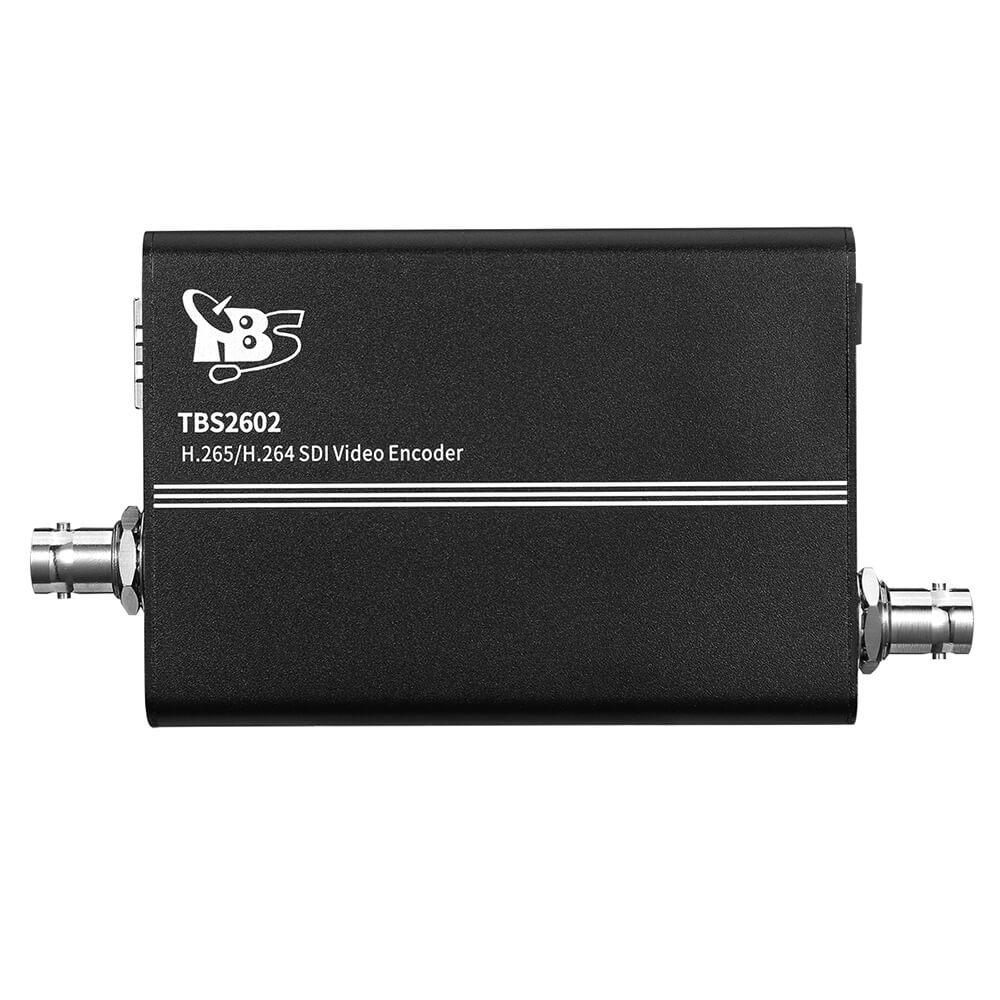

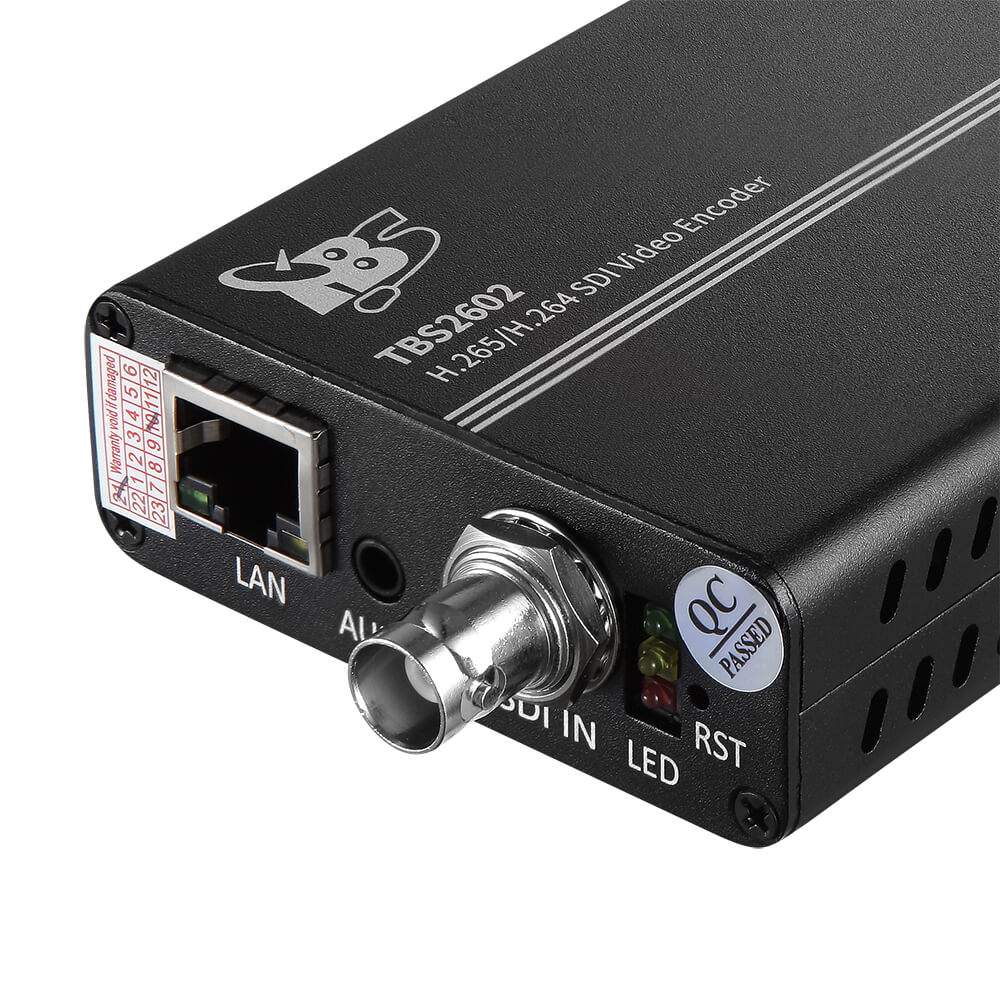

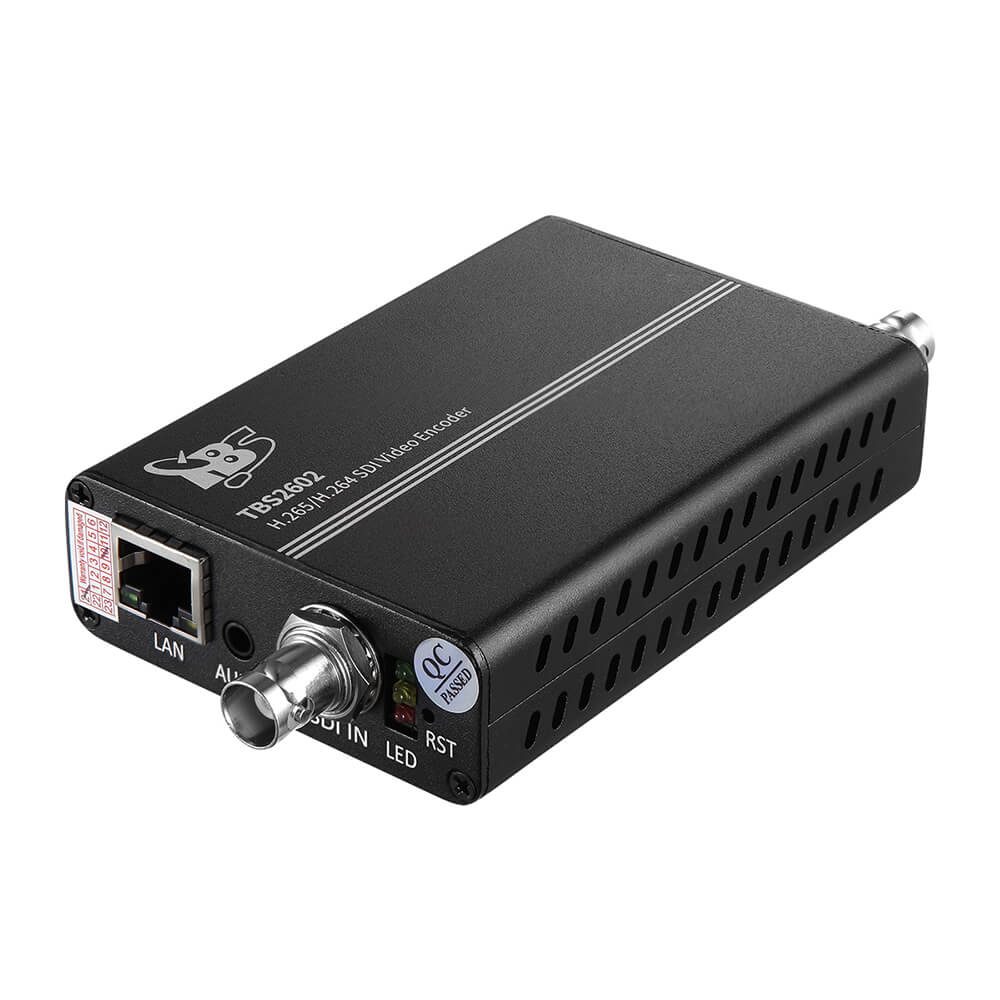

TBS2602 NDI®|HX2 HD-SDI Video Encoder is a professional high-definition video encoder, which equipped with 1 SDI channel input and dual stream RJ45 output, what's more, it has direct SDI output which can output original data. TBS2602 supports H.265/H.264 High Profile code format encode and dual stream H.264 format, audio ACC format output.

NDI®|HX2

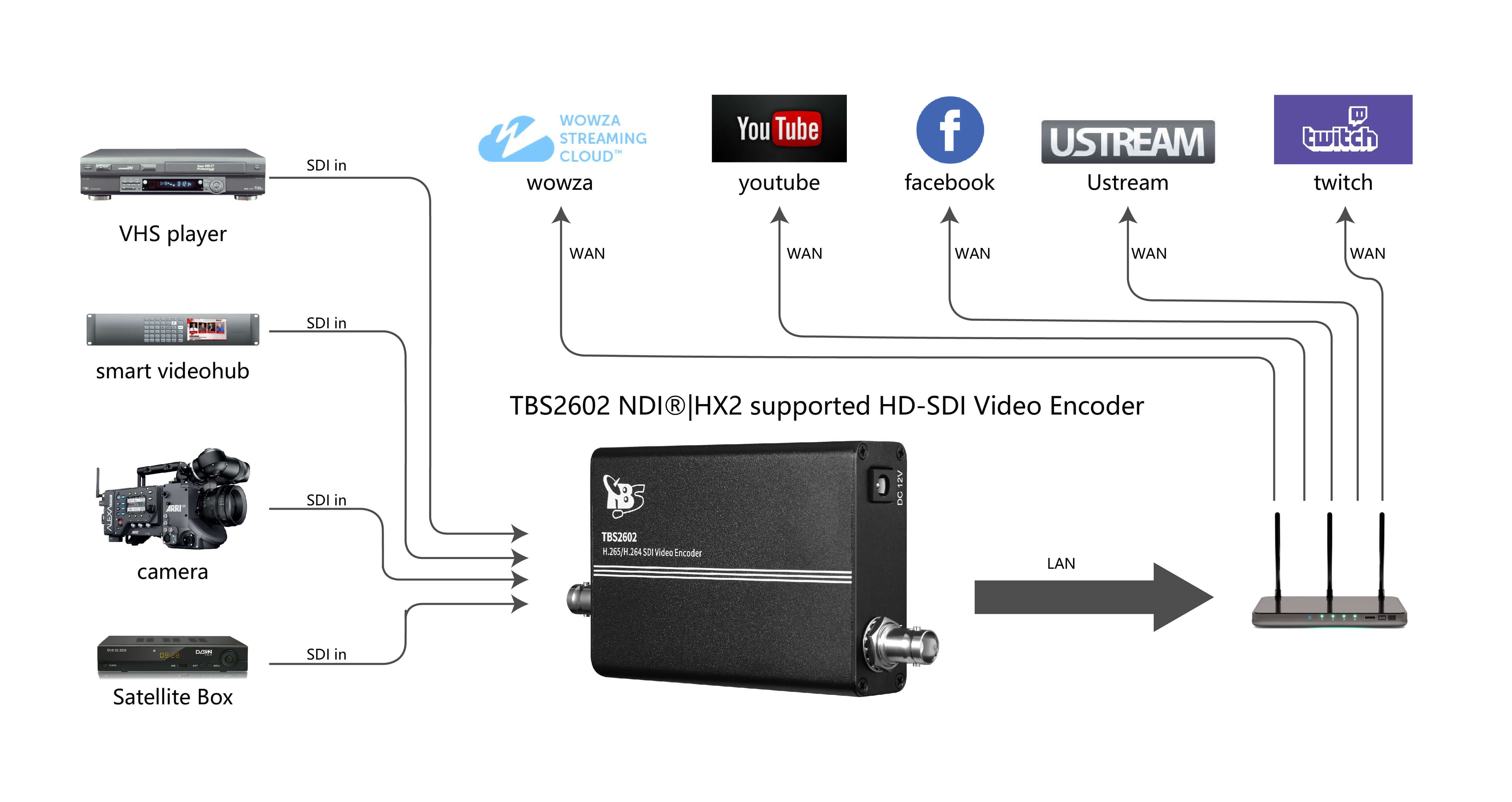

TBS2602 H.265/H.264 SDI Video Encoder has been integrated native NDI®|HX2 support, which allows to send your SDI video source through your local network, over Ethernet for use with other NDI®|HX2 compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

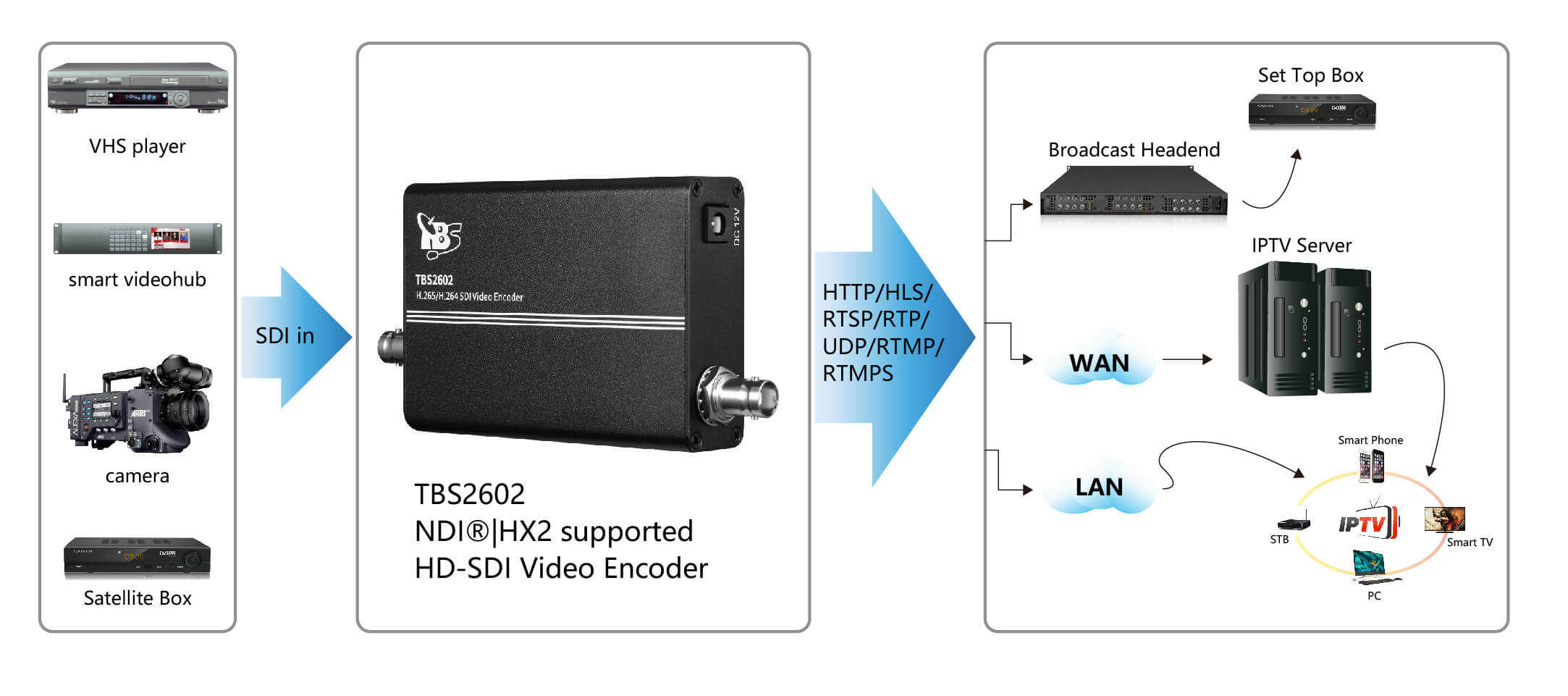

Applications

  • IPTV
  • Digital Signage
  • Video Conference
  • Replace HD Video Capture Card
  • Hotel TV system
  • Live Broadcast
  • Teaching/Campus Broadcast
  • Recording System
  • NVR (Net Video Recorder)

Specifications

Model TBS2602
Input 1 Channel SDI input, 1 Channel line in audio
Output 1 channel IP signal output
Video Input resolution 1920x1080p, 1920x1080i, 1280x720, 720x576i, 720x576p, 640x480i, and ect.
Codec H.265 / H.264
Coding level
  • H.265 Main profile
  • H.264 Baseline profile
  • H.264 Main profile
  • H.264 High profile
Encoded size 1920x1080, 1680x1056, 1280x720, 1024x576, 960x540, 850x480, 720x576, 720x540, 720x480, 640x480, 640x320, and ect.
aspect ratio 16:9, 4:3
Color setting Brightness, Contrast, Saturation
Bitrate control CBR, VBR
Biterate 16Kbps ~ 12Mbps
Video frame rate 5 ~ 60 fps
OSD Text, Image
Audio Input selection
  • SDI embedded:1 channel SDI embedded audio
  • Line in: 1 channel 3.5mm Jack
  • independent audio support audio gain
Audio coding AAC(LC/HE), MP3, MP2, G.711
Audio bit rate 24Kb/s ~ 320Kb/s
Sampling rate 32000, 44100
IP Output 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream (H.265/264 TS stream)
System Protocols HTTP, HLS, RTSP, RTMP, RTP/UDP unicast & multicast, SRT (Caller mode, Listener mode), Onvif
Configuration management Web User interface, remote upgrade, multi-one management platform
Power supply 12V ~ 2A
power consumption 5W
Size 100mm x 118mm x 40mm
Operating temperature -20℃ ~ 60℃
Working humidity <90%, Non-condensing
Weight 0.3KG
Our company reserves the right to adjust the product parameters, if you have any questions, please contact us to check.
