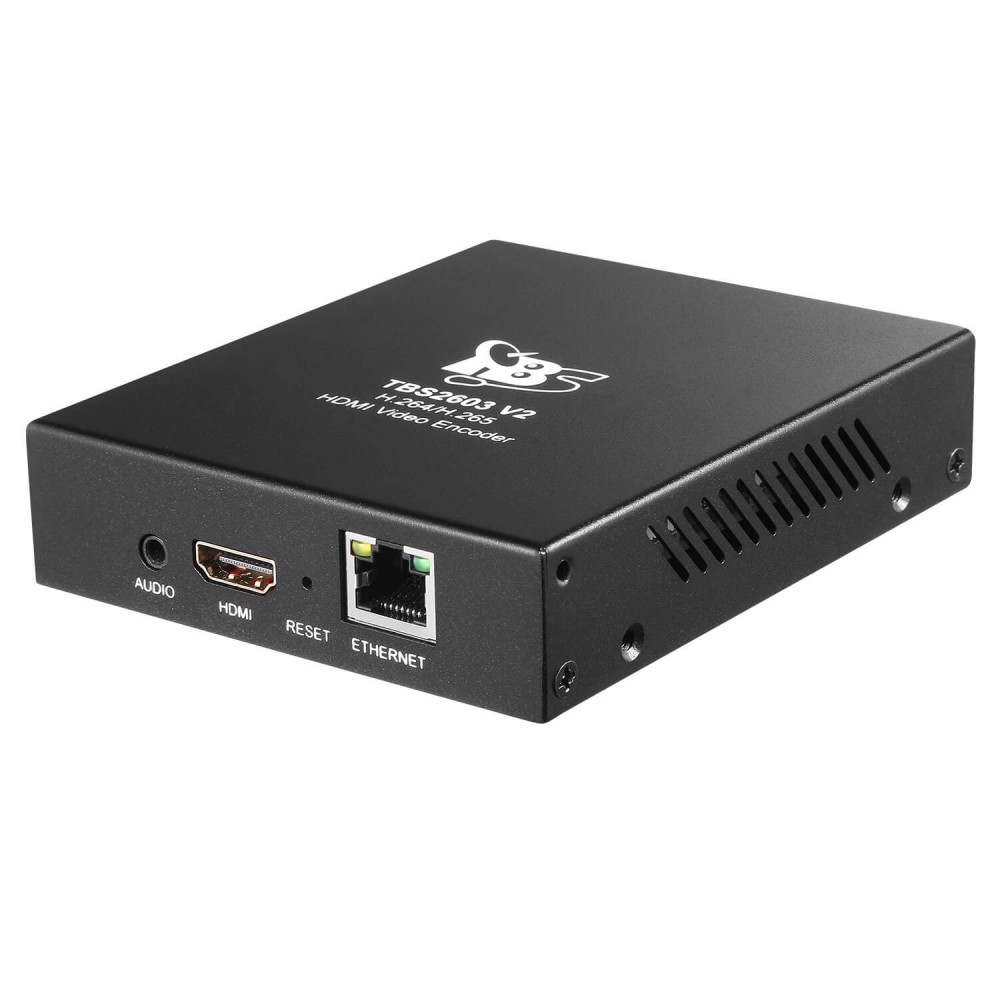

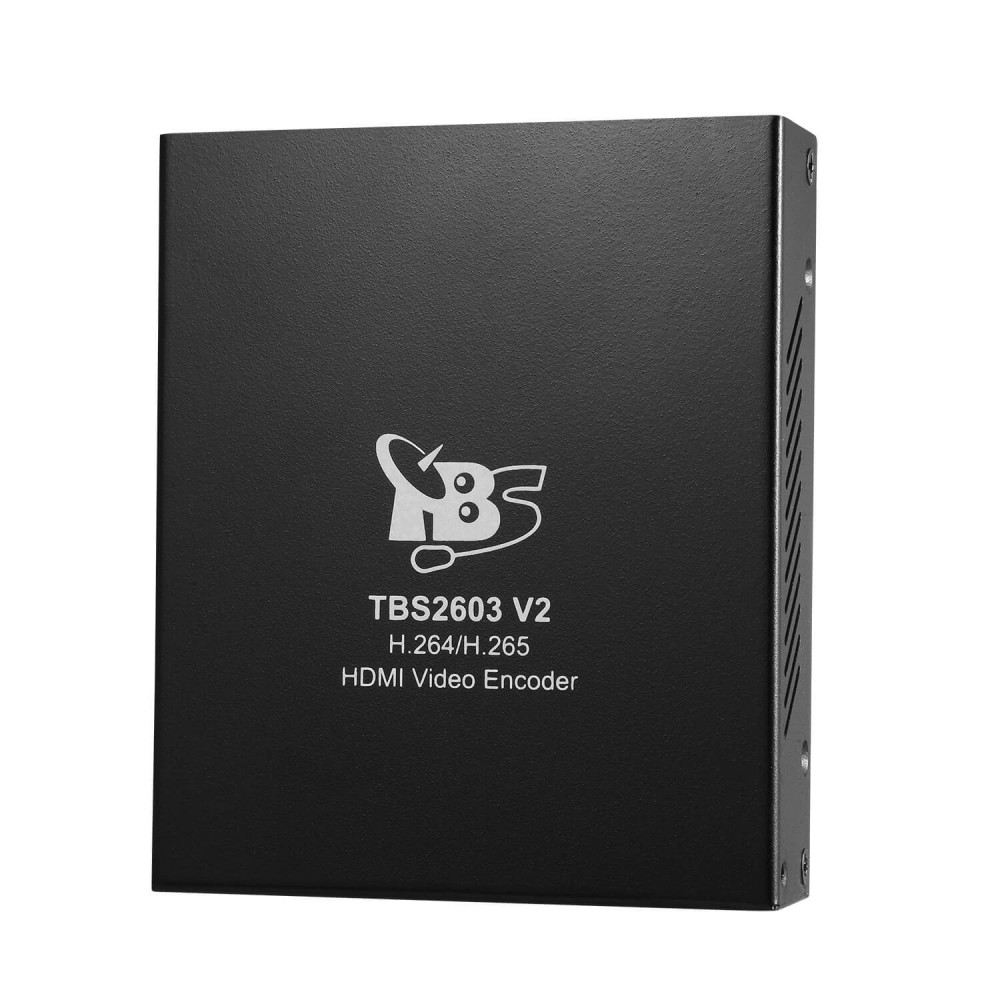

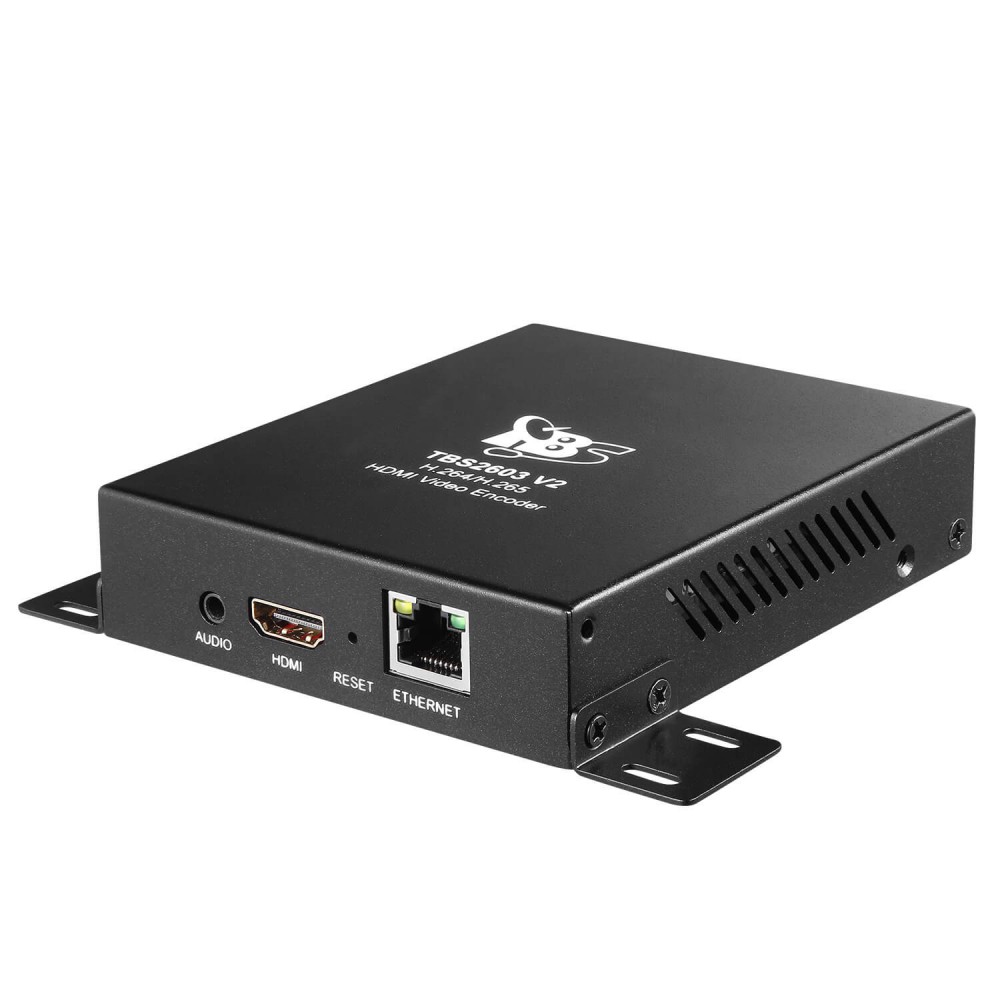

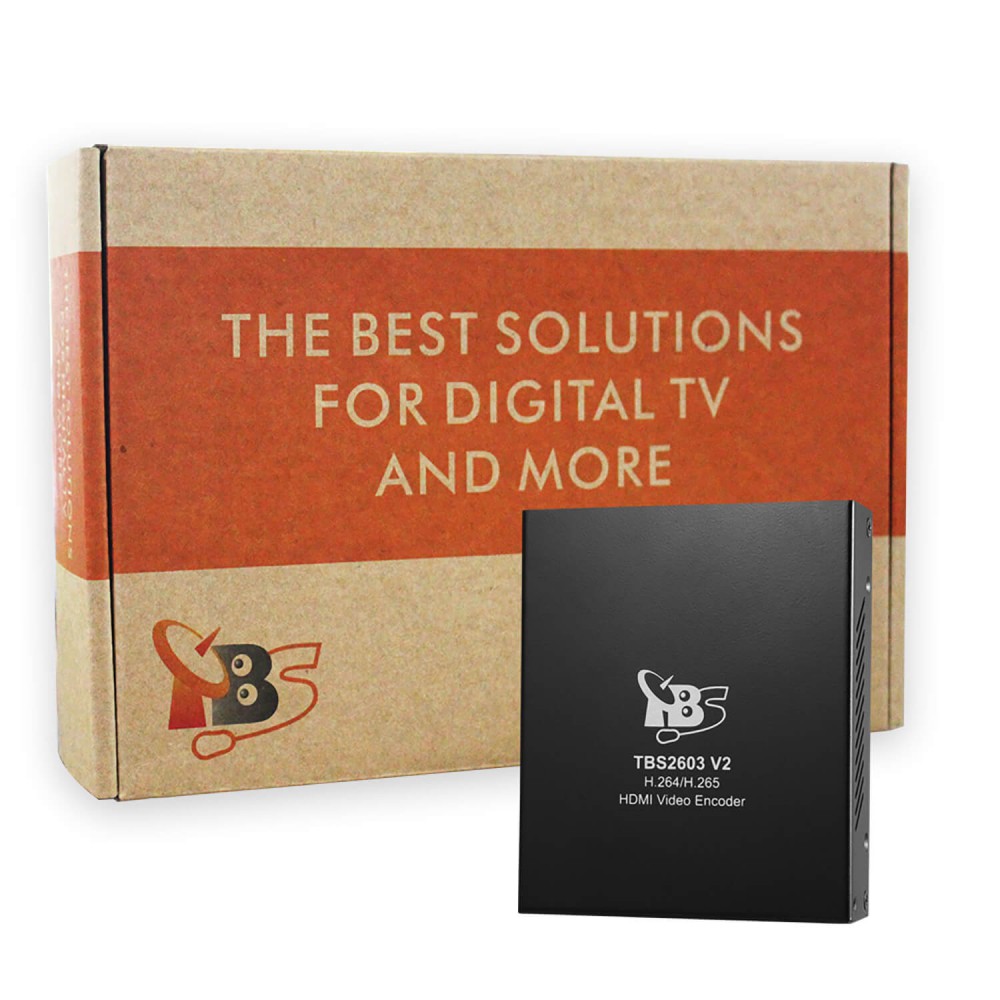

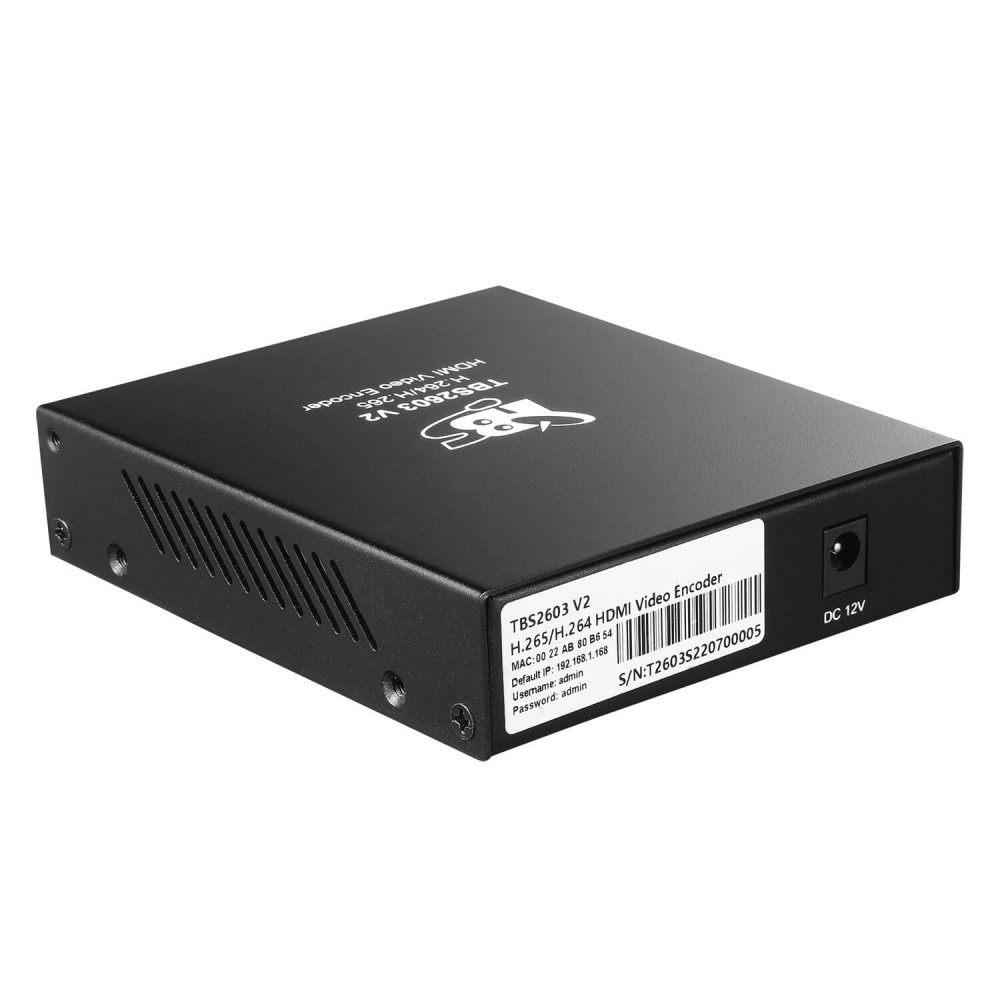

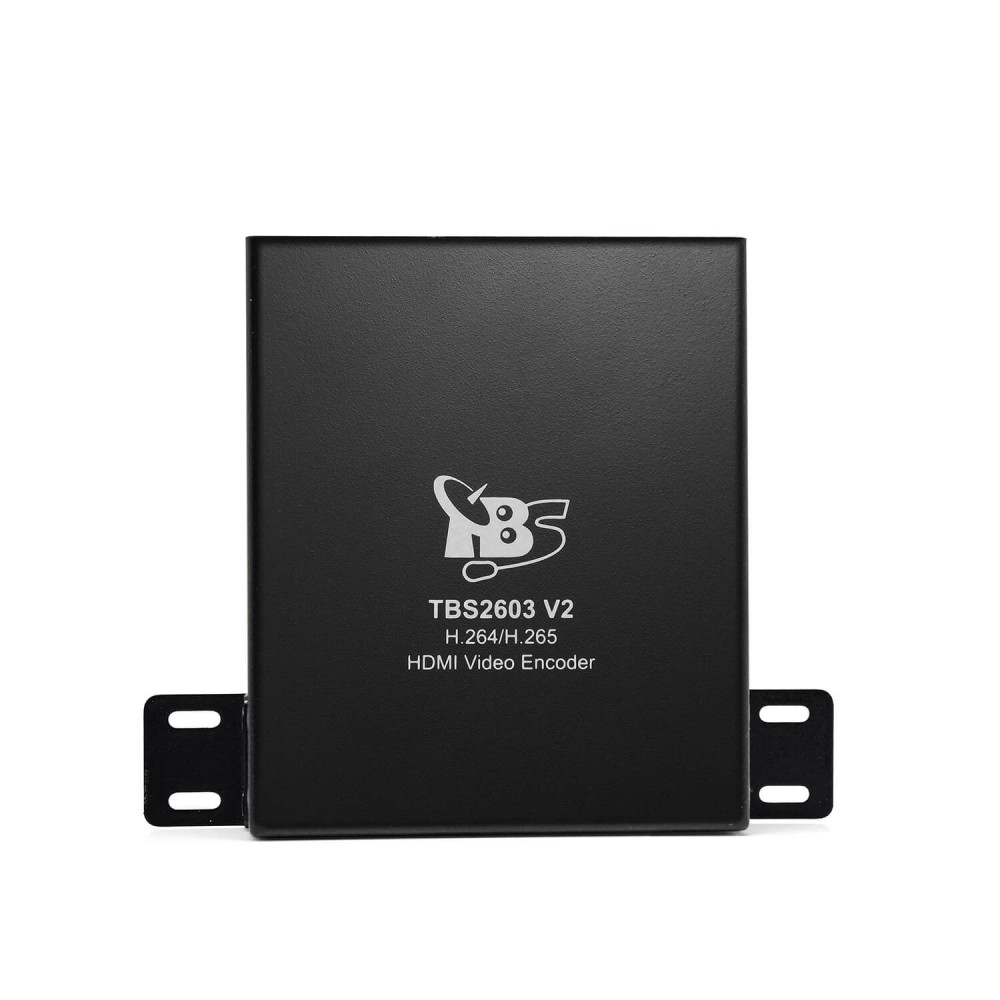

TBS2603V2 NDI®|HX Supported H.265/H.264 HDMI Video Encoder


TBS2603V2 NDI®|HX Supported H.265/H.264 HDMI Video Encoder

  • Model: TBS2603V2
  • Weight: 800.00g

Discontinued

TBS2603V2 is an NDI®|HX supported H.264/H.265 HDMI video Encoder, It supports 1 channel HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/RTSP/RTP/RTMP/UDP protocols. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation, and other industries.

TBS2603V2 NDI®|HX use a high efficiency, low bandwidth form of NDI®, which allows to send your HDMI video source through your local network, over Ethernet for use with other NDI®|HX compatible systems. It helps to connect your video cameras and other devices to your live production system, video applications or streaming devices.

Features:

  • Visual input (Preview)
  • HDMI video input,H.264/H.265 Encode
  • Supports video or audio encode separately: video out only or audio out only (the default is "video + audio" out).
  • NDI®|HX streams output
  • HDMI-embedded & Line-in Audio input
  • AAC-HE, AAC-LC, MP3, g.711 audio encoding
  • Bitrate of output video stream is adjustable from 500kbps to 20Mbps
  • Support HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT, NDI | HX,
  • Support NDI | HX2
  • ROI (Regin of Interest)
  • Support Video Rotate, Video Crop
  • Support inserting Logo, Text/Scrolling and Time Code Display to the video
  • Support Input Preview
  • Support HDCP and HD blue-ray
  • Flexible and friendly webpage control
  • Stable and effective, support 7 x 24h working time

Live streaming to social media

HDMI encoder

Flexible and friendly webpage control, easy to check and control the status of the device

HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT, NDI | HX, compatible with different terminals

Specification:

Model NO. TBS2603 V2
Video Input 1x HDMI 1.4
Audio Input HDMI embeded, Line in
Video
Input Resolution 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ; 720x576; 640x480, etc.
Ouput Resolution 1920x1080; 1280x720; 1024x768; 960x540; 850x480; 720x576; 720x480; 640x480; 640x320; 320x180.
Codec H264 Baseline/H264 Main/H264 High Level 4.2; H265 Main Level 4.1
Frame Rate 5 ~ 60 fps
Key Frame 5 ~ 200fps
BitRate 0.5Mbps ~ 20Mbps
BitRate Control CBR, VBR
Protocol HTTP, HLS(M3U8), RTSP, RTP/UDP Unicast/Multicast, RTMP/RTMPS, SRT, NDI|HX
Audio
Encode AAC(AAC-LC, AAC-HE), MP3, G.711
Sampling precision 16 bit
BitRate 24Kb/s ~ 320Kb/s
System
Ethernet / RJ45 1000 Base-T Ethernet interface
Supported System Windows XP/VISTA/SERVER/WIN7/WIN10; Linux; MAC OS
Control Web UI. Recommened Browser: Google Chrome, Firefox
General Spec.
Dimension 114mm * 96mm * 27mm
Power Consumption Less than 5W
