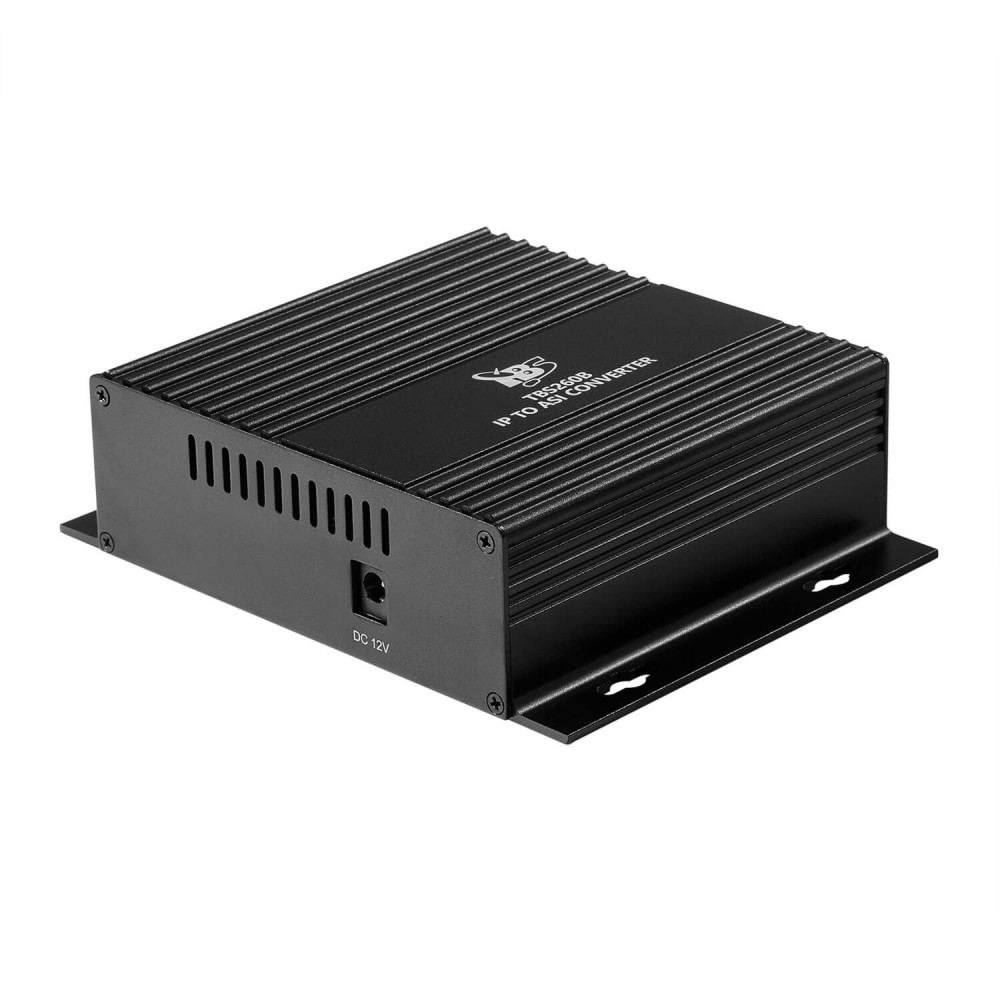

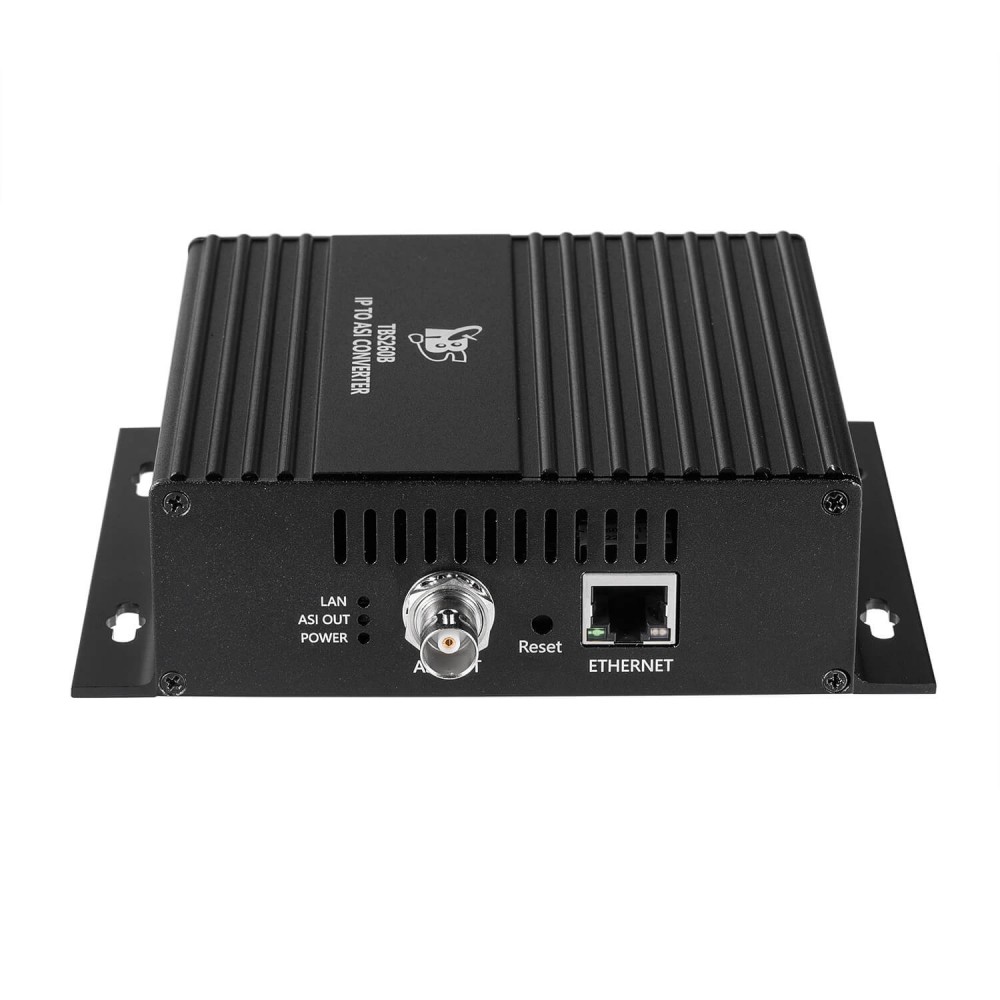

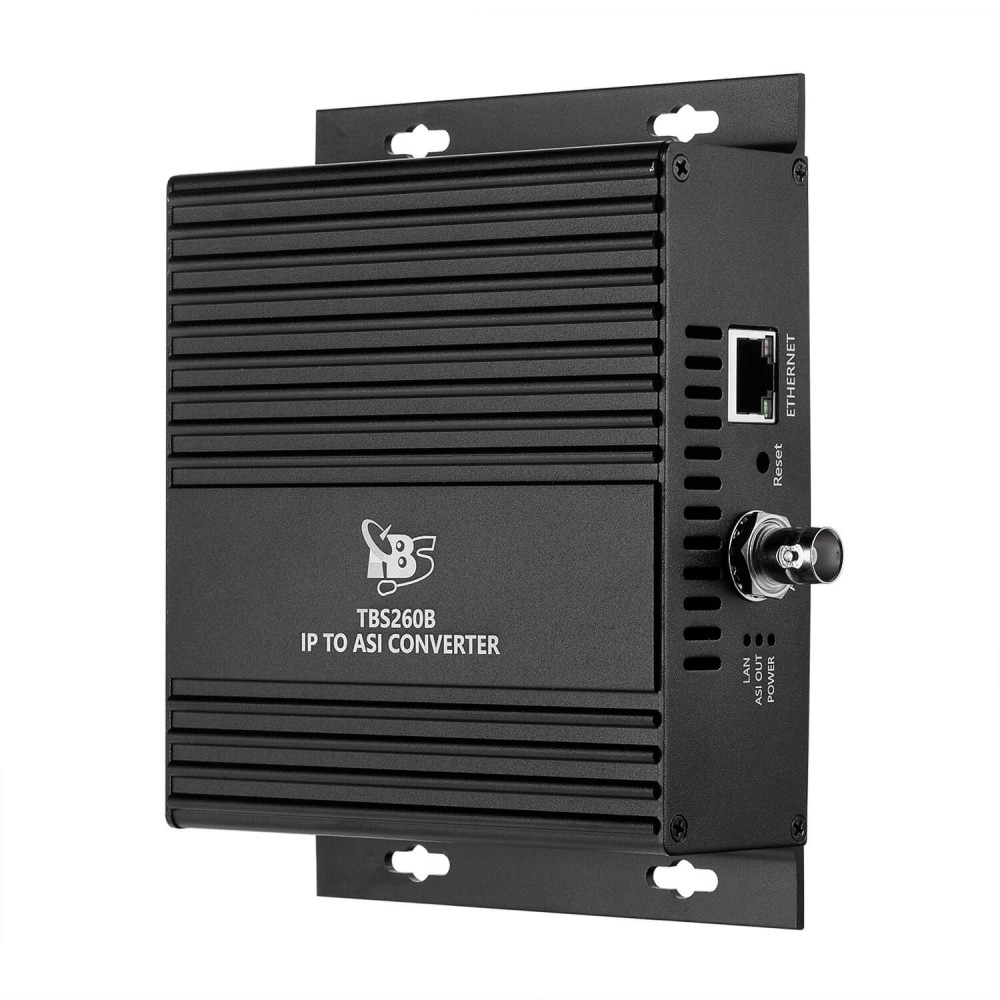

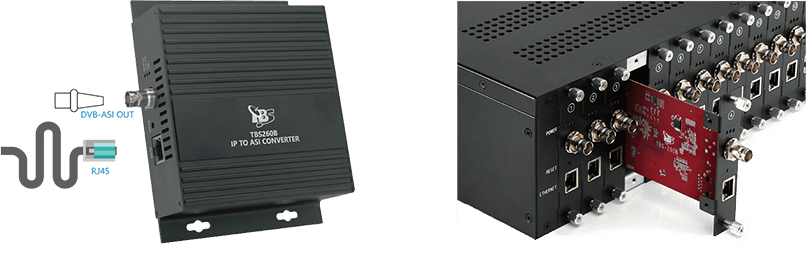

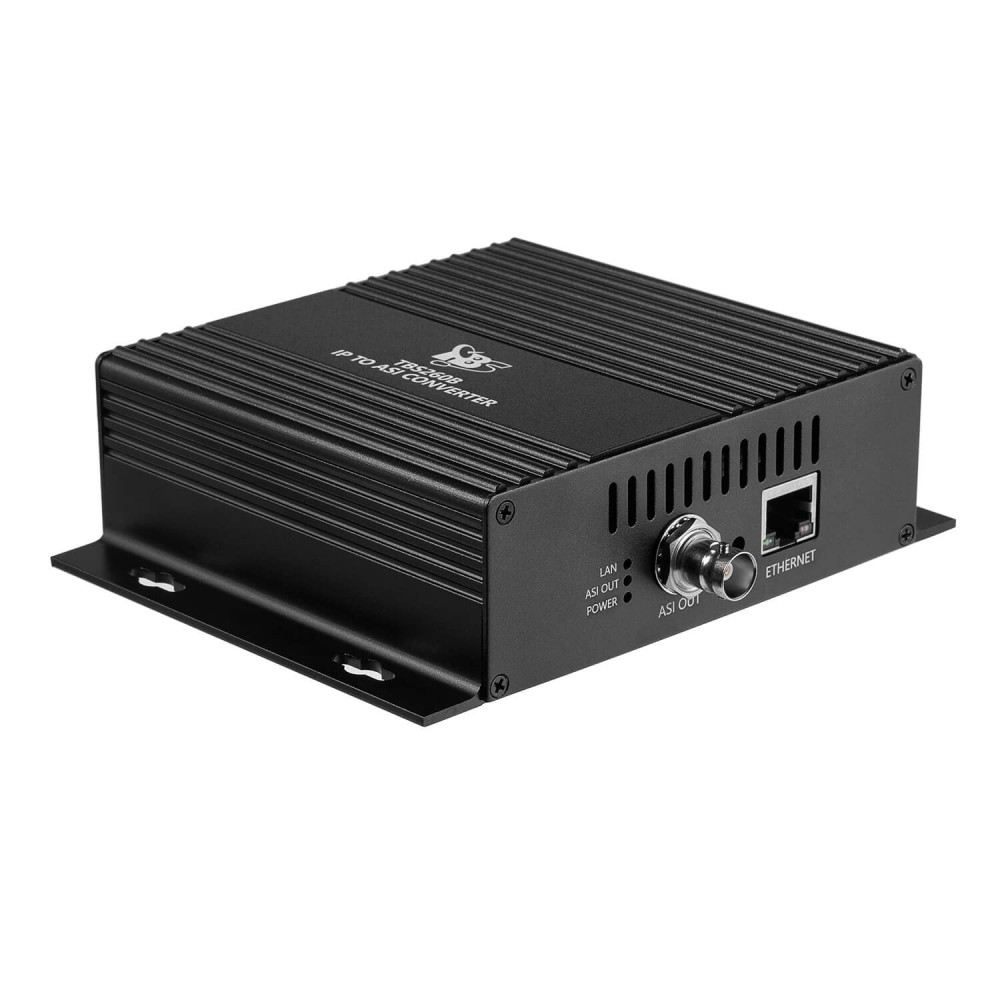

TBS260B DVB HD IP to ASI Converter


TBS260B DVB HD IP to ASI Converter

  • Model: TBS260B
  • Weight: 1,000.00g

Out Of Stock

US$439.99

TBS260B IP to ASI Gigabits converter is a head-end interface device which is used for DVB ASI and Ethernet. As a kind of IP receiver, this device can recover RTP/UDP database received from the transporting device into TS stream and then output it through the ASI output interface. It's as part of IP stream receiver to turn the IP stream to standard TS stream. Moreover, it has the function to resist the IP transporting shake, and to restore the PCR of the TS stream.

TBS260B converter could combine with a lot of TBS products to use, it is ideal for digital TV Broadcasting System, IPTV System, Head-end system of Digital TV branch network.

Features:

  • Supports IP to ASI conversion
  • Supports UDP/RTP, unicast and multicast mode
  • Power off memory, saving the settings for auto-loading after reboot

Application:

  • Digital TV Broadcasting System
  • Digital TV Programs Transmission
  • IPTV System
  • Head-end system of Digital TV branch network
  • CATV Broadcasting system
  • Edge side of Digital TV backbone network

Application one: TBS260B with MOI Pro AMD & TBS IP encoder

MOI Pro AMD server can receive different kinds of DVB broadcast TV signals and also can receive live streams from IP. Based on the "remux" function, all the video inputs channels will be multiplexed and combined to one new transponder stream and output via ASI or as a UDP content to IP simultaneously in broadcast quality.

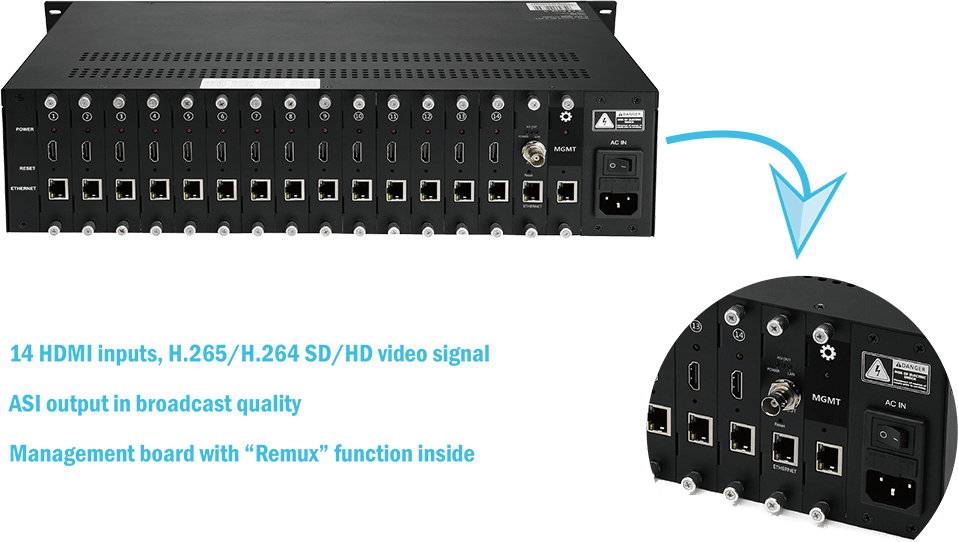

Application 2: Multi-channel H.265/H.264 HDMI encoder to ASI converter

Multi-channel IP encoder to ASI converter is a professional 14x HDMI H.265/H.264 audio/video encoding and 1x DVB-ASI output device, it can recover http database received from the 14 HDMI inputs into TS stream and then output it through the ASI interface. It has a main management board inside, based on the "remux" function, 14 HDMI H.265/H.264 video inputs will be multiplexed and combined to one new transponder stream and output via ASI or as a UDP content to IP simultaneously in broadcast quality


More info about this product, please click here

Specification:

Interface RJ45 100/1000Mbps Ethernet interface
Function IP to ASI conversion
Output DVB-ASI
Stream input Unicast /multicast, UDP/RTP Protocol
Stream output TS stream
Control Web Interface
Jitter tolerance 1 ~ 120ms
Output return loss > 15dB
OS Linux or Windows XP, 2k3/2k8, Vista, 7, 8/8.1, 10
Voltage DC 12V
Power consumption less than 2.5W
Dimension 14.6 * 11.1 * 4 cm
Weight 800g

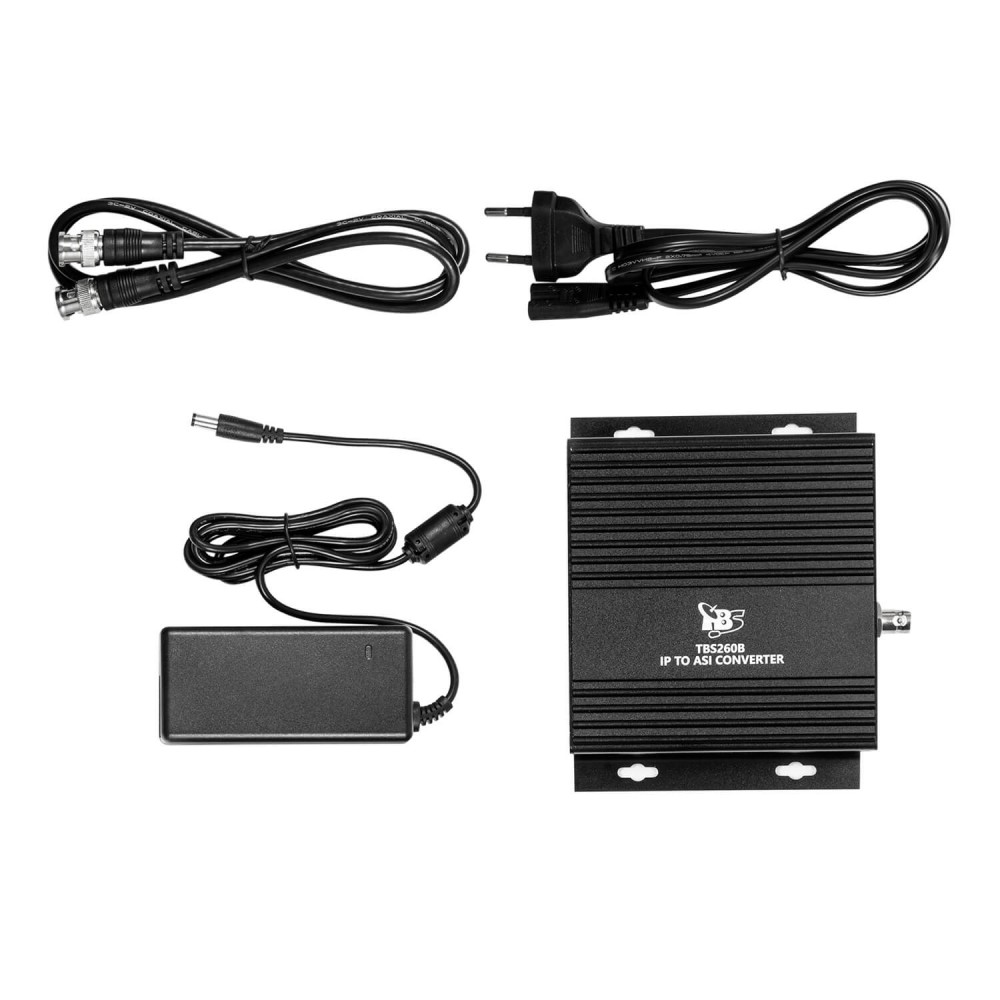

Package Contents 1 x TBS260B DVB HD IP to ASI Converter
1 x Power Adapter
1 x DC Line
1 x BNC Cable
