TBS2611 1 HDMI + 2 AV/CVBS Video Encoder


TBS2611 1 HDMI + 2 AV/CVBS Video Encoder

  • Model: TBS2611
  • Weight: 800.00g
  • Reward Points:229

In Stock

US$229.00

TBS2611 is a professiomal high-definition product which support 1 channel HD HDMI video and 2 channels CVBS/AV video input. 1 channel 3.5MM independent audio interface acquisition function. Dual Streams output H.265/H.264 format, Audio MP3/AAC G.711 format. The coding rate can be adjusted and the picture quality can be controlled. Support HTTP / RTSP / RTP/ TCP / RTMP / FLV/ UDP / ONVIF protocols. Compatible with Wowza/FMS/RED5 streaming media server etc, work in with streaming media server to push the streaming, to achieve a live streaming

Application

  • Digital TV Broadcasting System
  • IPTV & OTT system
  • Digital Signage Project
  • Remote Video Conference
  • Live Streaming
  • Head-end system of Digital TV branch network

Key Features

  • 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p/640*480i resolutions
  • Support H265 main profile /H.264 baseline profile / main profile/ high profile
  • Support multiple devices display on a computer at the same time
  • Support SDI / VGA / CVBS convert to HDMI input, Support audio gain, be able to
  • turn volume individually
  • Support RTSP/RTP/RTMP/HTTP/ONVIF/UDP unicast and multicast protocol (RTMP support adding users and changing passwords),
  • Support DHCP/, ONVIF protocol, support HD Blue-ray
  • Support Main TS stream and the sub-TS stream use in different network protocols for transmission (multi-rate multi-protocol support)
  • Rate Control CBR / VBR 16KBIT / S ~ 12MBIT / S
  • Transmission: TCP, UDP, 1000M (RJ45 Ethernet port duplex)
  • Support streaming add watermark (OSD), XY axis, the font can be set;
  • Transmission: TCP, UDP, 1000M (RJ45 Duplex network port)
  • Image settings: contrast ratio, brightness, tones, saturation, noise detection, sharpness, filtering
  • Support build-in or external methods, support left and right sound channel, Support audio gain, be able to turn volume individually
  • Support coding without video signal;
  • Complete the setting effect immediately, don’t need to restart
  • Support one-key recovery of the default configuration
  • Support set-top box decoder
  • Low power consumption design

Specifications

Product model TBS2611 1*HDMI+2*AHD CVBS video encoder

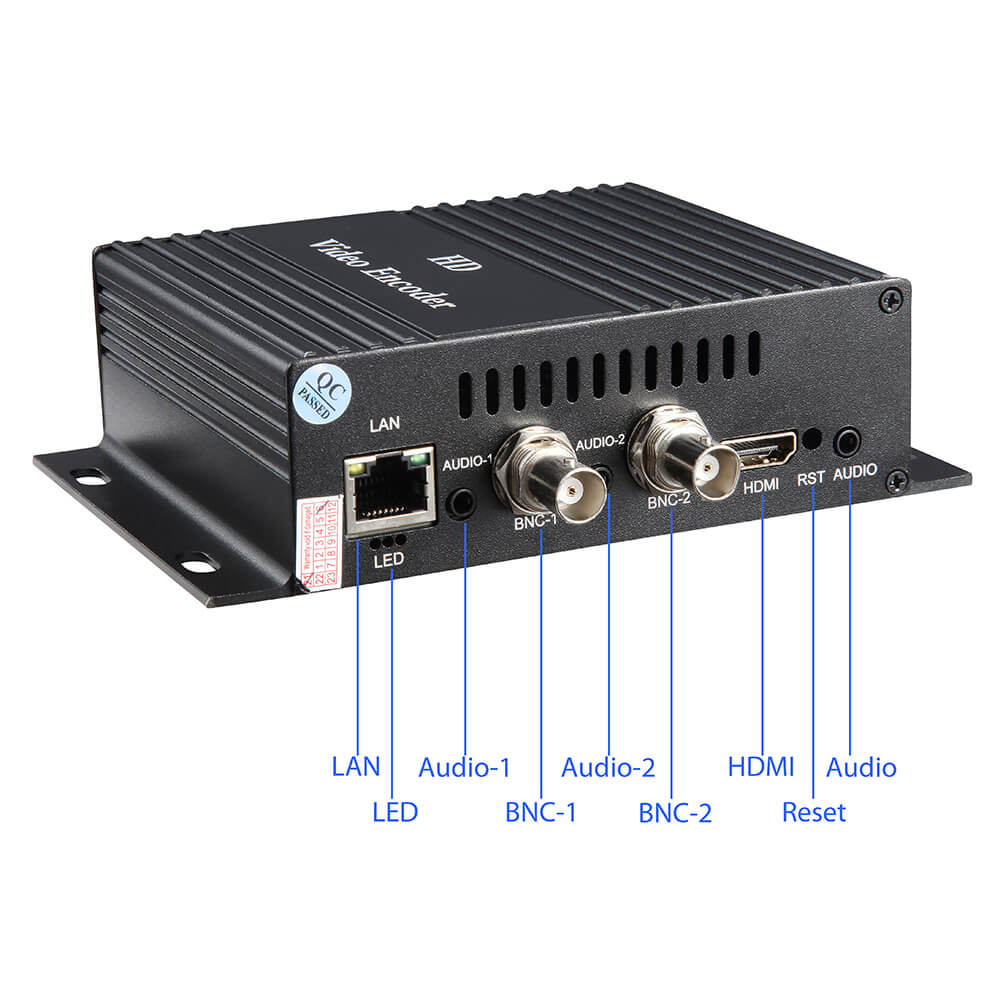

Input 1 HDMI input, 2 channels CVBS input, 3 channels 3.5 audio input
Output 1 channel IP output
Video Input resolution 1920x1080p / 1920x1080i / 1280x720p / 720*576i / 720*576 p / 640*480i And other conventional resolution
Coding standard H.265/H.264
Coding level H.265 MAIN PROFILE H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE
Encoded size 640 * 360 ~ 1920 * 1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 1080*60fps (5-60 Fps)
OSD Character, images
Audio Input selection 1 channel embedded audio hdmi, 2 channel AV,1 channel 3.5MM independent audio(Support audio gain)
Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000、44100 48000etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System Network protocol Supports HTTP, RTSP, RTMP, UDP, multicast, unicast
Configuration management Support IE configuration, remote upgrade

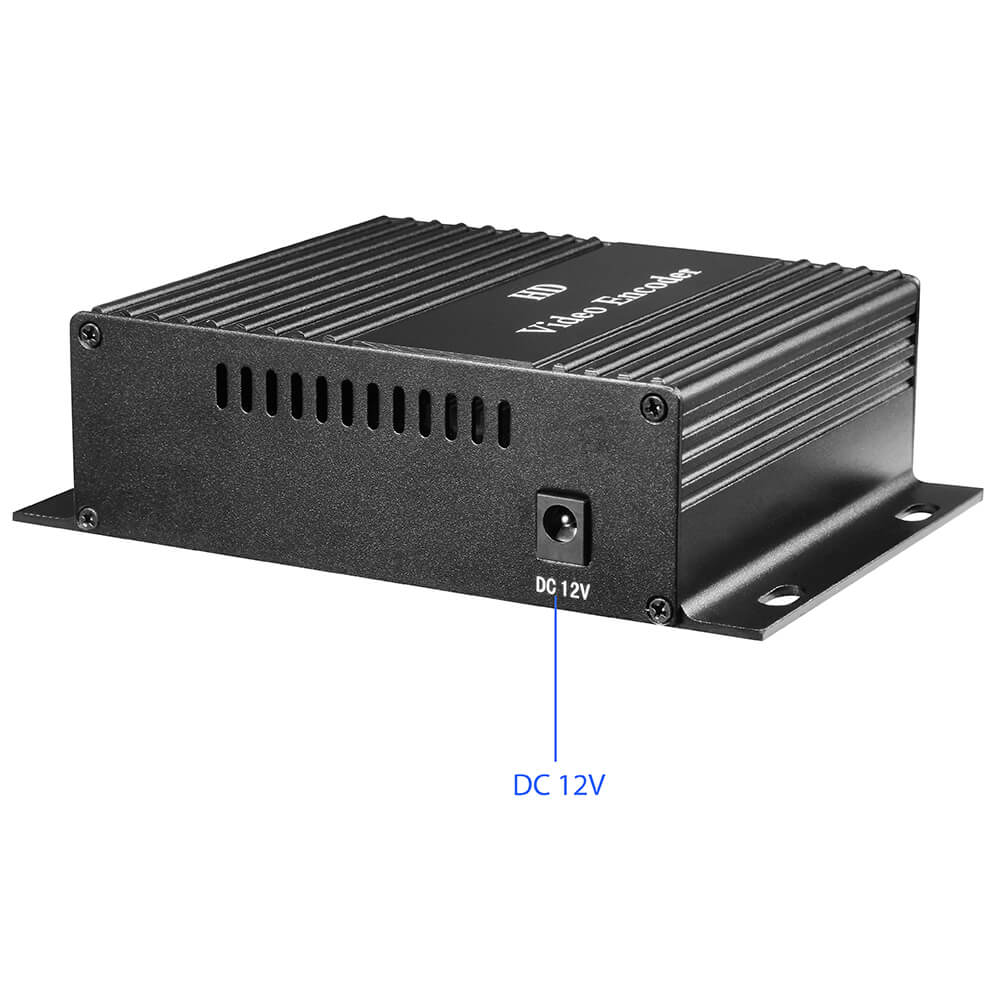

The common use Power supply 12V~2A
power consumption 5W
Size 100mm * 118mm * 40mm(length * width * height)
Operating temperature -20℃+ 60℃
Working humidity < 90%, Non-condensing
Weight 0.3KG
