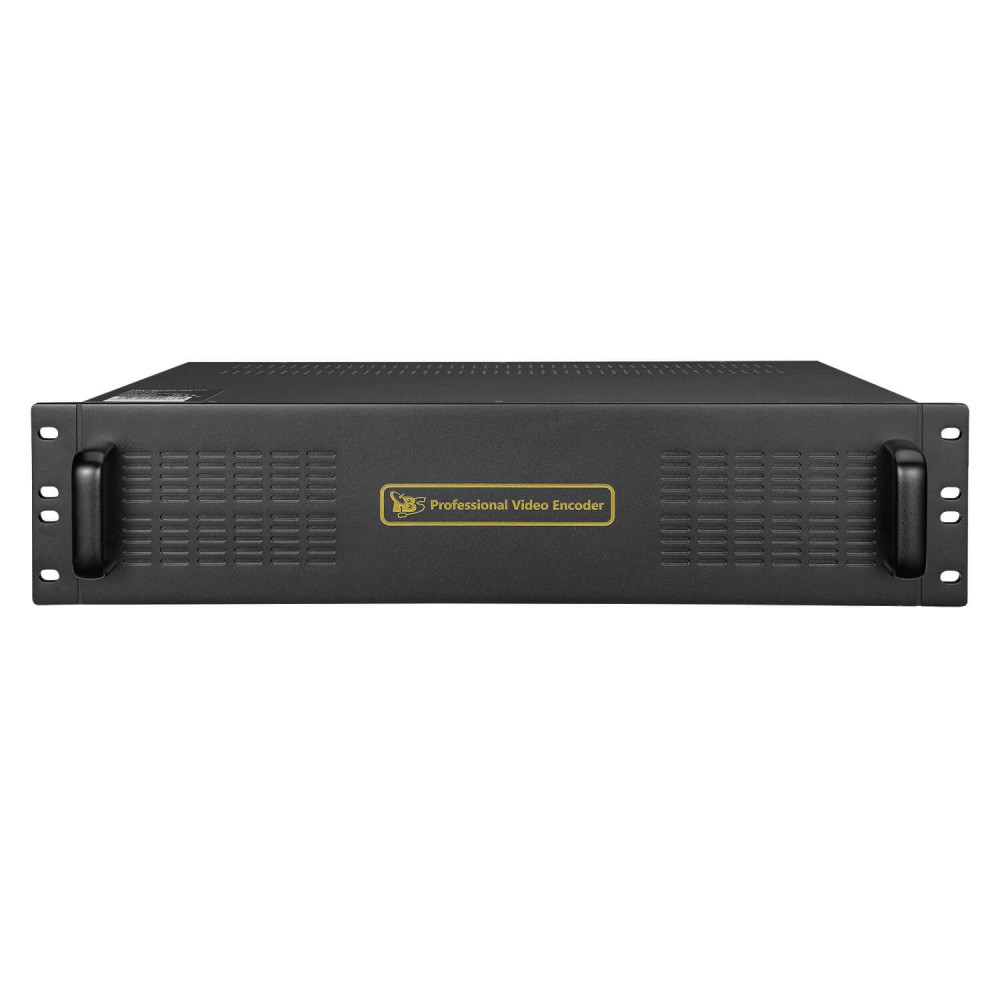

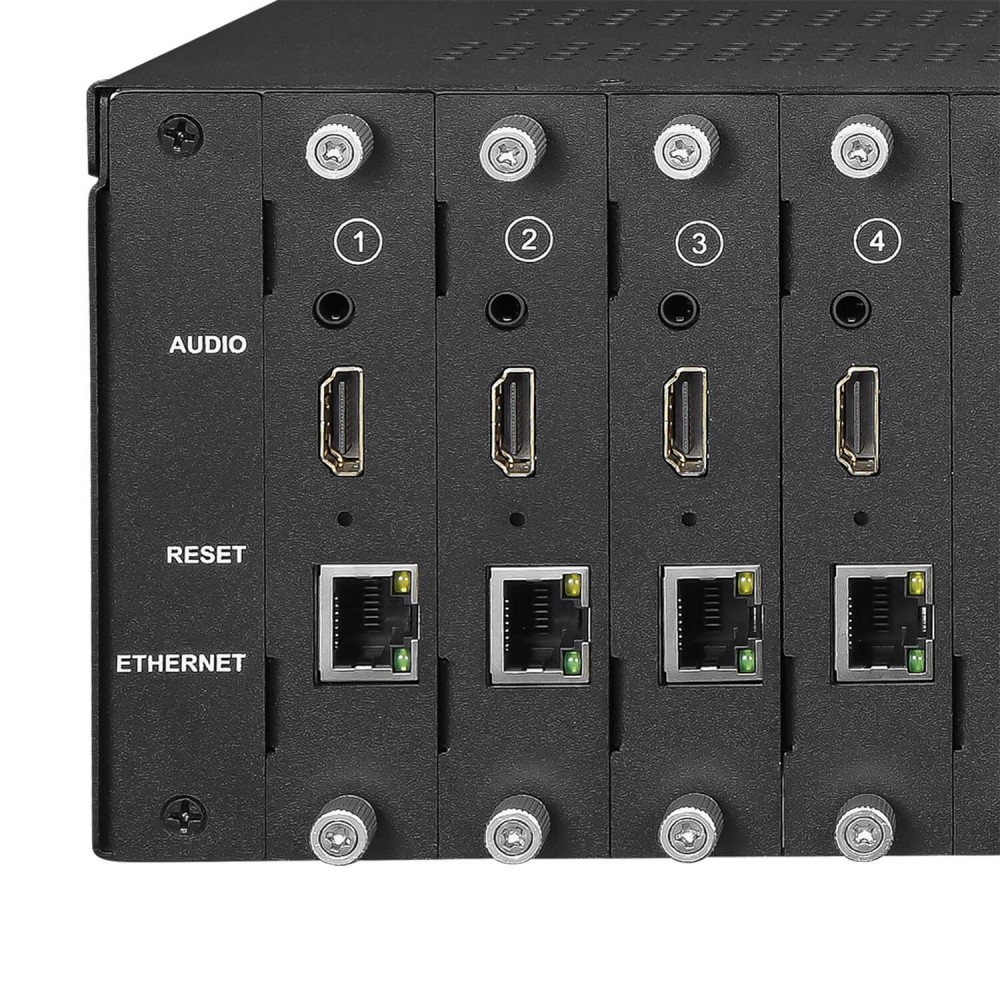

TBS2630V2 8/16 Channels H.265/H.264 HDMI Video Encoder


TBS2630V2 8/16 Channels H.265/H.264 HDMI Video Encoder

  • Model: TBS2630V2
  • Weight: 17,000.00g

In Stock

Available Options

TBS2630V2 is an 8/16 channels H.264/H.265 video Encoder, It supports 8/16 channels HDMI stream of H.264/H.265 encoding output and the AAC, Mp3 audio format. From any HDMI input source, it generates an H.264/H.265-encoded stream compliant with HTTP/HLS/SRT/RTSP/RTP/UDP/RTMP/NDI | HX protocols.

The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation, and other industries.

Features:

  • Visual input (Preview)
  • HDMI video input,H.264/H.265 Encode
  • HDMI-embedded & Line-in Audio input
  • AAC-HE, AAC-LC, MP3, g.711 audio encoding
  • Bitrate of output video stream is adjustable from 500kbps to 20Mbps
  • Support HTTP, HLS(m3u8), RTSP, RTP/UDP Unicast & Multicast, RTMP/RTMPS, SRT, NDI | HX
  • Support NDI | HX2
  • ROI (Regin of Interest)
  • Support Video Rotate, Video Crop
  • Support inserting Logo, Text/Scrolling and Time Code Display to the video
  • Support Input Preview
  • Support HDCP and HD blue-ray
  • Flexible and friendly webpage control
  • Stable and effective, support 7 x 24h working time

Specification:

Model TBS2630 V2

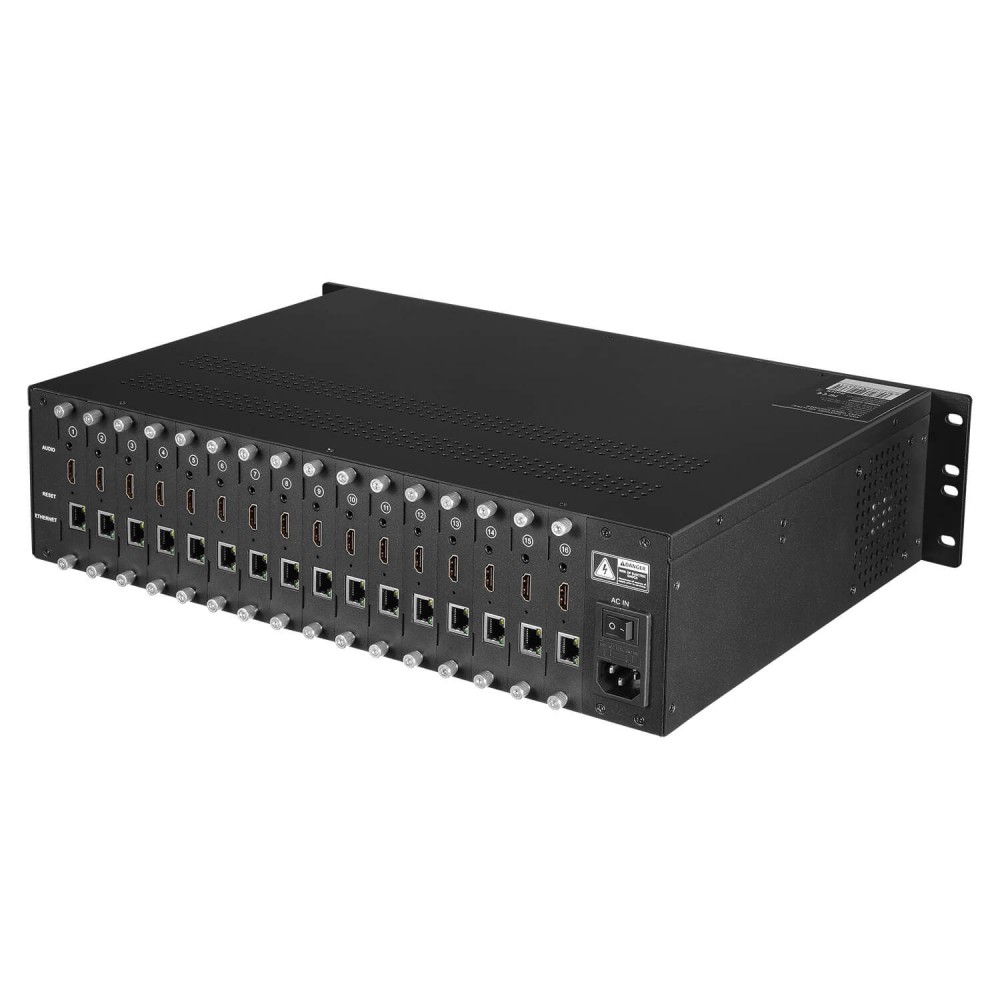

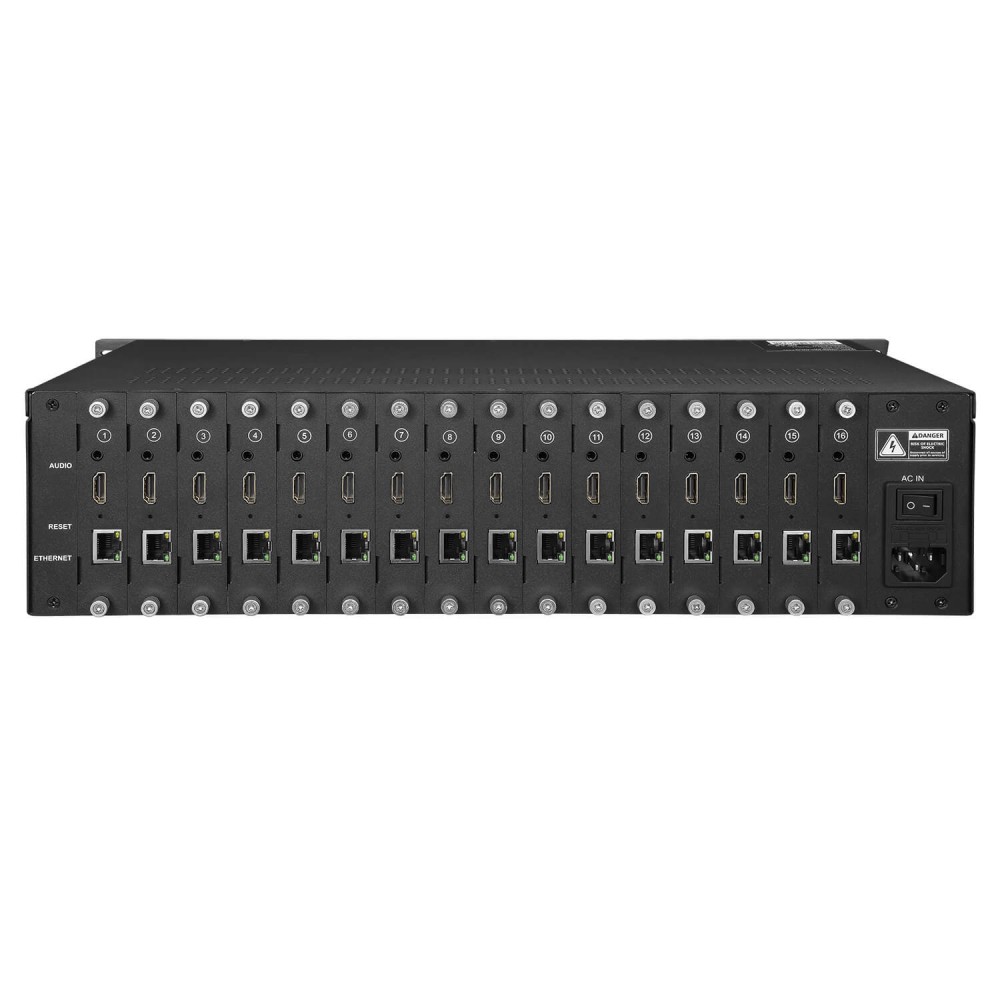

Video Input 16 x HDMI 1.4
Audio Input HDMI embedded, Line in
Video
Input Resolution 1920x1080P_50/60HZ; 1920x1080I_50/60HZ; 1280x720P 50/60HZ; 720x576; 640x480, etc.
Ouput Resolution 1920x1080; 1280x720; 1024x768; 960x540; 850x480; 720x576; 720x480; 640x480; 640x320; 320x180.
Codec H264 Base Line, H264 Main, H264 High, Level 4.2; H265 Main, Level 4.1
Frame Rate 5 ~ 60 fps
Key Frame 5 ~ 200fps
BitRate 0.5Mbps ~ 20Mbps
BitRate Control CBR, VBR
Protocol HTTP, HLS(M3U8), RTSP, RTP/UDP Unicast/Multicast, RTMP/RTMPS, SRT, NDI|HX
Audio
Encode AAC (AAC-LC, AAC-HE), MP3, G.711
Sampling precision 16 bits
BitRate 24Kb/s ~ 320Kb/s
System
Ethernet / RJ45 1000 Base-T Ethernet interface
Supported System Windows XP/VISTA/SERVER/WIN7/WIN10; Linux; MAC OS
Control Web UI. Recommended Browser: Google Chrome, Firefox
General Spec.

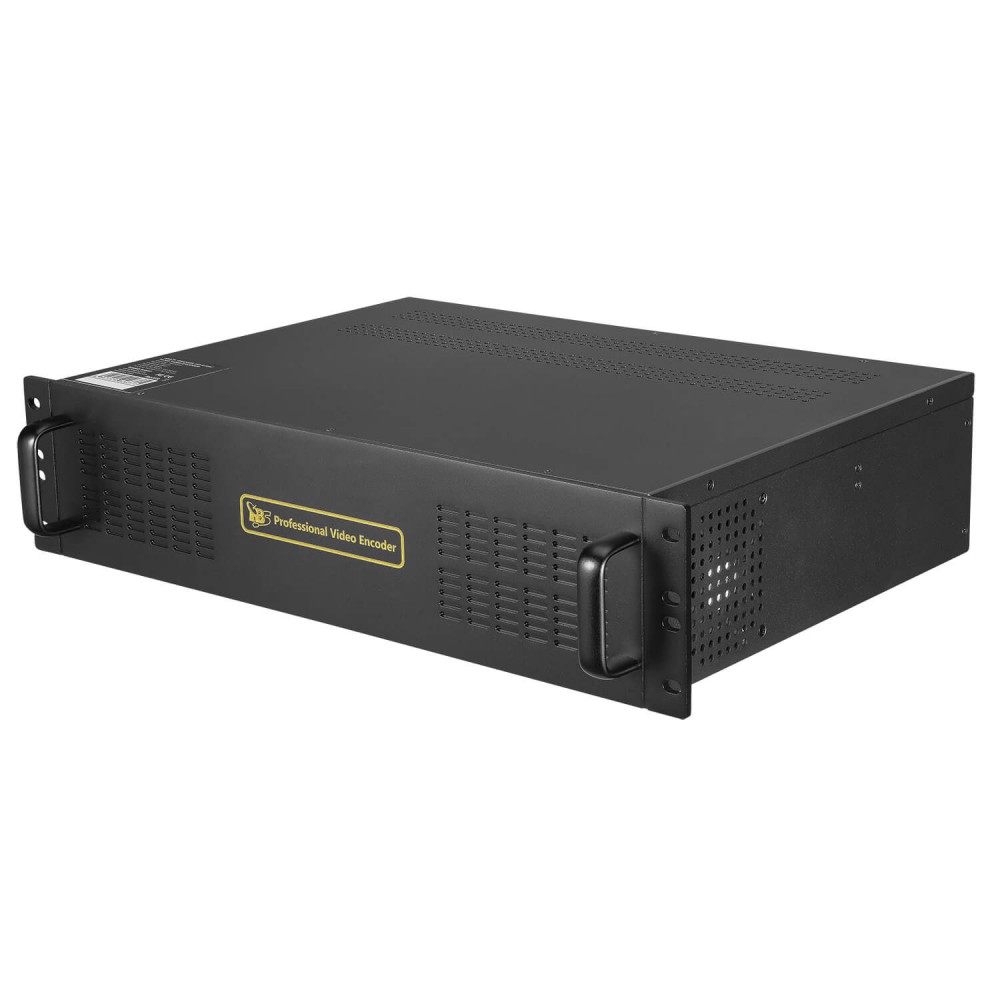

Dimension 2U rack
Power Consumption Less than 80W
