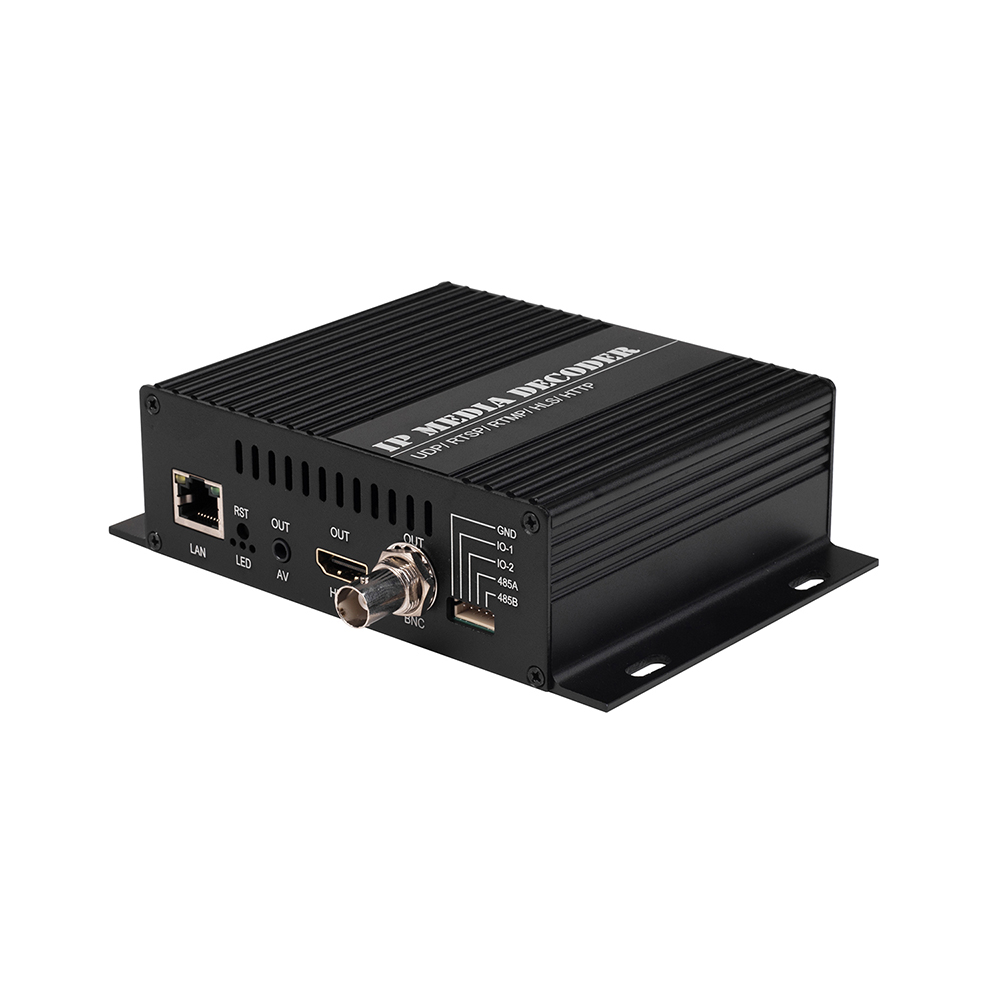

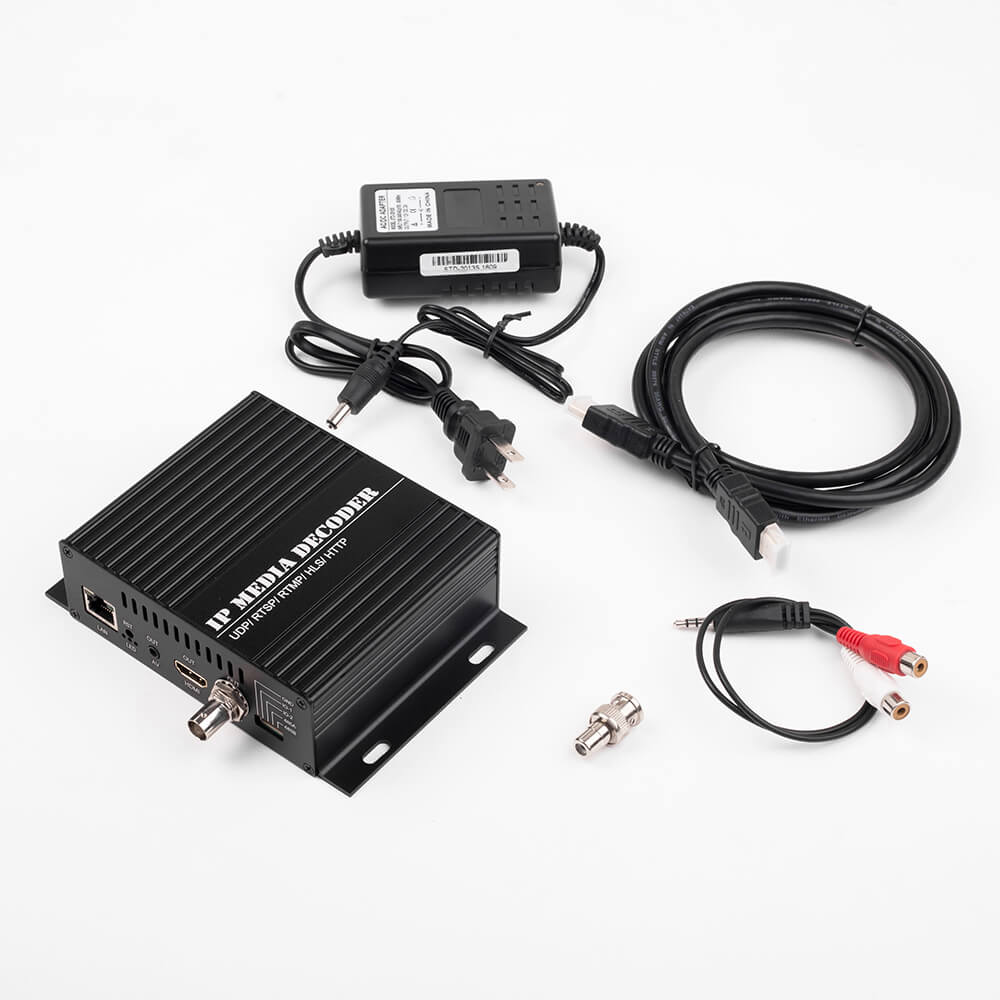

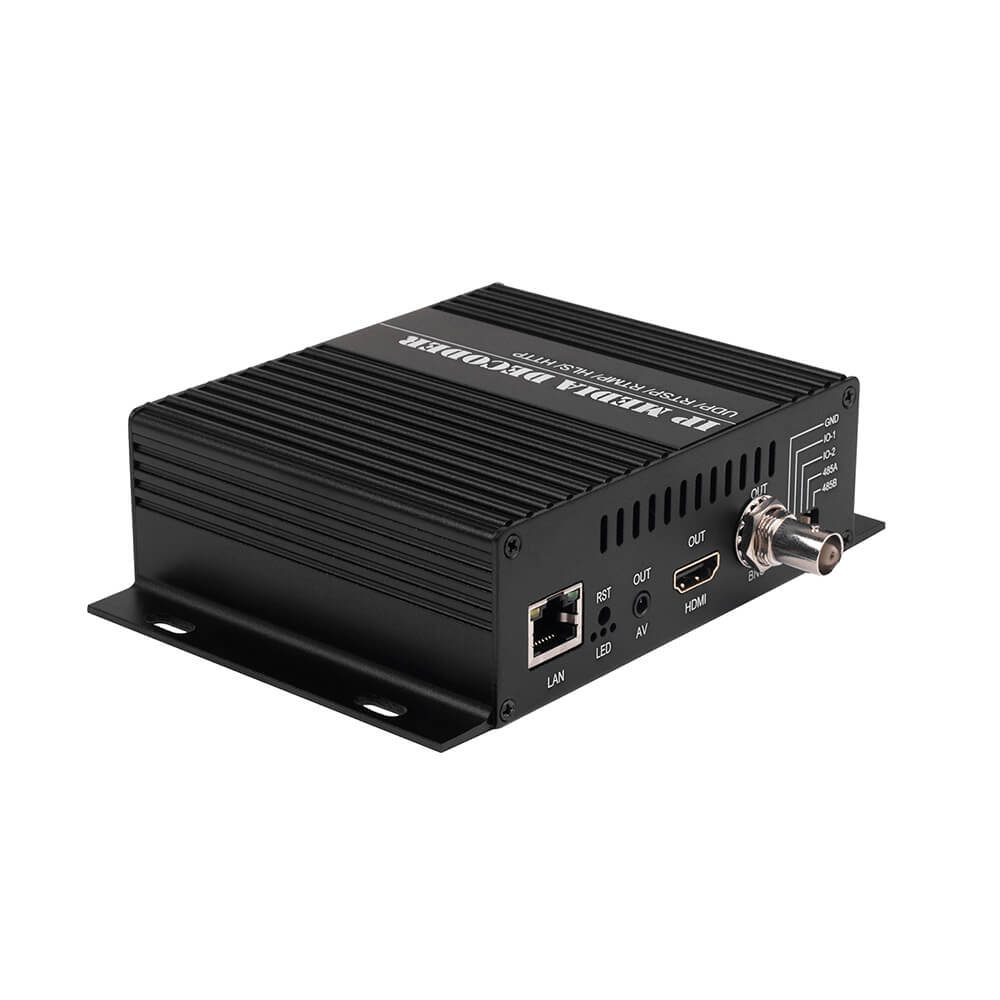

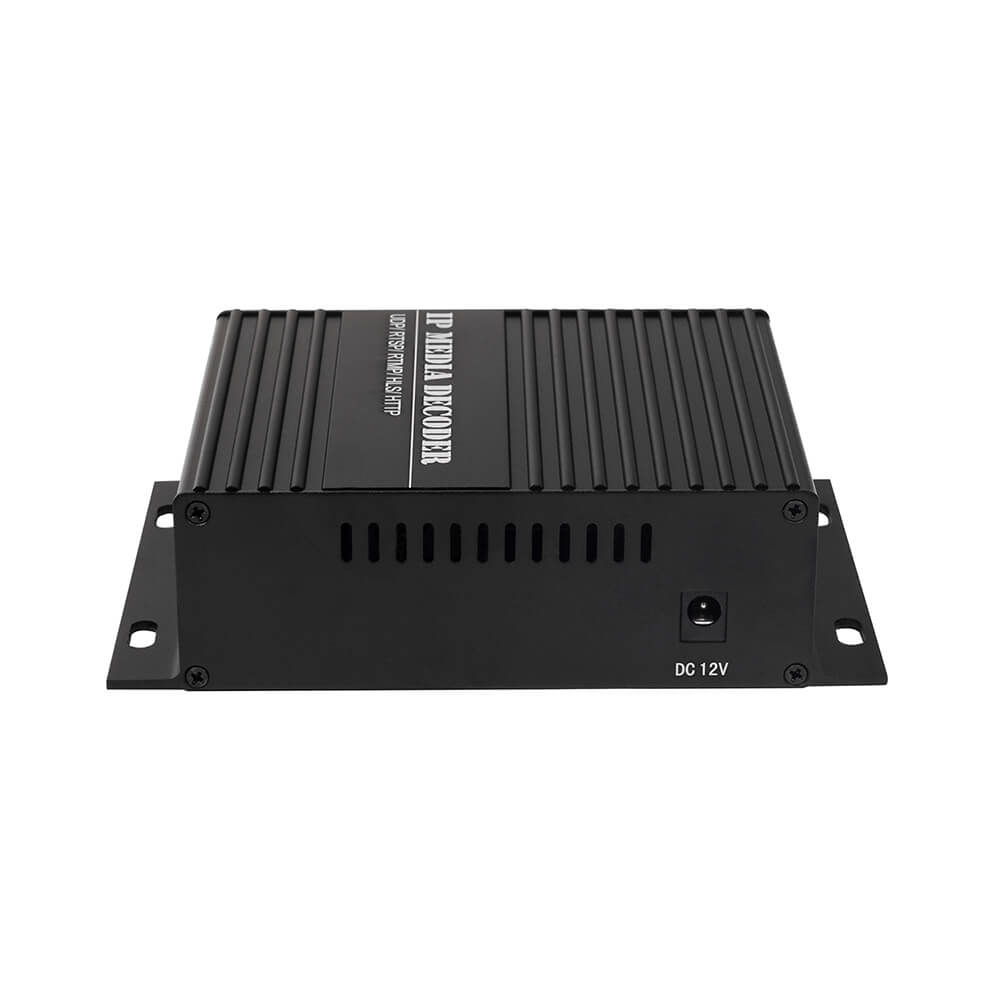

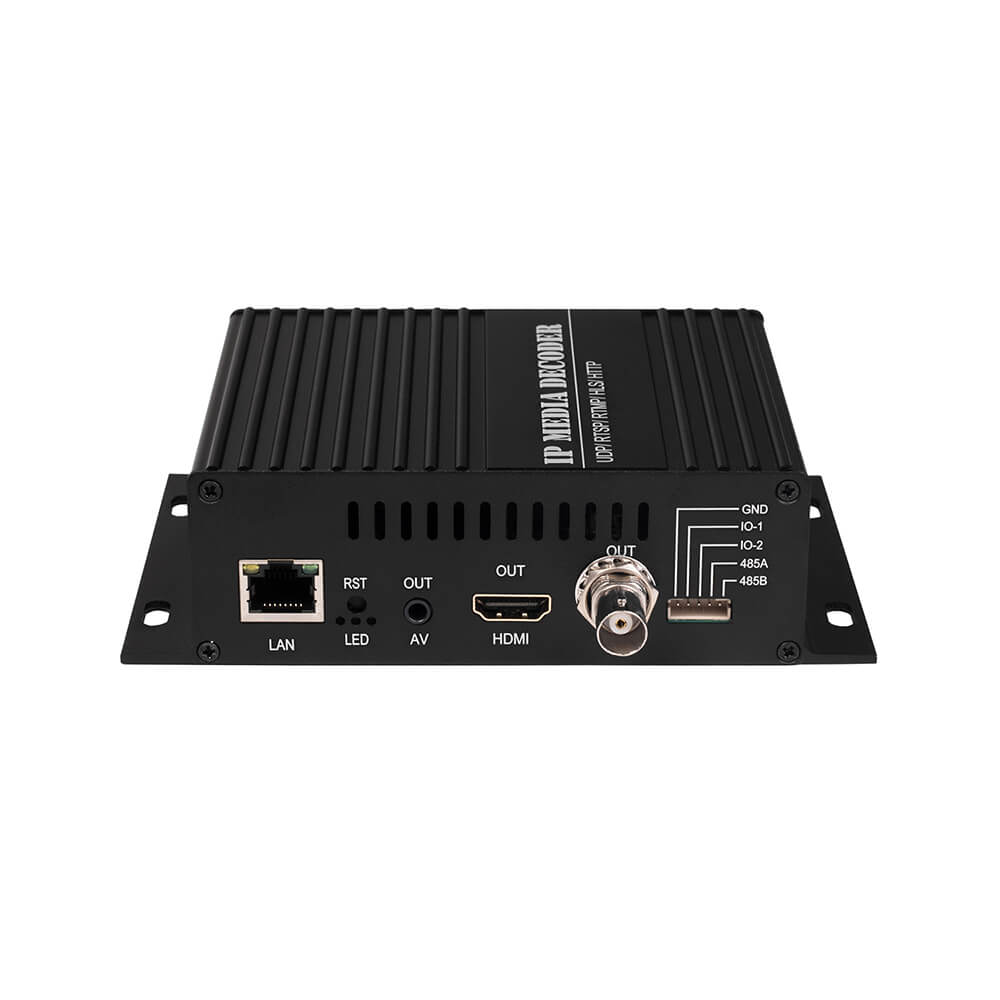

TBS2662 HDMI/CVBS H.265/H.264 Video Decoder


TBS2662 HDMI/CVBS H.265/H.264 Video Decoder

  • Product Model:TBS2662
  • Weight:700.00g
  • Reward Points:229

In Stock

US$229.00

TBS2662 is a HDMI/CVBS HD decoder, Support 1 channel HD HDMI or 1 channel CVBS output, AAC/ MP3 audio format. TBS2662 is a code engine with the ability to decode up to 1080p 60 video, compatible with multi-protocol, supports RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SLK decode, supports H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SLK input.

Key features

  • Control multi encoder based on one computer
  • H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP input
  • Output: HDMI + CVBS + audio
  • Up to 1080P 60 output
  • Support rtsp/ http/ udp/ rtmp/ hls/ rtp/ SLK
  • Multi-screen split (1、4 screens)
  • Reset button
  • low consumption

Specification

Model TBS2662 HDMI/CVBS HD decoder
Output 1×HDMI or 1 x CVBS, 1ch audio
Input IP ( RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SLK)
Video Resolution up to 1920x1080P 60 (NO fluctuating)
Decoding H.264 BASELINE PROFILE
H.264 MAIN PROFILE / H.265 MAIN PROFILE
H.264 HIGH PROFILE
Multi-screen 1、4
Protocol rtsp/ http/ udp/ rtmp/ hls/ rtp/ SLK
AUDIO Output 1×3.5 independent audio/ HDMI embedded audio
Format AAC/MP3/G711
IPInput 1× RJ 100M/1000M, TCP, UDP
System Configure IE
Power 12V ~ 2A
Consumption 4W
Size 100mm x 118mm x 40mm
working temperature -20℃+ 60℃
working humidity < 90%
Weight 0.3KG
