TBS2802 Professional 2 Channels 4K 60Hz H.265 & H.264 HDMI Video Encoder


TBS2802 Professional 2 Channels 4K 60Hz H.265 & H.264 HDMI Video Encoder

  • Model: TBS2802
  • Weight: 3,200.00g
  • Reward Points:1499

In Stock


TBS2802 is a professional 2 channels 4K HDMI Video Encoder that enables high-quality content streaming and display. It supports maximum of 4K@60Hz HDMI input and can stream to popular online social media platform, such as YouTube Live, Facebook Live, Twitch or to a custom-specified RTMP/RTMPS servers. It compatible with HTTP/HLS(M3U8)/RTSP/RTP/UDP /Unicast & Multicast/SRT/RTMP/RTMPS, what's more, it supports multiple protocol outputs, up to 6 protocols at the same time.

TBS2802 supports to capture and record HD content in H.265/H.264 format PlayStation and digital video cameras. Besides, with flexible web UI control, it can easily switch between channels and adjust configurations, offering better TV viewing experience.

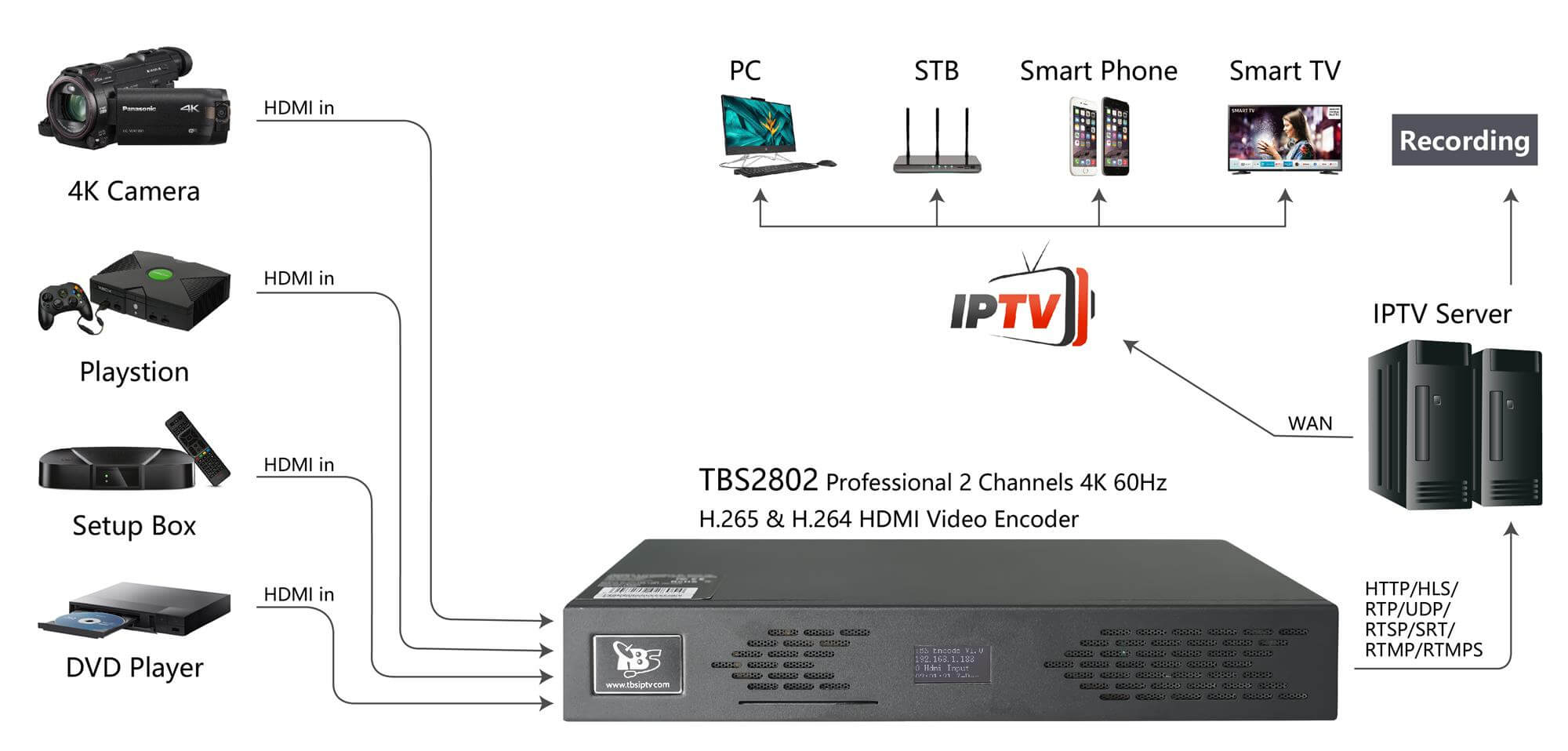

  • IPTV Servers
  • Datacasting and monitoring
  • Live TV Encoding and streaming
  • Broadcast TV

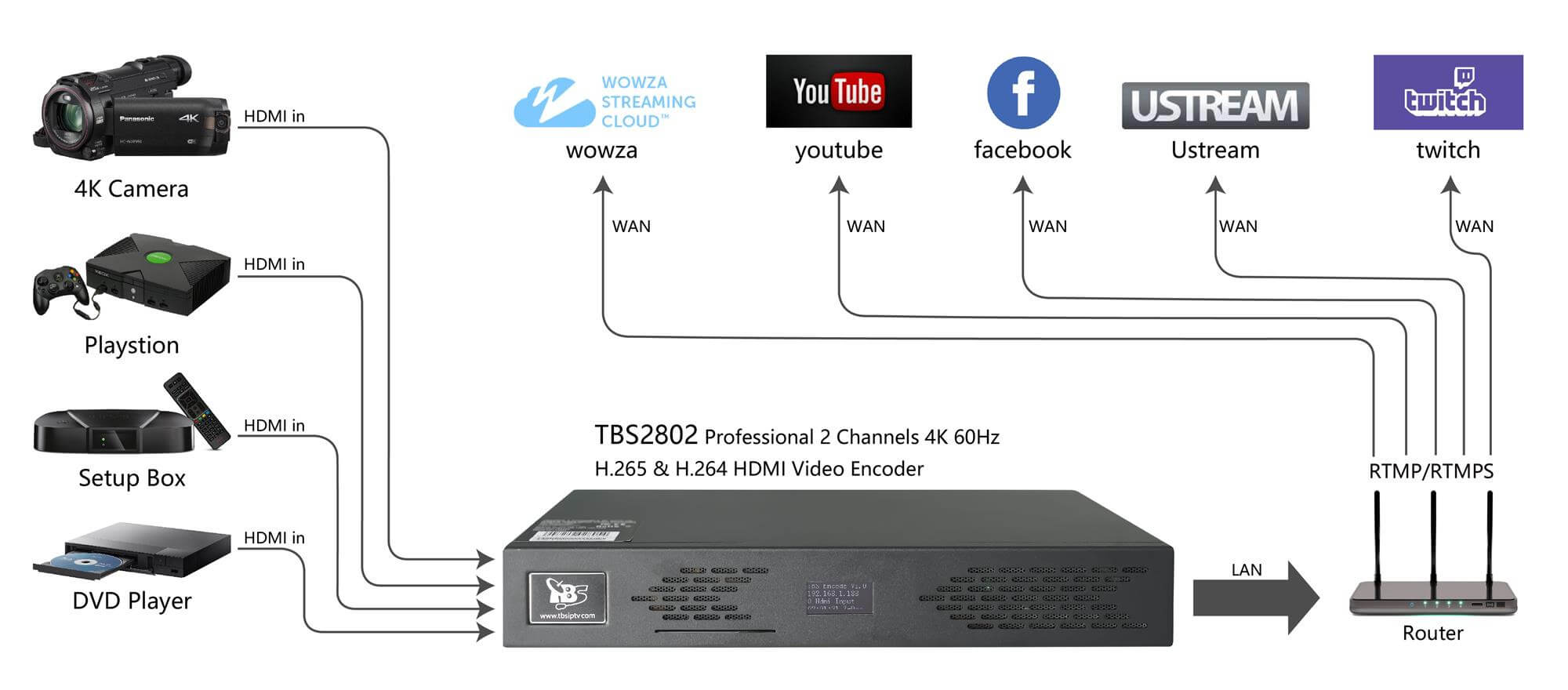

Live streaming to social media


  • Supports H.265/HEVC and H.264/AVC compression
  • Supports up to 2 channels 4K@60Hz HDMI input
  • Zero-latency HDMI loop-out, up to 4K@60Hz
  • Controlled by user-friendly web UI
  • Supports multiple streaming protocols, including HTTP/HLS(M3U8)/RTSP/RTP/UDP /Unicast & Multicast/SRT/RTMP/RTMPS

Why choose TBS2802

Supports 2 channels real 4K@60Hz encode

  • 3840x2160p@60fps(H.265) , real 4K encode
  • Capture & Deliver Live Video in 4K Ultra HD over Public Internet
  • Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
  • Efficient encoding leads to bandwidth savings, even at high resolutions.

Multiple protocol output

  • Compliant with HTTP/HLS(M3U8)/RTSP/RTP/UDP /Unicast & Multicast/RTMP/RTMPS
  • Each channels have multiple protocols for outputting

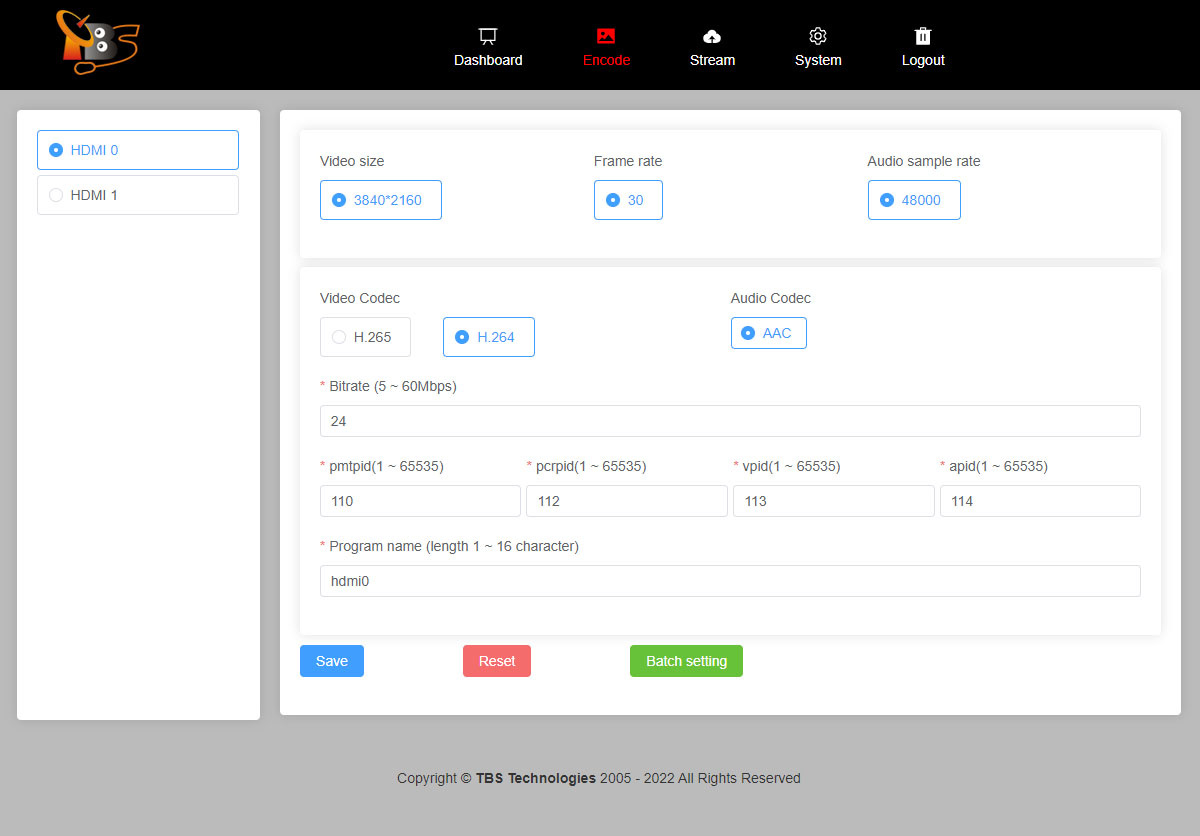

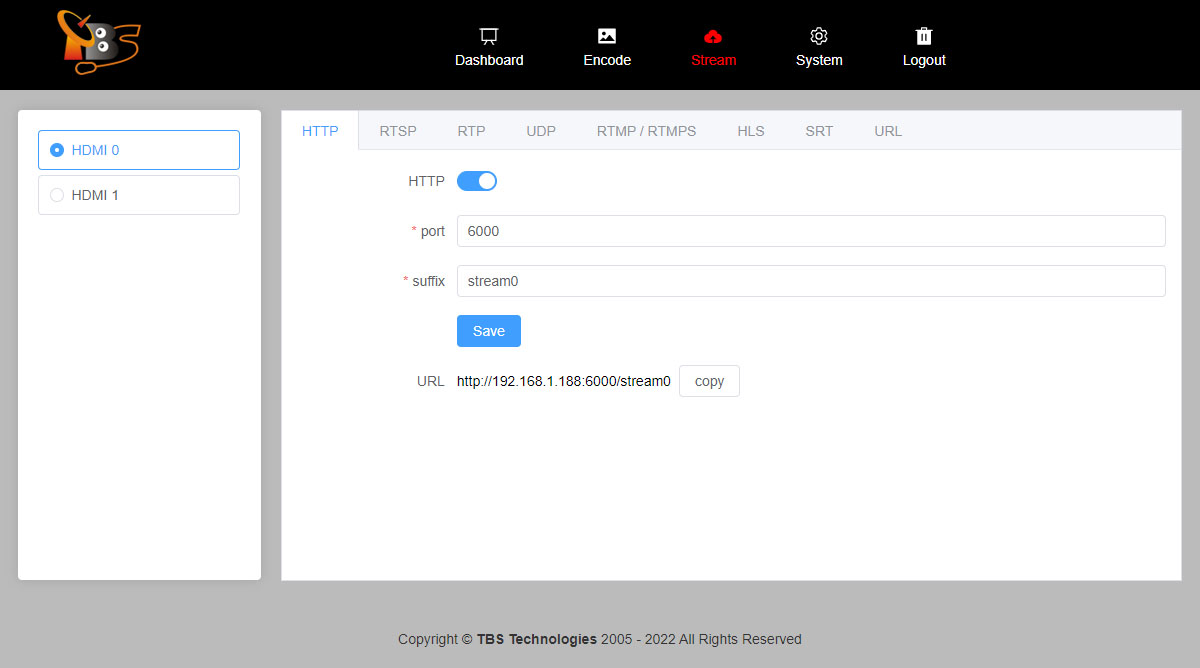

Friendly web UI for control

Reliable Web UI let you easy to setup and manage.


Model No. TBS2802
Input Interface 2x HDMI 2.0
Video Input
  • 3840x2160p_60hz, 3840x2160p_50hz, 3840x2160p_30hz, 3840x2160p_24hz
  • 1920x1080p_60hz
  • 1920x1080p_50hz, 1920x1080p_30hz, 720p_60hz, 720p_50hz
  • or lower Progressive input (does not support "Interlace" Input)
Video Output
  • 3840x2160p@60fps(H.265)
  • 3840X2160p@50fps(H.265), 3840x2160p@30fps
  • 3840x2160p@24fps, 1920x1080p@60fps, 1920x1080p_50fps, 1920x1080p_30fps
  • 1280x720p@60fps, 1280x720p@50fps or lower
Sampling format YUV4:2:2,YUV4:2:0
Video Codec H.265/H.264
Bit Rate Control CBR
GOP Length 0.5sec
GOP Structure I, P
Bitrate 1 ~ 70Mbps
Bite depth 8 bit
Audio Input HDMI embedded
Audio Codec AAC
Output Protocol HTTP, HLS(M3U8), RTSP, RTP/UDP Unicast &Multicast,SRT, RTMP/RTMPS
Control Web UI
Ethernet/LAN 1000M Base-T Ethernet Interface
Dimension 313mm * 220mm * 48mm
Power Consumption Less than 20W
