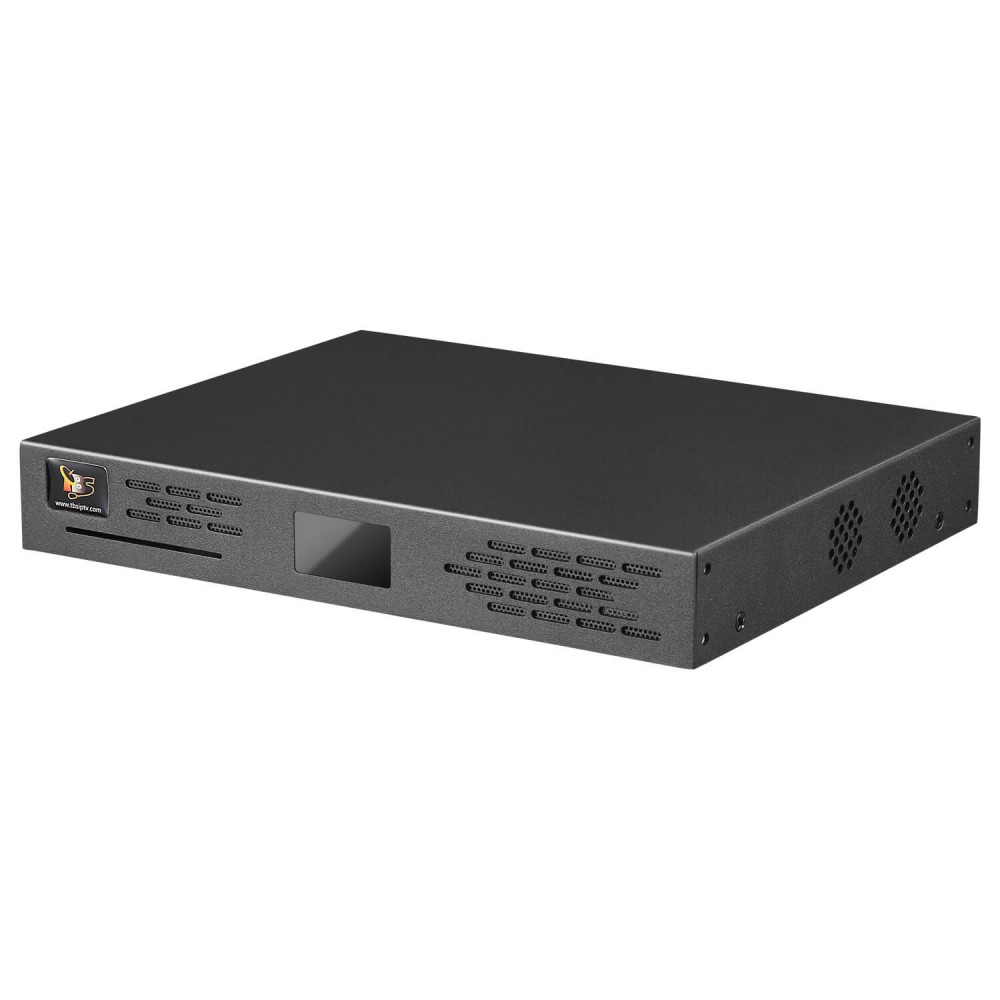

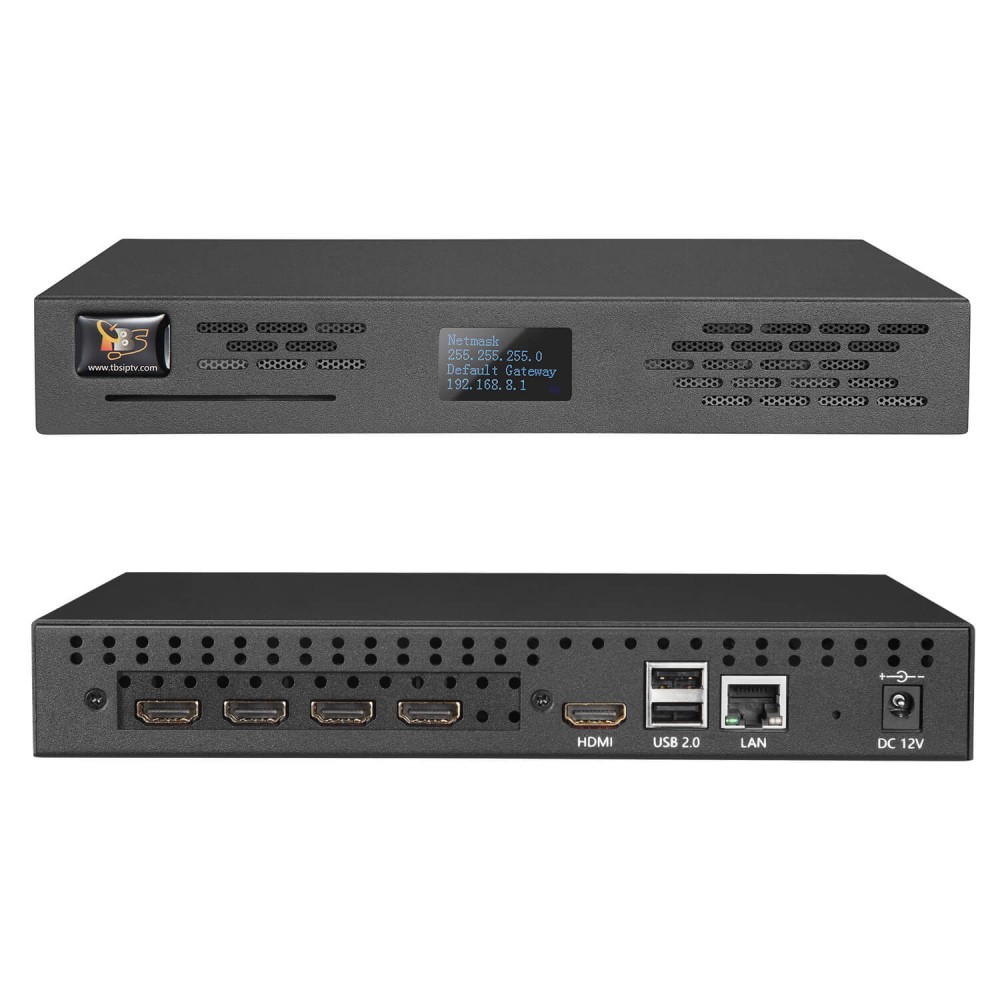

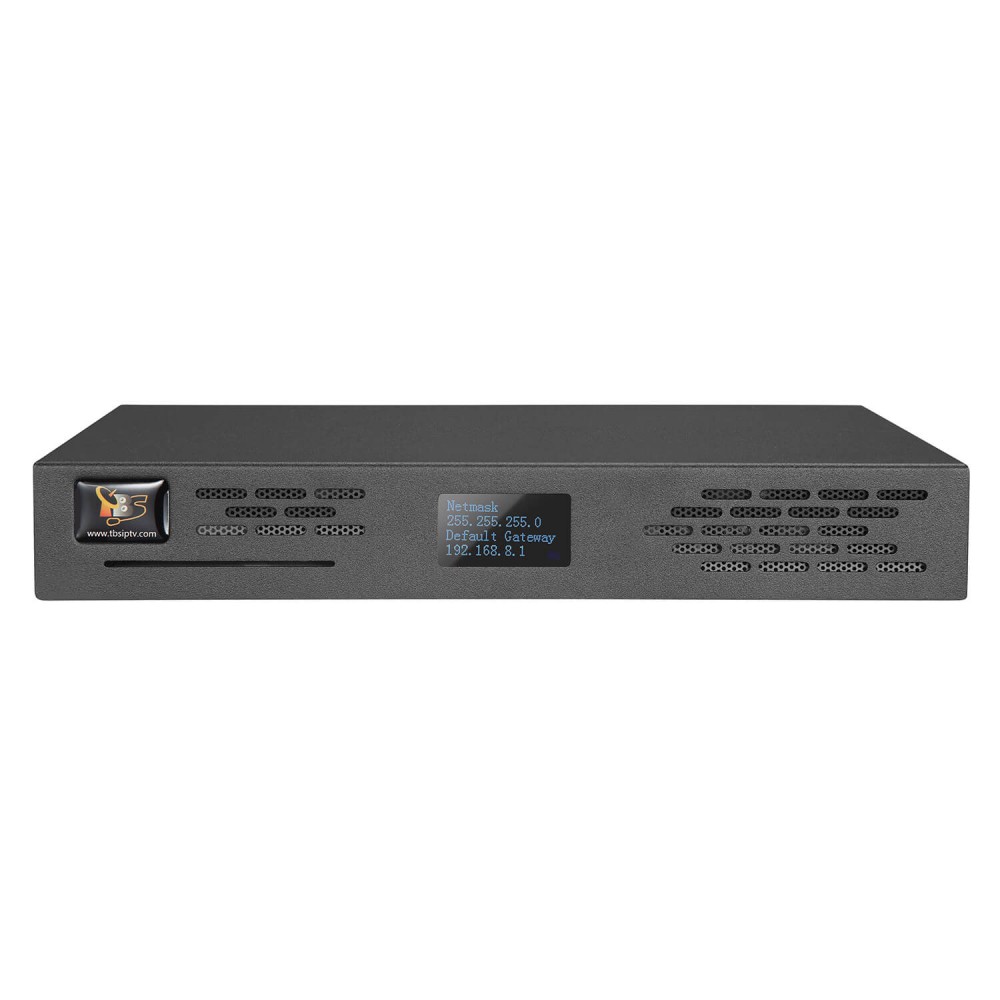

TBS2804X 4 Channels 4K 30Hz HDMI Video Encoder
TBS2804X 4 Channels 4K 30Hz HDMI Video Encoder
- Model: TBS2804X
- Weight: 2,000g
- Reward Points: 950
In Stock
US$950.00
TBS2804X is a professional 4 channels 4K HDMI Video Encoder that enables high-quality content streaming and display. It supports maximum of 4K@30Hz HDMI input and can stream to popular online social media platform, such as YouTube Live, Facebook Live, Twitch or to a custom-specified RTMP/RTMPS servers. It is compatible with HTTP, HLS, UDP Multicast, SRT (Listener), RMTP, SAP. What's more, it supports multiple protocol outputs, up to 6 protocols at the same time.
TBS2804X supports to capture 4K content in H.265/H.264 format. Besides, with flexible web UI control, it can easily switch between channels and adjust configurations, offering better TV viewing experience.
Features:
- Supports H.265/HEVC and H.264/AVC compression
- Supports up to 4K@30Hz HDMI input
- Controlled by user-friendly web UI
- Hardware compression , save CPU resource.
Specification
| Model | TBS2804X |

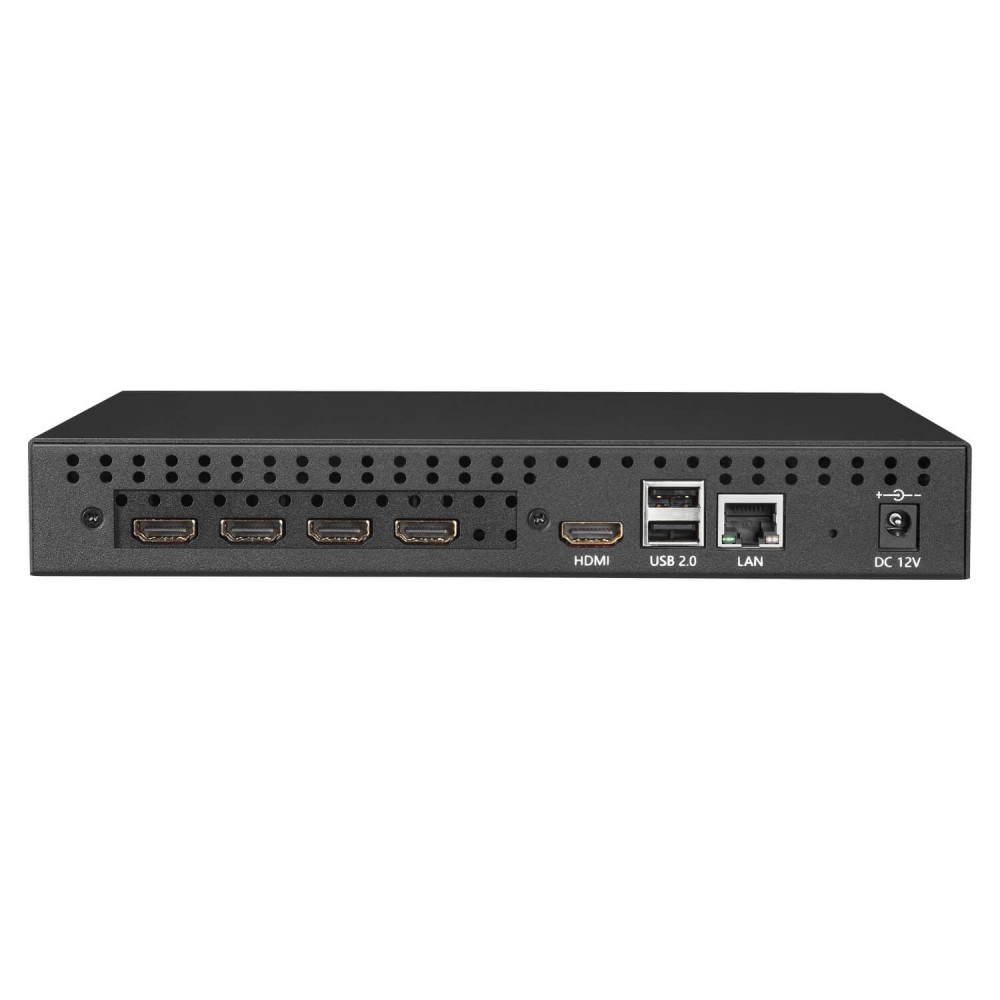

| Input | 4x HDMI 1.4a |
| HDCP 1.4 supported | |
| Video Input | 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, |
| 1280x720p_60/50hz, 720x576p/i, 720x480p/i, and etc. | |
| Video Output | 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etc |
| Sampling format | YUV4:4:4 |
| YUV4:2:2 | |
| YUV4:2:0 | |
| Codec | H.265 & H.264 |
| Profile | H.264, Main/High; H.265 Main |
| Frame rate | 5 ~ 60fps |
| Level | H264: Level 4.2; H265: Level 4.1 |
| Bit Rate Control | CBR, VBR |
| Color depth | 8 bit |
| Audio Input | HDMI Embedded audio |
| Audio Codec | AAC-LC, AAC-HE, MP2 |
| Bite Rate | 0.3 ~ 20Mbps |
| GOP Structure | IPPP |
| Protocols | HTTP, HLS(m3u8), UDP multicast, SRT caller & listener, RTMP & RTMPS |
| Control | Web GUI |
| OSD Overlay | Supports inserting "Logo, Text" to video |
| Ethernet/LAN | 1000M Base-T Ethernet Interface |
| Dimension | 230mm * 180mm * 34mm |
| Power Consumption | Less than 30 Watt |
| Net weight | 1.27kg |
