TBS2926 DAB/FM/AM & DVB-C Streaming Server
TBS2926 DAB/FM/AM & DVB-C Streaming Server
- Model: TBS2926
- Weight: 1,200g
In Stock
US$599.00
TBS2926 is a DAB/FM/AM & DVB-C streaming server. It is designed for multi-source broadcast reception, channel management and IPTV delivery over IP networks. The unit combines RF reception, network streaming and web-based configuration in a compact enclosure.
APPLICATIONS
HOSPITALITYGuest-room IPTV
CABLE TVRF-to-IP delivery
COMMUNITYShared TV systems
HEADENDSmall IPTV sites
KEY FEATURES
MULTI-SOURCE RECEPTIONBroadcast and network input options for
cable, DAB/FM/AM signals.
COMPACT HARDWARESmall-format server with RF connections,
Ethernet, USB, HDMI and DC 12 V.
WEB-BASED CONTROLBrowser-accessible configuration, channel
management and software maintenance.
IP STREAM DELIVERYHTTP / UDP / RTP streaming output
ADDITIONAL FUNCTIONS
- Audio-channel selection
- Channel-list broadcast
- Browser-based upgrade, backup and restore.
- Dolby audio to MP2 or AAC
- Multi-frequency program decryption
- Multicast output of original transport streams

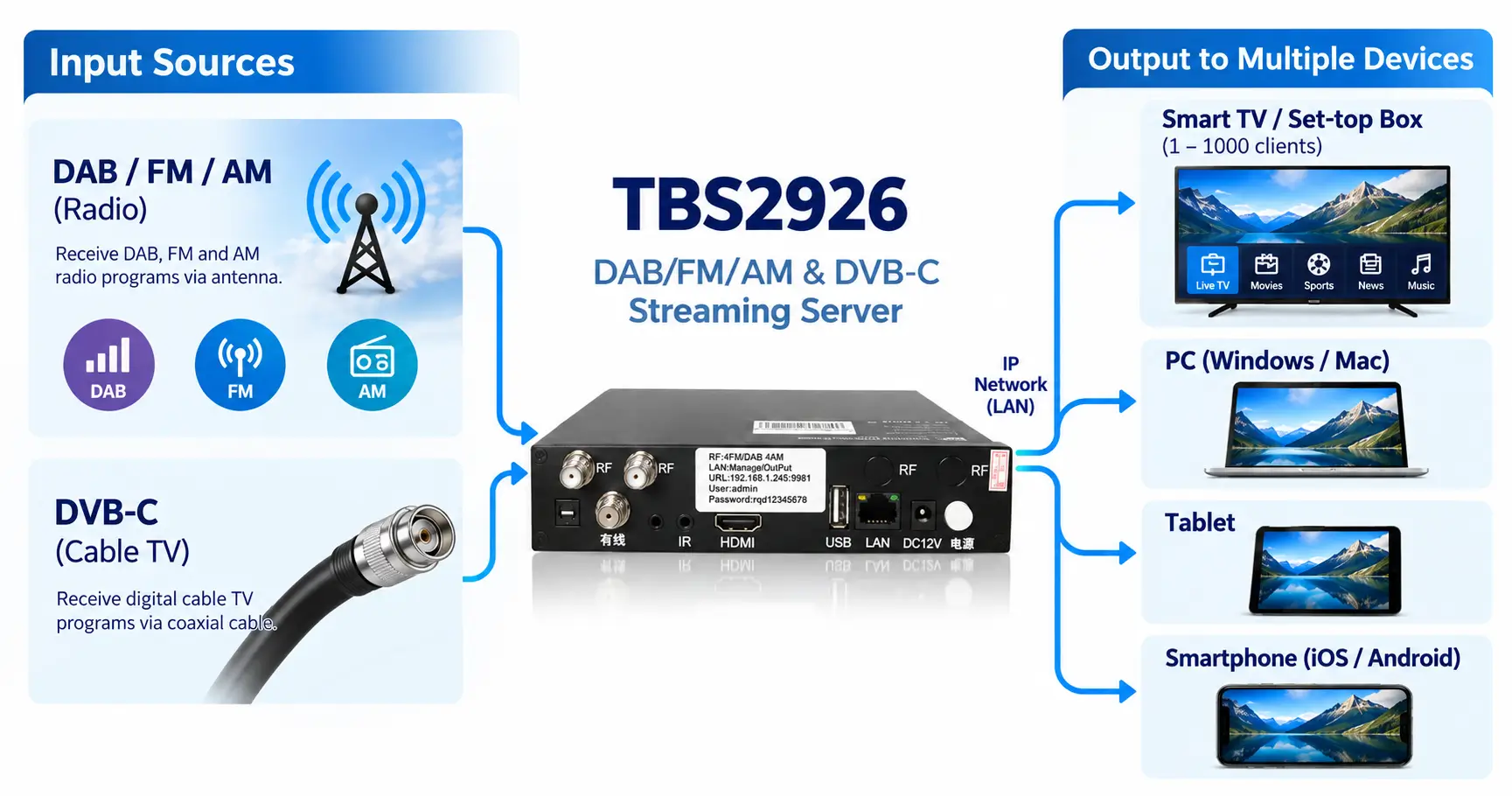

HOW TO USE
TECHNICAL SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Processor / Memory | HiSilicon Hi3798CV200; quad-core 64-bit processor; 2 GB RAM + 8 GB eMMC |
| DAB Input | 4 frequencies; 30MHz ~ 3GHz |
| AM Input | 4 frequencies; 150kHz ~ 30MHz |
| FM Input | 4 frequencies; 76MHz ~ 108MHz |
| DVB-C cable TV | 4 frequencies; 87-860 MHz; 24/36 SD or 12/18 HD channels |
| IPTV input | 1 x Gigabit Ethernet input |
| Network output | 1 x Gigabit Ethernet port |
| Card reader | 1 built-in card reader; external USB reader supported |
| Video / audio formats | MPEG-2, H.264, HEVC, MP4, AVS/AVS+, AVS2, AVS3, MPEG-1, AAC, MP3/MP4A, DRA, MMTLV |
| Input protocols | HTTP, HTTPS, UDP, RTP; broadcast RF sources |
| Output protocols | HTTP, UDP, RTP, RTMP (engineering version) |
| Management | Web-based management interface |
| Maximum connections | Up to 40 HD devices (per source specification) |
| Power supply | 100-240 V AC, 50/60 Hz; 12 V / 2 A or 12 V / 3 A adapter |
| Maximum power consumption | 12 W |
| Operating temperature | 0 C to 45 C |
| Storage temperature | -20 C to 60 C |
| Dimensions | 180 x 180 x 35 mm |
Note: Max. 4 frequency inputs in total, whether single type or mixed types (e.g. 2 x DAB + 2 x FM)
