TBS2956 Industrial Media server


TBS2956 Industrial Media server

  • Model: TBS2956
  • Weight: 3,300.00g

Discontinued

Successor

Overview:

TBS2956 is the latest generation of digital TV streaming server from TBS Technologies International Ltd. It is powered by AMD Embedded G-Series SoC, equipped with 4GB DDR3 and 30G mSATA SSD and the mini Fanless design make it available with a wall mount or DIN-rail mount ensuring maximum flexibility and upgradeability. TBS2956 media server is ideal for economic IPTV solution in coffee shop, exquisite bar, restaurant or vehicle carrier etc.


Features:

  • Industrial Fanless Embedded computer
  • Available for Wall Mount or DIN-Rail Mount
  • 2 PCI-e interface for different TBS DVB standard cards
  • Apply to Economic IPTV Solution
  • IPTV streaming server and CMS server

What can TBS2956 do?

Digital TV Channels Capturing and Streaming

--- TBS2956 server delivers video content over the Internet to a user with a computer, smartphone, or other connected device.

--- Loaded with any of TBS Digital TV Tuner card, TBS2956 server captures SD/HD Live channels from satellite TV, Terrestrial TV, Cable TV.

--- Embedded variety of streaming software: TVheadend, VDR, MuMuDVB, DVBlast, TBS2956 is available to streaming channels with protocol of UDP/RPT or http.

--- The Mini Fanless design, TBS2956 server is available with a wall mount, the idea choice of outdoor IPTV system, for example, The Vehicle IPTV system.



All-in-ONE IPTV headend server for small size IPTV solution

TBS2956 server is an all-in-one IPTV headend for receiving and multicast/unicast streaming of satellite, terrestrial, and cable TV channels; uploading, storing, encoding, managing and distributing movies in IP networks upon request; capturing and transmission on-line video streams over IP networks and Internet.

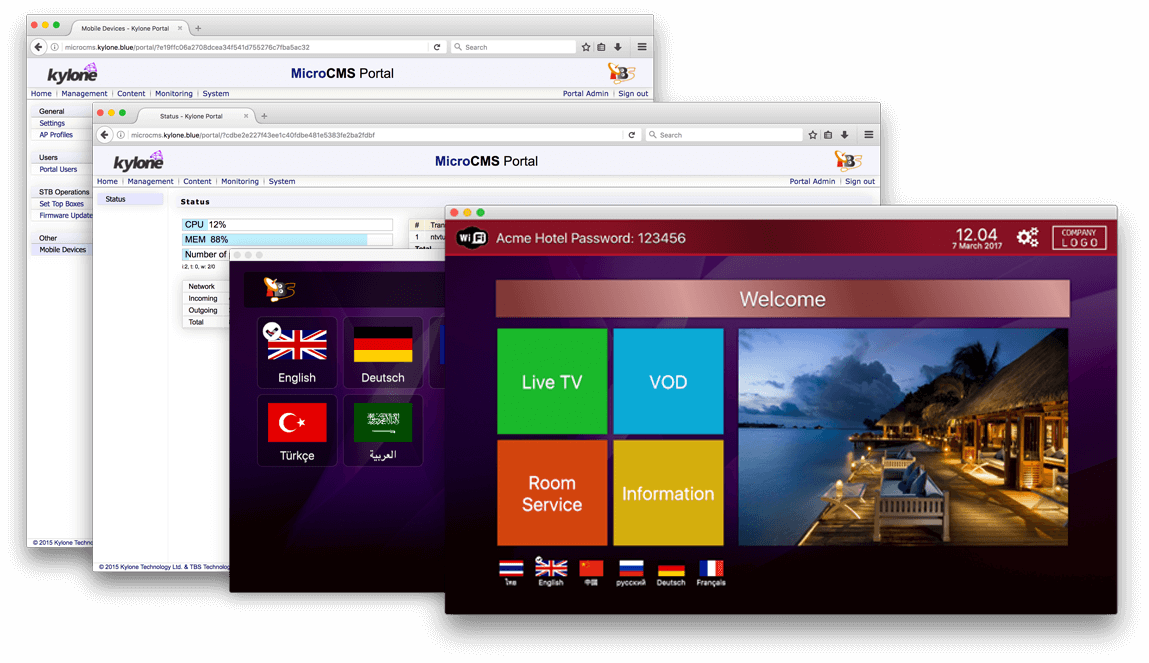

Embedded Kylone Panel software provides graphical user interface for the IP set-top boxes, management of tariff plans and providing access to IPTV services for users. Ideal for economic IPTV solution in coffee shop, exquisite bar, restaurant or vehicle carrier etc.


Why you choose TBS2956 ?

Fanless and ventless enclosure designed for the rigors of industrial environments. Internal components are protected from dust, airborne contaminants and even chemical and moisture ingress, as well as shock and vibration, all of which can have devastating effects on sensitive electronics.

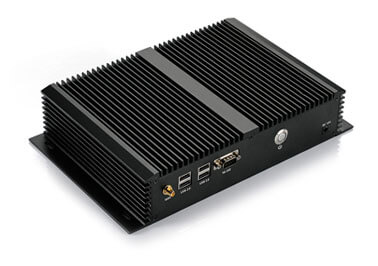

Small size and solid-state construction, the TBS2956 media server is easy to mount on a wall, under a desk or virtually anywhere you need a highly-capable industrial PC.

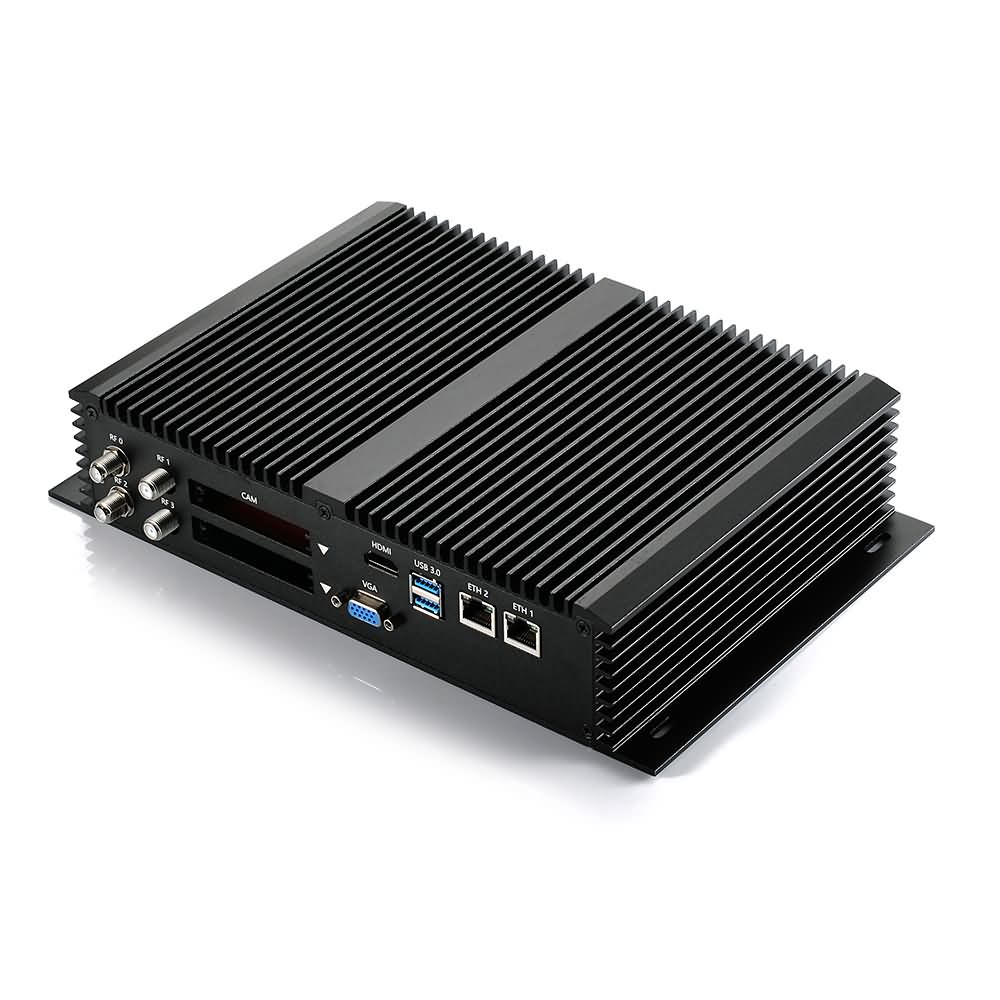

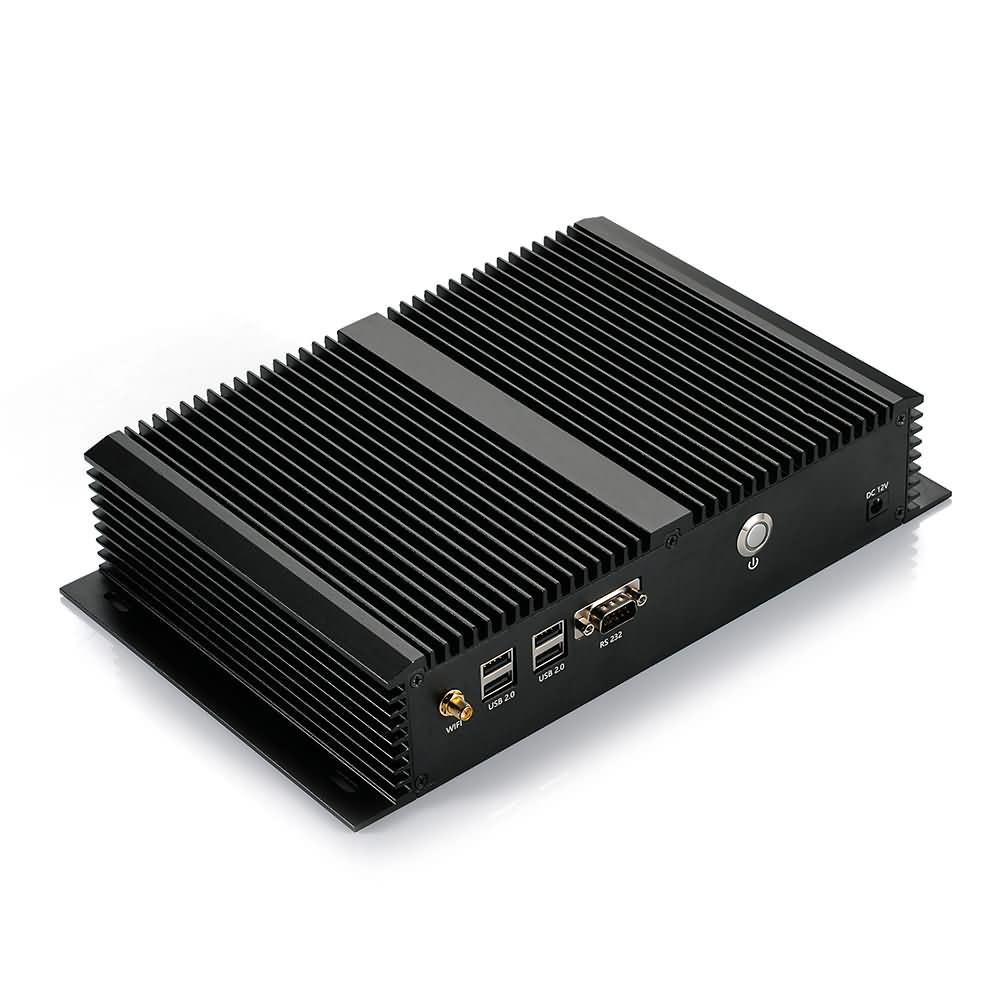

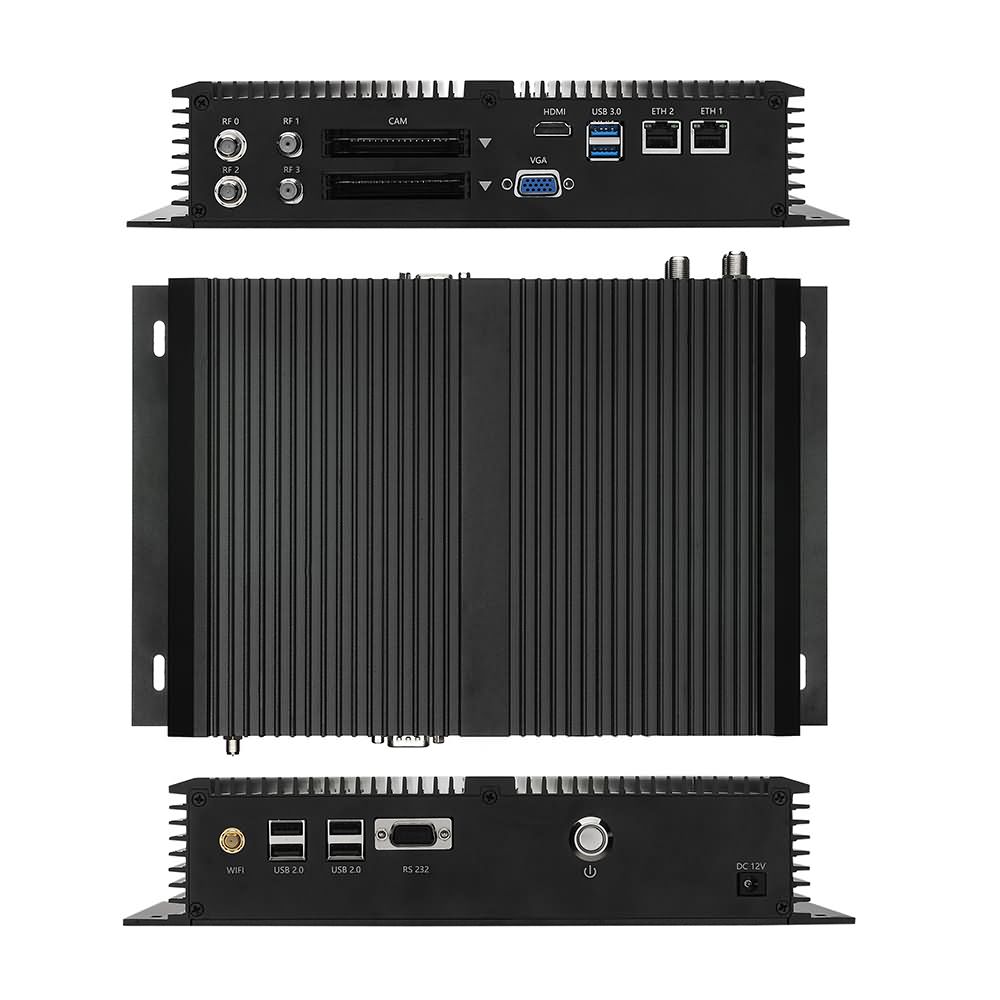

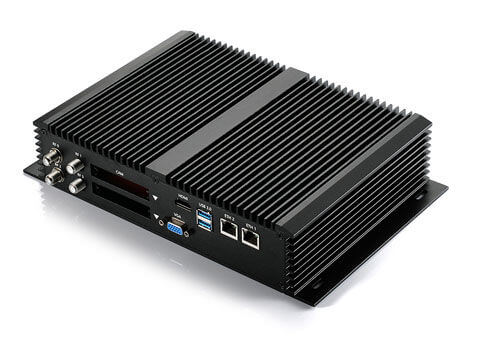

Features a wide variety of connectivity options including 2 PCI-E interfaces for receiving DVB standard TV tuner channels, 5 USB ports (4 of which are USB 2.0, 1 USB 3.0), 1 HDMI for multimedia applications, dual LAN enabling a range of network connectivity options, and comes standard with one VGA port. The TBS2956 will let you interface with new and legacy equipment alike, making it ideal for both new projects or retrofitting into existing IT infrastructure.

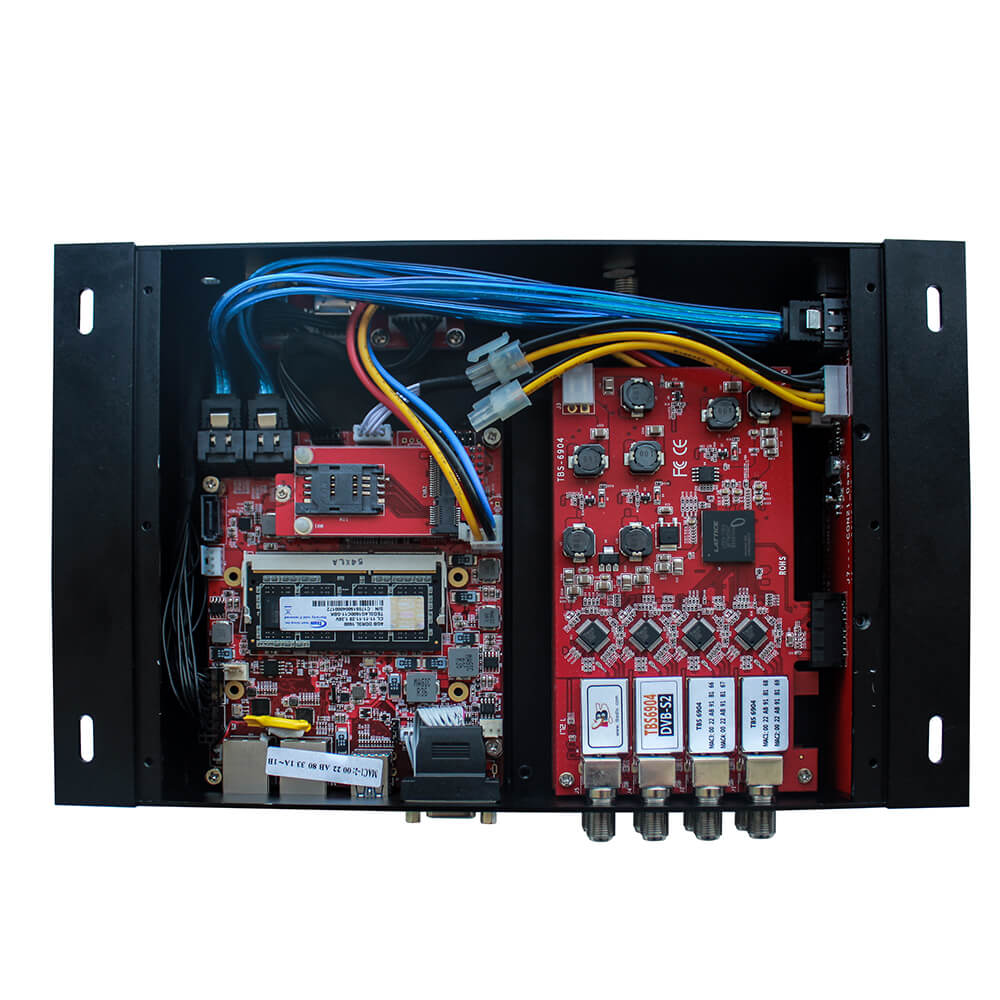

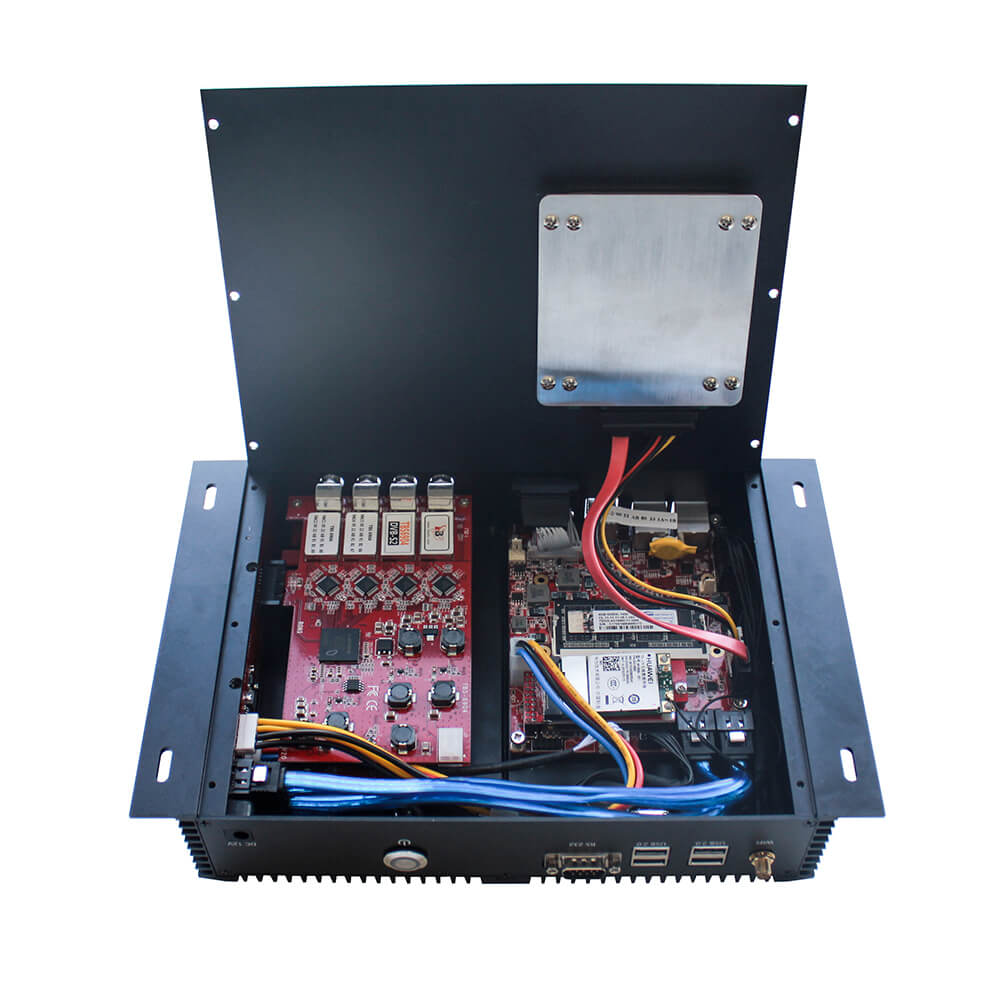

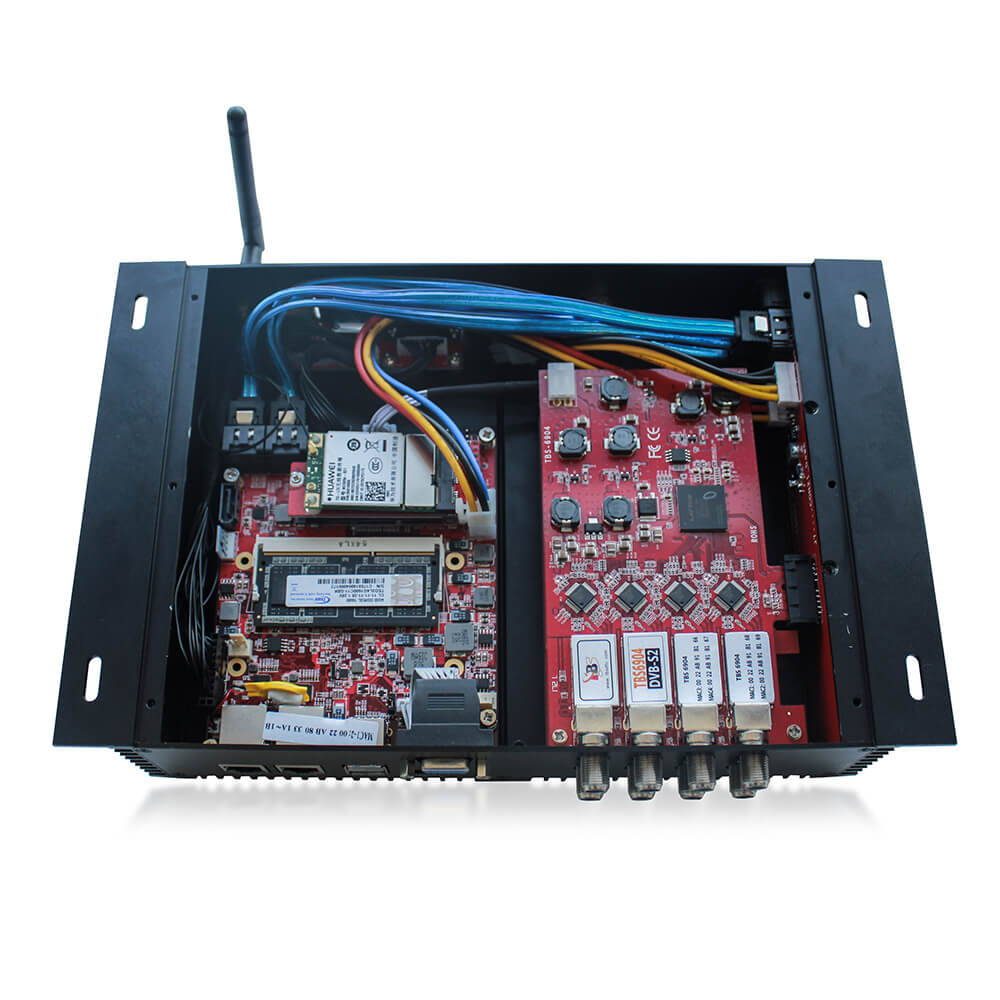

(TBS2956 support to install 2 TBS PCI-E tuner cards iside, now we have A,B,C,D versions)




Ideal for IPTV system integrators and TV service operators. It allows you to use not only Linux and Ubuntu, but also Windows. Open source software such as Kodi(XBMC), OpenPCTV and DR are pre-installed to create a read-to-run platform.




Compatible with Kylone IPTV management system, which comes with flexible management on live TV management, VOD service, terminal device, added value service and customized web UI settings,ideal for economic IPTV solution in coffee shop, exquisite bar, restaurant or vehicle carrier etc.


Specification

Processor AMD® Embedded G-Series SoC (Quad Core, 2GHz)
RMA Support up to 8GB
Graphics Integrated AMD Radeon™ HD
APU AMD® Embedded G-Series SoC
Ethernet 2x LAN Gbit / 100 Mbit / 10 Mbit,
Storage 1 x SATA 6.0 Gb/s
SSD 30G mSATA SSD
RS232 2 x RS232
FRONT PANEL POWER SW
POWER LED
Display Interface 1 x HDMI
1 x VGA (The reserved connection)
USB 4 x USB 2.0
2 x USB 3.0
Expansion Interface 2 x PCI-E
Operating Systems Microsoft® Windows 8, Microsoft® Windows 7,
Microsoft® Windows® 7/8 embedded Standard, Microsoft® Windows® 7 Embedded Compact
Linux, Ubuntu,
Operating Temperature -25°C ~ 70°C
Humidity 10%~90% , non-condensing
Storage Temperature -40°C ~ 85°C
