TBS3102 5 Crystal Phoenix/Smartmouse Card Reader

  • Product Model: TBS3102
  • Weight: 200.00g
  • Reward Points: 20

In Stock


TBS3102 5 Crystal Phoenix/Smartmouse Card Reader is a simple but powerful card reader tool for reading most ISO7816 smartcard. The card reader supports both Phoenix and Smartmouse mode and it has only one USB port for both power supply from PC’s USB connection and data communication. The computer will look this card reader as COM interface device after installing the driver. TBS3102 supports up to five crystal frequencies, 3.3V and 5V card voltage and Phoenix/Smartmouse working mode. Both Windows driver and Linux driver is ready.


  • Cable connection: USB for power supply and data communication
  • Prog. Mode: Phoenix and Smartmouse
  • Power Mode: DC 3.3V/5V shiftable
  • Frequency:

    Model A: 3.579MHz / 6MHz / 8MHz / 10MHz /12MHz shiftable
    Model B: 3.579MHz / 3.686MHz / 6MHz / 8MHz / 10MHz shiftable
    Model C: 3.579MHz / 3.686MHz / 4.8MHz / 6MHz / 8MHz shiftable
    (Or any other frequency requirements you may contact us)

  • Led light indicating data communication

Package Content:

  • 1 x TBS3102 Phoenix/Smartmouse Card Reader

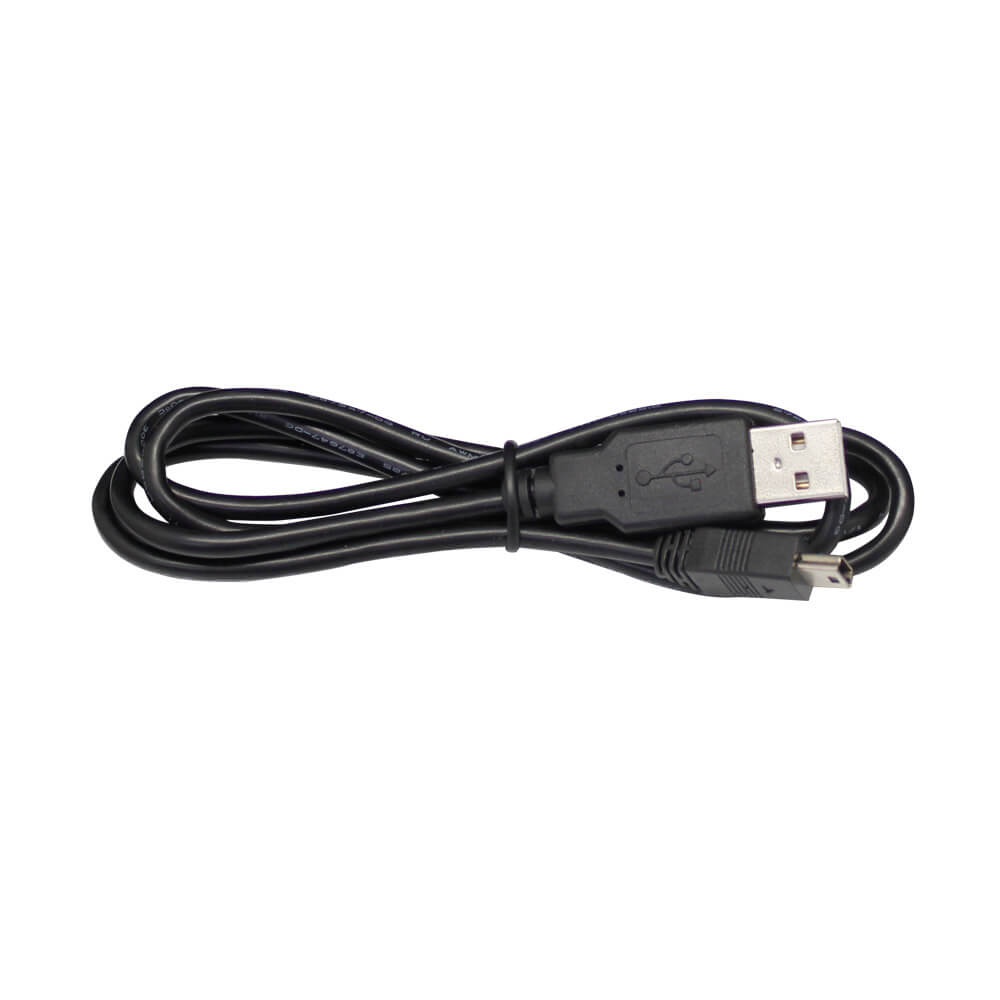

  • 1 x USB Cable
