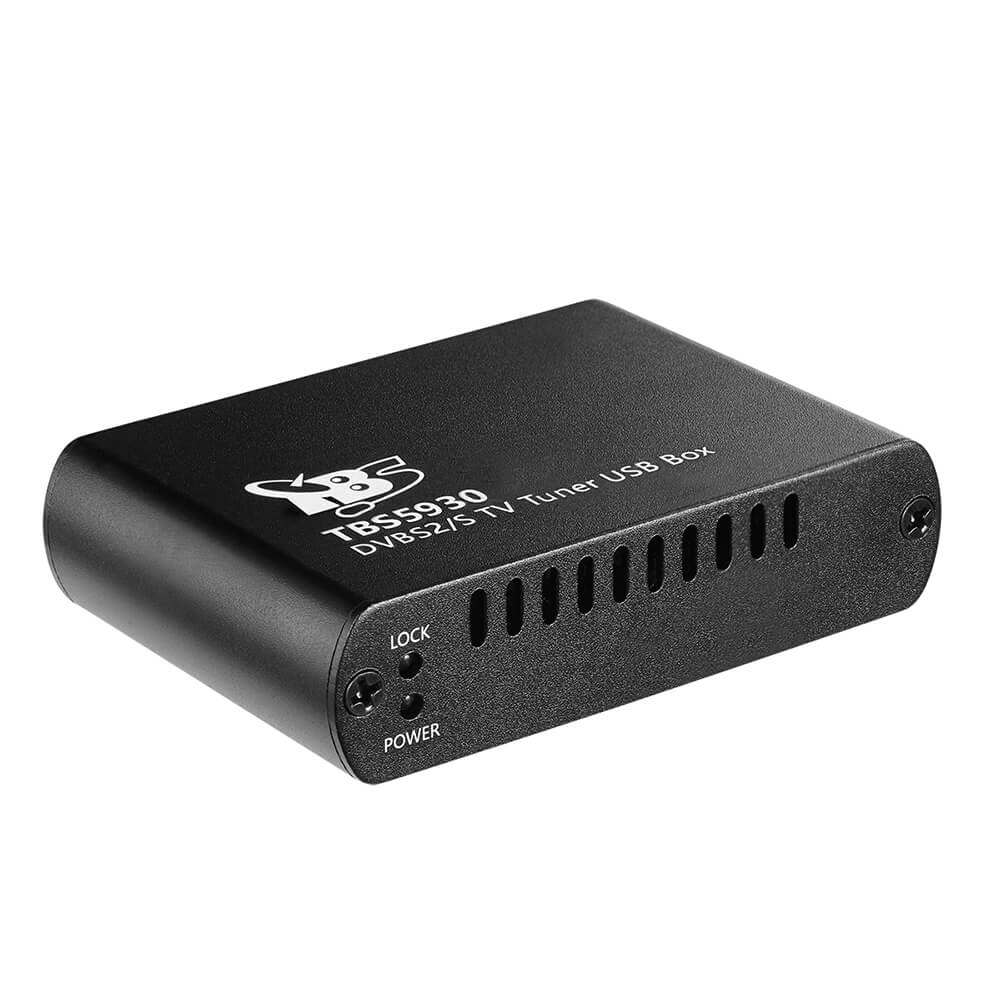

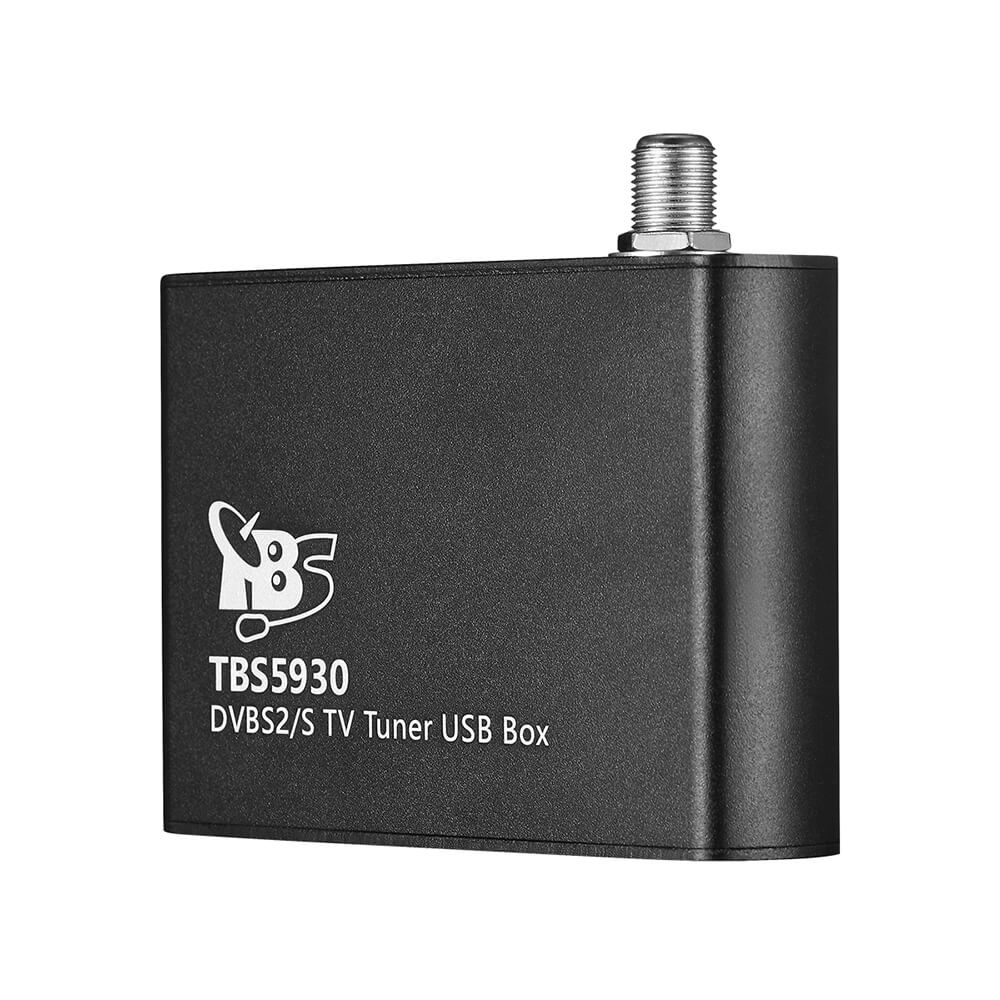

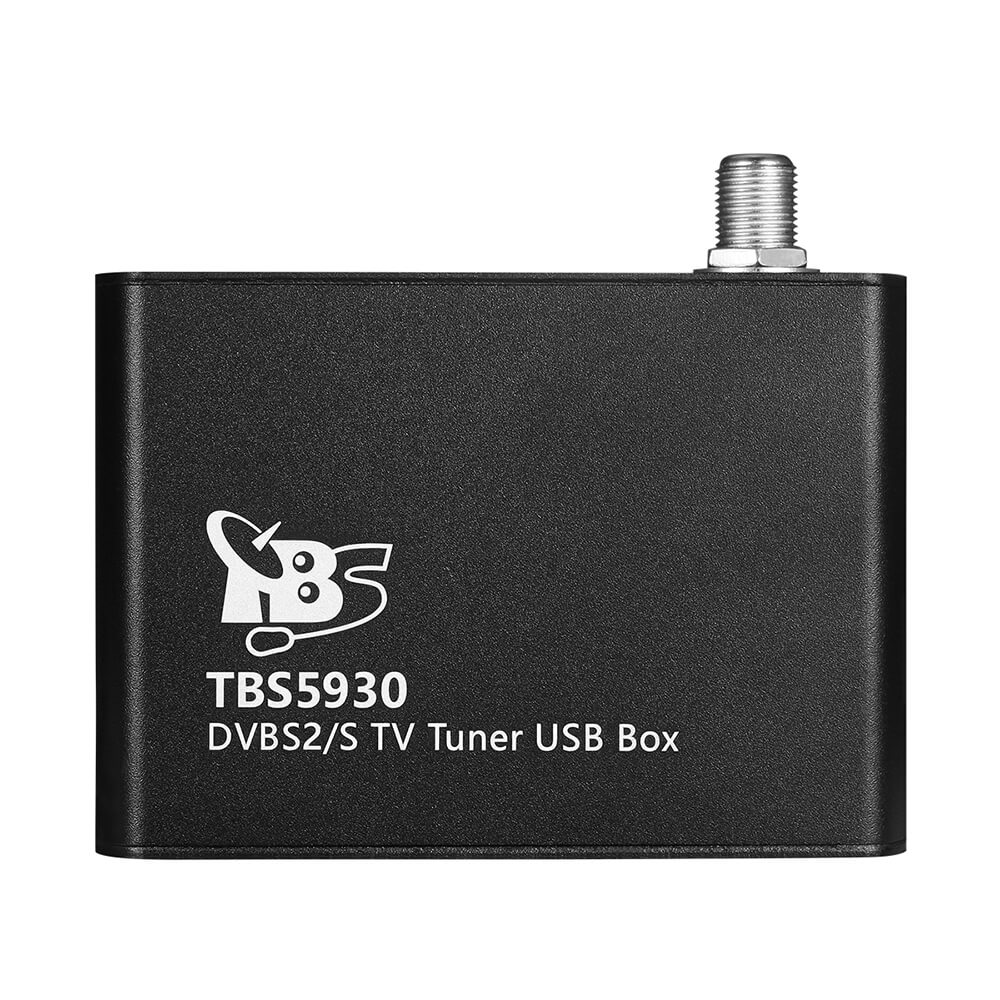

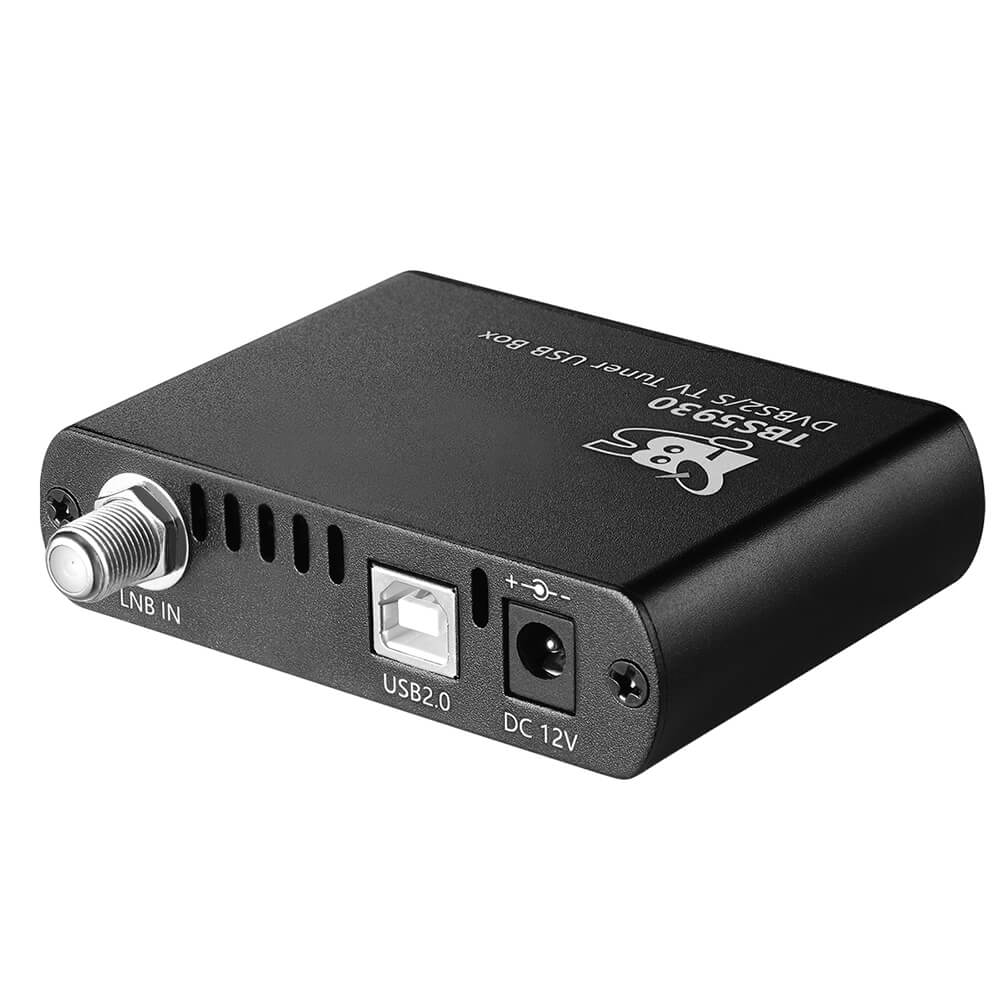

TBS5930 DVB-S2X/S2 TV Tuner USB Card


TBS5930 DVB-S2X/S2 TV Tuner USB Card

  • Model: TBS5930
  • Weight: 615.00g

In Stock

US$99.00

TBS5930 DVB-S2X/S2 TV Tuner USB card is an USB interface digital satellite external TV Tuner box for watching and recording Free to Air satellite TV on both desktop and laptop PC. It supports both DVB-S2 and DVB-S programs receiving. It's ready with Windows BDA driver and Linux driver. It's compatible with Windows7 Media Center, MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV, VDR and many other popular DVB softwares.

TBS5930 equipped with advanced DVB-S2X RF/Demodulator chipsets and it's built with high quality components, it's ideal for watching many Free to Air (FTA) satellite TV programs and with VCM supports, which is considered as a professional TV tuner for industrial-level users. The built in hardware blinds can capability allows you to scan satellite programs without knowing exact transponder details, this is very useful, especially for satellite feed hunting.

Main Features:

  • Support DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Supports VCM and multi stream
  • High-speed data download via satellite
  • Watch & record satellite TV/ radio programs on PC

Applications:

  • Data receiving
  • IPTV streaming
  • Media monitoring
  • Digital content distribution

Specification

Model TBS5930
Connection USB 2.0
1x RF in
DVB-S/S2/S2X
DVB-S/S2 QPSK 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK 3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X QPSK 1/4, 1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45, 7/15, 8/15, 32/45
8PSK (8APSK-L) 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK(32APSK-L) 3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs)
32/45 , 11/15, 7/9, (2/3)
VCM Yes
Symbol rate 1 ~ 45Msymb/s
Power consumption
Input/ Power: 1 ~ 6W
temperature 0° ~ 78°
System Requirements Windows XP / Vista/ 7/8/10, Linux
Available USB 2.0 slot
Dimension:
TV card size 9 * 7.5 * 2.5 (cm)
Gift Box Size 16.5 * 16 * 8.5 (cm)
Weight 490g

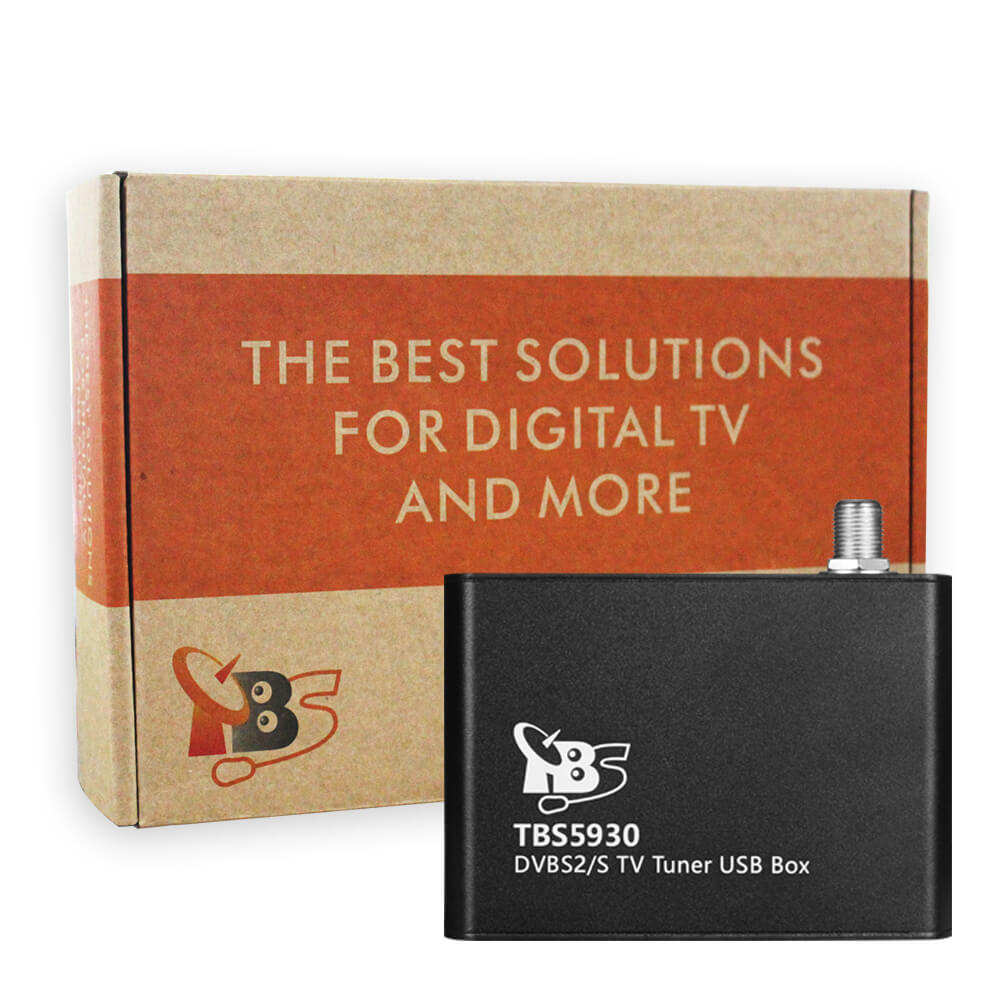

Package Contents 1 * TBS5930
1 * USB cable
1 * Power adapter

TBS5930 Sensitivity Test

Test conditions: symbol rate :30Msym/s
modulate:8psk
FEC :2/3
roll off: 0.35 polit off
Unit:dBm
Frequency (MHz) Tuner 0
950 -84
1000 -86
1050 -86
1100 -87
1200 -87
1300 -87
1400 -87
1500 -87
1600 -86
1700 -86
1800 -85
1900 -85
2000 -85
2100 -85
2150 -83
The stronger signal <20dBm
RF level :-45dBm
CN :11.4dBm
