TBS5990 DVB-S2 Dual Tuner Dual CI USB Box


TBS5990 DVB-S2 Dual Tuner Dual CI USB Box

  • Model: TBS5990
  • Weight: 550.00g

Discontinued

Successor

TBS5990 QBOX CI DVB-S2 TV Tuner USB is a dual tuner digital satellite TV external box with integrated dual CI slots for watching and recording digital satellite TV on PC. Its use USB connection to connect with laptop or desk PC , it can be used for watching and recoding Free to Air TV programmer and Pay TV programmer as well. inserting the correct CAM and subscription smartcard into the CI slot can encrypt pay TV programmer.

So you may use one tuner to watch one digital satellite TV channel while using the other tuner to watch/recode another pay TV channel from another transponder/satellite at same time. Both Windows BDA driver and Linux driver up to the latest kernel are provided.The unique TBS MCE tool makes it possible to read CAM/Smartcard on Windows7 Media Center, thus your satellite subscription TV can be watched/recorded on Windows7 Media Center. On Linux platform, you can also watch paytv by using correct software.

TBS5990 QBOX CI DVB-S2 TV Tuner USB is compatible with Windows7 Media Center, MediaPortal, DVBlink, DVBDream, DVBViewer, ProgDVB, Skynet, TSreader, XBMC, MythTV, VDR and many other popular software.

Main Feature:

  • Watch satellite TV & listen to radio on PC
  • Recode satellite TV programmer on PC
  • Connect PC with USB
  • DVB-S2/DVB-S SD or HD TV receiving
  • Real time and scheduled program recording (PVR)
  • Time shifting to pause live TV
  • Unicable/one cable compatible
  • Common interface support
  • Blindscan support
  • High reliability

Specification:

  • Input level: -69~-23dBm
  • Two DVB-S2/DVB-S DIRECTV 8PSK QPSK demodulator
  • Dual CI Slot
  • Symbol rate:
  • DVB-S QPSK 1~45Msps
  • DVB-S2 QPSK/8PSK 1~45Msps
  • Carrier Capture Range: ±10MHz
  • 8PSK Puncture codes: 3/5,2/3,3/4,5/6,8/9,9/10
  • QPSK Puncture codes: 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10.
  • Support data burst & tone burst
  • Support DiSEqC2.X and motor
  • Standard profile TV Card Size: 12.5 x 8cm (Length x Height)
  • TV Card Weight: 195 Gram
  • Package Gift Box Size: 207.5 x174 x 55MM mm (Length x Width x Height)
  • Package Gift Box Weight: 680Gram

System Requirements:

  • Windows 2000/XP/Vista/7/8/10 or Linux
  • DirectX9.0 or later Version
  • Available USB2.0 Port
  • Satellite dish and LNB
  • For DVB-S:
    • 1GHz CPU or above
    • 256MB RAM or above
    • Graphic card with at least 16MB RAM
  • For DVB-S2 HDTV:
    • Dualcore CPU
    • 1GB RAM or above
    • Graphic card with at least 64MB RAM

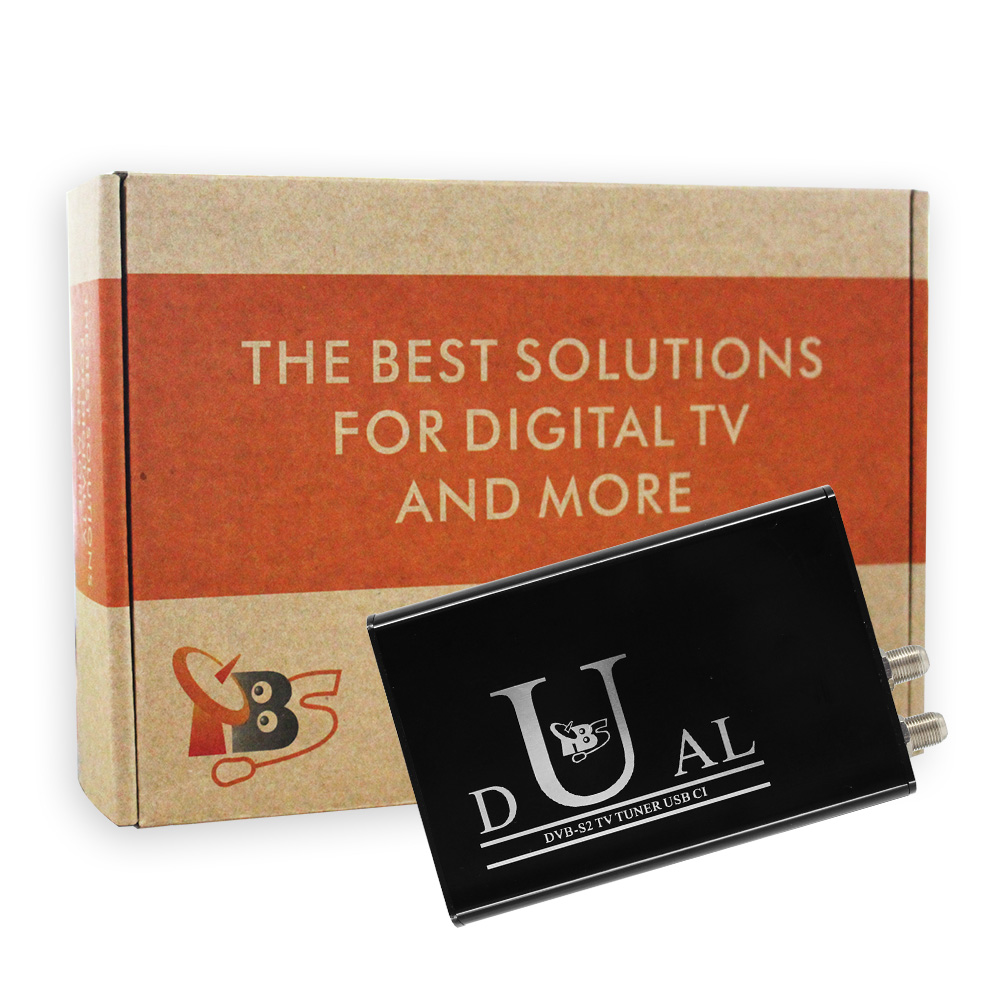

Package Contents:

  • 1 x TBS5990
  • 1 x Power adapter
  • 1 x USB Cable
  • 1 x AC line
